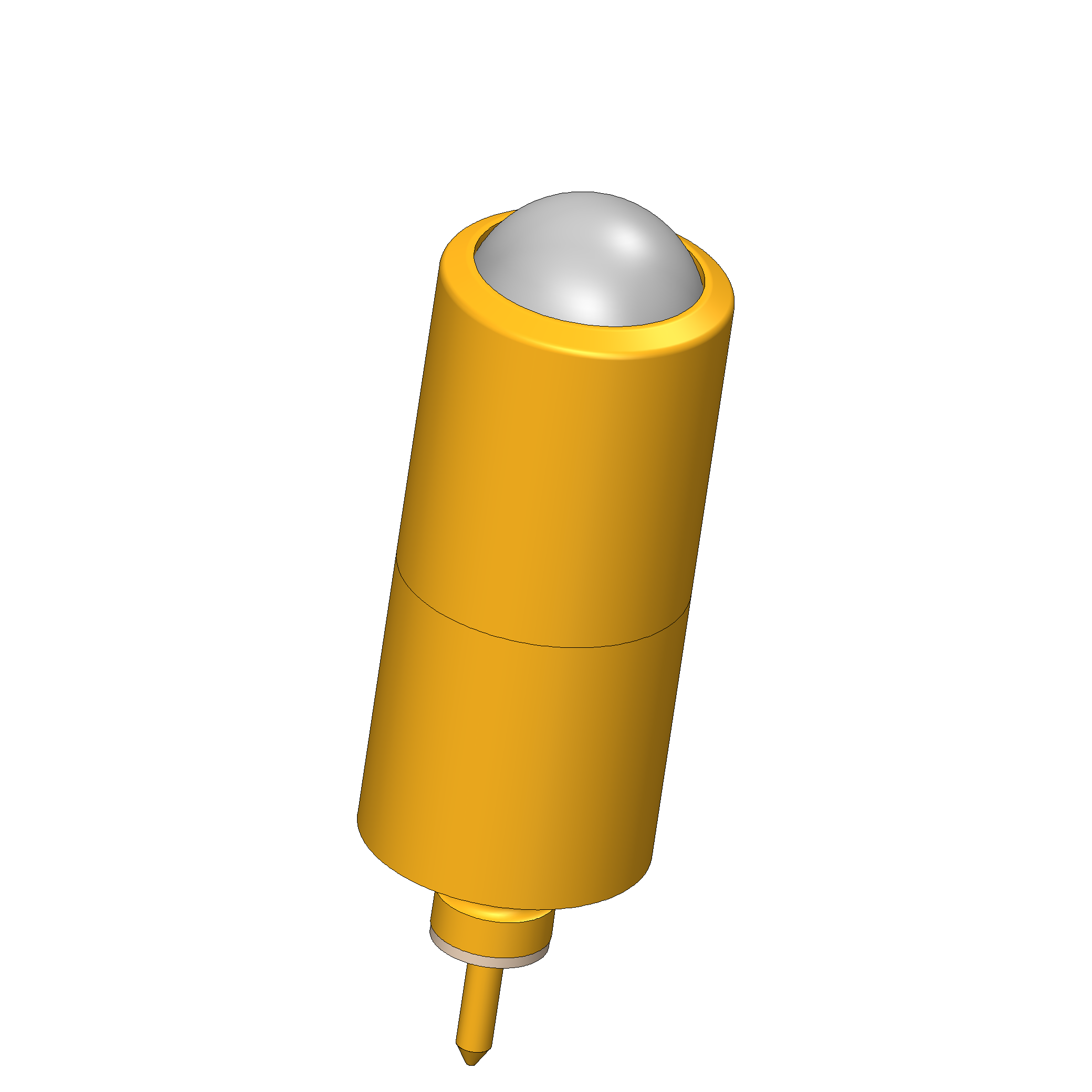

Product information "SKS-499 405 500 U 1000 S05 G"
- The SKS-499 switching probes are designed for detection test of plugs in test modules from the side
- SKS probes are activated by a ball and are resistant to side forces
- Particularly suitable for limited working spaces in 256 Mil grids
- In the SKS-499 405 500 U 1000 S05 G version, the ball is electrically isolated from the connection pin, meaning a potential-free contact to the DUT is made.
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 6 mm [.236 in] |
| Collar height: | 00 |
| Contacting from: | Pad, Female connector |
| Current load capacity / rated current: | 5 A |
| Grid: | 6.5 mm [255 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 1.4 mm [.055 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | SKS (pressed-in), Switching probes |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Series: | SKS-499, SKS-499 standard |
| Spring force at switching point: | 0.81 N [2.91 ozf] |
| Spring force at working stroke: | 1 N [3.59 ozf] |
| Spring pre-load: | 0.7 N [2.51 ozf] |
| Sub-product group: | SKS (pressed-in) |
| Switch path: | 0.5 mm [.019 in] |
| Tip diameter: | 5 mm [.196 in] |
| Tip style: | 05 bullet-nosed (full radius) |
| Tip style material: | 4 stainless steel |
| Tip style surface: | U unplated |
| Total length: | 19.9 mm [.783 in] |
| Working stroke: | 1.2 mm [.047 in] |
Login
Product Details
- The SKS-499 switching probes are designed for detection test of plugs in test modules from the side
- SKS probes are activated by a ball and are resistant to side forces
- Particularly suitable for limited working spaces in 256 Mil grids
- In the SKS-499 405 500 U 1000 S05 G version, the ball is electrically isolated from the connection pin, meaning a potential-free contact to the DUT is made.
Other products in this series:
Technical data
General data
- Product group: Switching probes
- Product group: SKS (pressed-in)
- Sub-product group: SKS (pressed-in)
- Series: SKS-499
- Series: SKS-499 standard
- Grid: 6.5 mm [255 mil]
- Contacting from: Female connector
- Contacting from: Pad
- Magnetic: Yes
- Installation type: Plug-in
- Quick-exchange system: No
- Adjustable installation height: No
- Non-rotating: No
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes

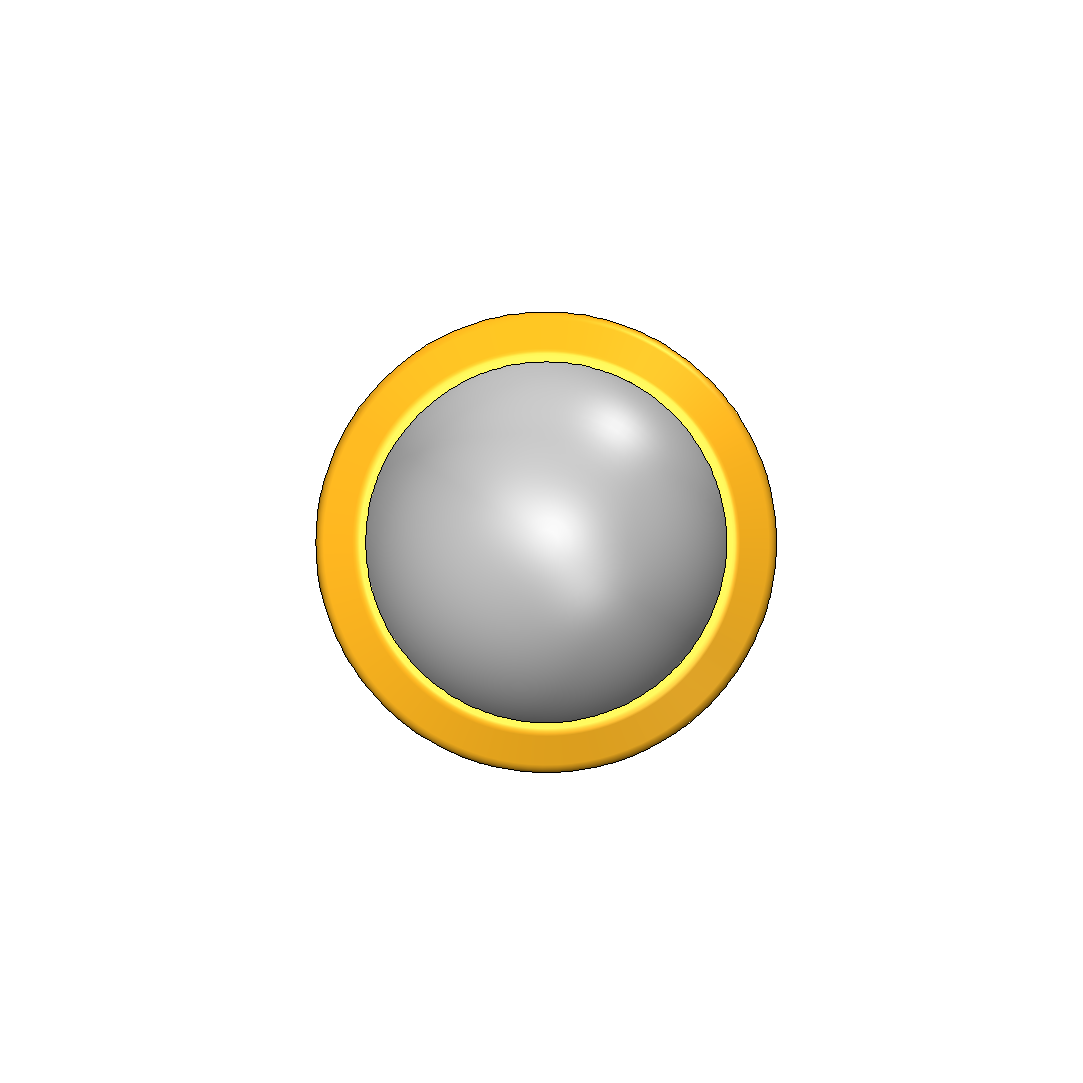

Tip style data

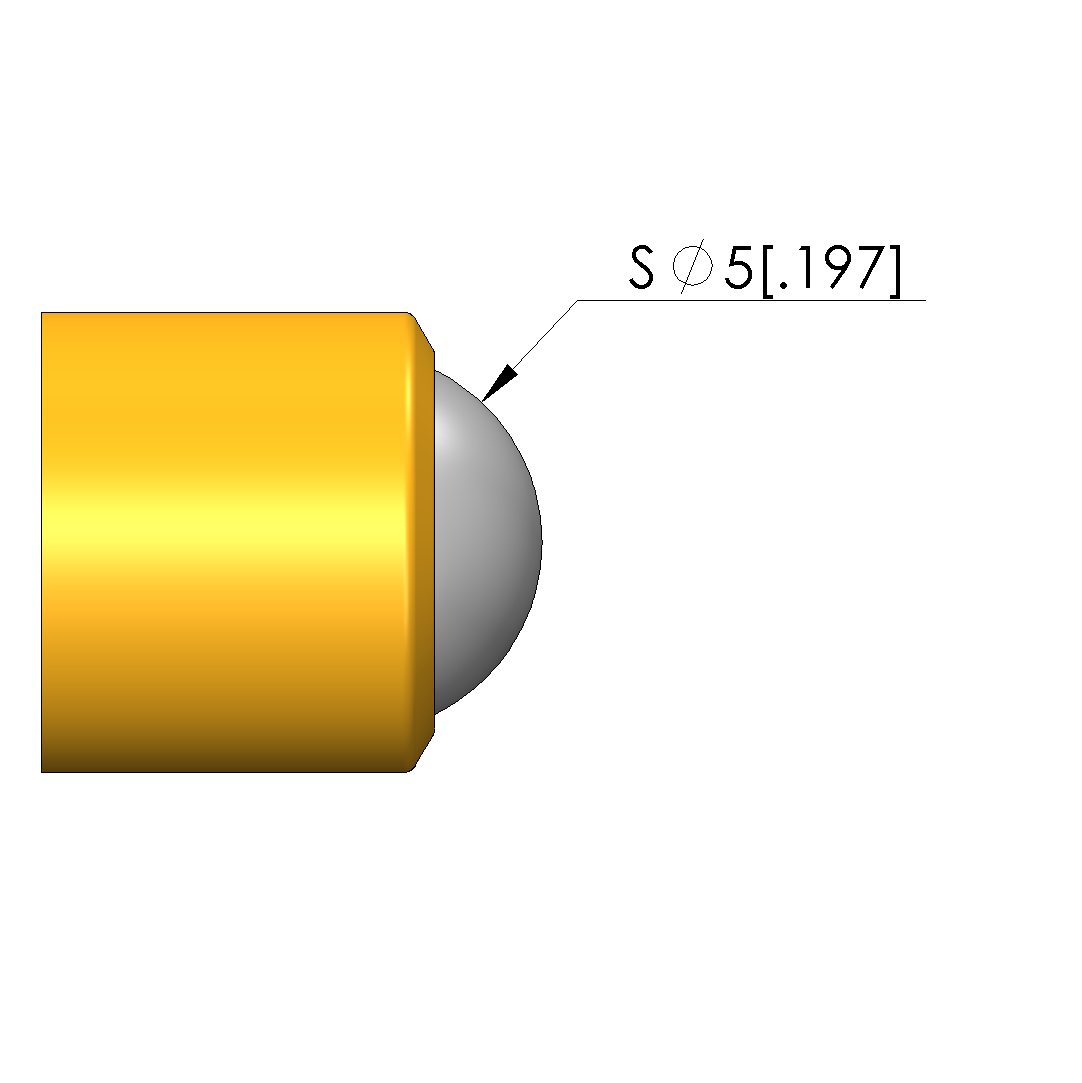

- Tip style: 05 bullet-nosed (full radius)
- Tip diameter: 5 mm [.196 in]
- Tip style surface: U unplated
- Tip style material: 4 stainless steel
Mechanical data

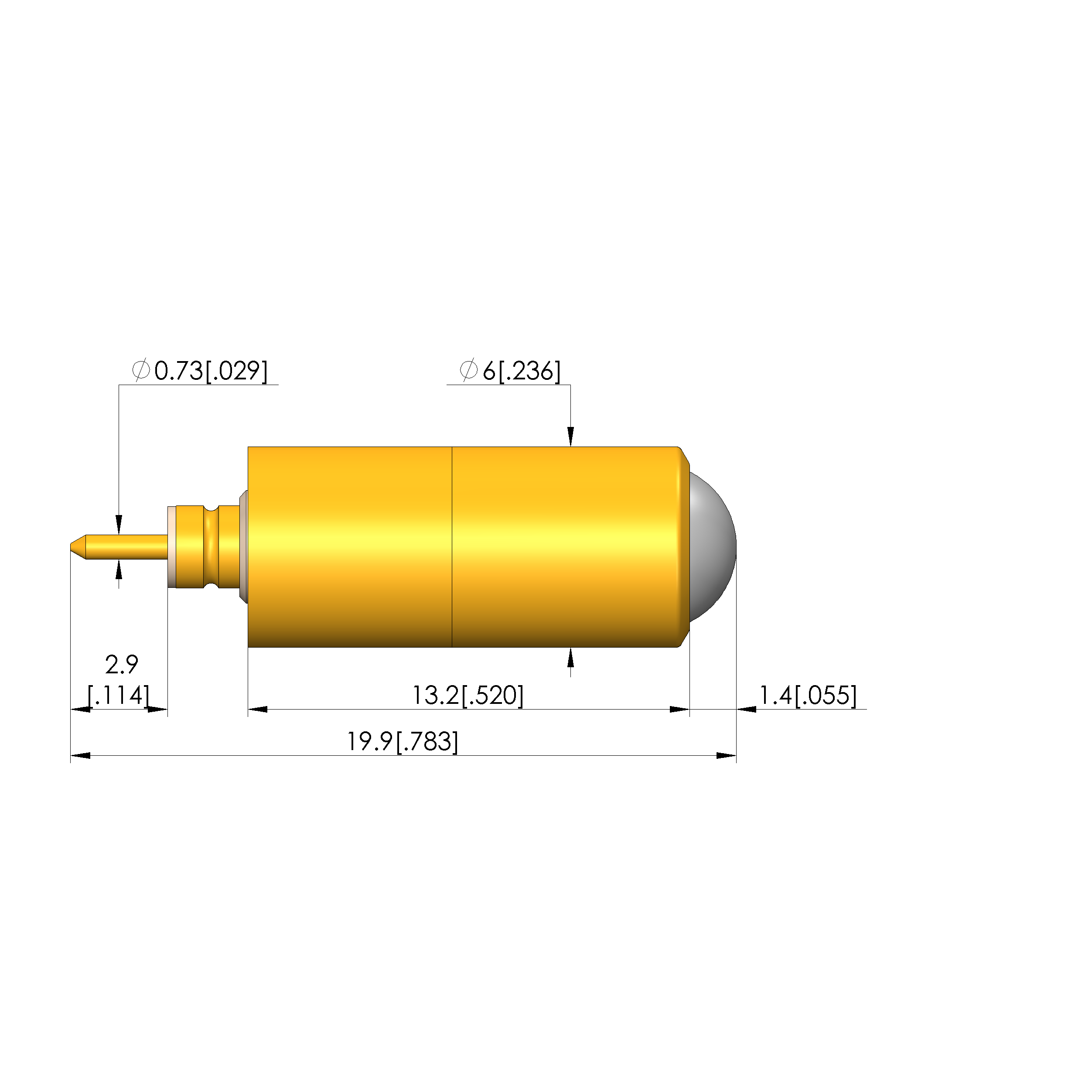

- Total length: 19.9 mm [.783 in]
- Barrel diameter: 6 mm [.236 in]
- Maximum stroke: 1.4 mm [.055 in]
- Spring pre-load: 0.7 N [2.51 ozf]
- Collar height: 00
- Spring force at working stroke: 1 N [3.59 ozf]
- Switch path: 0.5 mm [.019 in]
- Spring force at switching point: 0.81 N [2.91 ozf]
- Working stroke: 1.2 mm [.047 in]
Electrical data
- Current load capacity / rated current: 5 A
