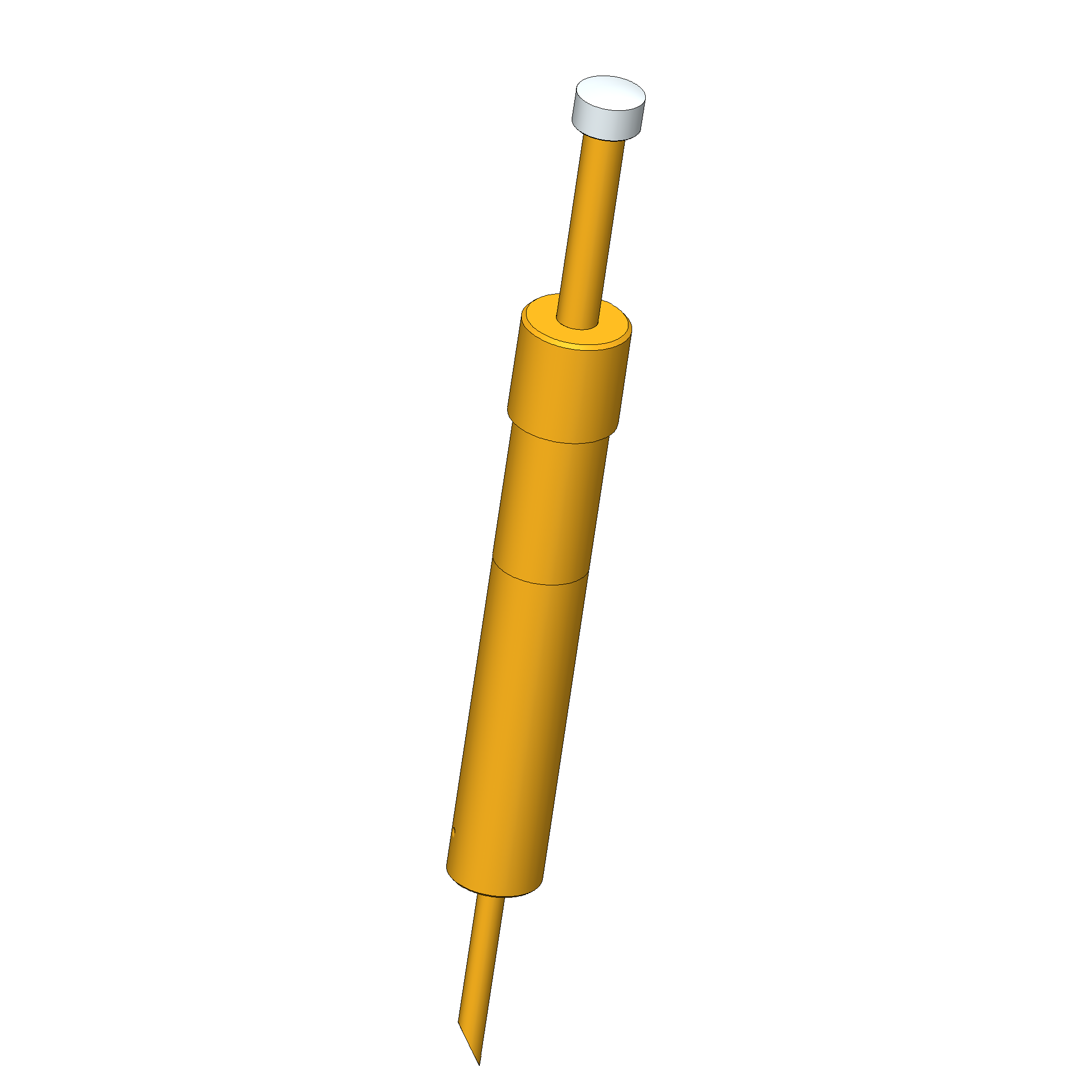

Product information "SKS-429 005 500 A 8008"
- For a wide range of applications: performs components detection check, is a switch for detecting closed/open states, and a signal transmitter for process control
- The electrical connection is ensured by installation using a receptacle
- Designed as normally open (NO), i.e. The circuit is closed when actuated
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 7 mm [.275 in] |
| Collar height: | 08 |
| Compatible receptacle(s): | KS-429 |
| Contacting from: | Presence check |
| Current load capacity / rated current: | 5 A |
| Grid: | 10 mm [393 mil] |
| Installation type: | Plug-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 16 mm [.629 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | SKS (pressed-in), Switching probes |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Series: | SKS-429 |
| Spring force at switching point: | 2.9 N [10.4 ozf] |
| Spring force at working stroke: | 8 N [28.7 ozf] |
| Spring pre-load: | 2.23 N [8.02 ozf] |
| Sub-product group: | SKS (pressed-in) |
| Switching point: | 25.1 mm [.988 in] |
| Switch path: | 2 mm [.078 in] |

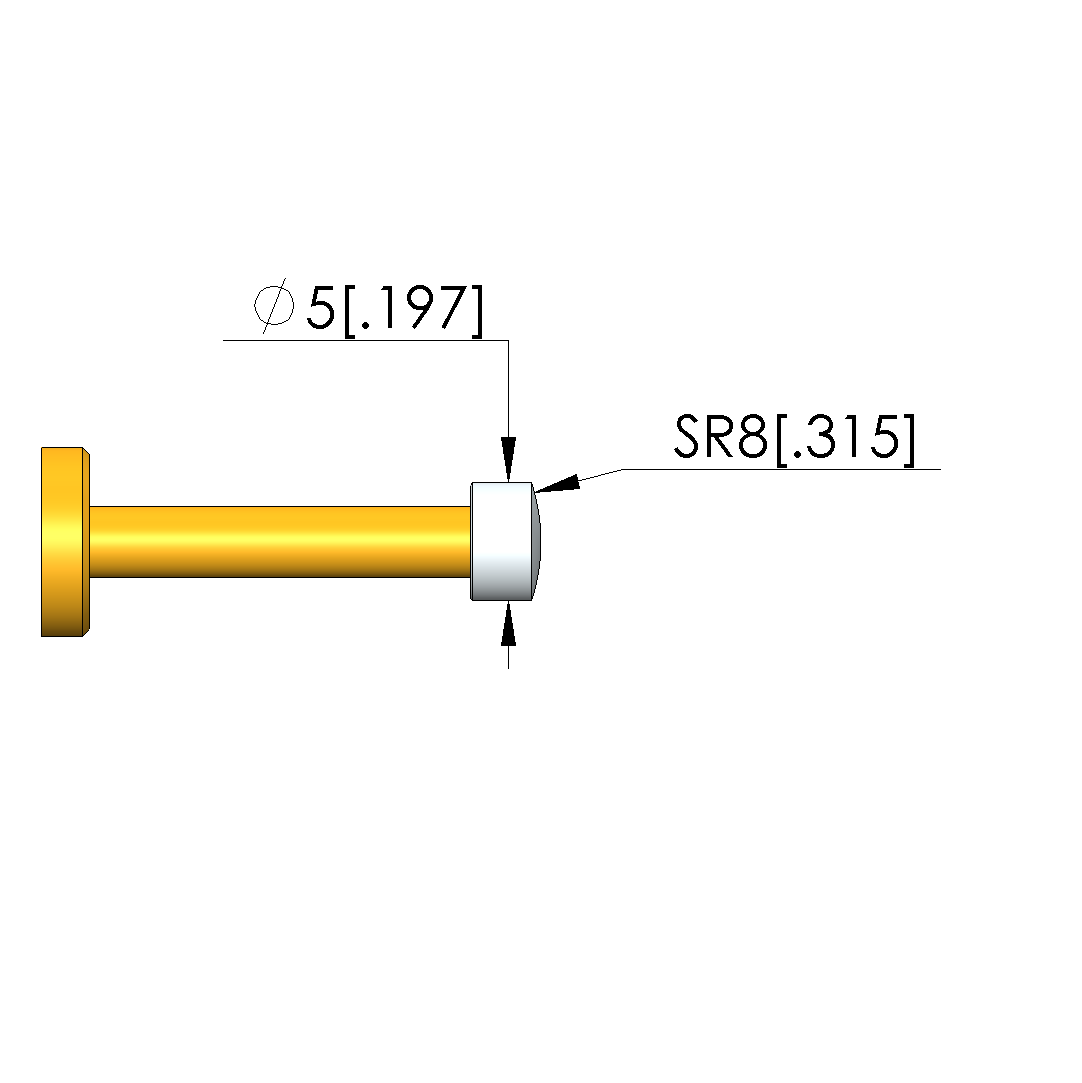

| Tip diameter: | 5 mm [.196 in] |

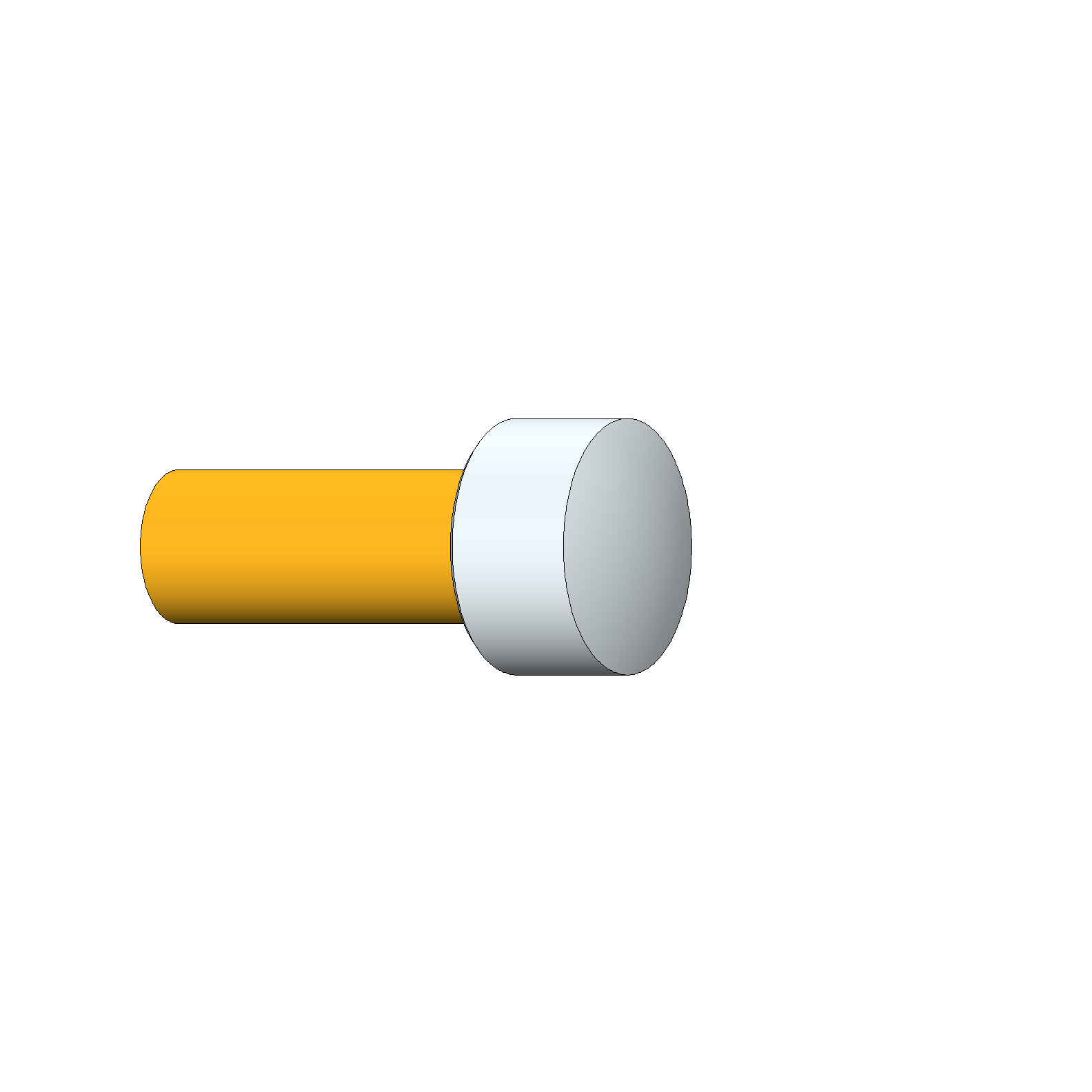

| Tip style: | 005 round, contact surface insulated |
| Tip style material: | 0 plastic |
| Tip style surface: | A gold |

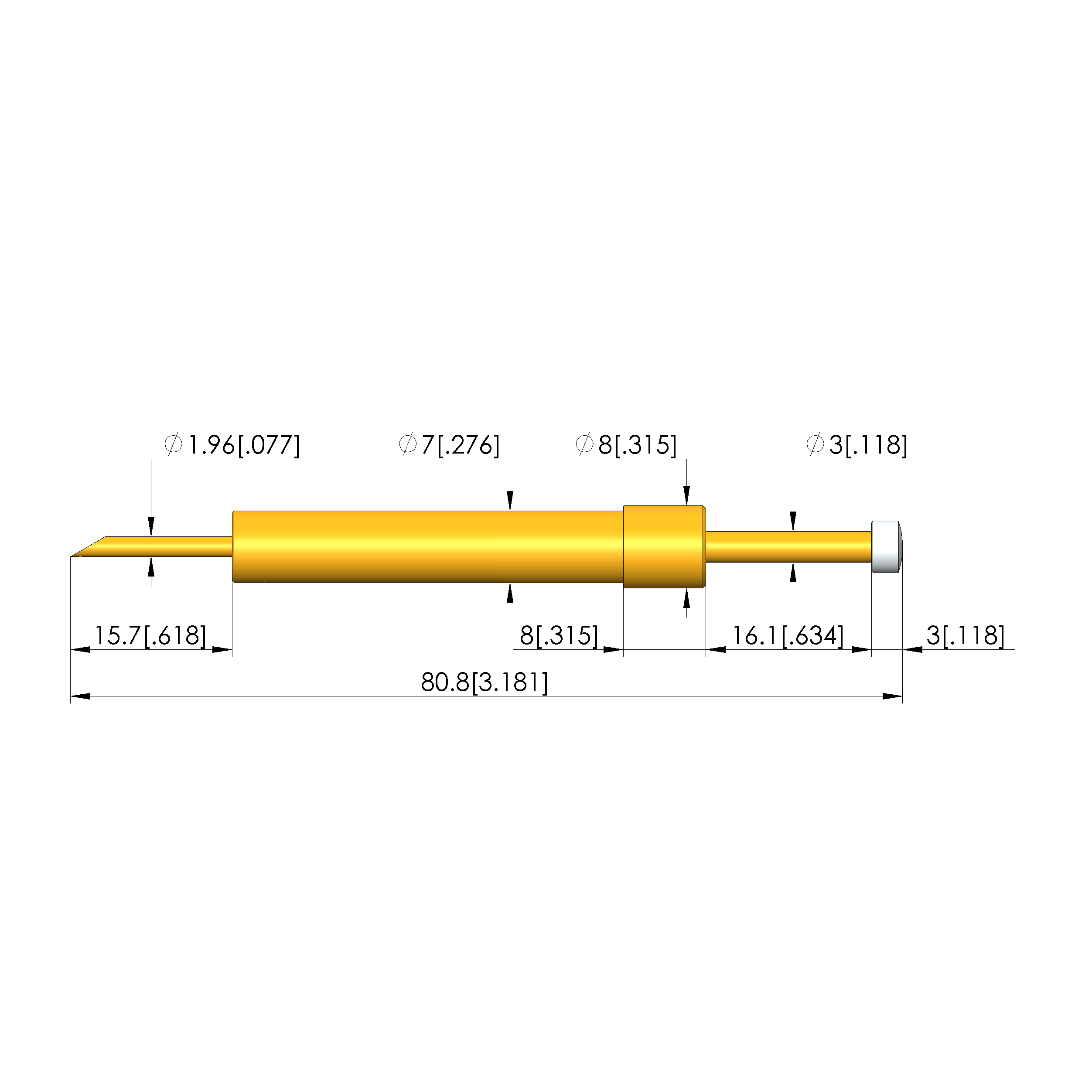

| Total length: | 80.8 mm [3.18 in] |
| Working stroke: | 12.8 mm [.503 in] |
Login
Product Details
- For a wide range of applications: performs components detection check, is a switch for detecting closed/open states, and a signal transmitter for process control
- The electrical connection is ensured by installation using a receptacle
- Designed as normally open (NO), i.e. The circuit is closed when actuated
Other products in this series:
Technical data
General data
- Product group: Switching probes
- Product group: SKS (pressed-in)
- Sub-product group: SKS (pressed-in)
- Series: SKS-429
- Grid: 10 mm [393 mil]
- Contacting from: Presence check
- Magnetic: Yes
- Installation type: Plug-in
- Quick-exchange system: No
- Adjustable installation height: No
- Non-rotating: No
- Compatible receptacle(s): KS-429
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Mechanical data
- Total length: 80.8 mm [3.18 in]
- Barrel diameter: 7 mm [.275 in]
- Maximum stroke: 16 mm [.629 in]
- Spring pre-load: 2.23 N [8.02 ozf]
- Collar height: 08
- Spring force at working stroke: 8 N [28.7 ozf]
- Switch path: 2 mm [.078 in]
- Switching point: 25.1 mm [.988 in]
- Working stroke: 12.8 mm [.503 in]
- Spring force at switching point: 2.9 N [10.4 ozf]
Tip style data
- Tip style: 005 round, contact surface insulated
- Tip diameter: 5 mm [.196 in]
- Tip style surface: A gold
- Tip style material: 0 plastic
Electrical data
- Current load capacity / rated current: 5 A
