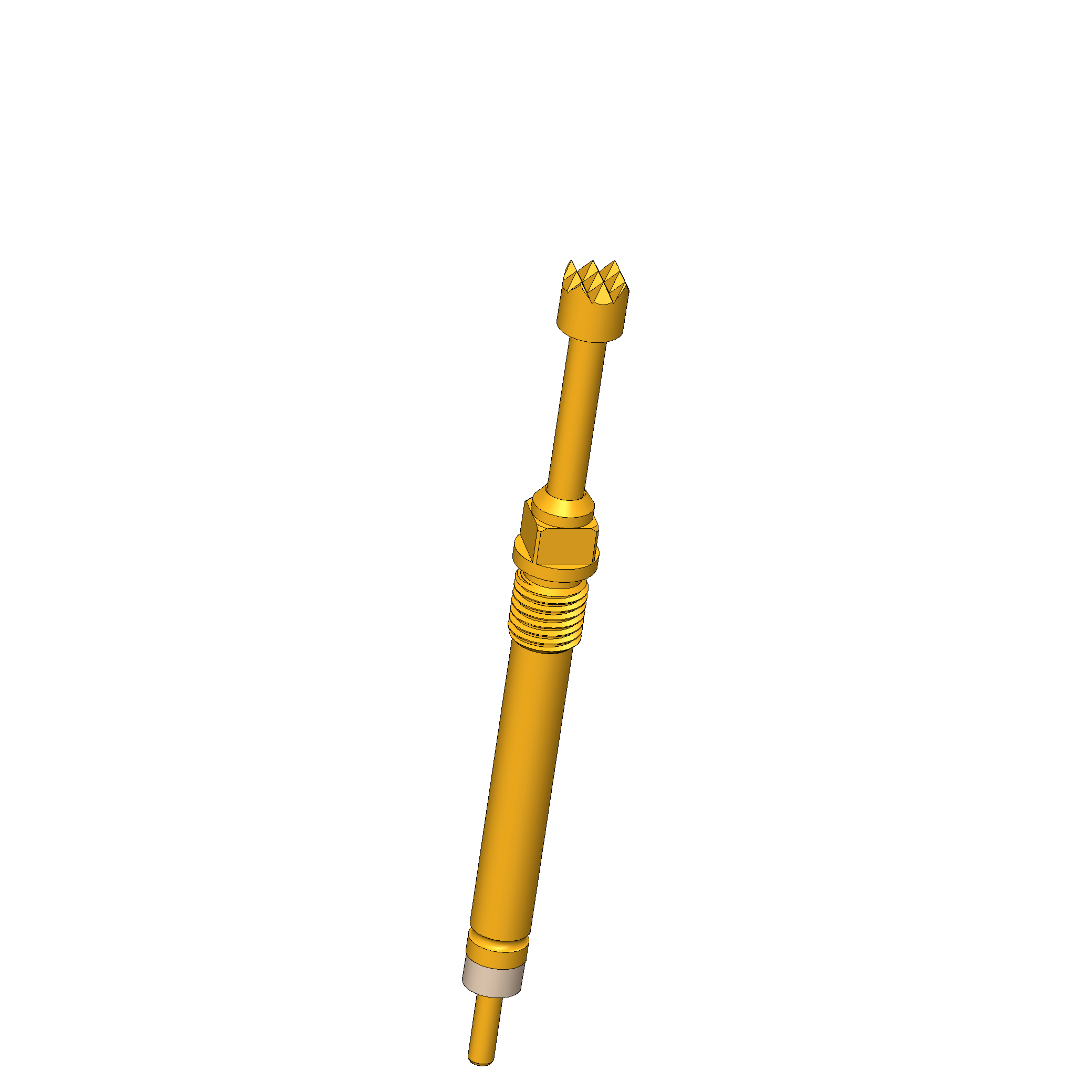

Product information "SKS-402 306 180 A 2002 MO"
| Adjustable installation height: | Yes |
|---|---|
| Barrel diameter: | 1.65 mm [.064 in] |
| Collar height: | 02 |
| Compatible receptacle(s): | no name |
| Contacting from: | Flat contact, Post, Pin |
| Current load capacity / rated current: | 3 A |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 5 mm [.196 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | SKS (screwed-in), Switching probes |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Screw-in torque: | 3 – 5 cNm [.265 – .442 lbf·in] |
| Screw-in torque max.: | 5 cNm [.442 lbf·in] |
| Screw-in torque min.: | 3 cNm [.265 lbf·in] |
| Series: | SKS-402, SKS-402 MO screw-in |
| Spring force at switching point: | 1.5 N [5.39 ozf] |
| Spring force at working stroke: | 2 N [7.19 ozf] |
| Spring pre-load: | 0.5 N [1.79 ozf] |
| Sub-product group: | SKS (screwed-in) |
| Switching point: | 6.4 mm [.251 in] |
| Switch path: | 2.6 mm [.102 in] |
| Tip diameter: | 1.8 mm [.07 in] |
| Tip style: | 06 serrated |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 24.5 mm [.964 in] |
| Working stroke: | 4 mm [.157 in] |
Login
Other products in this series:
Technical data

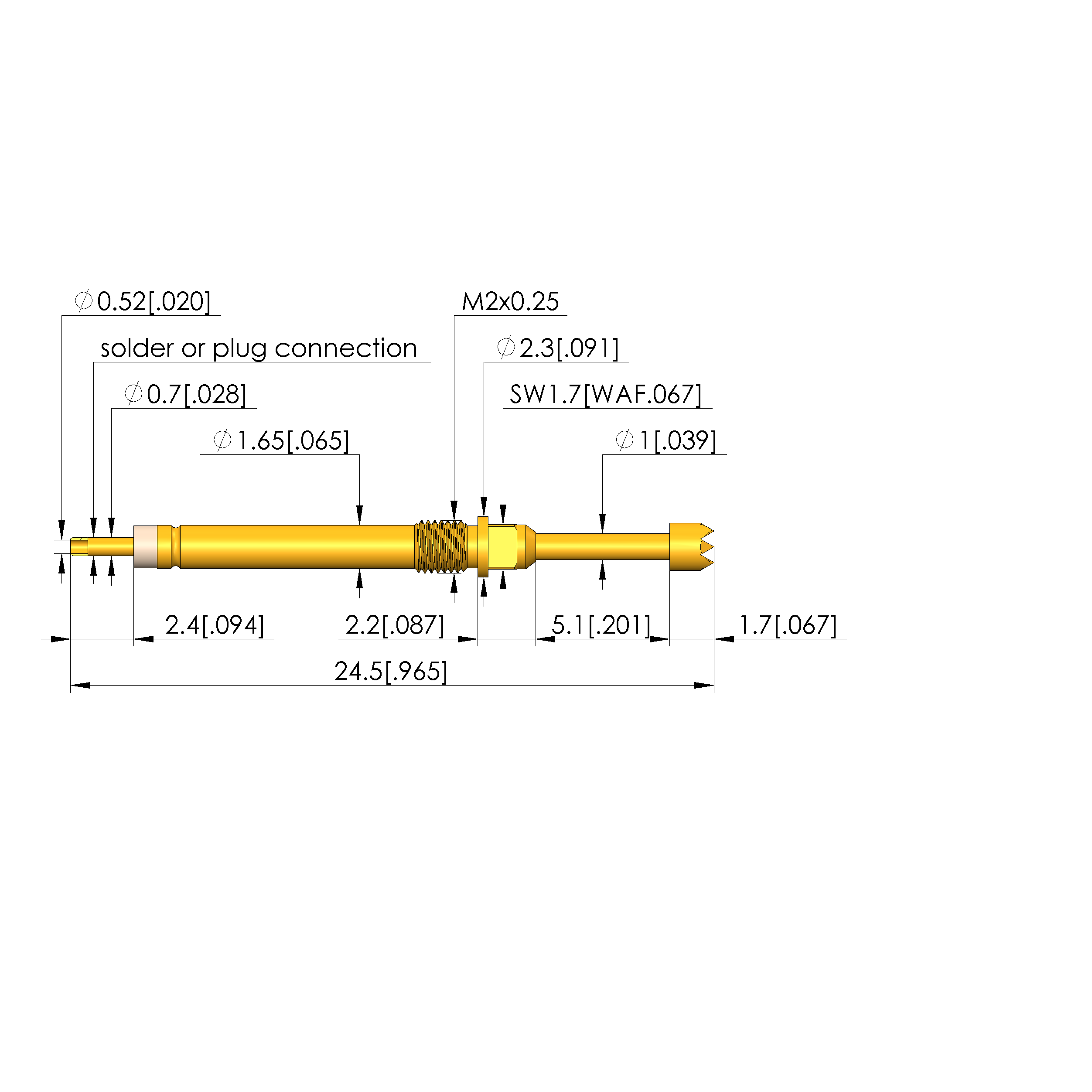

Mechanical data
- Total length: 24.5 mm [.964 in]
- Barrel diameter: 1.65 mm [.064 in]
- Maximum stroke: 5 mm [.196 in]
- Spring pre-load: 0.5 N [1.79 ozf]
- Collar height: 02
- Spring force at working stroke: 2 N [7.19 ozf]
- Switch path: 2.6 mm [.102 in]
- Switching point: 6.4 mm [.251 in]
- Spring force at switching point: 1.5 N [5.39 ozf]
- Working stroke: 4 mm [.157 in]
Tip style data

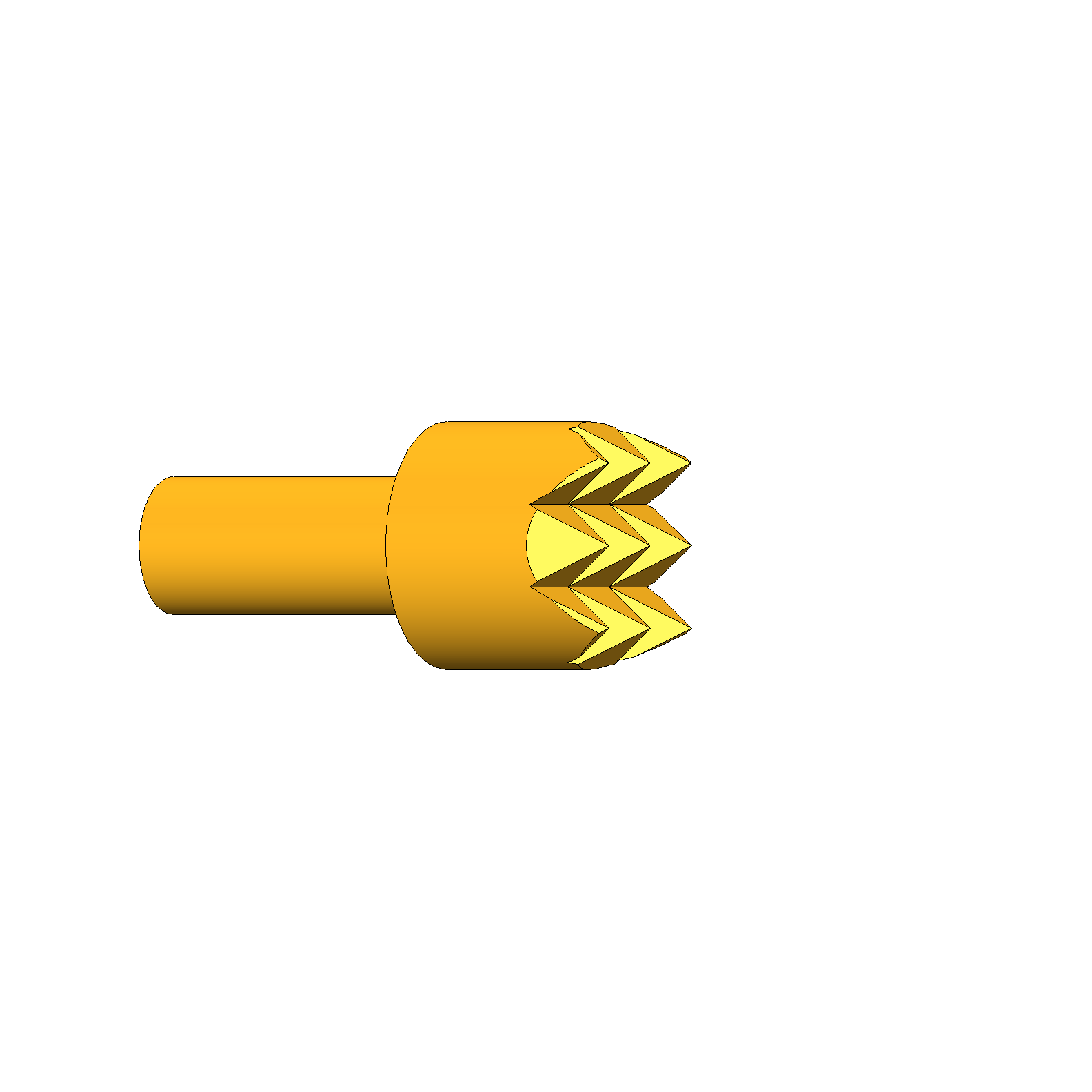

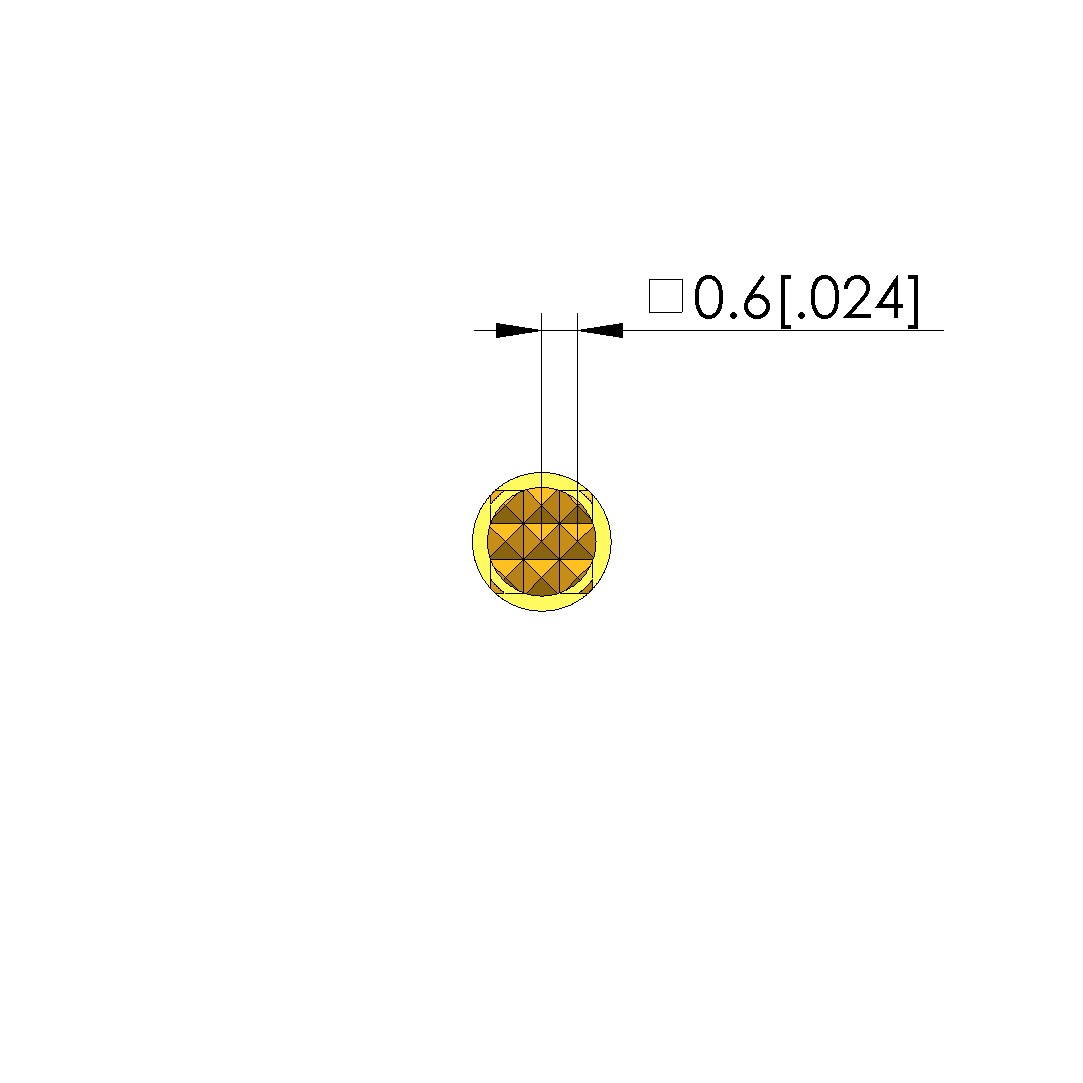

- Tip style: 06 serrated

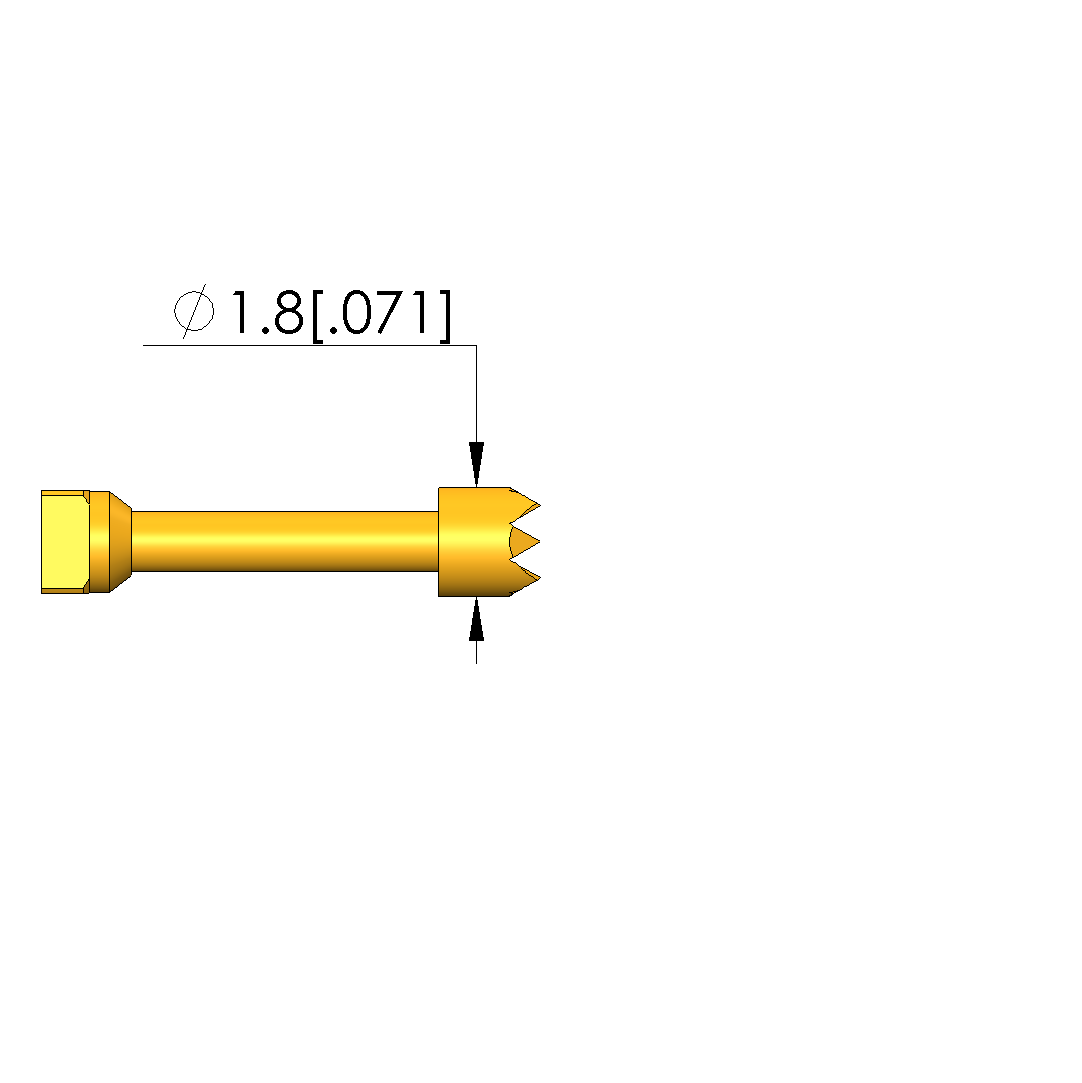

- Tip diameter: 1.8 mm [.07 in]
- Tip style surface: A gold
- Tip style material: 3 CuBe
Electrical data
- Current load capacity / rated current: 3 A
General data
- Screw-in torque max.: 5 cNm [.442 lbf·in]
- Screw-in torque min.: 3 cNm [.265 lbf·in]
- Product group: Switching probes
- Product group: SKS (screwed-in)
- Sub-product group: SKS (screwed-in)
- Series: SKS-402 MO screw-in
- Series: SKS-402
- Grid: 2.54 mm [100 mil]
- Contacting from: Pin
- Contacting from: Flat contact
- Contacting from: Post
- Magnetic: Yes
- Installation type: Screw-in
- Quick-exchange system: Yes
- Adjustable installation height: Yes
- Non-rotating: No
- Screw-in torque: 3 – 5 cNm [.265 – .442 lbf·in]
- Compatible receptacle(s): no name
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
