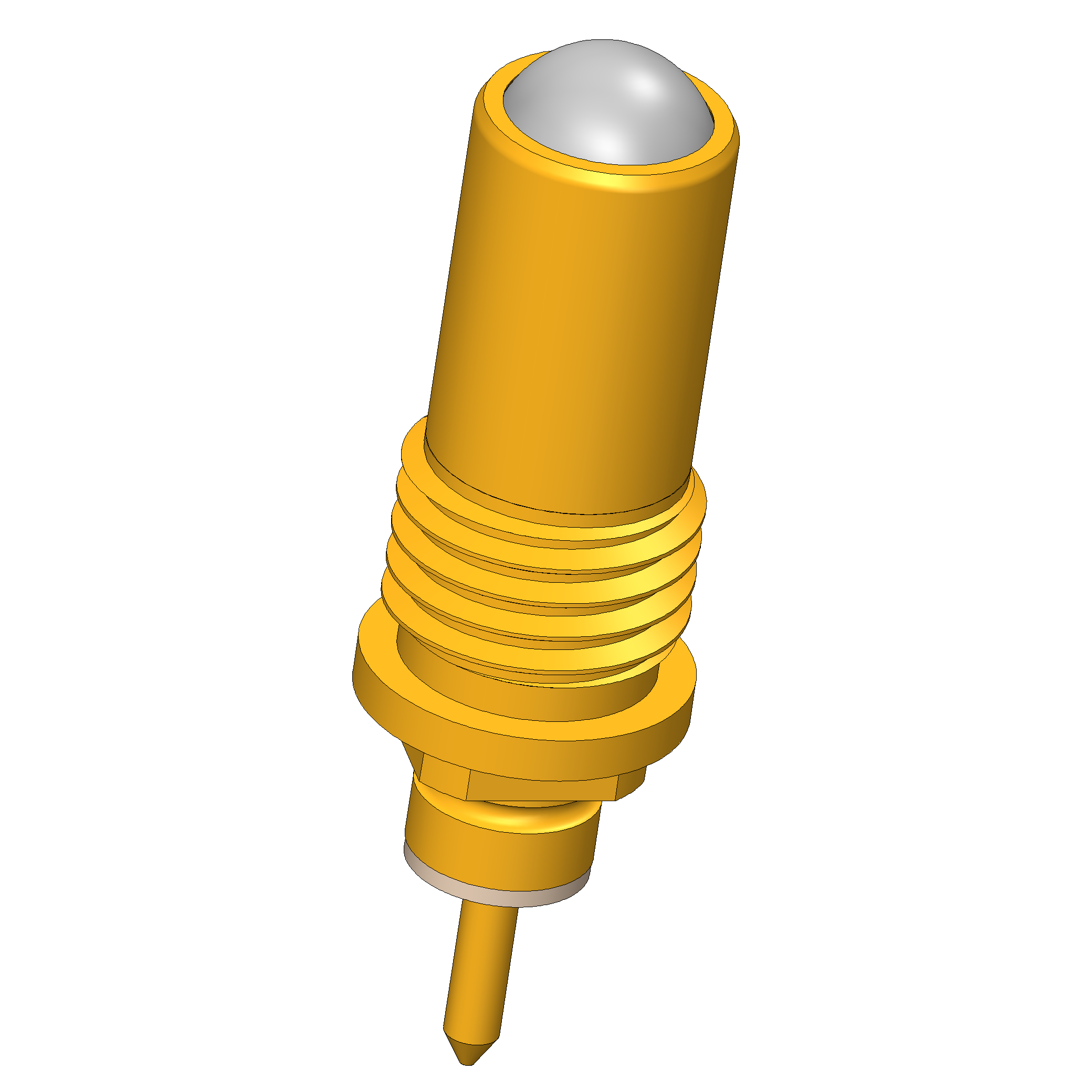

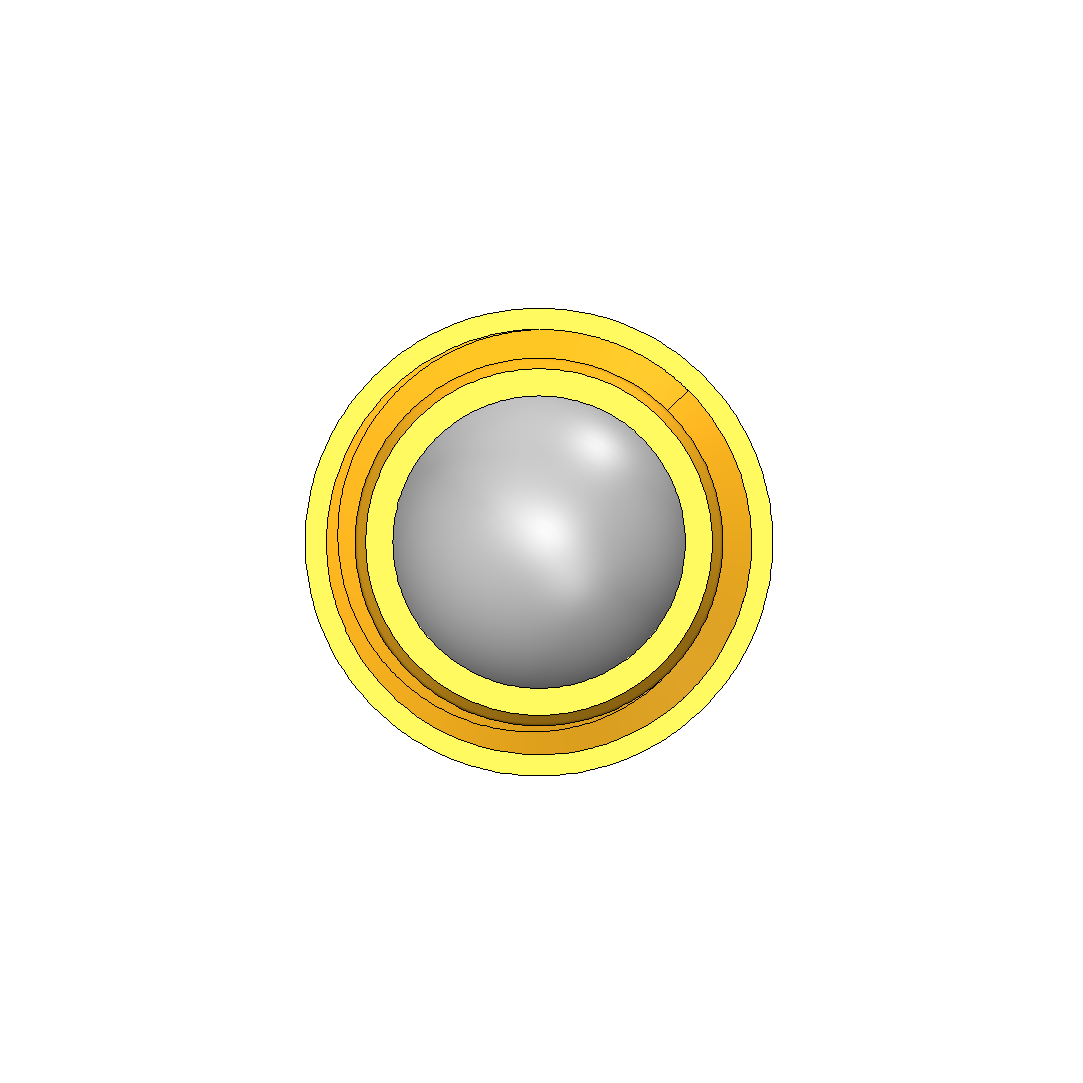

Product information "SKS-339 405 300 U 1301 M"
- Switching probe for detection test of plugs in test modules from the side
- Especially suitable for applications with limited space
- The switching test probe is activated by a ball and is resistant to side forces
- The ball can transmit an electrical signal (not galvanically isolated from the connection pin)
| Adjustable installation height: | Yes |
|---|---|
| Barrel diameter: | 3.46 mm [.136 in] |
| Collar height: | 01 |
| Compatible receptacle(s): | no name |
| Contacting from: | Pad, Female connector |
| Current load capacity / rated current: | 10 A |
| Grid: | 5.5 mm [216 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 0.85 mm [.033 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | SKS (screwed-in), Switching probes |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Screw-in torque: | 10 – 20 cNm [.885 – 1.77 lbf·in] |
| Screw-in torque max.: | 20 cNm [1.77 lbf·in] |
| Screw-in torque min.: | 10 cNm [.885 lbf·in] |
| Series: | SKS-339, SKS-339 M standard |
| Spring force at switching point: | 1.1 N [3.95 ozf] |
| Spring force at working stroke: | 1.3 N [4.67 ozf] |
| Spring pre-load: | 0.93 N [3.34 ozf] |
| Sub-product group: | SKS (screwed-in) |
| Switching point: | 8.6 mm [.338 in] |
| Switch path: | 0.35 mm [.013 in] |
| Tip diameter: | 3 mm [.118 in] |
| Tip style: | 05 bullet-nosed (full radius) |
| Tip style material: | 4 stainless steel |
| Tip style surface: | U unplated |
| Total length: | 15 mm [.59 in] |
| Type of test probe connection: | Solder connection |
| Working stroke: | 0.8 mm [.031 in] |
Login
Product Details
- Switching probe for detection test of plugs in test modules from the side
- Especially suitable for applications with limited space
- The switching test probe is activated by a ball and is resistant to side forces
- The ball can transmit an electrical signal (not galvanically isolated from the connection pin)
Other products in this series:
Technical data
General data
- Screw-in torque min.: 10 cNm [.885 lbf·in]
- Screw-in torque max.: 20 cNm [1.77 lbf·in]
- Product group: Switching probes
- Product group: SKS (screwed-in)
- Sub-product group: SKS (screwed-in)
- Series: SKS-339 M standard
- Series: SKS-339
- Grid: 5.5 mm [216 mil]
- Contacting from: Female connector
- Contacting from: Pad
- Magnetic: Yes
- Installation type: Screw-in
- Quick-exchange system: No
- Type of test probe connection: Solder connection
- Adjustable installation height: Yes
- Non-rotating: No
- Screw-in torque: 10 – 20 cNm [.885 – 1.77 lbf·in]
- Compatible receptacle(s): no name
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Tip style data

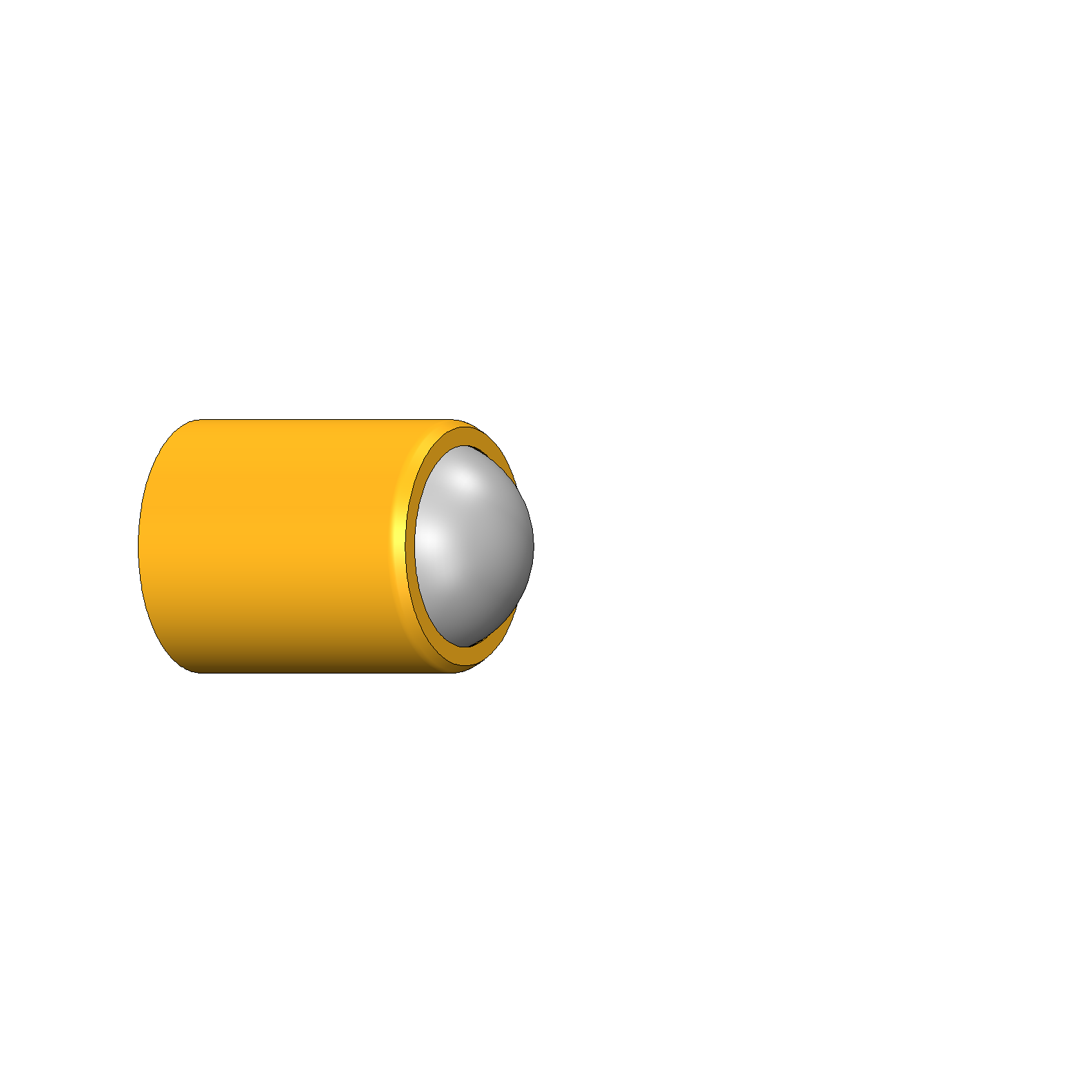

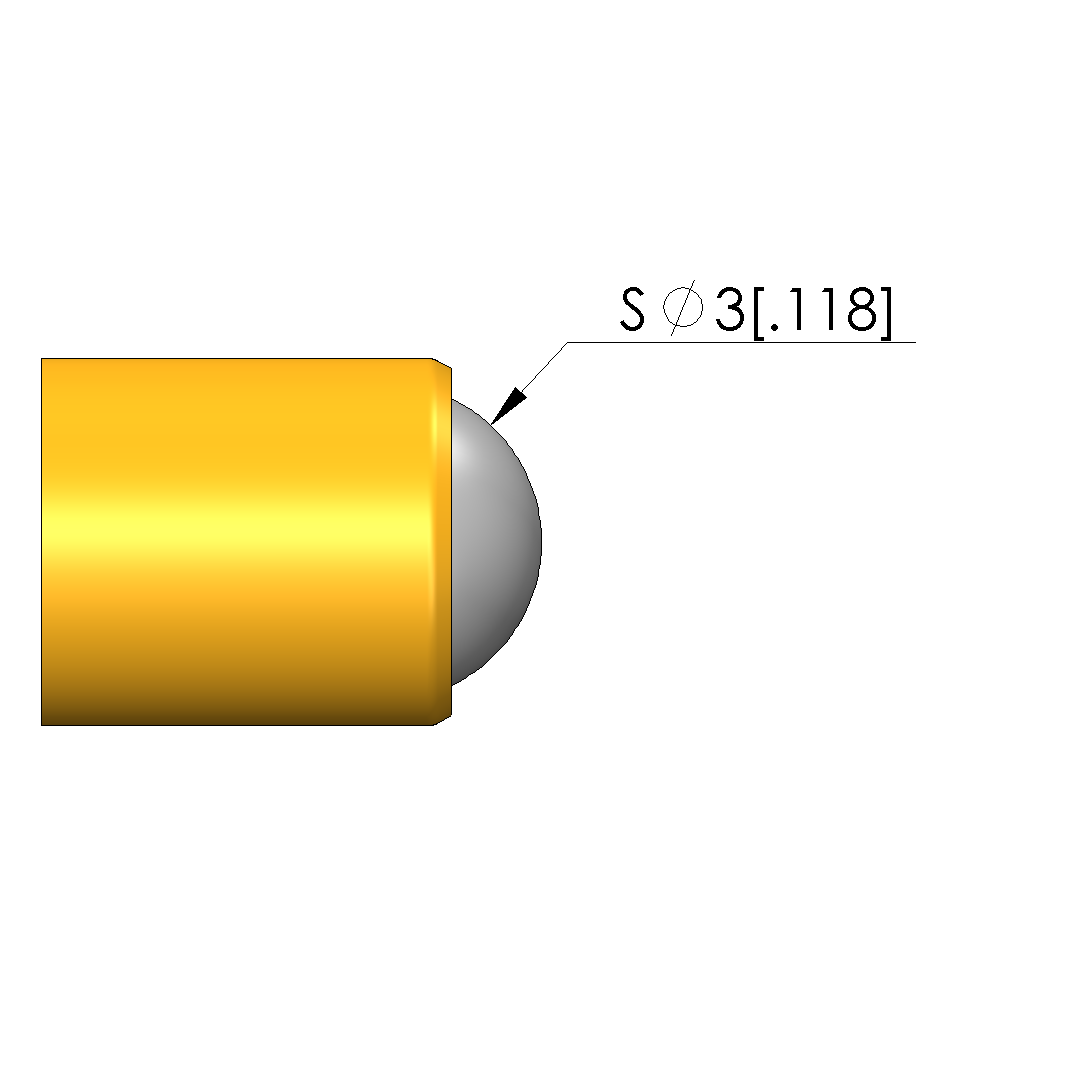

- Tip style: 05 bullet-nosed (full radius)
- Tip diameter: 3 mm [.118 in]
- Tip style surface: U unplated
- Tip style material: 4 stainless steel

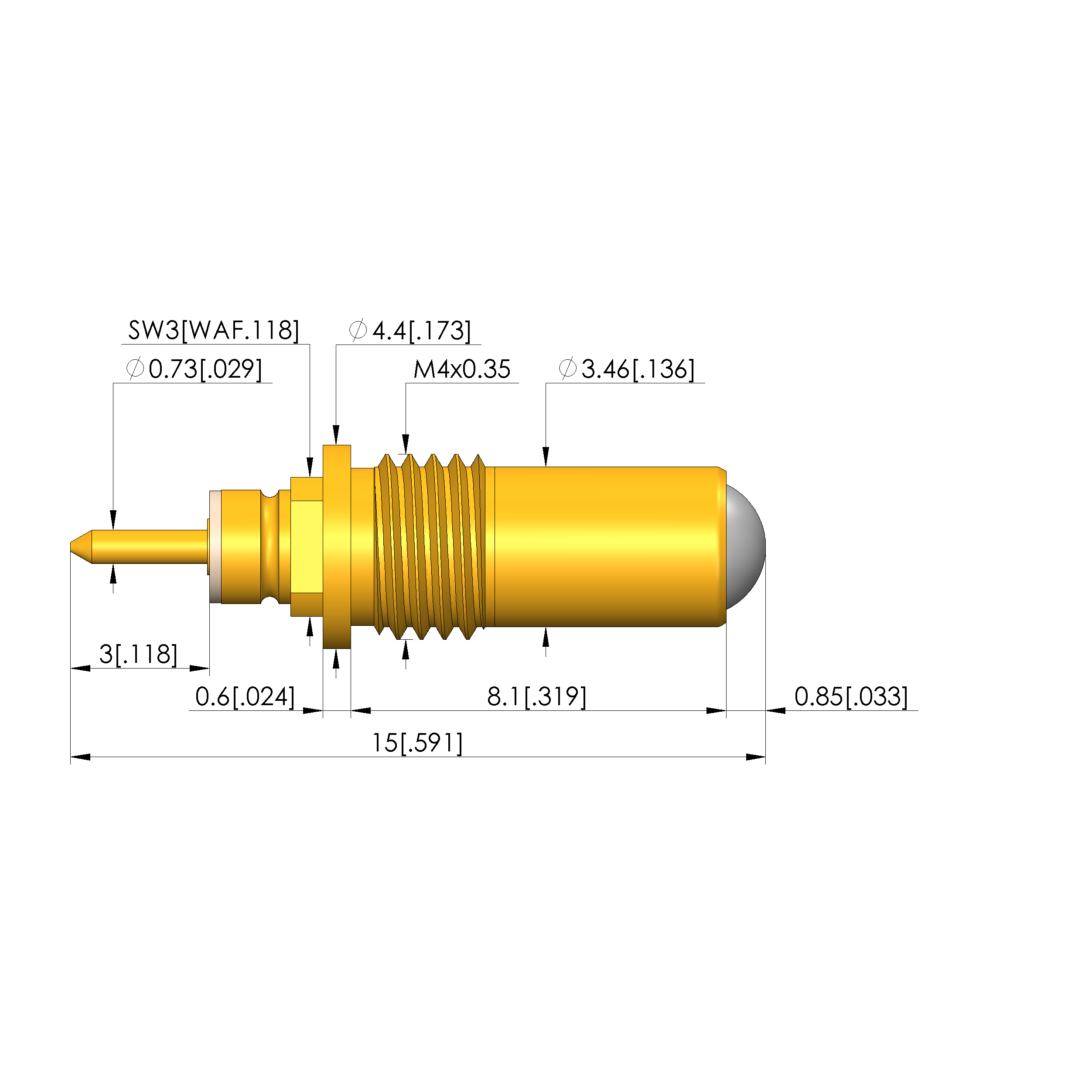

Mechanical data
- Total length: 15 mm [.59 in]
- Barrel diameter: 3.46 mm [.136 in]
- Maximum stroke: 0.85 mm [.033 in]
- Spring pre-load: 0.93 N [3.34 ozf]
- Collar height: 01
- Spring force at working stroke: 1.3 N [4.67 ozf]
- Switch path: 0.35 mm [.013 in]
- Switching point: 8.6 mm [.338 in]
- Spring force at switching point: 1.1 N [3.95 ozf]
- Working stroke: 0.8 mm [.031 in]
Electrical data
- Current load capacity / rated current: 10 A
