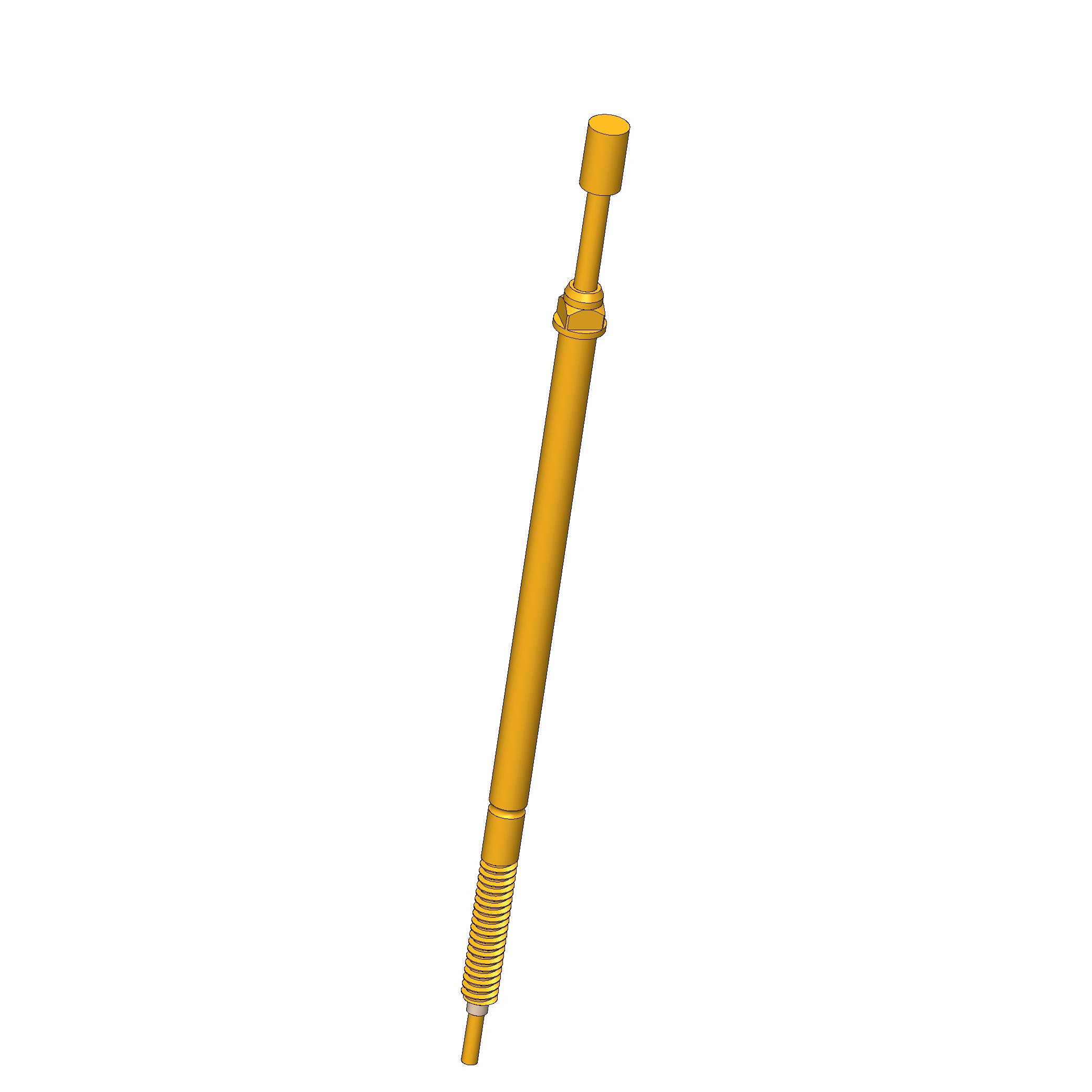

Product information "SKS-215 302 180 A 1502 M"
- For a wide range of applications: performs components detection check, is a switch for detecting closed/open states, and a signal transmitter for process control
- Various collar heights are available on the receptacles to adjust the installation height
- The installation height can be varied, and the position of the switching point can be precisely adjusted via the probe’s thread. The SKS is secured in the correct position by crimp point in the KS.
- The electrical connection is ensured by installation using a receptacle, optionally available with a quick-change system for easy exchange during maintenance
| Adjustable installation height: | Yes |
|---|---|
| Barrel diameter: | 1.65 mm [.064 in] |
| Collar height: | 2 |
| Compatible connector(s): | SE-081 |
| Compatible receptacle(s): | KS-215 M |
| Contacting from: | Bead, Flat contact, Post, Pin |
| Current load capacity / rated current: | 3 A |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 5 mm [.196 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | SKS (screwed-in), Switching probes |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Screw-in torque: | 3 – 5 cNm [.265 – .442 lbf·in] |
| Series: | SKS-215, SKS-215 M plug system, screw-in |
| Spring force at switching point: | 0.45 N [1.61 ozf] |
| Spring force at working stroke: | 1.5 N [5.39 ozf] |
| Spring pre-load: | 0.25 N [.899 ozf] |
| Sub-product group: | SKS (screwed-in) |
| Switching point: | 8.5 mm [.334 in] |
| Switch path: | 1.5 mm [.059 in] |
| Tip diameter: | 1.8 mm [.07 in] |
| Tip style: | 02 flat |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 46.5 mm [1.83 in] |
| Type of test probe connection: | Plug |
| Working stroke: | 4 mm [.157 in] |
Login
Product Details
- For a wide range of applications: performs components detection check, is a switch for detecting closed/open states, and a signal transmitter for process control
- Various collar heights are available on the receptacles to adjust the installation height
- The installation height can be varied, and the position of the switching point can be precisely adjusted via the probe’s thread. The SKS is secured in the correct position by crimp point in the KS.
- The electrical connection is ensured by installation using a receptacle, optionally available with a quick-change system for easy exchange during maintenance
Other products in this series:
Technical data
Electrical data
- Current load capacity / rated current: 3 A
Mechanical data
- Spring force at switching point: 0.45 N [1.61 ozf]
- Spring force at working stroke: 1.5 N [5.39 ozf]
- Collar height: 2
- Barrel diameter: 1.65 mm [.064 in]
- Spring pre-load: 0.25 N [.899 ozf]
- Switch path: 1.5 mm [.059 in]

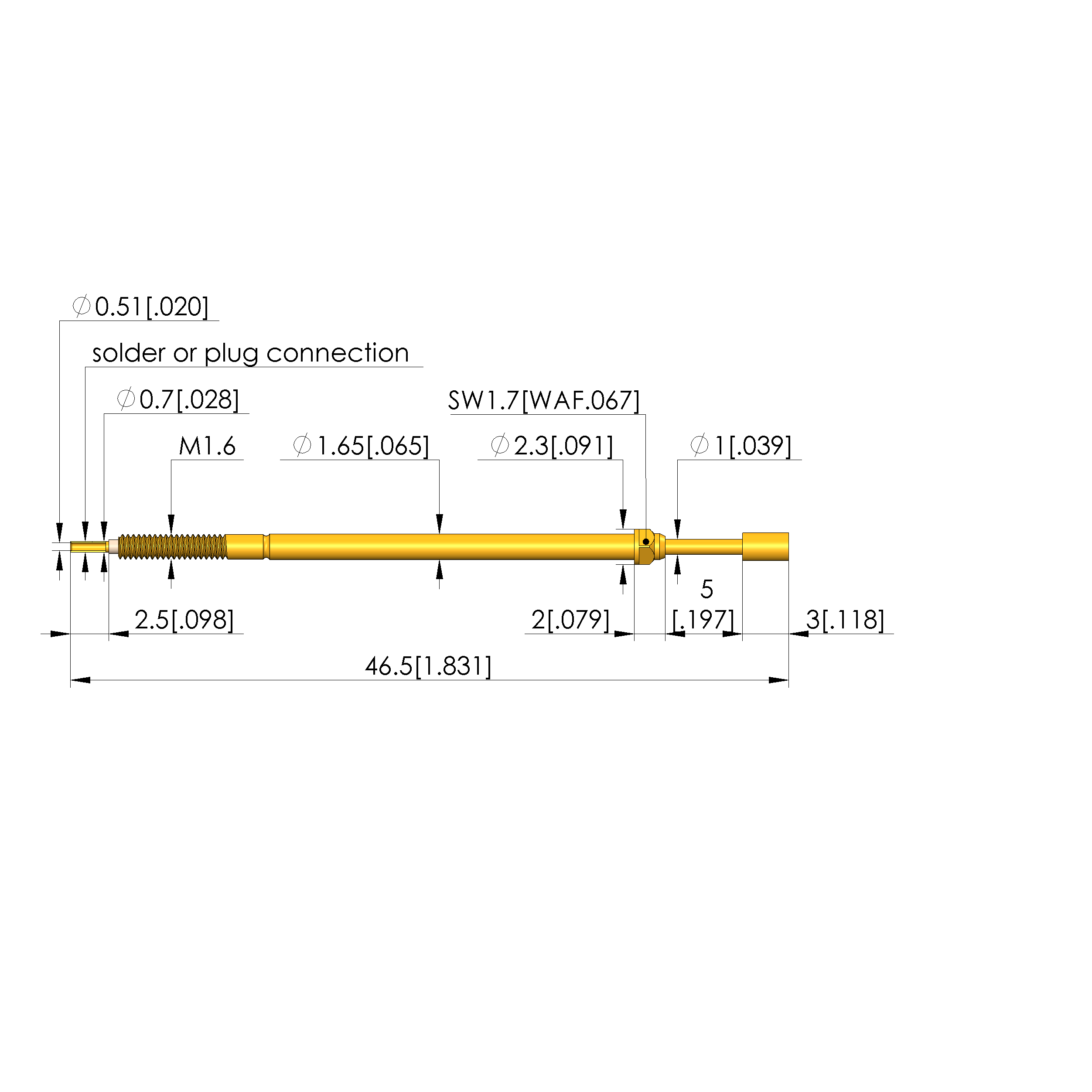

- Total length: 46.5 mm [1.83 in]
- Working stroke: 4 mm [.157 in]
- Maximum stroke: 5 mm [.196 in]
- Switching point: 8.5 mm [.334 in]
General data
- Contacting from: Bead
- Max. temperature: 80 °C [176 °F]
- Contacting from: Pin
- Series: SKS-215 M plug system, screw-in
- Non-rotating: No
- Type of test probe connection: Plug
- Compatible connector(s): SE-081
- Series: SKS-215
- Product group: Switching probes
- Grid: 2.54 mm [100 mil]
- RoHS-compliant: Yes
- Adjustable installation height: Yes
- Installation type: Screw-in
- Min. temperature: -40 °C [-40 °F]
- Contacting from: Flat contact
- Contacting from: Post
- Product group: SKS (screwed-in)
- Compatible receptacle(s): KS-215 M
- Sub-product group: SKS (screwed-in)
- Magnetic: Yes
- Screw-in torque: 3 – 5 cNm [.265 – .442 lbf·in]
- Quick-exchange system: No
Tip style data

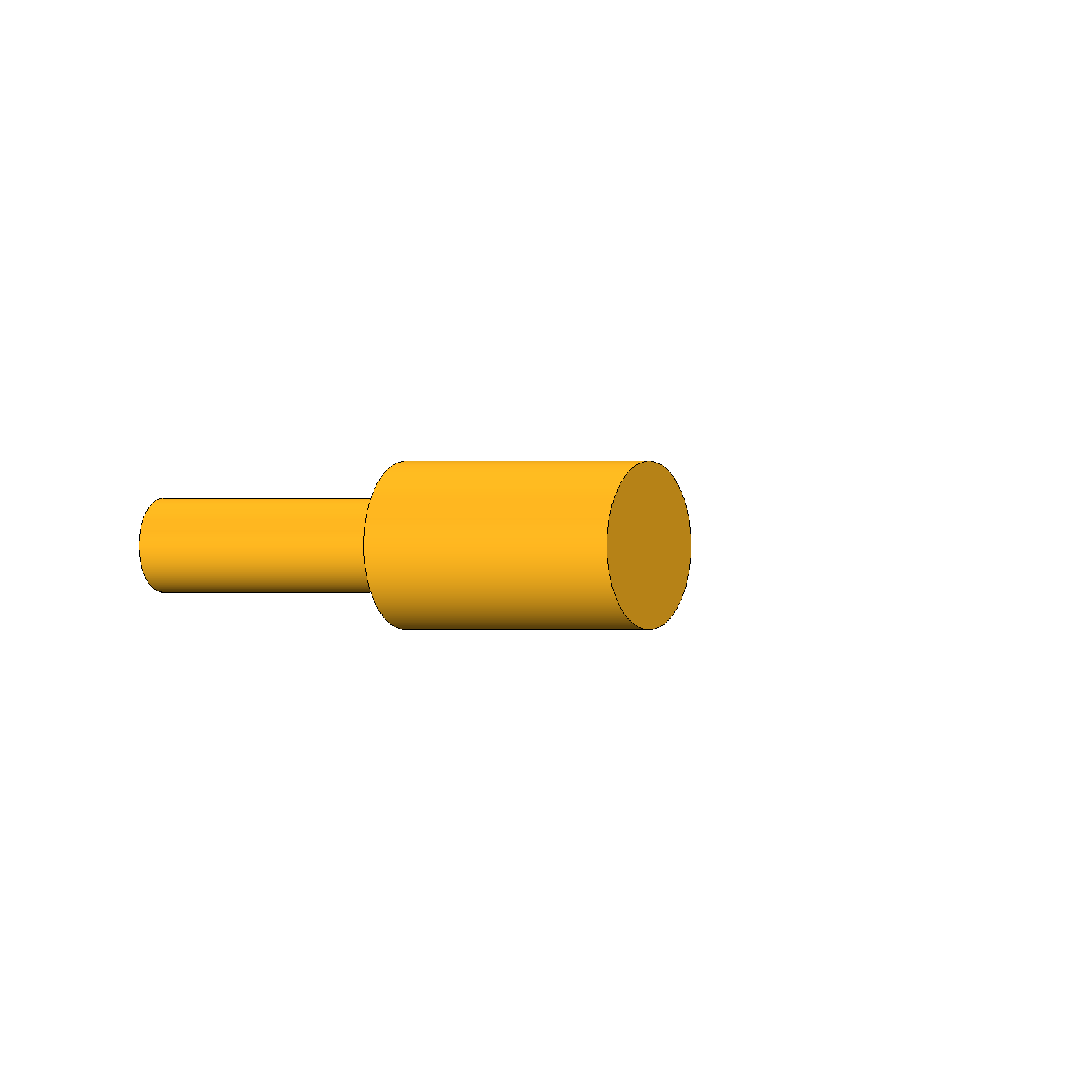

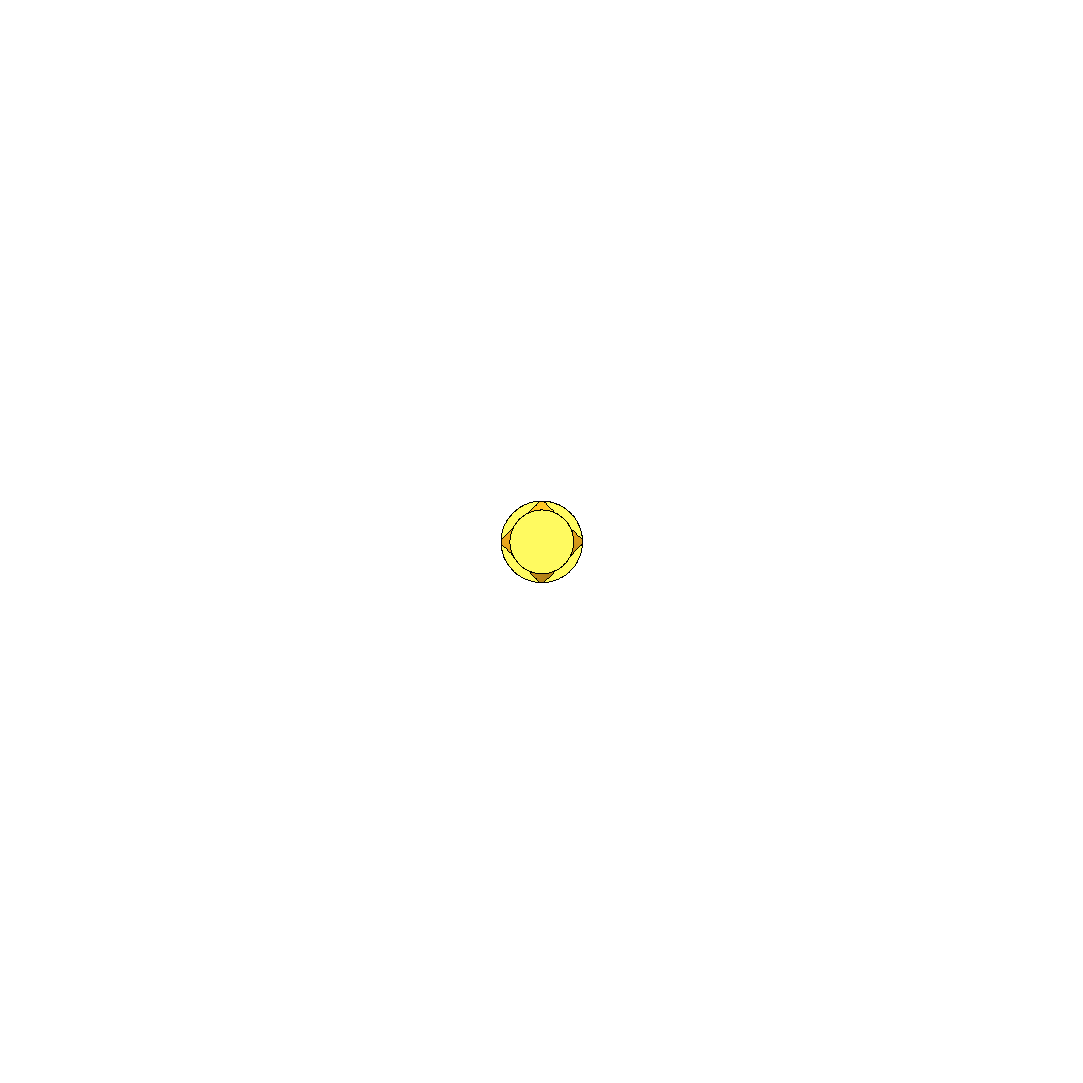

- Tip style: 02 flat
- Tip style material: 3 CuBe

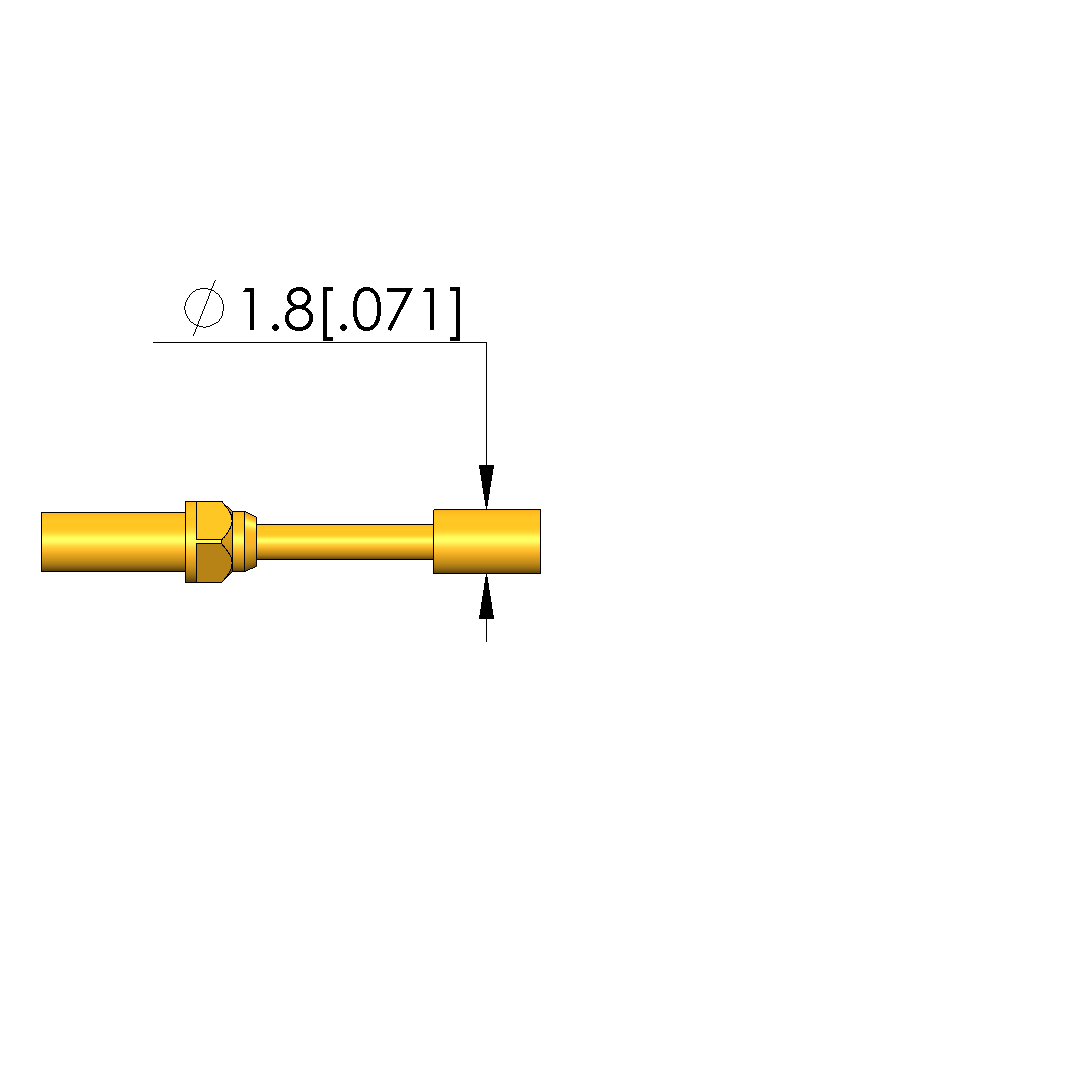

- Tip diameter: 1.8 mm [.07 in]
- Tip style surface: A gold
