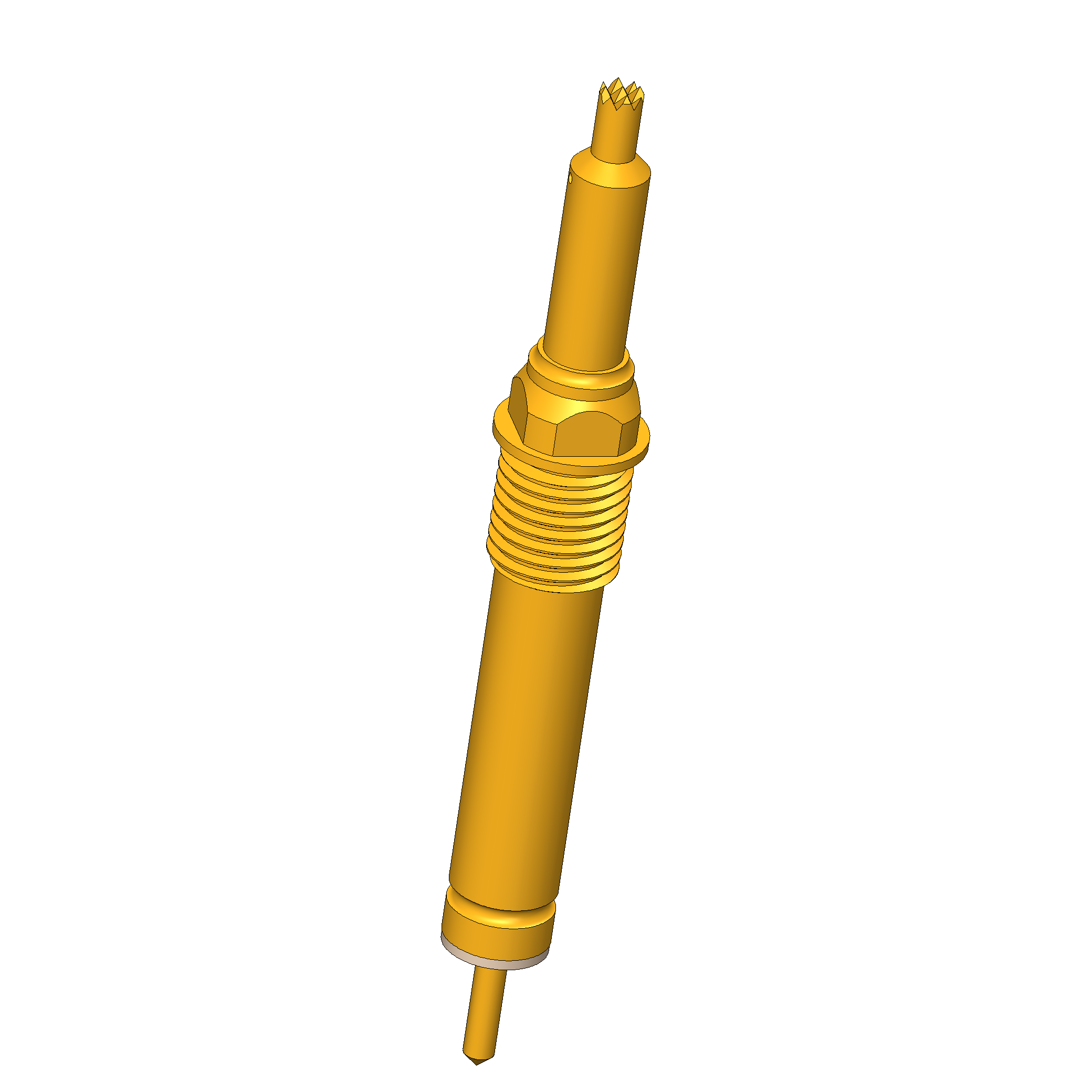

Product information "SKS-115 306 100 A 2002 M"
- For a wide range of applications: performs components detection check, is a switch for detecting closed/open states, and a signal transmitter for process control
- Various collar heights are available on the receptacles to adjust the installation height
- The installation height can be varied, and the position of the switching point can be precisely adjusted via the probe’s thread. The SKS is secured in the correct position by crimp point in the KS.
- The electrical connection is ensured by installation using a receptacle
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 2.46 mm [.096 in] |
| Collar height: | 02 |
| Compatible receptacle(s): | KS-115 M |
| Contacting from: | Flat contact, Post, Pin |
| Current load capacity / rated current: | 3 A |
| Grid: | 4 mm [157 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 5 mm [.196 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | SKS (screwed-in), Switching probes |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Screw-in torque: | 3 – 5 cNm [.265 – .442 lbf·in] |
| Screw-in torque max.: | 5 cNm [.442 lbf·in] |
| Screw-in torque min.: | 3 cNm [.265 lbf·in] |
| Series: | SKS-115, SKS-115 M screw-in |
| Spring force at switching point: | 0.8 N [2.87 ozf] |
| Spring force at working stroke: | 2 N [7.19 ozf] |
| Spring pre-load: | 0.47 N [1.69 ozf] |
| Step probe tip height: | 1.7 mm [.066 in] |
| Sub-product group: | SKS (screwed-in) |
| Switching point: | 7.3 mm [.287 in] |
| Switch path: | 1.7 mm [.066 in] |
| Tip diameter: | 1 mm [.039 in] |
| Tip style: | 06 serrated |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |

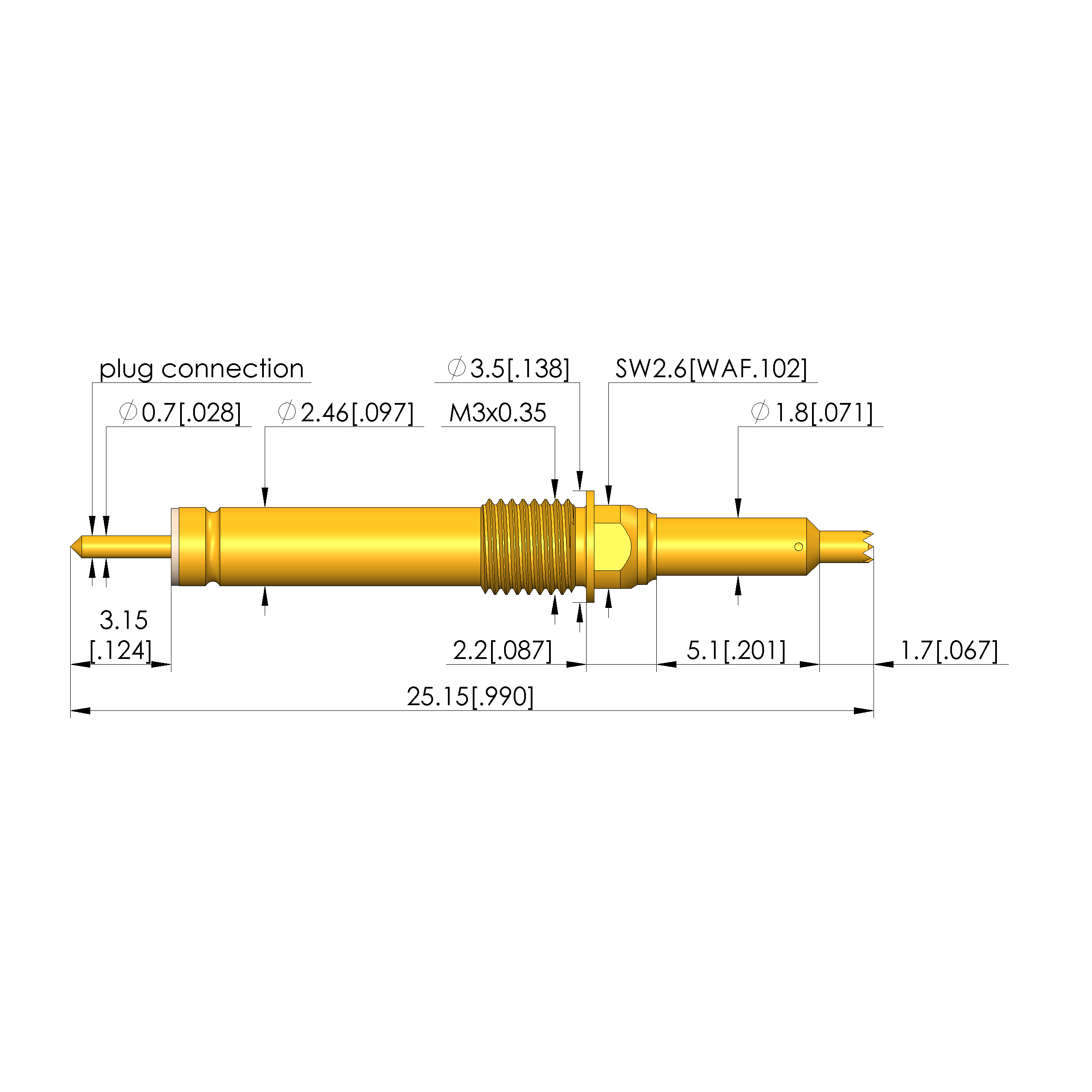

| Total length: | 25.1 mm [.99 in] |
| Working stroke: | 4 mm [.157 in] |
Login
Product Details
- For a wide range of applications: performs components detection check, is a switch for detecting closed/open states, and a signal transmitter for process control
- Various collar heights are available on the receptacles to adjust the installation height
- The installation height can be varied, and the position of the switching point can be precisely adjusted via the probe’s thread. The SKS is secured in the correct position by crimp point in the KS.
- The electrical connection is ensured by installation using a receptacle
Other products in this series:
Technical data
Mechanical data
- Maximum stroke: 5 mm [.196 in]
- Spring force at working stroke: 2 N [7.19 ozf]
- Switching point: 7.3 mm [.287 in]
- Total length: 25.1 mm [.99 in]
- Spring force at switching point: 0.8 N [2.87 ozf]
- Switch path: 1.7 mm [.066 in]
- Barrel diameter: 2.46 mm [.096 in]
- Working stroke: 4 mm [.157 in]
- Collar height: 02
- Spring pre-load: 0.47 N [1.69 ozf]
Tip style data

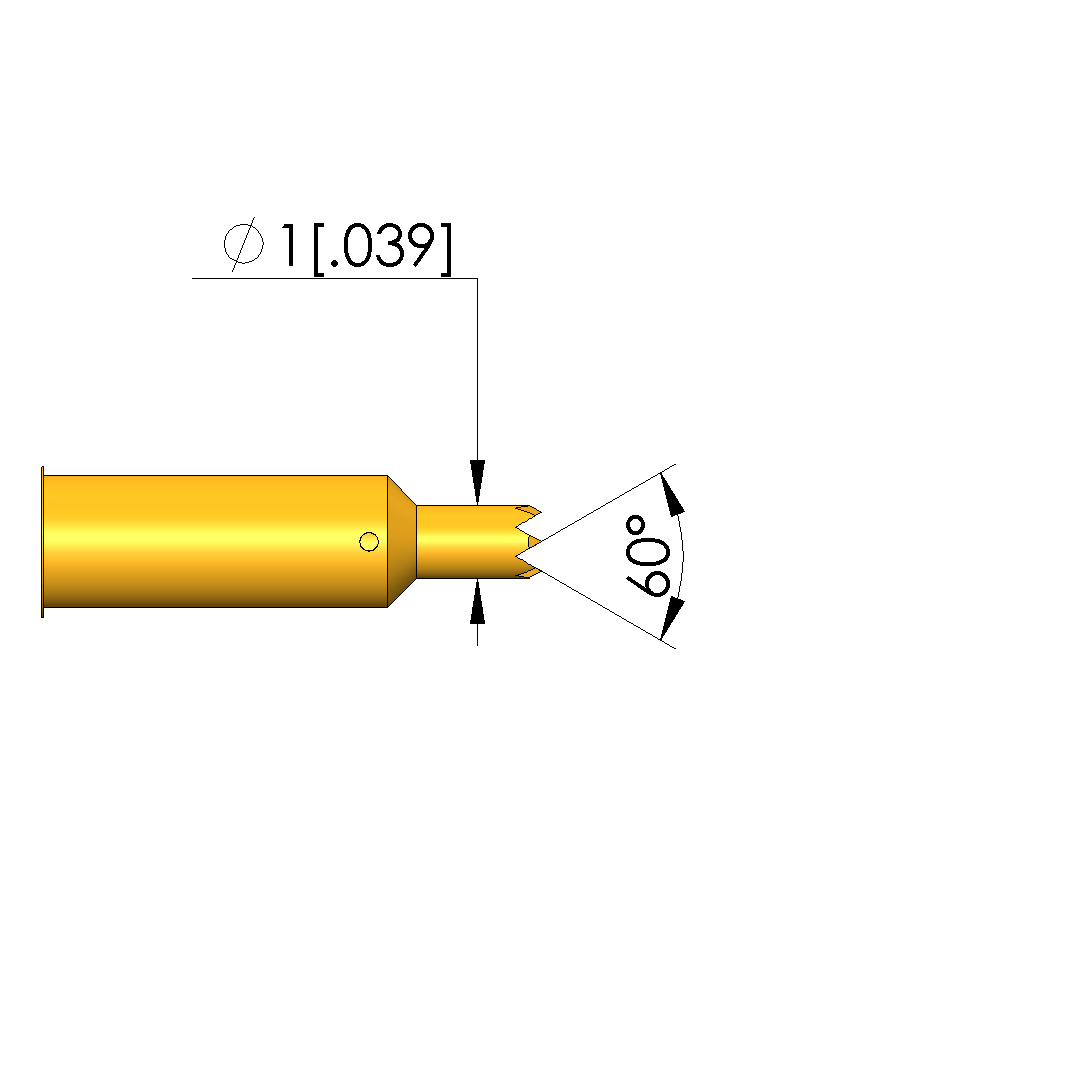

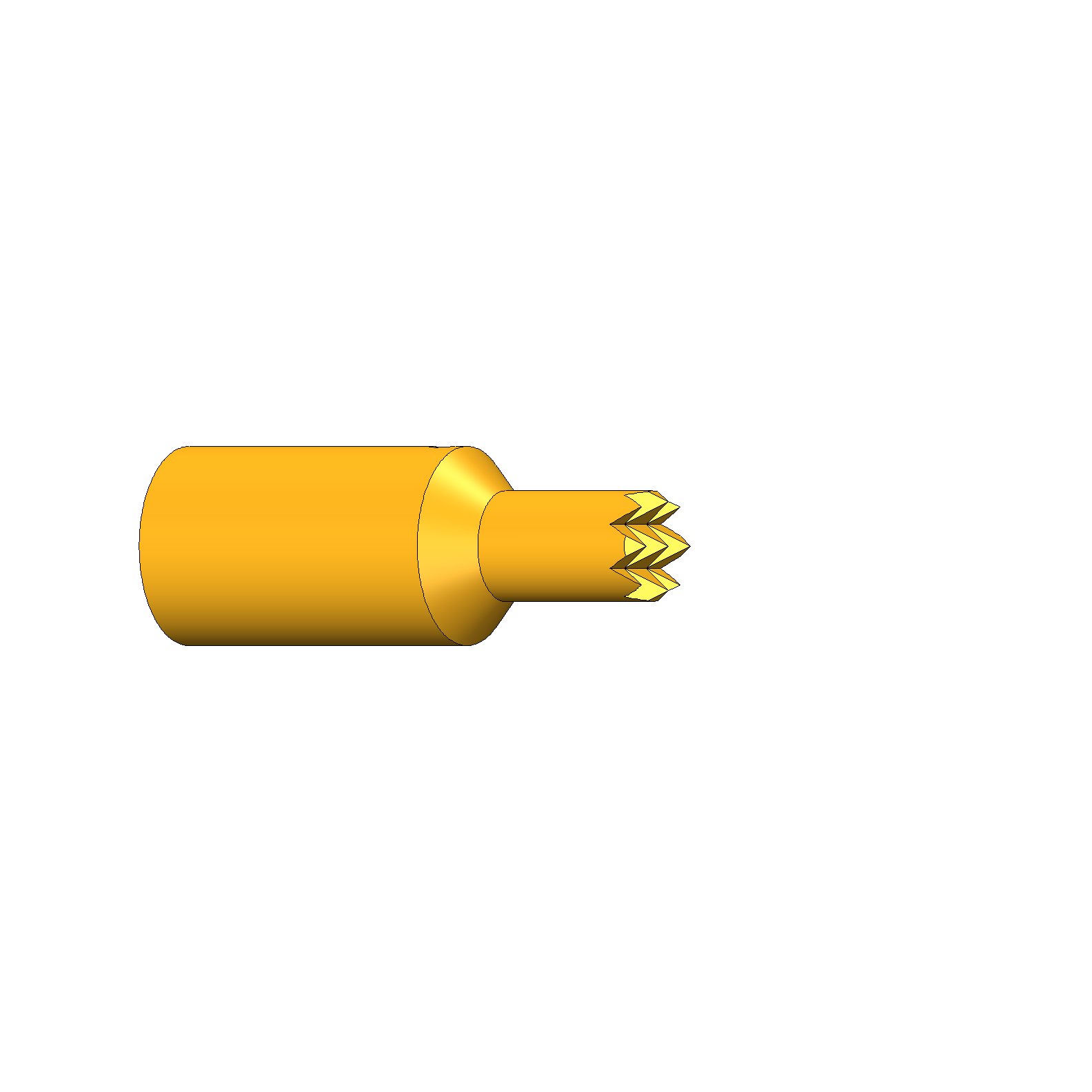

- Tip style: 06 serrated
- Tip diameter: 1 mm [.039 in]
- Tip style material: 3 CuBe
- Tip style surface: A gold
- Step probe tip height: 1.7 mm [.066 in]
Electrical data
- Current load capacity / rated current: 3 A
General data
- Contacting from: Pin
- Compatible receptacle(s): KS-115 M
- Screw-in torque max.: 5 cNm [.442 lbf·in]
- Non-rotating: No
- Adjustable installation height: No
- Series: SKS-115 M screw-in
- Min. temperature: -40 °C [-40 °F]
- Series: SKS-115
- Product group: Switching probes
- Screw-in torque min.: 3 cNm [.265 lbf·in]
- RoHS-compliant: Yes
- Max. temperature: 80 °C [176 °F]
- Screw-in torque: 3 – 5 cNm [.265 – .442 lbf·in]
- Installation type: Screw-in
- Quick-exchange system: Yes
- Contacting from: Flat contact
- Contacting from: Post
- Product group: SKS (screwed-in)
- Sub-product group: SKS (screwed-in)
- Magnetic: Yes
- Grid: 4 mm [157 mil]
