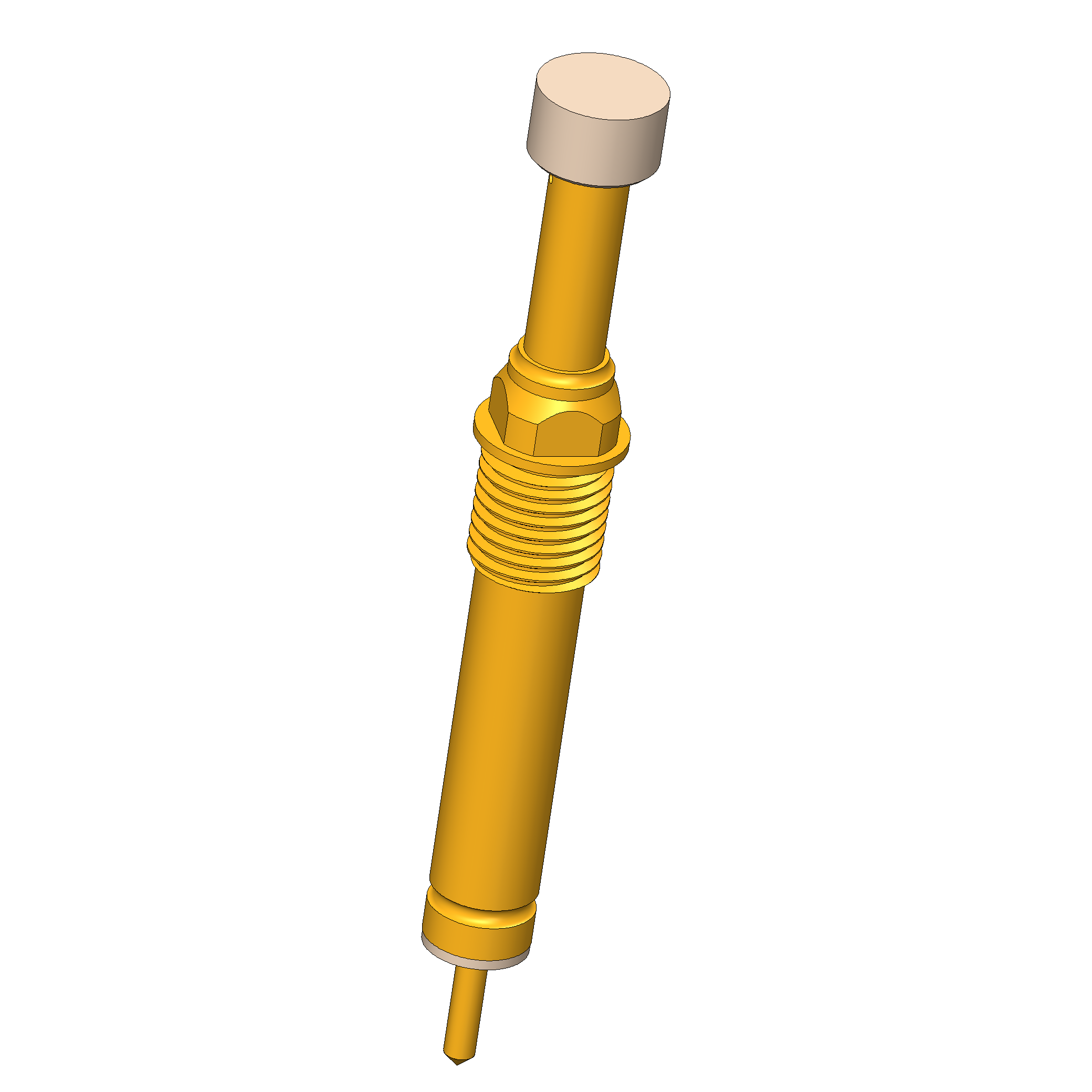

Product information "SKS-115 002 300 A 1502 M"
- For a wide range of applications: performs components detection check, is a switch for detecting closed/open states, and a signal transmitter for process control
- Various collar heights are available on the receptacles to adjust the installation height
- The installation height can be varied, and the position of the switching point can be precisely adjusted via the probe’s thread. The SKS is secured in the correct position by crimp point in the KS.
- The electrical connection is ensured by installation using a receptacle
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 2.46 mm [.096 in] |
| Collar height: | 02 |
| Compatible receptacle(s): | KS-115 M |
| Contacting from: | Presence check |
| Current load capacity / rated current: | 3 A |
| Grid: | 4 mm [157 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 5 mm [.196 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Non-rotating: | No |
| Product group: | SKS (screwed-in), Switching probes |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Screw-in torque: | 3 – 5 cNm [.265 – .442 lbf·in] |
| Screw-in torque max.: | 5 cNm [.442 lbf·in] |
| Screw-in torque min.: | 3 cNm [.265 lbf·in] |
| Series: | SKS-115, SKS-115 M screw-in |
| Spring force at switching point: | 0.48 N [1.72 ozf] |
| Spring force at working stroke: | 1.5 N [5.39 ozf] |
| Spring pre-load: | 0.28 N [1 ozf] |
| Sub-product group: | SKS (screwed-in) |
| Switching point: | 7.3 mm [.287 in] |
| Switch path: | 1.7 mm [.066 in] |
| Tip diameter: | 3 mm [.118 in] |
| Tip style: | 002 flat, contact surface insulated |
| Tip style material: | 0 plastic |
| Tip style surface: | A gold |
| Total length: | 25.1 mm [.99 in] |
| Working stroke: | 4 mm [.157 in] |
Login
Product Details
- For a wide range of applications: performs components detection check, is a switch for detecting closed/open states, and a signal transmitter for process control
- Various collar heights are available on the receptacles to adjust the installation height
- The installation height can be varied, and the position of the switching point can be precisely adjusted via the probe’s thread. The SKS is secured in the correct position by crimp point in the KS.
- The electrical connection is ensured by installation using a receptacle
Other products in this series:
Technical data
General data
- Contacting from: Presence check
- Compatible receptacle(s): KS-115 M
- Screw-in torque max.: 5 cNm [.442 lbf·in]
- Non-rotating: No
- Adjustable installation height: No
- Series: SKS-115 M screw-in
- Min. temperature: -40 °C [-40 °F]
- Series: SKS-115
- Product group: Switching probes
- Screw-in torque min.: 3 cNm [.265 lbf·in]
- RoHS-compliant: Yes
- Max. temperature: 80 °C [176 °F]
- Screw-in torque: 3 – 5 cNm [.265 – .442 lbf·in]
- Installation type: Screw-in
- Quick-exchange system: Yes
- Product group: SKS (screwed-in)
- Sub-product group: SKS (screwed-in)
- Magnetic: Yes
- Grid: 4 mm [157 mil]
Mechanical data
- Maximum stroke: 5 mm [.196 in]
- Spring pre-load: 0.28 N [1 ozf]
- Spring force at switching point: 0.48 N [1.72 ozf]
- Switching point: 7.3 mm [.287 in]

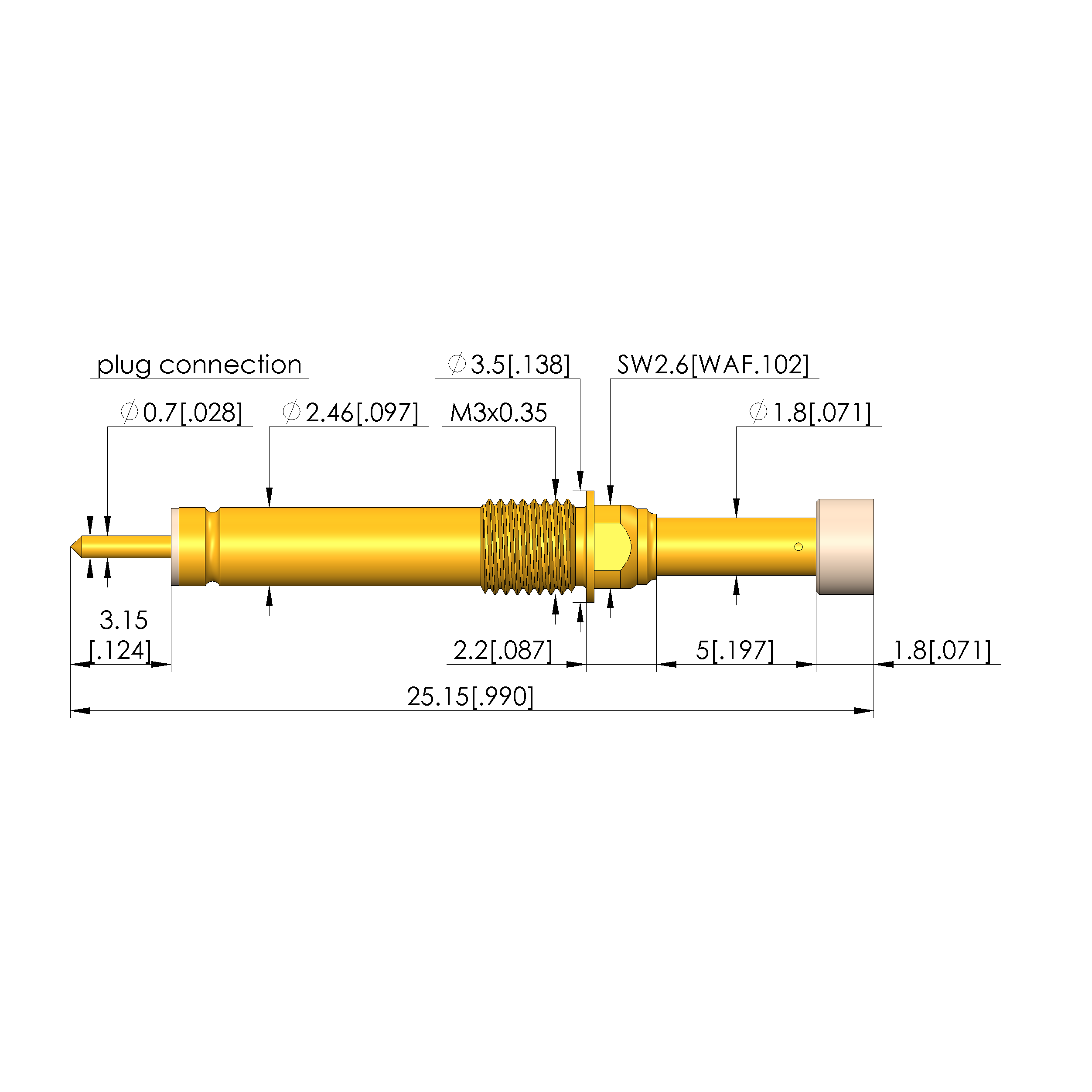

- Total length: 25.1 mm [.99 in]
- Spring force at working stroke: 1.5 N [5.39 ozf]
- Switch path: 1.7 mm [.066 in]
- Barrel diameter: 2.46 mm [.096 in]
- Working stroke: 4 mm [.157 in]
- Collar height: 02
Electrical data
- Current load capacity / rated current: 3 A
Tip style data

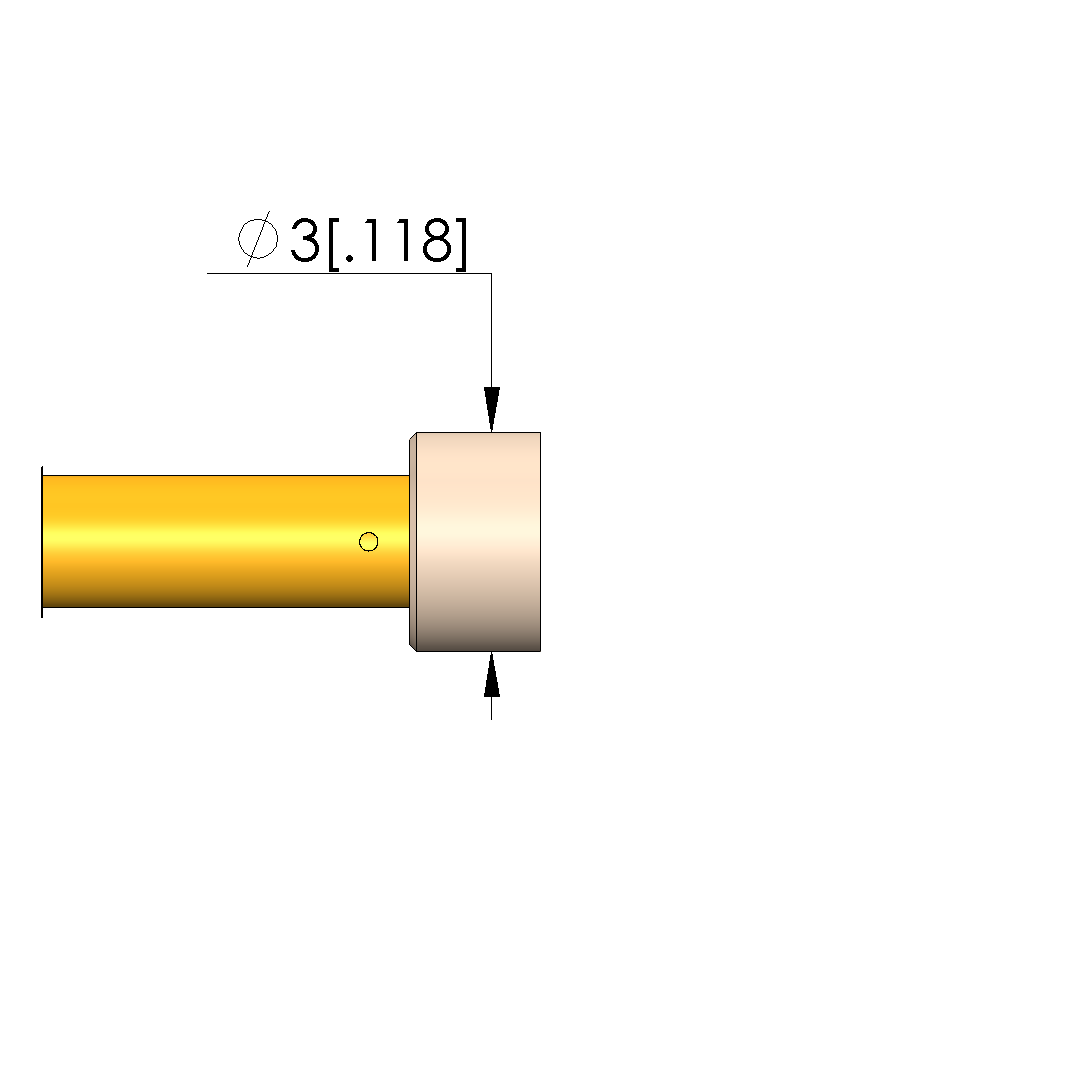

- Tip diameter: 3 mm [.118 in]
- Tip style material: 0 plastic

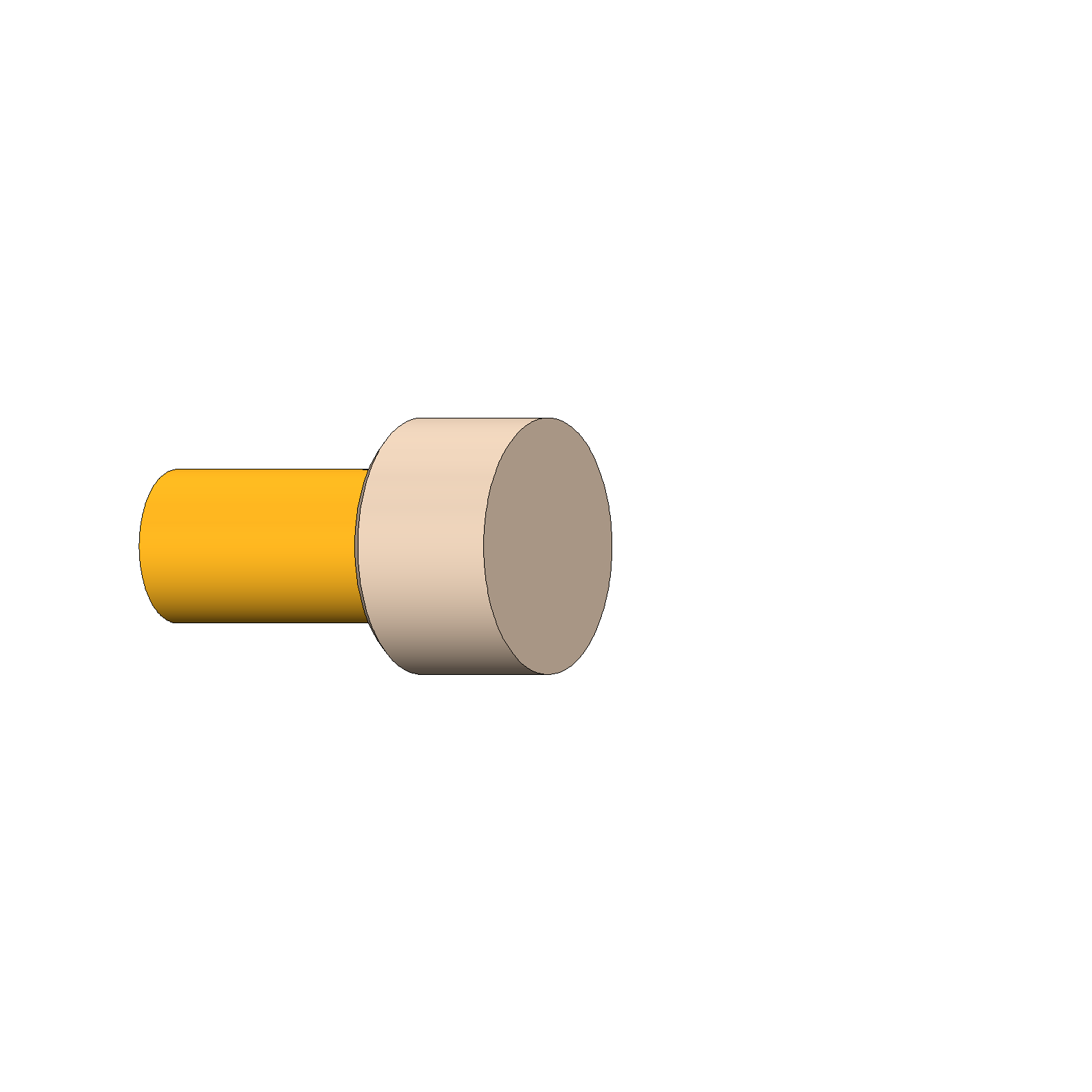

- Tip style: 002 flat, contact surface insulated
- Tip style surface: A gold
