Product information "SE-RG316-50MCXMW040SMAMG"

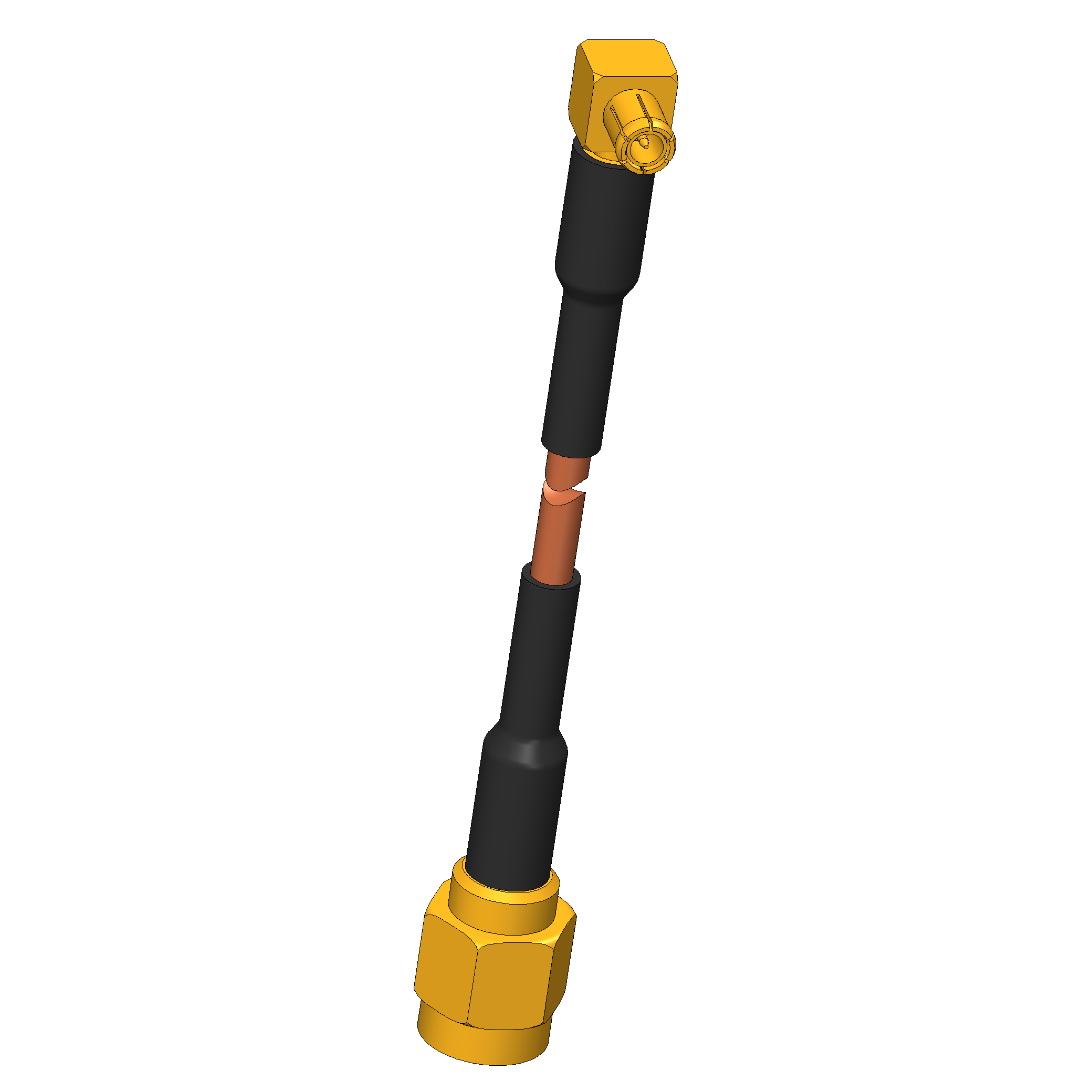

- Plug or cable assemblies for RF test probes (HFS)
| Attenuation Fmax: | .65 dB |
|---|---|
| Attenuation coefficient a: | 0,77270 RG316 nominal |
| Attenuation coefficient b: | 0,09720 RG316 nominal |

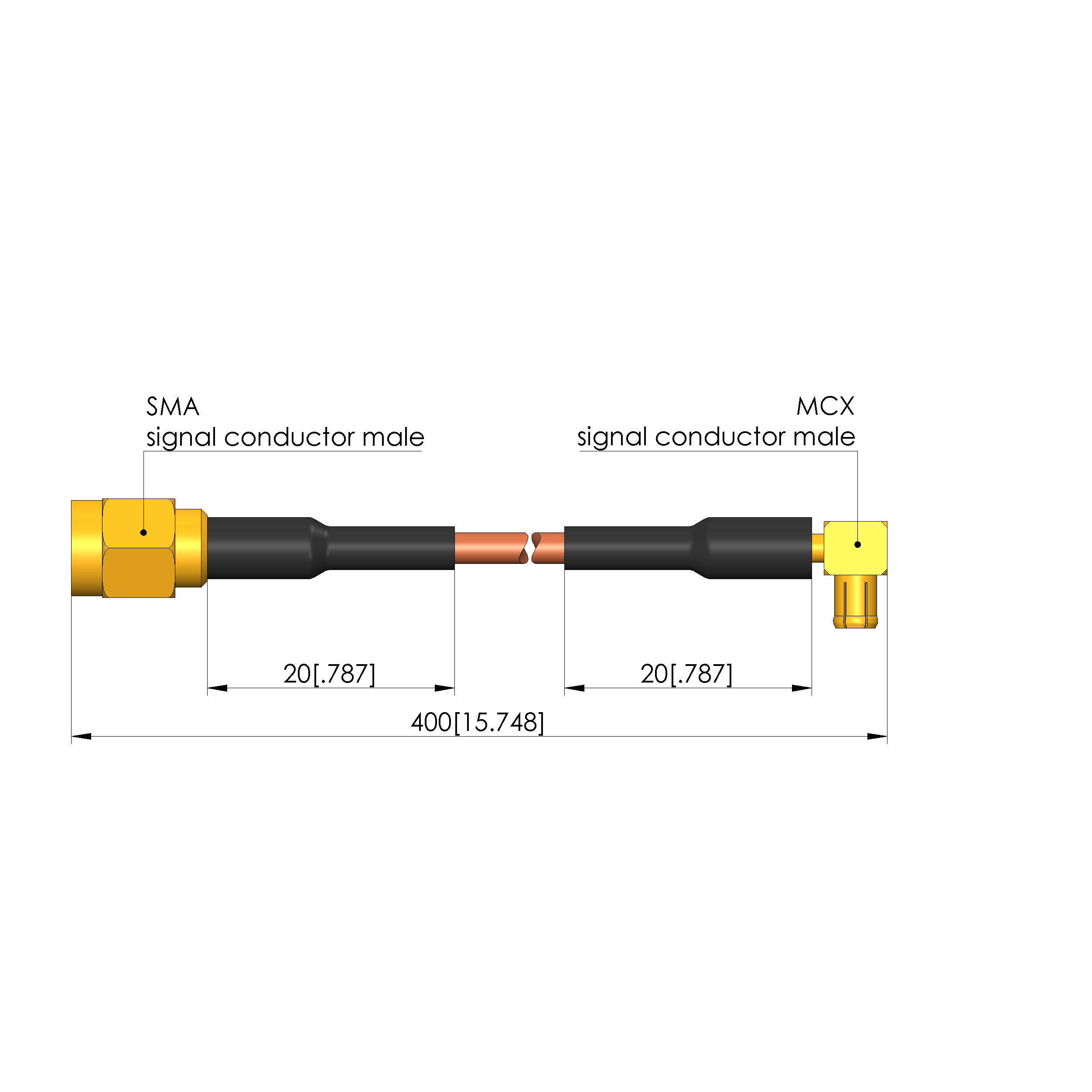

| Cable length: | 400 mm [15.7 in] |
| Cable shielding: | Simple |
| Cable type: | RG_316_/U |
| Dielectric strength: | .75 kV |
| Impedance: | 50 Ohm |

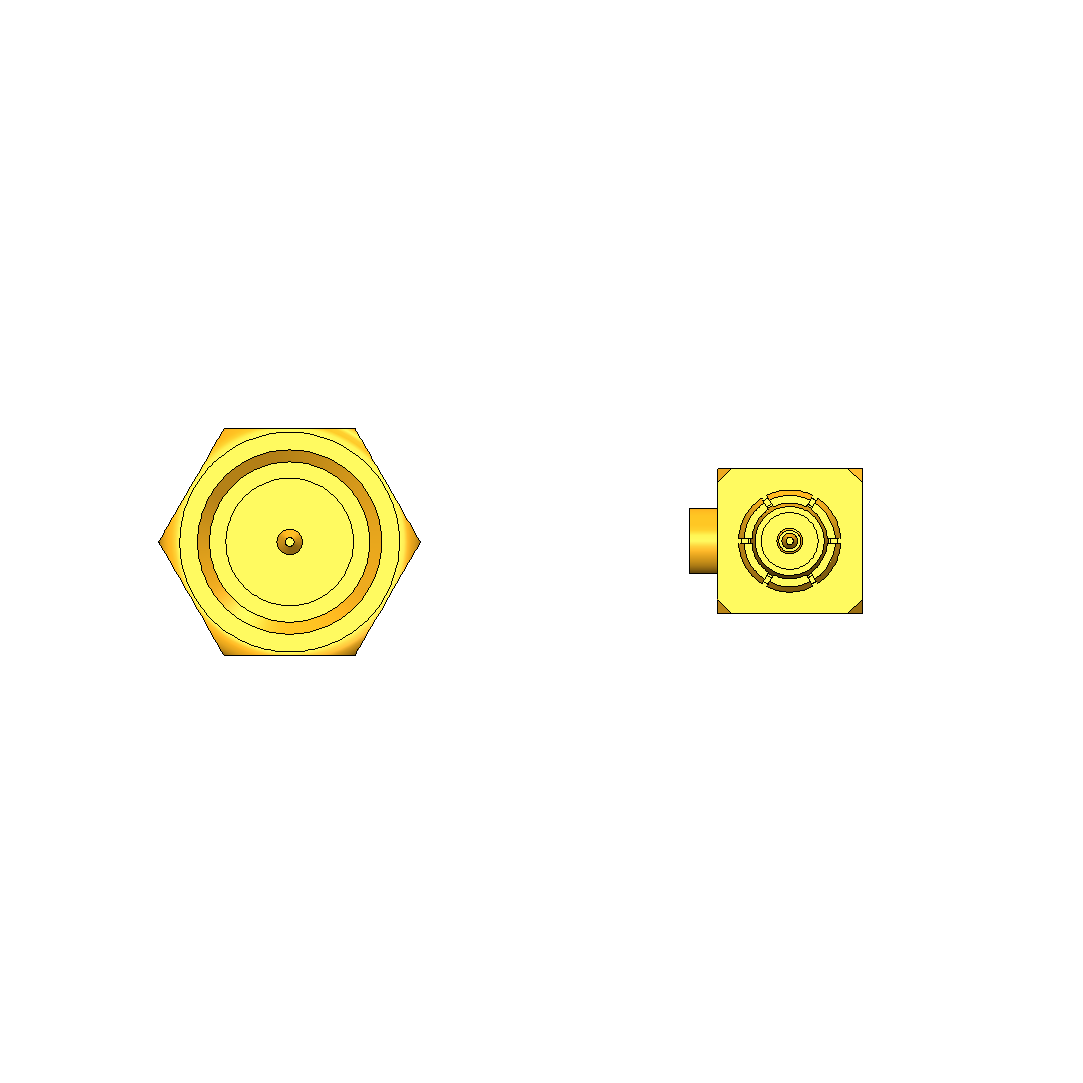

| Interface 1: | MCX |
| Interface 2: | SMA |
| Interface gender 1: | M signal conductor male / plug |
| Interface gender 2: | M signal conductor male / plug |
| Kink protection cable: | Shrink-on sleeve, black, 20 mm |
| Max. temperature: | 155 °C [311 °F] |
| Maximum frequency: | 3 GHz |
| Maximum performance: | 78 W |
| Min. temperature: | -55 °C [-67 °F] |
| Moment interface 2: | 45 cNm [3.98 lbf·in] |
| Performance coefficient: | 135 RG316 |
| Product group: | Assemblies |
| RoHS-compliant: | Yes |
| Series: | SE-RG316 |
| Sub-series: | SE-RG316 plug |
| Version 1: | Right angle |
| Version 2: | Straight |
Login
Product Details
- Plug or cable assemblies for RF test probes (HFS)
Other products in this series:
Technical data
Electrical data
- Cable shielding: Simple
- Maximum frequency: 3 GHz
- Performance coefficient: 135 RG316
- Attenuation coefficient a: 0,77270 RG316 nominal
- Dielectric strength: .75 kV
- Maximum performance: 78 W
- Impedance: 50 Ohm
- Attenuation coefficient b: 0,09720 RG316 nominal
Connector data
- Moment interface 2: 45 cNm [3.98 lbf·in]
- Interface gender 2: M signal conductor male / plug
- Interface 2: SMA
- Version 1: Right angle
- Version 2: Straight
- Interface 1: MCX
- Interface gender 1: M signal conductor male / plug
General data
- Product group: Assemblies
- RoHS-compliant: Yes
- Max. temperature: 155 °C [311 °F]
- Series: SE-RG316
- Sub-series: SE-RG316 plug
- Min. temperature: -55 °C [-67 °F]
Cable data
- Cable length: 400 mm [15.7 in]
- Cable type: RG_316_/U
- Attenuation Fmax: .65 dB
- Kink protection cable: Shrink-on sleeve, black, 20 mm
