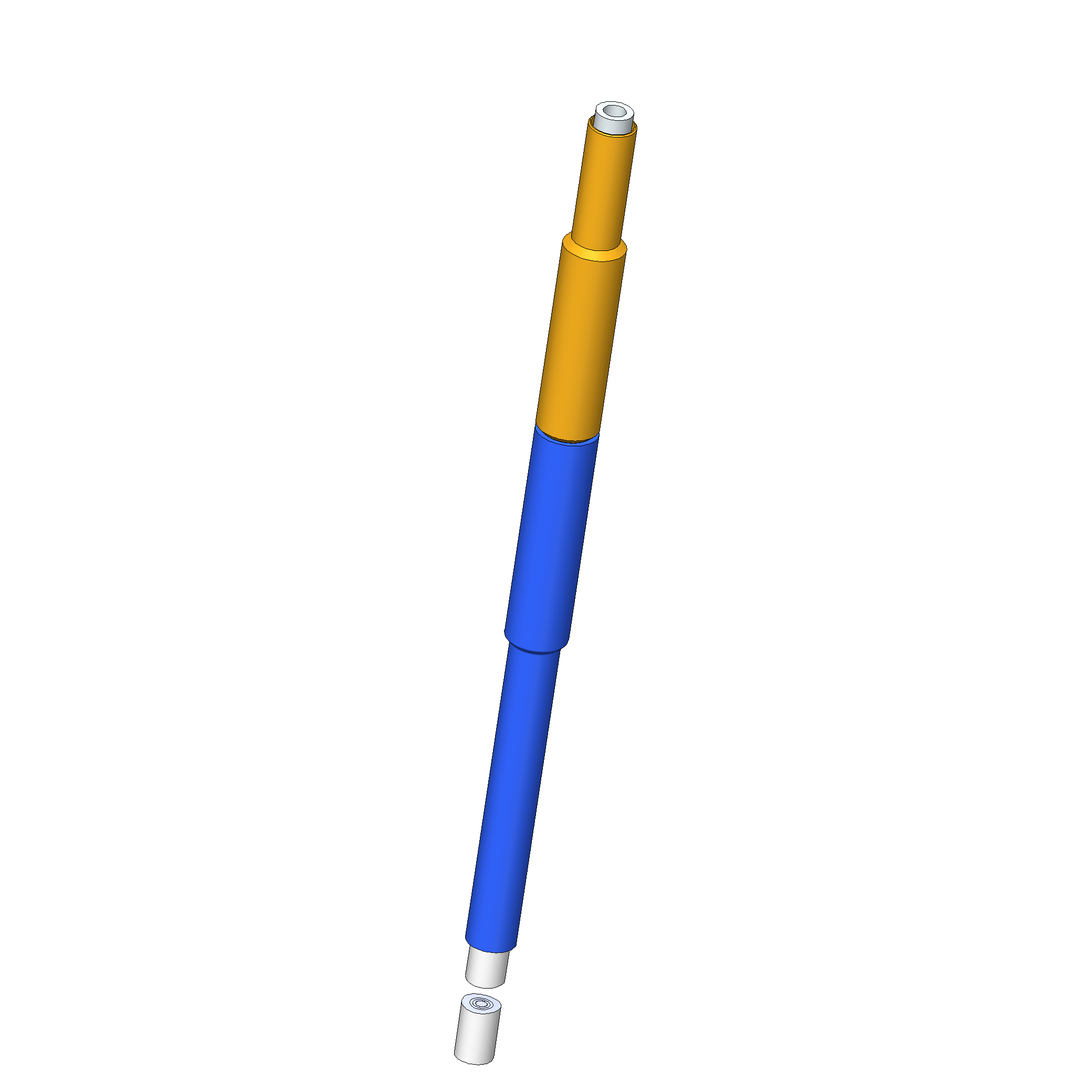

Product information "SE-K11527-50010MG075"
- Plug or cable assemblies for RF test probes (HFS)
| Attenuation Fmax: | .78 dB |
|---|---|
| Attenuation coefficient a: | 2,21000 K11527 |
| Attenuation coefficient b: | 0,25900 K11527 |

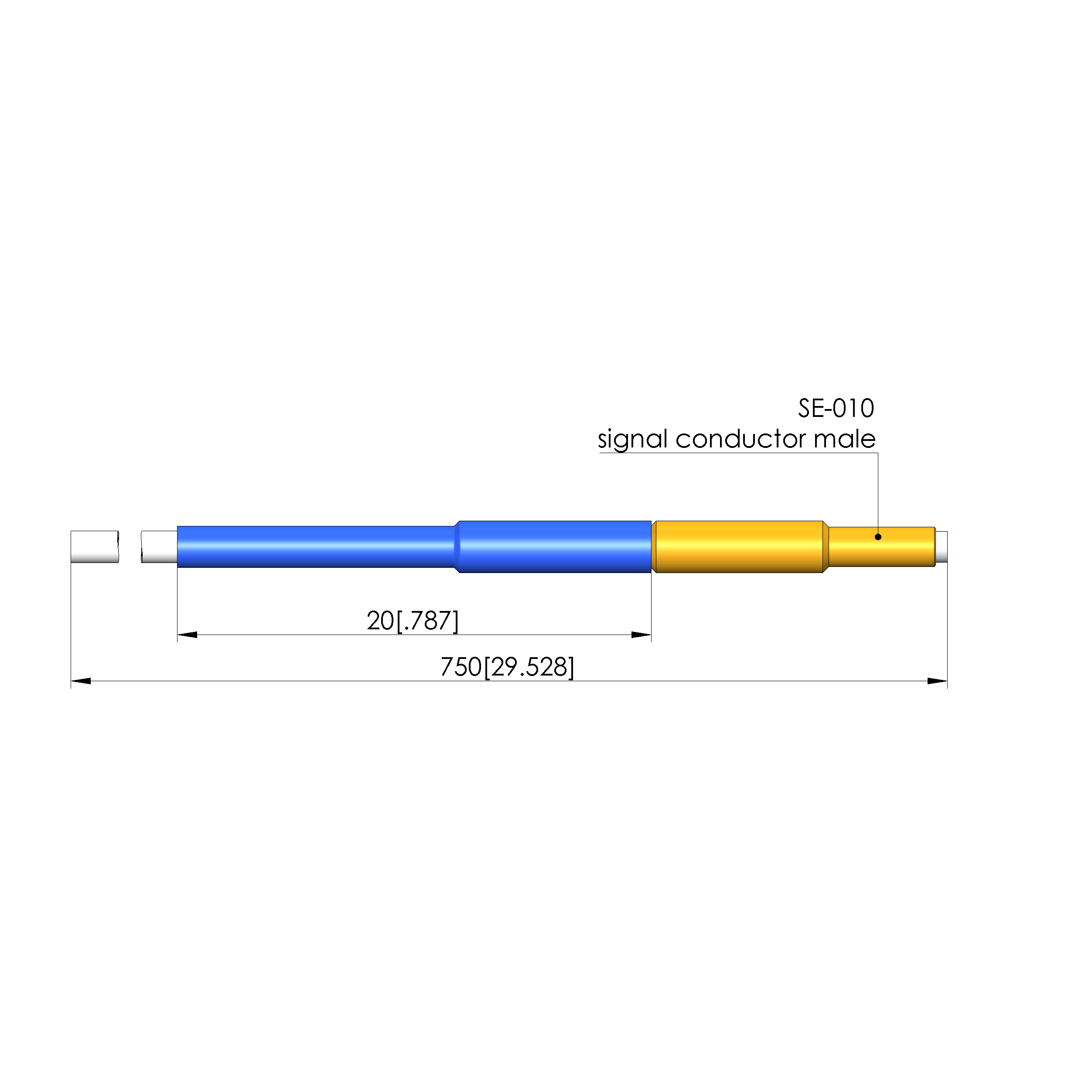

| Cable length: | 750 mm [29.5 in] |
| Cable shielding: | Simple |
| Cable type: | K_01152-07 |
| Dielectric strength: | .4 kV |
| Impedance: | 50 Ohm |
| Interface 1: | SE-010 plug connector for HFS-010 |
| Interface 2: | Open cable end |
| Interface gender 1: | M signal conductor male / plug |
| Kink protection cable: | Shrink-on sleeve, spec., blue, 20 mm |
| Max. temperature: | 135 °C [275 °F] |
| Maximum frequency: | .2 GHz |
| Maximum performance: | 60 W |
| Min. temperature: | -55 °C [-67 °F] |
| Performance coefficient: | 27 K11527 |
| Product group: | Assemblies |
| RoHS-compliant: | Yes |
| Series: | SE-K11527 |
| Sub-series: | SE-K11527 plug |
| Version 1: | Straight |
Login
Product Details
- Plug or cable assemblies for RF test probes (HFS)
Other products in this series:
Technical data
Cable data
- Cable length: 750 mm [29.5 in]
- Cable type: K_01152-07
- Kink protection cable: Shrink-on sleeve, spec., blue, 20 mm
- Attenuation Fmax: .78 dB
Electrical data
- Maximum frequency: .2 GHz
- Impedance: 50 Ohm
- Cable shielding: Simple
- Maximum performance: 60 W
- Performance coefficient: 27 K11527
- Dielectric strength: .4 kV
- Attenuation coefficient a: 2,21000 K11527
- Attenuation coefficient b: 0,25900 K11527
Connector data
- Interface 1: SE-010 plug connector for HFS-010
- Interface gender 1: M signal conductor male / plug
- Version 1: Straight
- Interface 2: Open cable end
General data
- Product group: Assemblies
- Series: SE-K11527
- Sub-series: SE-K11527 plug
- Min. temperature: -55 °C [-67 °F]
- Max. temperature: 135 °C [275 °F]
- RoHS-compliant: Yes
