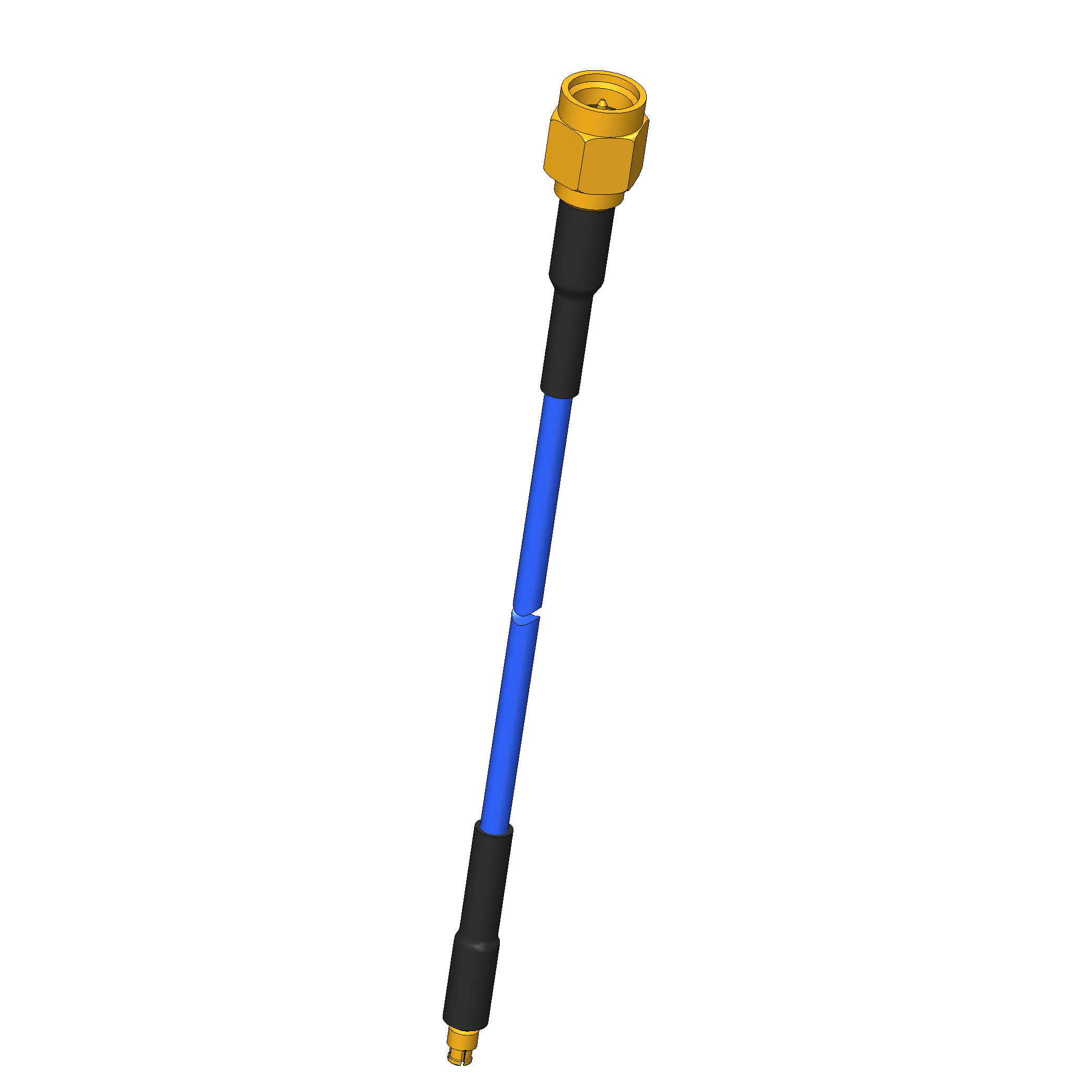

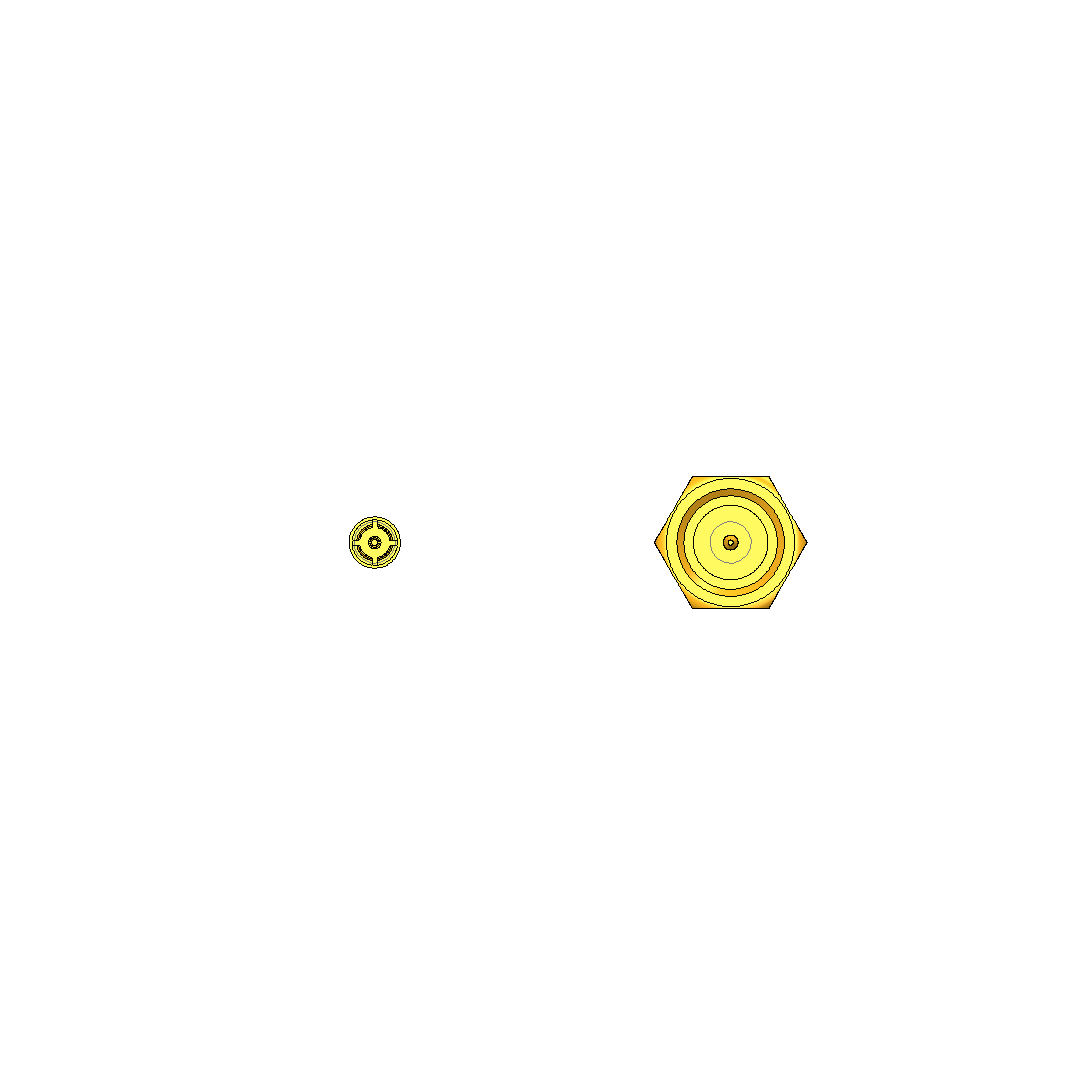

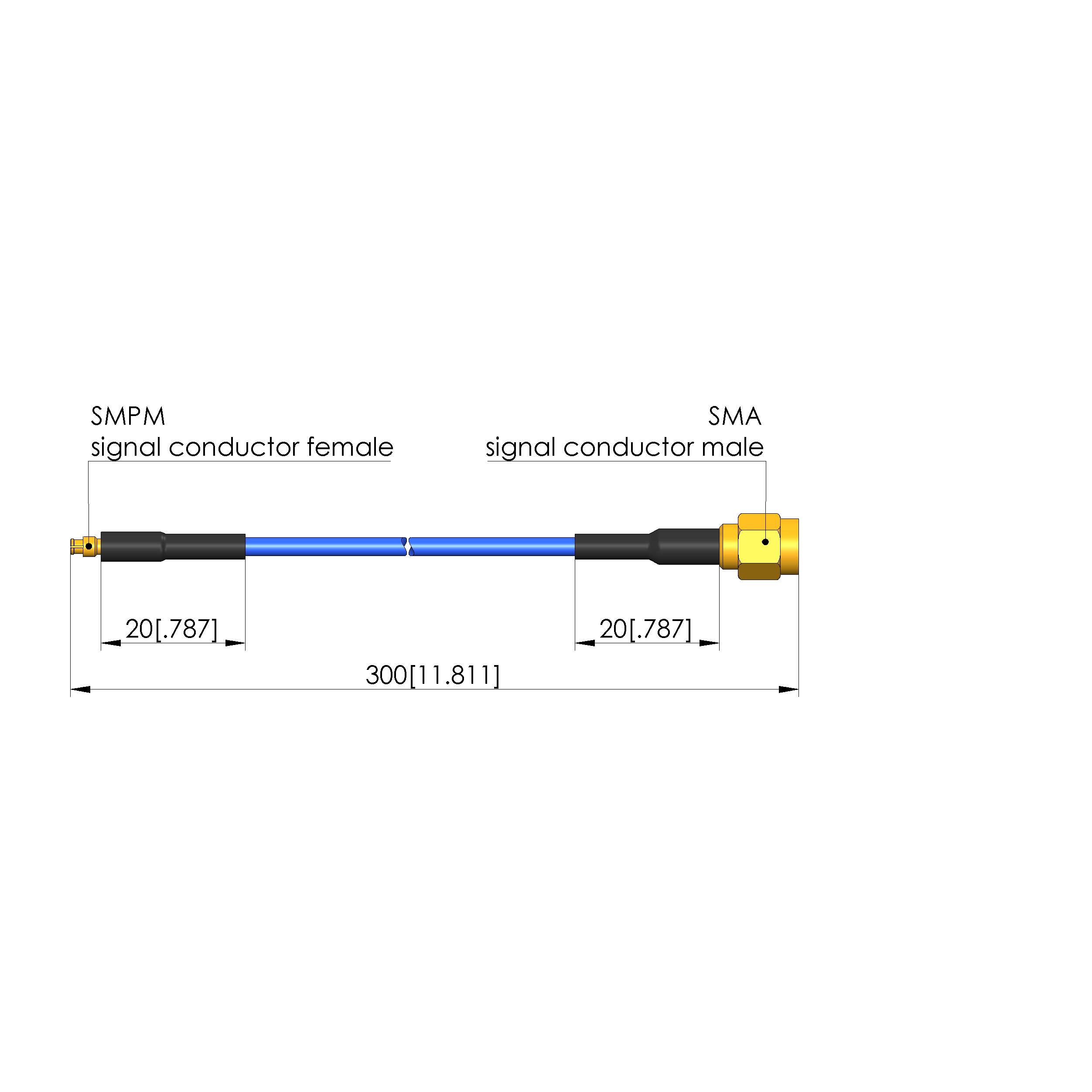

Product information "SE-FLX405-50SMPMFG030SMAMG"
- Plug or cable assemblies for RF test probes (HFS)
| Attenuation Fmax: | 1.1 dB |
|---|---|
| Attenuation coefficient a: | 0,69120 FLX405 |
| Attenuation coefficient b: | 0,04120 FLX405 |
| Cable length: | 300 mm [11.8 in] |
| Cable shielding: | Simple |
| Cable type: | RTK-FLEX405-SPC-FEP |
| Dielectric strength: | .34 kV |
| Impedance: | 50 Ohm |
| Interface 1: | SMPM mini-SMP |
| Interface 2: | SMA |
| Interface gender 1: | F signal conductor female / socket |
| Interface gender 2: | M signal conductor male / plug |
| Kink protection cable: | Shrink-on sleeve, black, 20 mm |
| Max. temperature: | 165 °C [329 °F] |
| Maximum frequency: | 18 GHz |
| Maximum performance: | 28 W |
| Min. temperature: | -65 °C [-85 °F] |
| Moment interface 1: | 15 cNm [1.32 lbf·in] |
| Moment interface 2: | 45 cNm [3.98 lbf·in] |
| Performance coefficient: | 117 FLX405 |
| Product group: | Assemblies |
| RoHS-compliant: | Yes |
| Series: | SE-FLX405 |
| Sub-series: | SE-FLX405 plug |
| Version 1: | Straight |
| Version 2: | Straight |
Login
Product Details
- Plug or cable assemblies for RF test probes (HFS)
Other products in this series:
Technical data
Electrical data
- Impedance: 50 Ohm
- Maximum performance: 28 W
- Dielectric strength: .34 kV
- Performance coefficient: 117 FLX405
- Cable shielding: Simple
- Attenuation coefficient a: 0,69120 FLX405
- Maximum frequency: 18 GHz
- Attenuation coefficient b: 0,04120 FLX405
Connector data
- Interface 1: SMPM mini-SMP
- Interface gender 1: F signal conductor female / socket
- Version 1: Straight
- Moment interface 2: 45 cNm [3.98 lbf·in]
- Interface gender 2: M signal conductor male / plug
- Interface 2: SMA
- Version 2: Straight
- Moment interface 1: 15 cNm [1.32 lbf·in]
General data
- Product group: Assemblies
- Series: SE-FLX405
- Sub-series: SE-FLX405 plug
- Min. temperature: -65 °C [-85 °F]
- Max. temperature: 165 °C [329 °F]
- RoHS-compliant: Yes
Cable data
- Cable length: 300 mm [11.8 in]
- Cable type: RTK-FLEX405-SPC-FEP
- Kink protection cable: Shrink-on sleeve, black, 20 mm
- Attenuation Fmax: 1.1 dB
