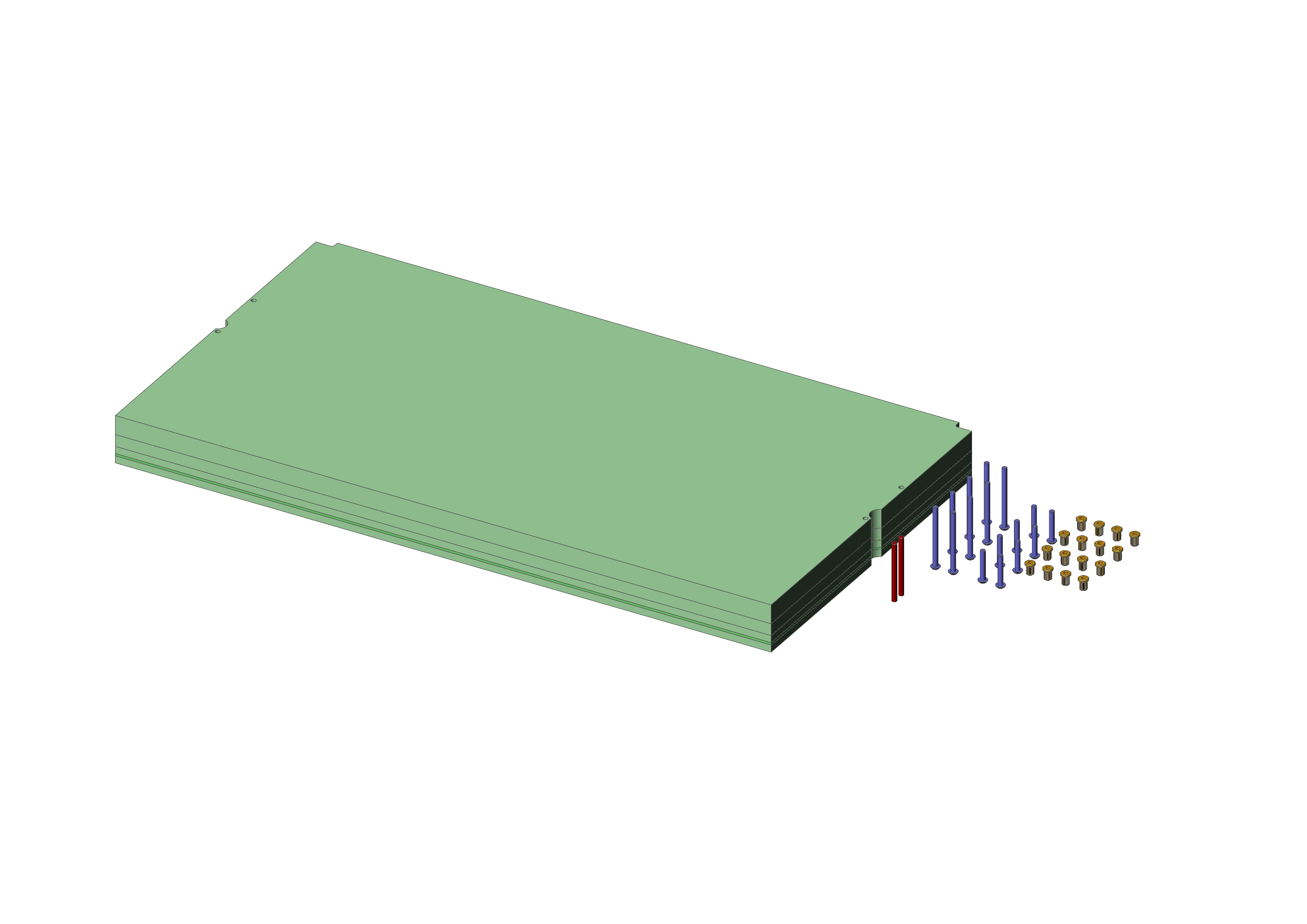

Product information "SBU-540-300-WL-ATSMA14"
- Precise, reliable contacting in small grids
- Quick, easy installation
- Extensive, detailed customisation guidelines
- Plate material is deflection-resistant FR4
| Dual-stage contacting: | Yes |
|---|---|
| Exchangeable kit(s) (ATS): | ATS MA14 |
| Manual test fixtures (MA): | MA 2014 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 546 x 300 x 40 mm [21.4 x 11.8 x 1.57 in] |
| Product group: | ATS MA upgrade kits |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | SBU |
| Subseries: | ATS MAxx |
| Useable area (WxD): | 532 x 300 mm [20.9 x 11.8 in] |
| Version: | S-Line wireless |
| Weight: | 12.8 kg [28.2 lbs] |
Login
Product Details
- Precise, reliable contacting in small grids
- Quick, easy installation
- Extensive, detailed customisation guidelines
- Plate material is deflection-resistant FR4
Other products in this series:
Technical data
Compatible with
- Exchangeable kit(s) (ATS): ATS MA14
- Manual test fixtures (MA): MA 2014
Technical data
- Useable area (WxD): 532 x 300 mm [20.9 x 11.8 in]
- Outer dimensionS (WxDxH): 546 x 300 x 40 mm [21.4 x 11.8 x 1.57 in]
General data
- Product group: ATS MA upgrade kits
- Subseries: ATS MAxx
- Series: SBU
- Version: S-Line wireless
- Scope of delivery: Unassembled
- Dual-stage contacting: Yes
- Weight: 12.8 kg [28.2 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
