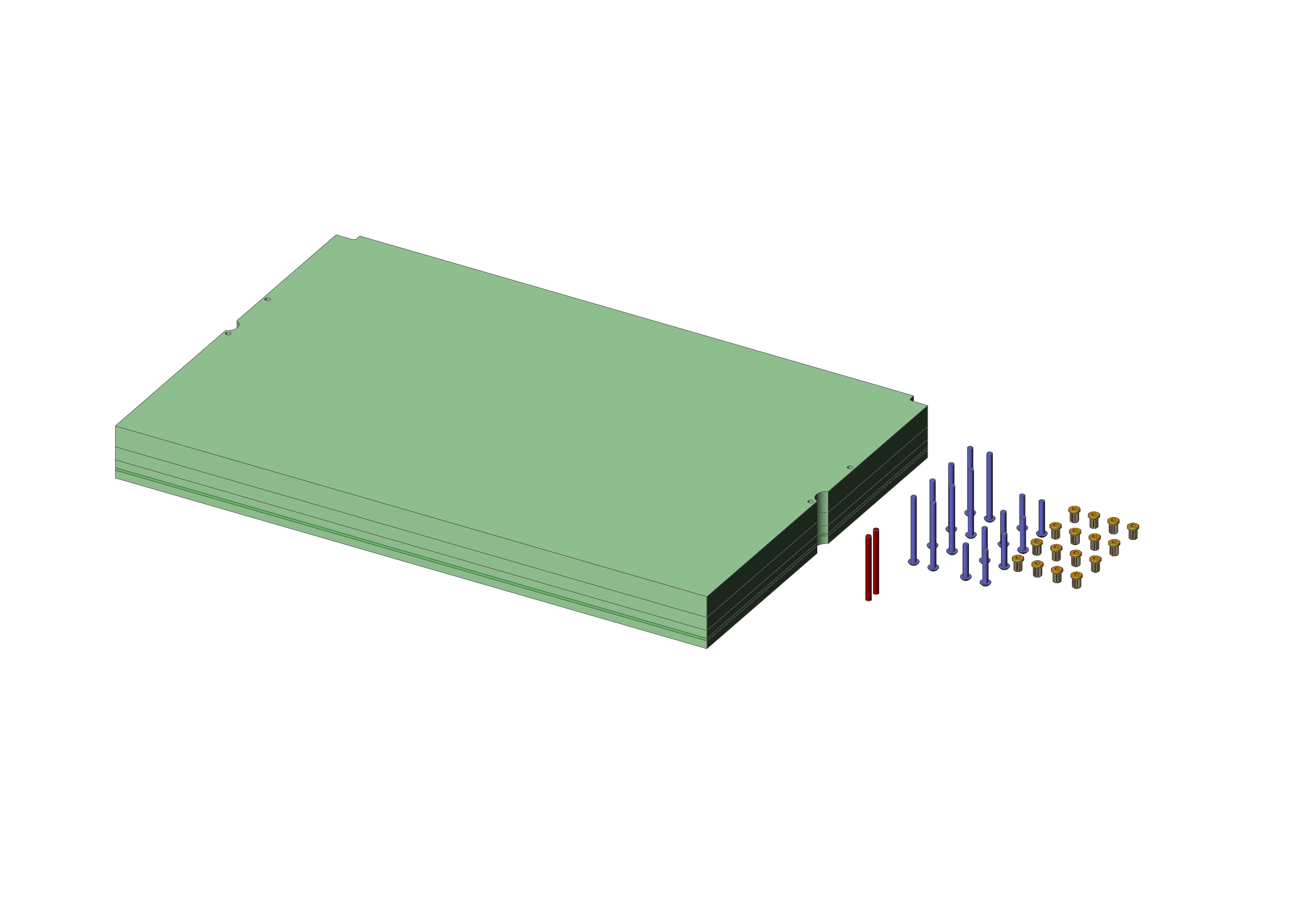

Product information "SBU-440-300-WL-ATSMA13"
- Precise, reliable contacting in small grids
- Quick, easy installation
- Extensive, detailed customisation guidelines
- Plate material is deflection-resistant FR4
| Dual-stage contacting: | Yes |
|---|---|
| Exchangeable kit(s) (ATS): | ATS MA13 |
| Manual test fixtures (MA): | MA 2013 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 454 x 300 x 40 mm [17.8 x 11.8 x 1.57 in] |
| Product group: | ATS MA upgrade kits |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | SBU |
| Subseries: | ATS MAxx |
| Useable area (WxD): | 440 x 300 mm [17.3 x 11.8 in] |
| Version: | S-Line wireless |
| Weight: | 10.5 kg [23.2 lbs] |
Login
Product Details
- Precise, reliable contacting in small grids
- Quick, easy installation
- Extensive, detailed customisation guidelines
- Plate material is deflection-resistant FR4
Other products in this series:
Technical data
General data
- Product group: ATS MA upgrade kits
- Subseries: ATS MAxx
- Series: SBU
- Version: S-Line wireless
- Scope of delivery: Unassembled
- Dual-stage contacting: Yes
- Weight: 10.5 kg [23.2 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Compatible with
- Exchangeable kit(s) (ATS): ATS MA13
- Manual test fixtures (MA): MA 2013
Technical data
- Useable area (WxD): 440 x 300 mm [17.3 x 11.8 in]
- Outer dimensionS (WxDxH): 454 x 300 x 40 mm [17.8 x 11.8 x 1.57 in]
