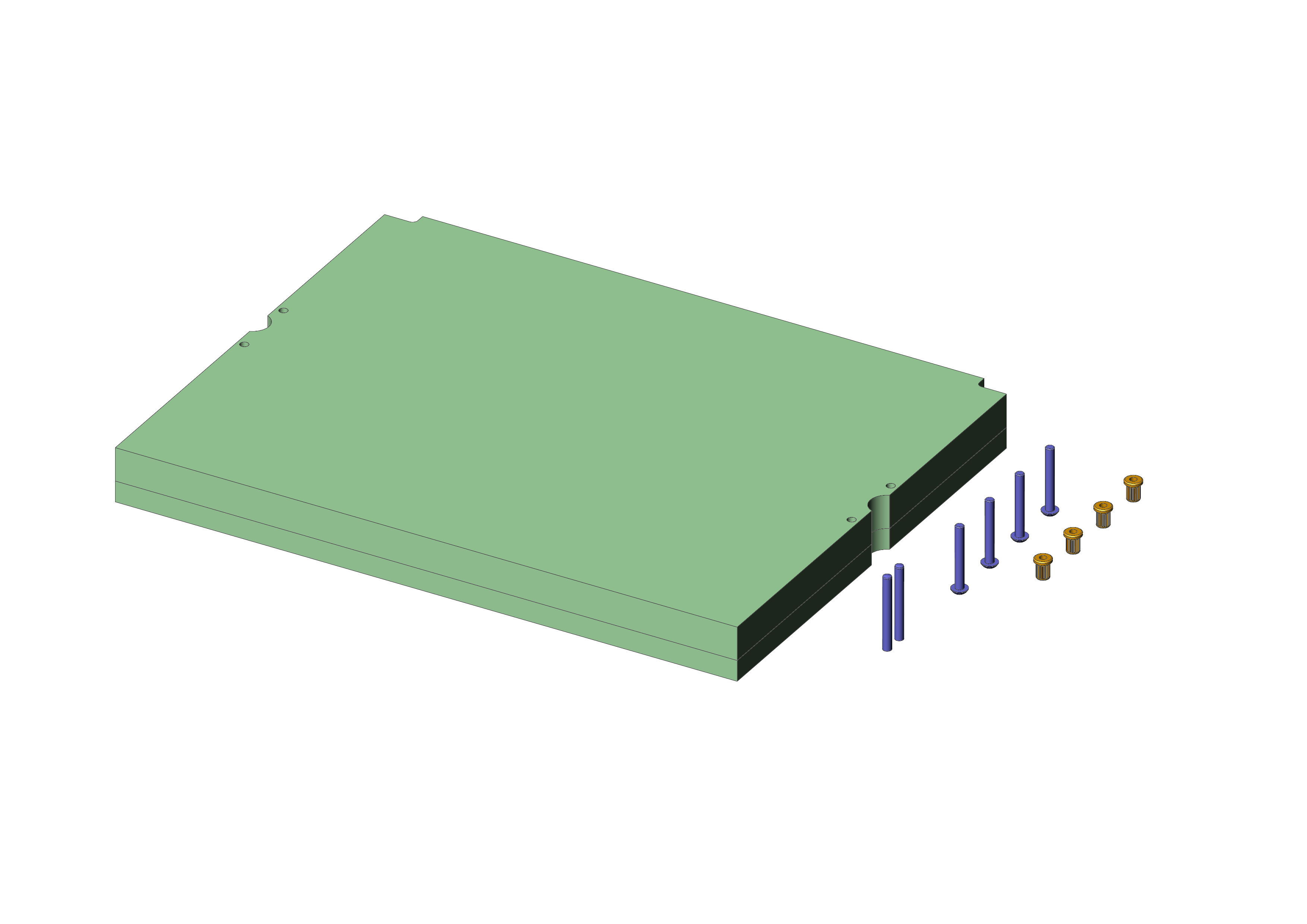

Product information "SBU-285-230-ATSMA12"
- Precise, reliable contacting in small grids
- Quick, easy installation
- Extensive, detailed customisation guidelines
- Plate material is deflection-resistant FR4
| Dual-stage contacting: | Yes |
|---|---|
| Exchangeable kit(s) (ATS): | ATS MA12 |
| Manual test fixtures (MA): | MA 2012 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 298 x 230 x 26 mm [11.7 x 9.05 x 1.02 in] |
| Product group: | ATS MA upgrade kits |
| RoHS-compliant: | Yes |
| Scope of delivery: | Unassembled |
| Series: | SBU |
| Subseries: | ATS MAxx |
| Useable area (WxD): | 285 x 230 mm [11.2 x 9.05 in] |
| Version: | S-Line standard |
| Weight: | 3.43 kg [7.56 lbs] |
Login
Product Details
- Precise, reliable contacting in small grids
- Quick, easy installation
- Extensive, detailed customisation guidelines
- Plate material is deflection-resistant FR4
Other products in this series:
Technical data
Compatible with
- Exchangeable kit(s) (ATS): ATS MA12
- Manual test fixtures (MA): MA 2012
General data
- Product group: ATS MA upgrade kits
- Subseries: ATS MAxx
- Series: SBU
- Version: S-Line standard
- Scope of delivery: Unassembled
- Dual-stage contacting: Yes
- Weight: 3.43 kg [7.56 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Technical data
- Useable area (WxD): 285 x 230 mm [11.2 x 9.05 in]
- Outer dimensionS (WxDxH): 298 x 230 x 26 mm [11.7 x 9.05 x 1.02 in]
