Product information "SB-P-SI-085-4A-0,6-Z"

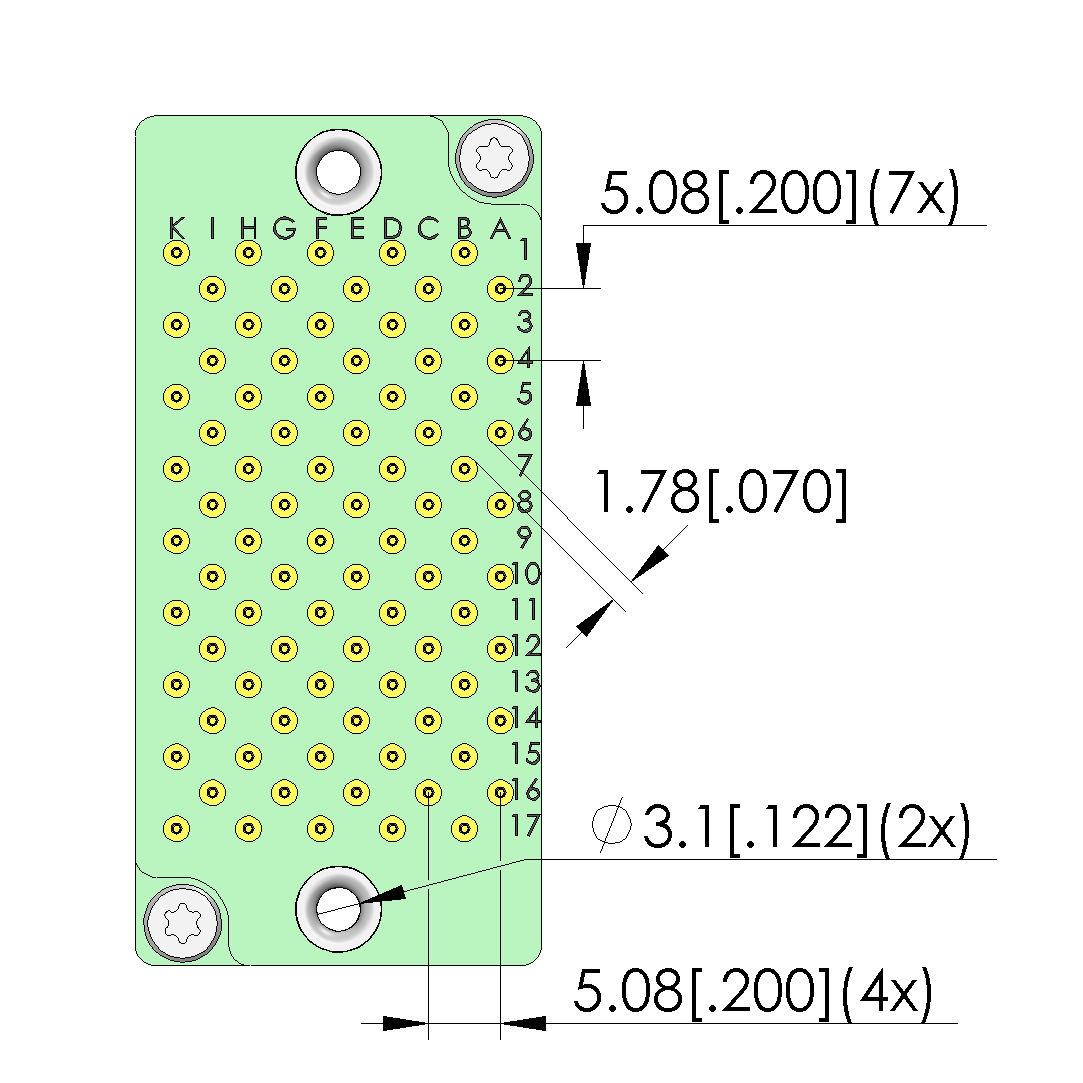

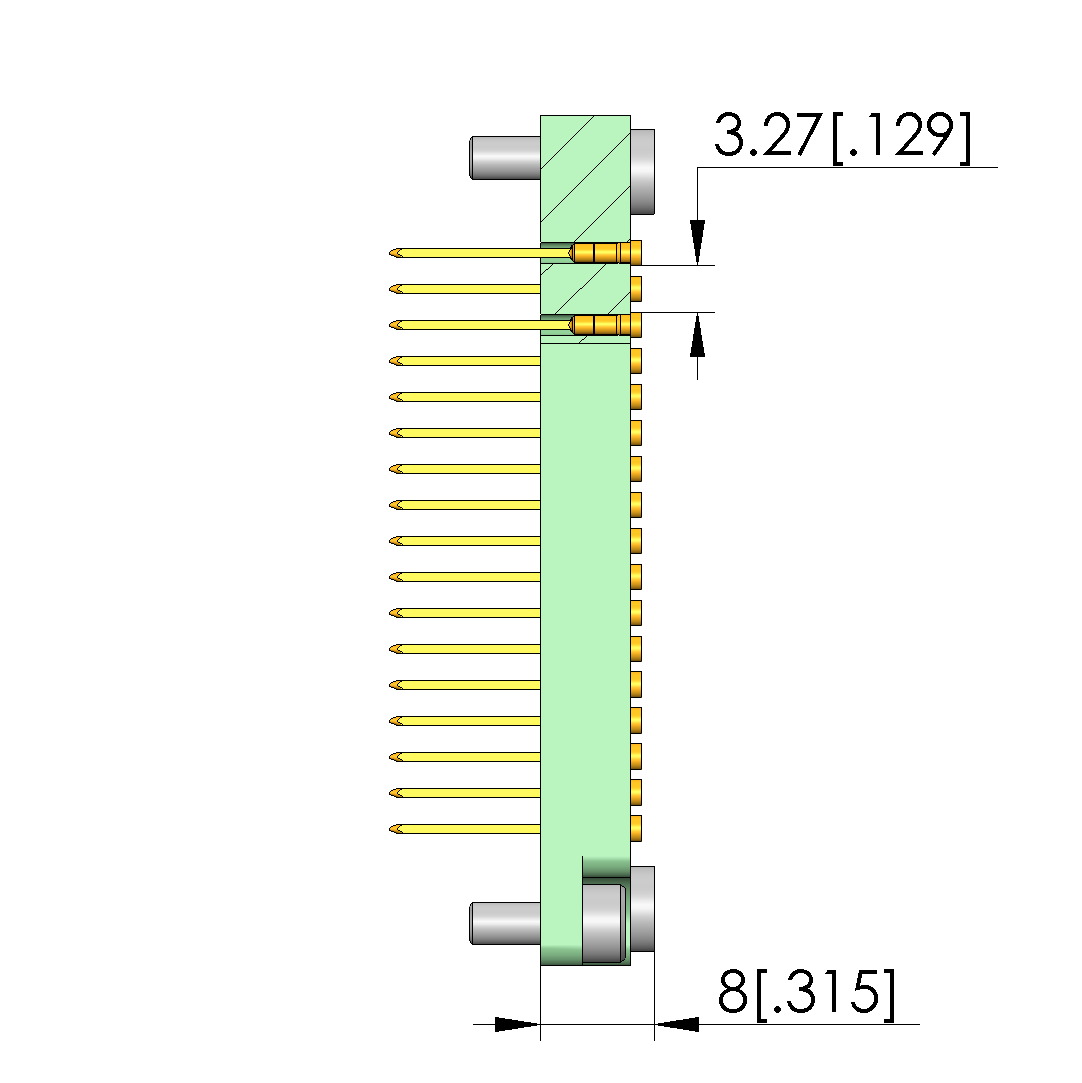

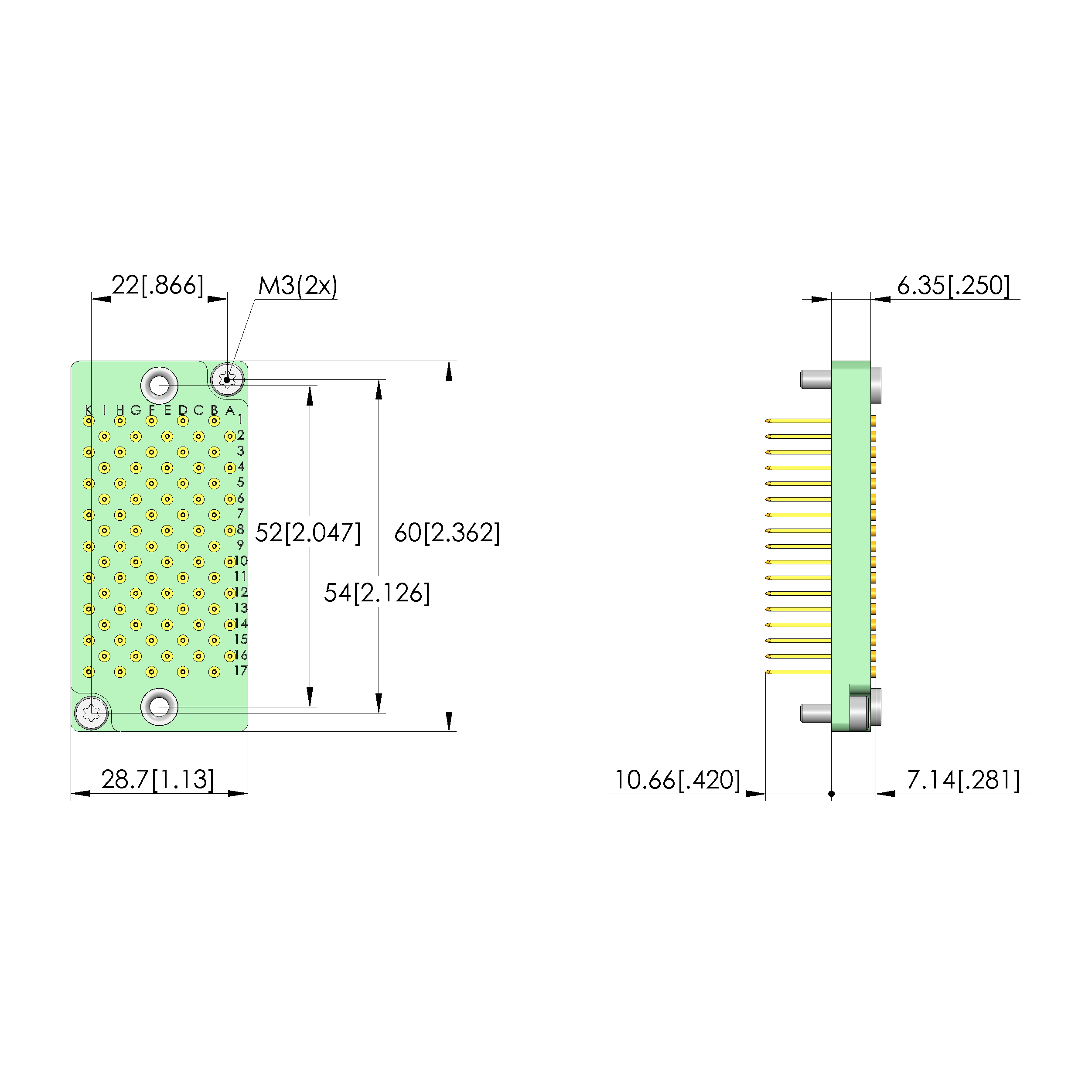

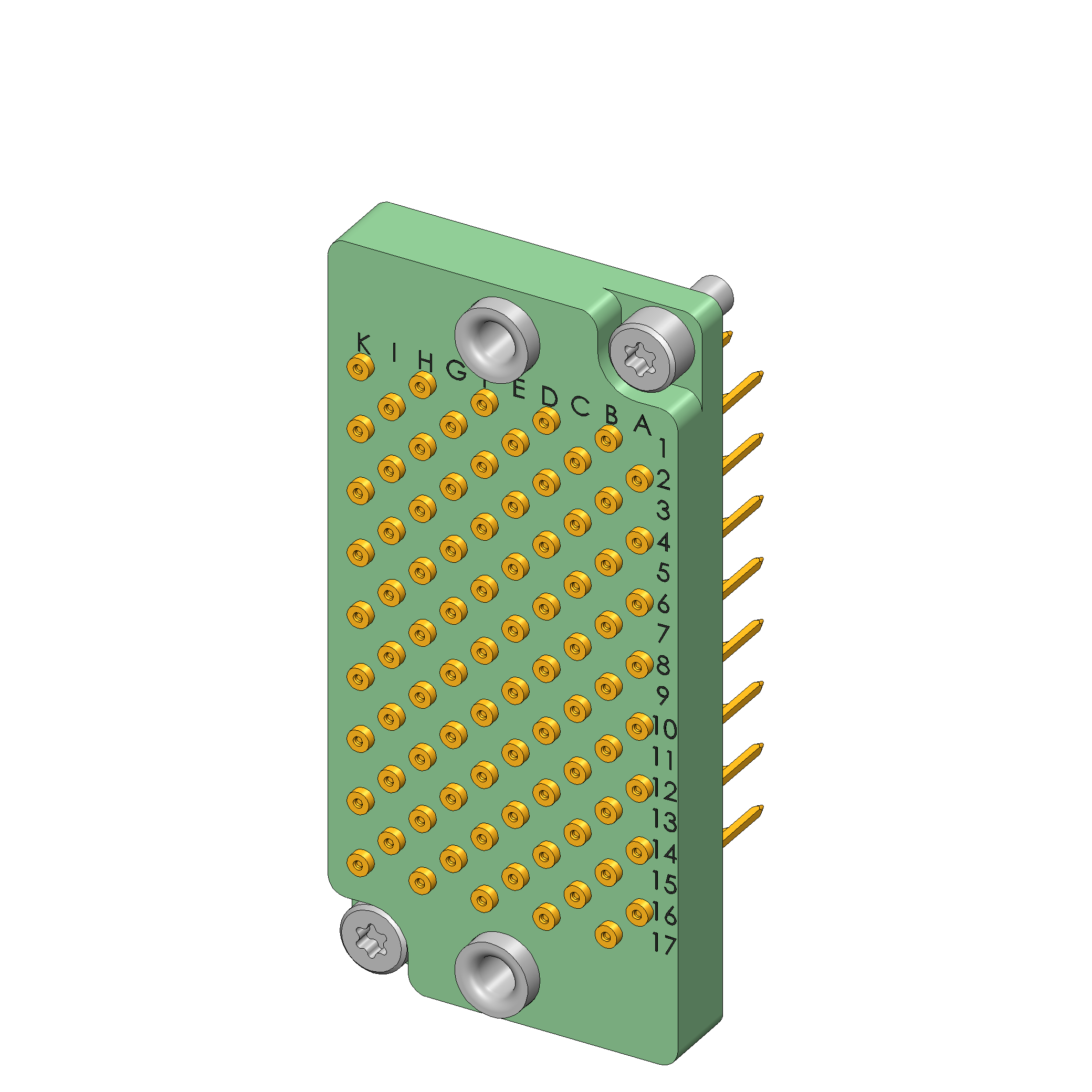

- Equipped with INGUN test probes
- Uniformly parallel wire-wrap posts
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of low voltage signals
- Pre-assembled plug connectors as connection accessories
| Accessory type: | Customising accessories |
|---|---|
| Air distance (not wired): | 1.69 mm [.066 in] |
| Bestückung: | KT-158 06 (posts) |
| Centring pin: | +/- 0,3 mm |
| Compatible mating part 1: | SB-T-SI-085-4A-Z |
| Connection: | Wire-wrap posts |
| MA exchangeable kits (ATS MA): | ATS MAxx |
| Max. current of all GKS: | 2 A |
| Max. current of one GKS: | 4 A |
| Max. power loss: | 7 W |
| Max. temperature: | 80 °C [176 °F] |
| Max. voltage: | 1.35 V |
| Min. line cross-section: | 0.25 mm² [.00038 in²] |
| Min. temperature: | -30 °C [-22 °F] |
| Number of poles: | 85 (fixe Pos.) |
| Product group: | Interface blocks (SB) |
| RoHS-compliant: | Yes |
| Series: | SB-SI |
| Type: | Signal block |
| Typical resistance (Ri) of one GKS: | 5 mOhm |
| Version: | Device under test (DUT) side |
| Weight: | 0.029 kg [.063 lbs] |
| Working distance: | 15,1 +/- 0,5 mm |
Login
Product Details
- Equipped with INGUN test probes
- Uniformly parallel wire-wrap posts
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of low voltage signals
- Pre-assembled plug connectors as connection accessories
Other products in this series:
Technical data
Technical data
- Max. voltage: 1.35 V
- Min. line cross-section: 0.25 mm² [.00038 in²]
- Max. power loss: 7 W
- Centring pin: +/- 0,3 mm
- Working distance: 15,1 +/- 0,5 mm
- Max. current of one GKS: 4 A
- Air distance (not wired): 1.69 mm [.066 in]
- Number of poles: 85 (fixe Pos.)
- Connection: Wire-wrap posts
- Max. current of all GKS: 2 A
General data
- Max. temperature: 80 °C [176 °F]
- Accessory type: Customising accessories
- Version: Device under test (DUT) side
- Bestückung: KT-158 06 (posts)
- Type: Signal block
- Weight: 0.029 kg [.063 lbs]
- RoHS-compliant: Yes
- Product group: Interface blocks (SB)
- Series: SB-SI
- Min. temperature: -30 °C [-22 °F]
Electrical data
- Typical resistance (Ri) of one GKS: 5 mOhm
Compatible with
- Compatible mating part 1: SB-T-SI-085-4A-Z
- MA exchangeable kits (ATS MA): ATS MAxx
