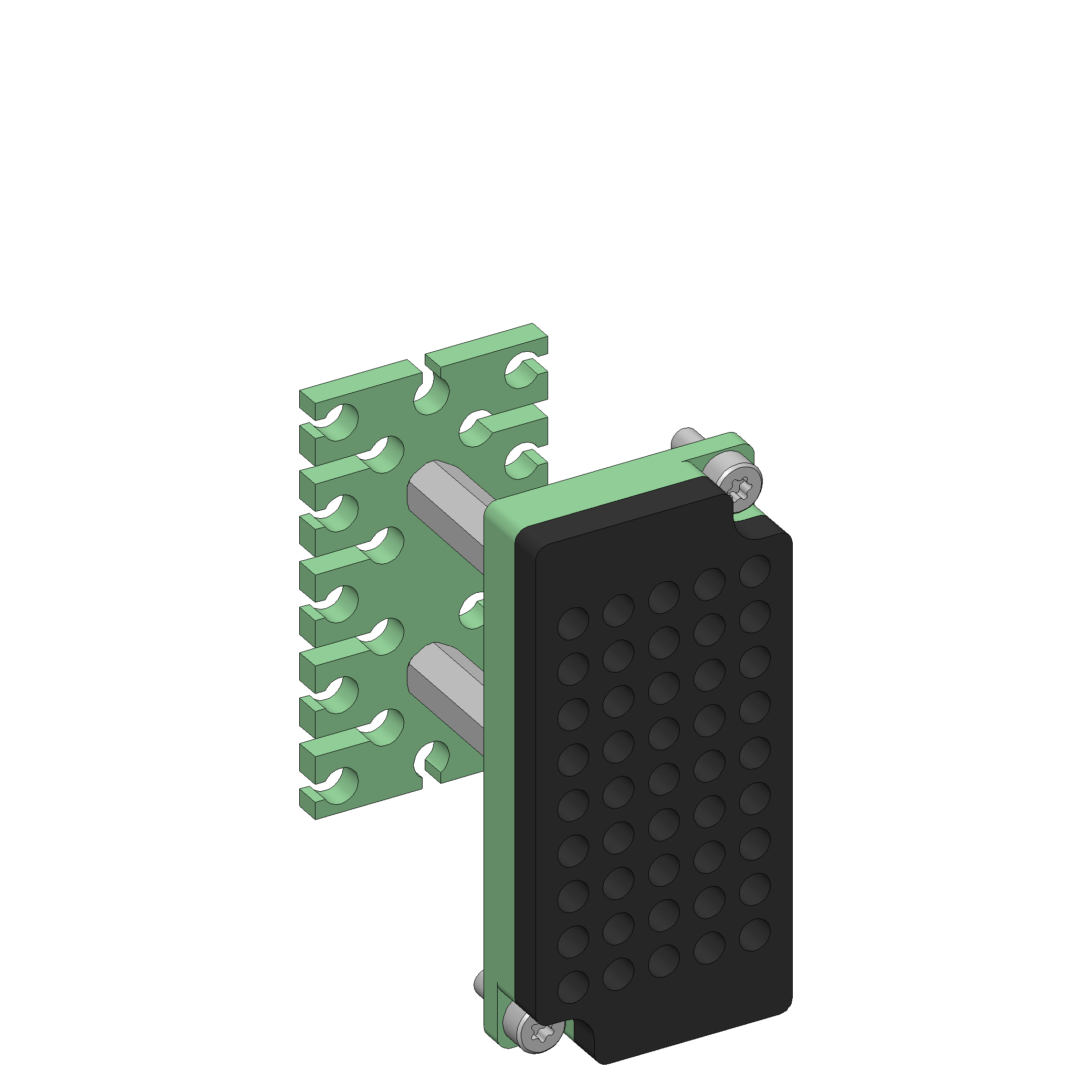

Product information "SB-T-LL-020-OH3-K"
- Suitable for test fixtures with internal or external Pylon interface
- Reliable transmission of light signals
- High contact reliability and transmission quality
- Consistently low contact loss
| Accessory type: | Customising accessories |
|---|---|
| Bestückung: | Unpopulated, for FEASA OH-3 |
| Compatible mating part 1: | SB-P-LL-045-DM2,3 |
| Compatible mating part 2: | SB-P-LL-045-DM1,0 |
| Connection: | Optical head OH-3 |
| Manual test fixtures (MA): | MA 21xx, MA 32xx |
| Max. temperature: | 80 °C [176 °F] |
| Min. temperature: | -30 °C [-22 °F] |
| Number of poles: | 20 (fixed positions) |
| Product group: | Interface blocks (SB) |
| Pylon receiver: | RC-PYLON-12-V2 |
| RoHS-compliant: | Yes |
| Sealing: | EDPM rubber |
| Series: | SB-LL |
| Type: | Fibre optic block |
| Version: | Test system side |
| Weight: | 0.032 kg [.07 lbs] |
| Working distance: | 15,1 +/- 0,5 mm |
Login
Product Details
- Suitable for test fixtures with internal or external Pylon interface
- Reliable transmission of light signals
- High contact reliability and transmission quality
- Consistently low contact loss
Other products in this series:

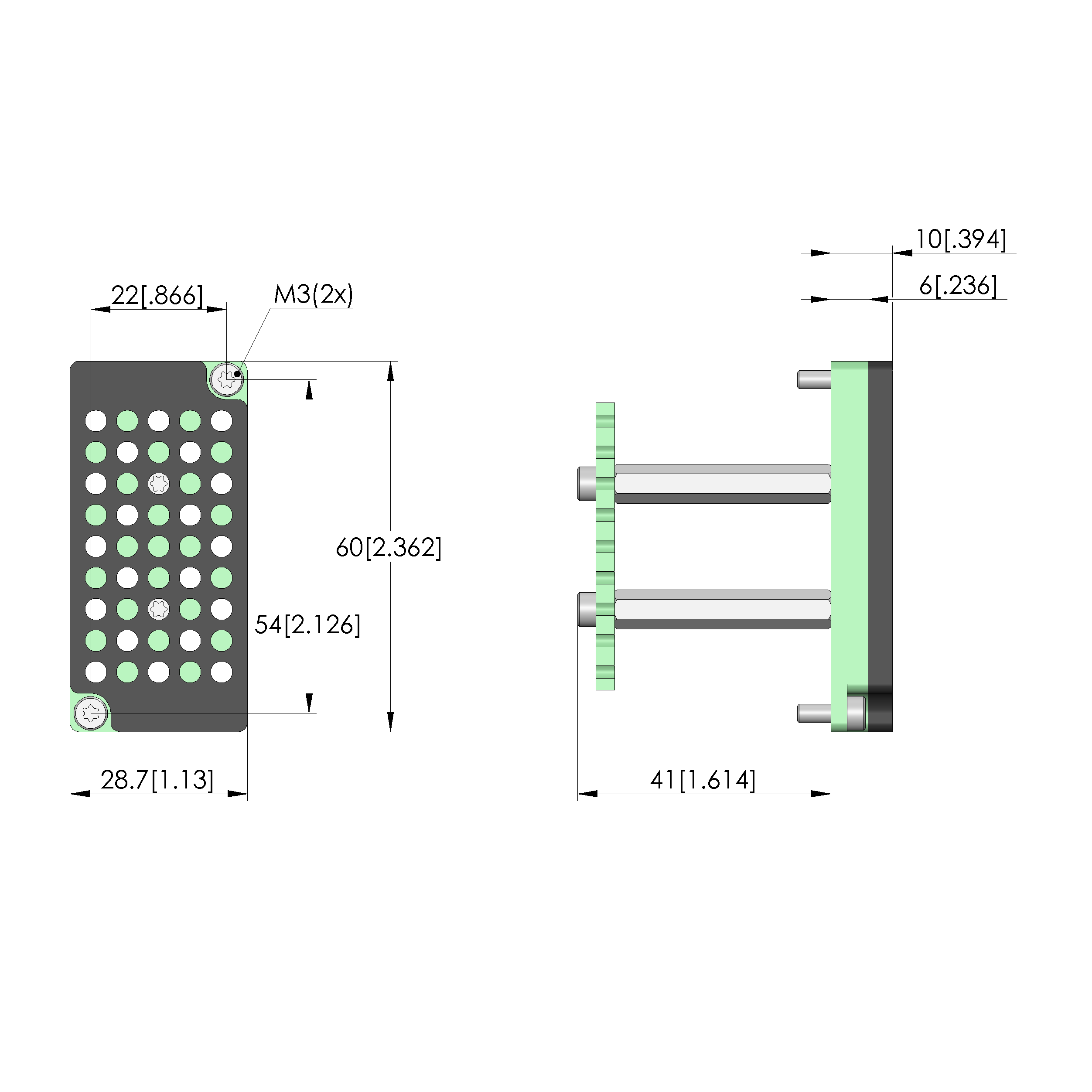

Technical data
Technical data
- Working distance: 15,1 +/- 0,5 mm
- Connection: Optical head OH-3
- Sealing: EDPM rubber

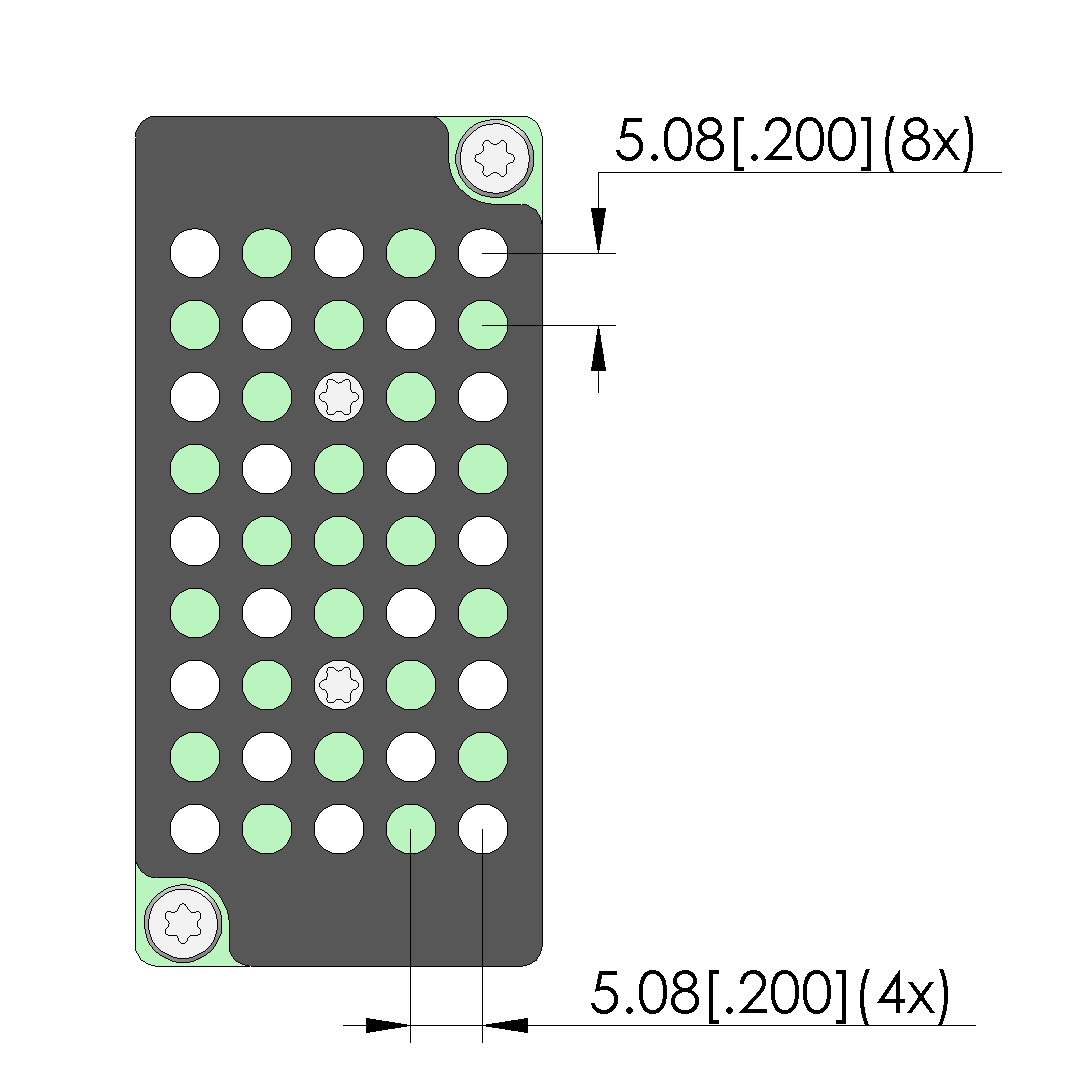

- Number of poles: 20 (fixed positions)
Compatible with
- Compatible mating part 1: SB-P-LL-045-DM2,3
- Compatible mating part 2: SB-P-LL-045-DM1,0
- Manual test fixtures (MA): MA 32xx
- Manual test fixtures (MA): MA 21xx
- Pylon receiver: RC-PYLON-12-V2
General data
- Product group: Interface blocks (SB)
- Series: SB-LL
- Type: Fibre optic block
- Version: Test system side
- Accessory type: Customising accessories
- Bestückung: Unpopulated, for FEASA OH-3
- Weight: 0.032 kg [.07 lbs]
- Min. temperature: -30 °C [-22 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
