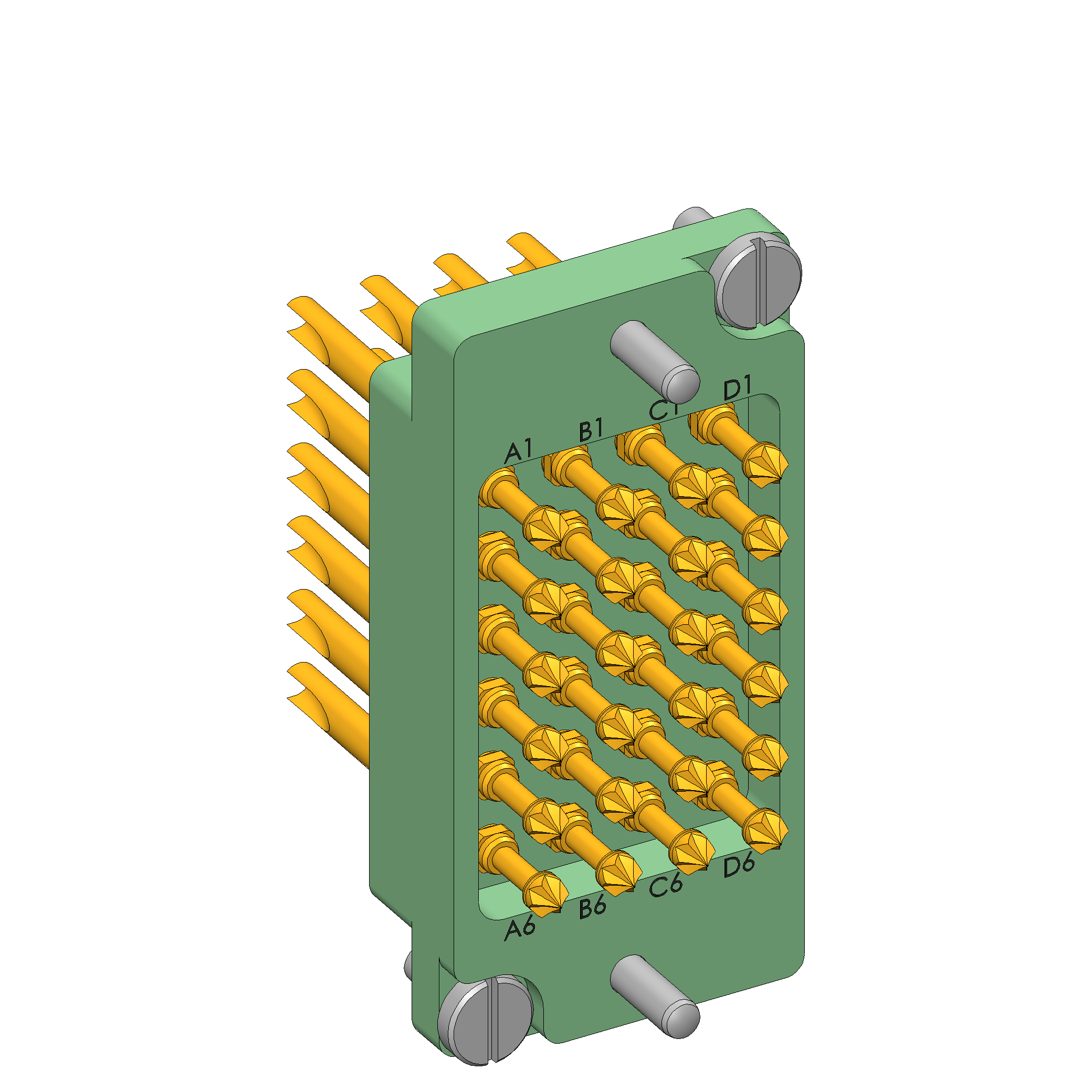

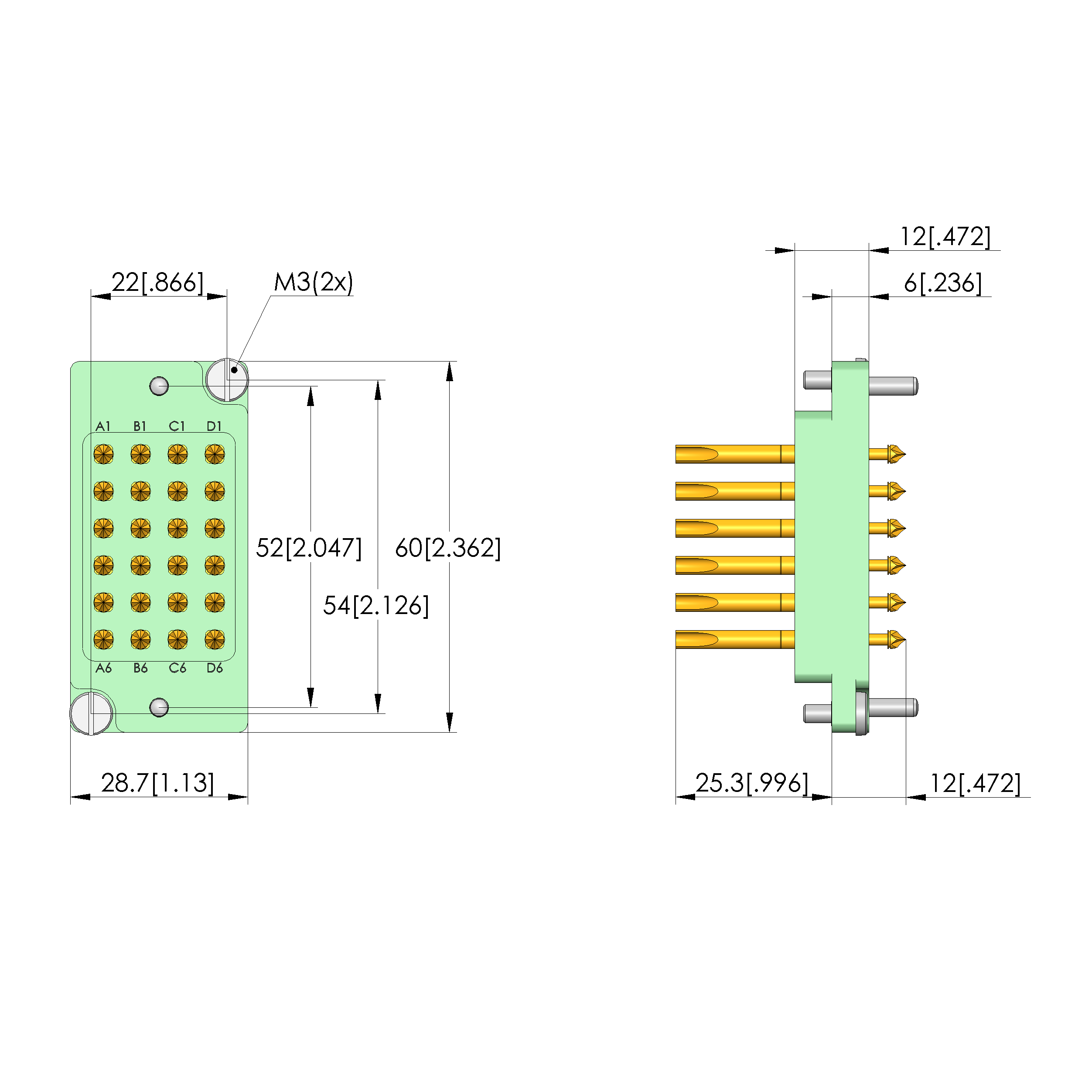

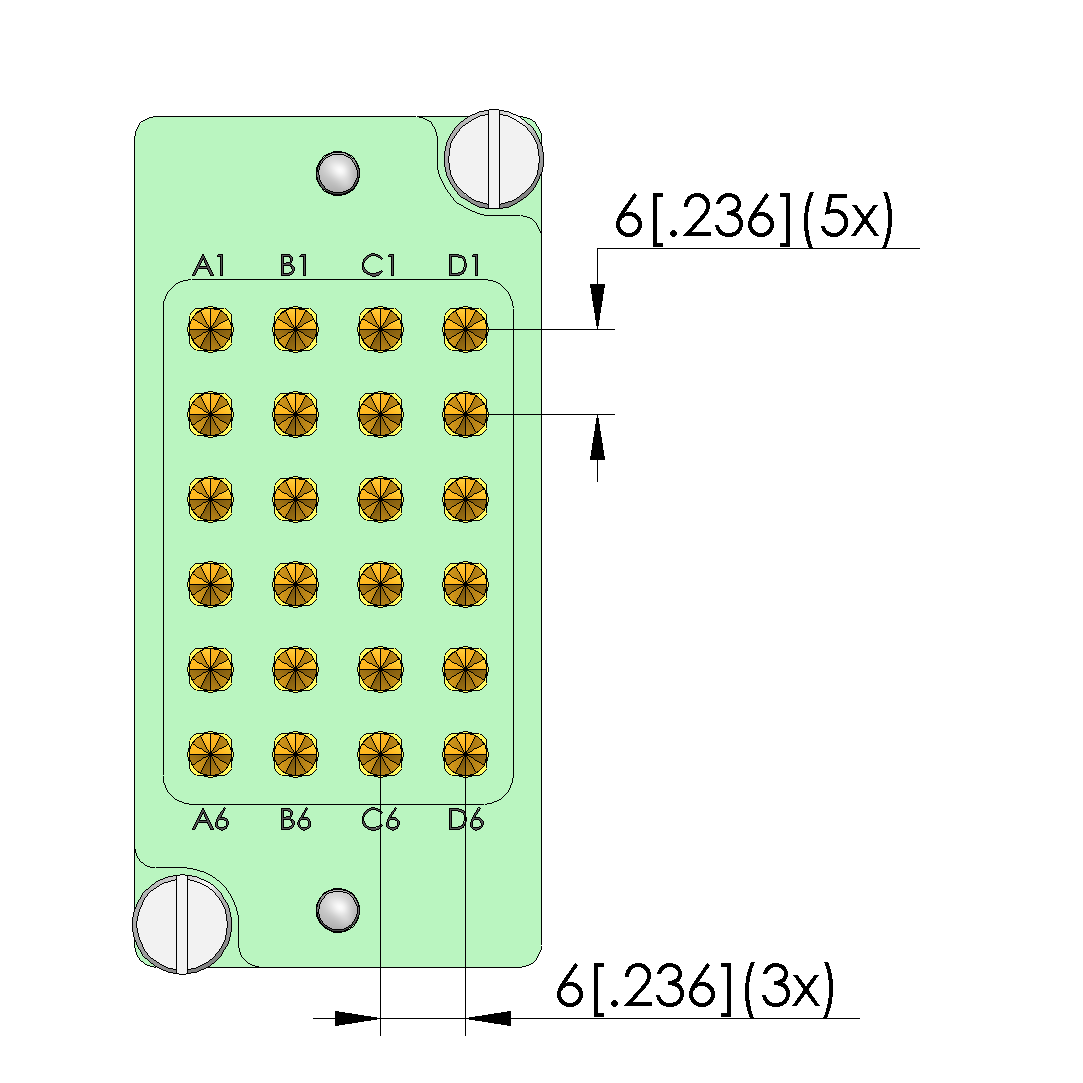

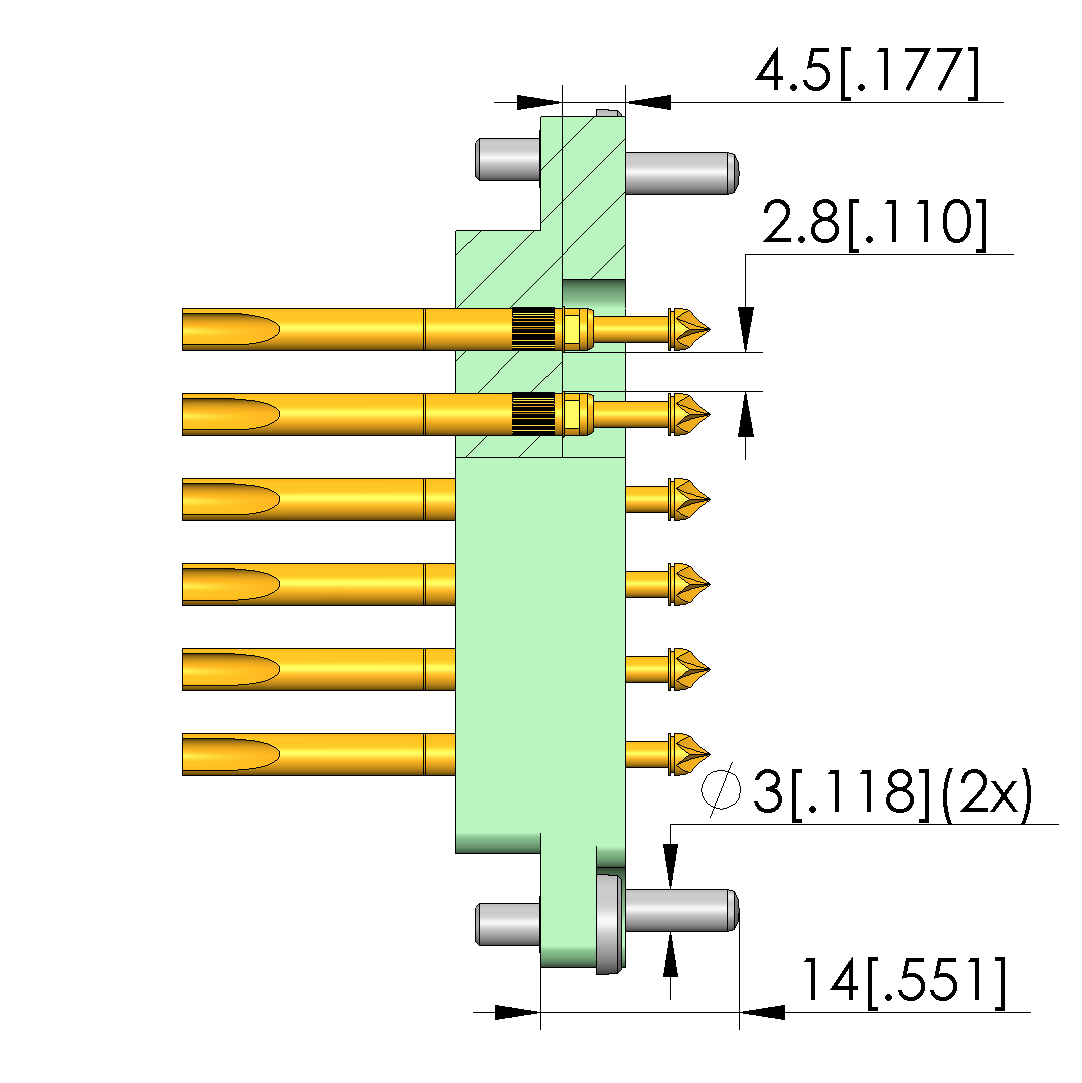

Product information "SB-T-HS-024-30A-Z"
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of high current signals
| Accessory type: | Customising accessories |
|---|---|
| Air distance (not wired): | 2.4 mm [.094 in] |
| Bestückung: | HSS-120-0081 & KS-11330M2-R |
| Centring pin: | +/- 0,3 mm |
| Compatible mating part 1: | SB-P-HS-024-30A-1,0-Z |
| Connection: | Solder cup |
| GKS working stroke : | 4 mm [.157 in] |
| Manual test fixtures (MA): | MA 21xx, MA 32xx |
| Max. current of all GKS: | 16 A |
| Max. current of one GKS: | 30 A |
| Max. power loss: | 25 W |
| Max. temperature: | 120 °C [248 °F] |
| Max. voltage: | 1.92 V |
| Min. line cross-section: | 1.5 mm² [.002 in²] |
| Min. temperature: | -30 °C [-22 °F] |
| Number of poles: | 24 (fixe Pos.) |
| Product group: | Interface blocks (SB) |
| Pylon receiver: | RC-PYLON-12-V2 |
| RoHS-compliant: | Yes |
| Series: | SB-HS |
| Spring force: | 52.8 N [189 ozf] |
| Type: | High-current block |
| Typical resistance (Ri) of one GKS: | 10 mOhm |
| Version: | Test system side |
| Weight: | 0.03 kg [.066 lbs] |
| Working distance: | 15,1 +/- 0,5 mm |
Login
Product Details
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of high current signals
Other products in this series:
Technical data
Technical data
- Connection: Solder cup
- Number of poles: 24 (fixe Pos.)
- Min. line cross-section: 1.5 mm² [.002 in²]
- Max. current of all GKS: 16 A
- Spring force: 52.8 N [189 ozf]
- Centring pin: +/- 0,3 mm
- Air distance (not wired): 2.4 mm [.094 in]
- Working distance: 15,1 +/- 0,5 mm
- Max. current of one GKS: 30 A
- Max. voltage: 1.92 V
- Max. power loss: 25 W
- GKS working stroke : 4 mm [.157 in]
Compatible with
- Pylon receiver: RC-PYLON-12-V2
- Manual test fixtures (MA): MA 32xx
- Manual test fixtures (MA): MA 21xx
- Compatible mating part 1: SB-P-HS-024-30A-1,0-Z
General data
- Version: Test system side
- Accessory type: Customising accessories
- Type: High-current block
- Max. temperature: 120 °C [248 °F]
- RoHS-compliant: Yes
- Weight: 0.03 kg [.066 lbs]
- Product group: Interface blocks (SB)
- Series: SB-HS
- Bestückung: HSS-120-0081 & KS-11330M2-R
- Min. temperature: -30 °C [-22 °F]
Electrical data
- Typical resistance (Ri) of one GKS: 10 mOhm
