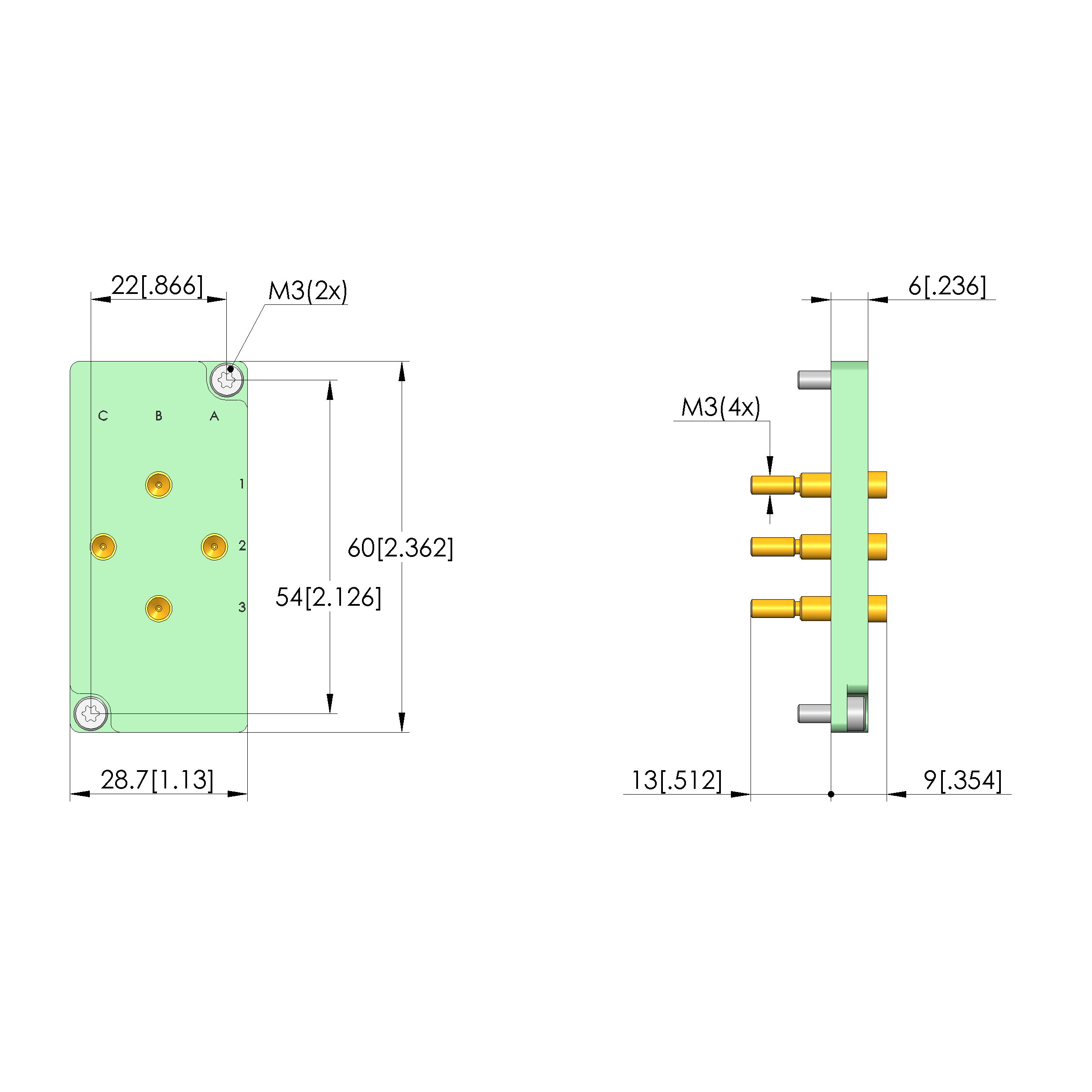

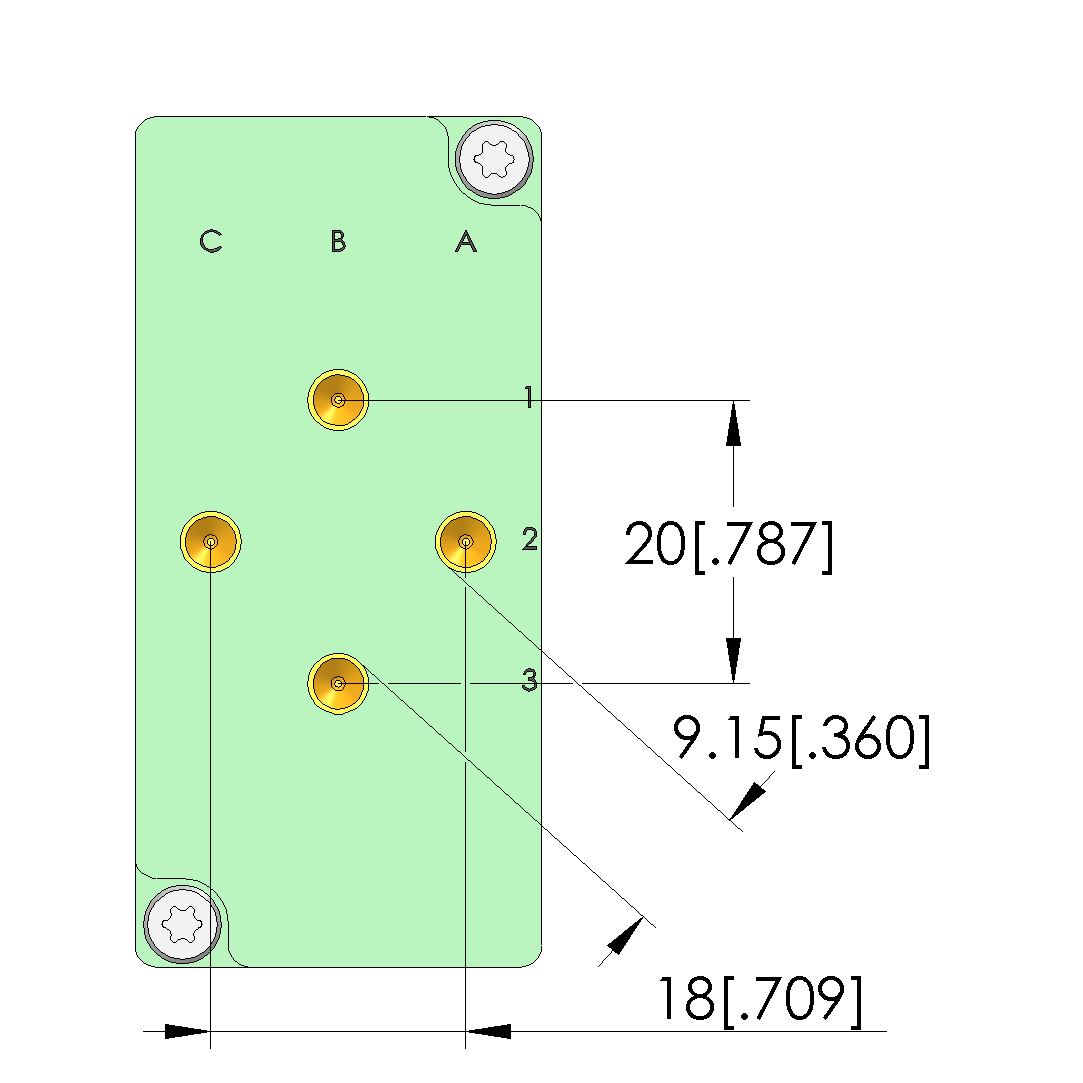

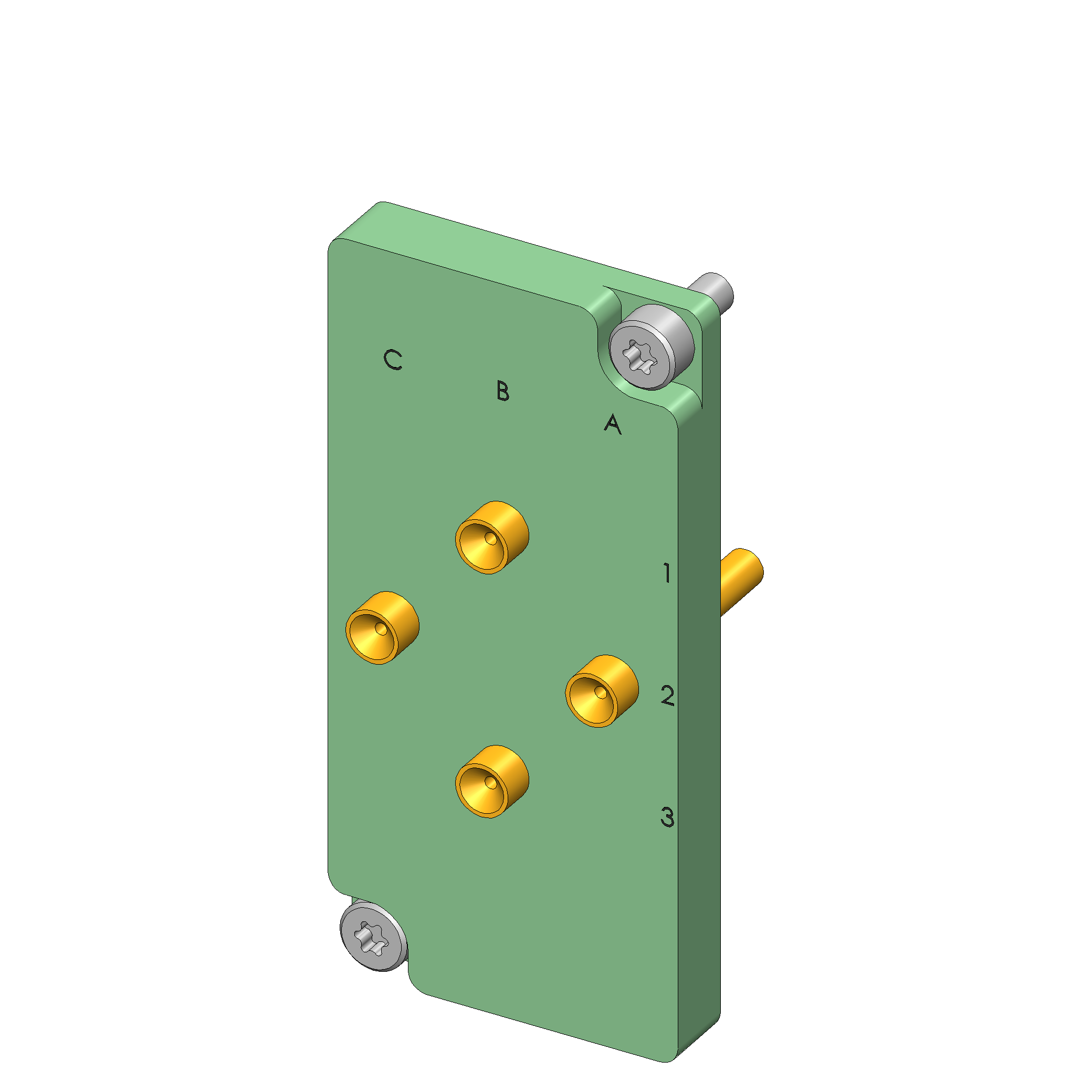

Product information "SB-P-HS-004-50A-1,0"
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of high current signals
| Accessory type: | Customising accessories |
|---|---|
| Air distance (not wired): | 9.1 mm [.358 in] |
| Bestückung: | KT-150L3E03M3 (M3) |
| Compatible mating part 1: | SB-T-HS-004-50A |
| Connection: | M3 thread-post |
| MA exchangeable kits (ATS MA): | ATS MAxx |
| Max. current of all GKS: | 35 A |
| Max. current of one GKS: | 50 A |
| Max. power loss: | 25 W |
| Max. temperature: | 120 °C [248 °F] |
| Max. voltage: | 6 V |
| Min. line cross-section: | 6 mm² [.009 in²] |
| Min. temperature: | -30 °C [-22 °F] |
| Number of poles: | 4 (fixe Pos.) |
| Product group: | Interface blocks (SB) |
| RoHS-compliant: | Yes |
| Series: | SB-HS |
| Type: | High-current block |
| Typical resistance (Ri) of one GKS: | 5 mOhm |
| Version: | Device under test (DUT) side |
| Weight: | 0.029 kg [.063 lbs] |
| Working distance: | 15,1 +/- 0,5 mm |
Login
Product Details
- Equipped with INGUN test probes
- Suitable for test fixtures with internal or external Pylon interface
- Consistently low contact resistances and replicable measured values
- High contact reliability and transmission quality
- Reliable transmission of high current signals
Other products in this series:
Technical data
General data
- Bestückung: KT-150L3E03M3 (M3)
- Accessory type: Customising accessories
- Type: High-current block
- Version: Device under test (DUT) side
- Max. temperature: 120 °C [248 °F]
- Weight: 0.029 kg [.063 lbs]
- RoHS-compliant: Yes
- Product group: Interface blocks (SB)
- Series: SB-HS
- Min. temperature: -30 °C [-22 °F]

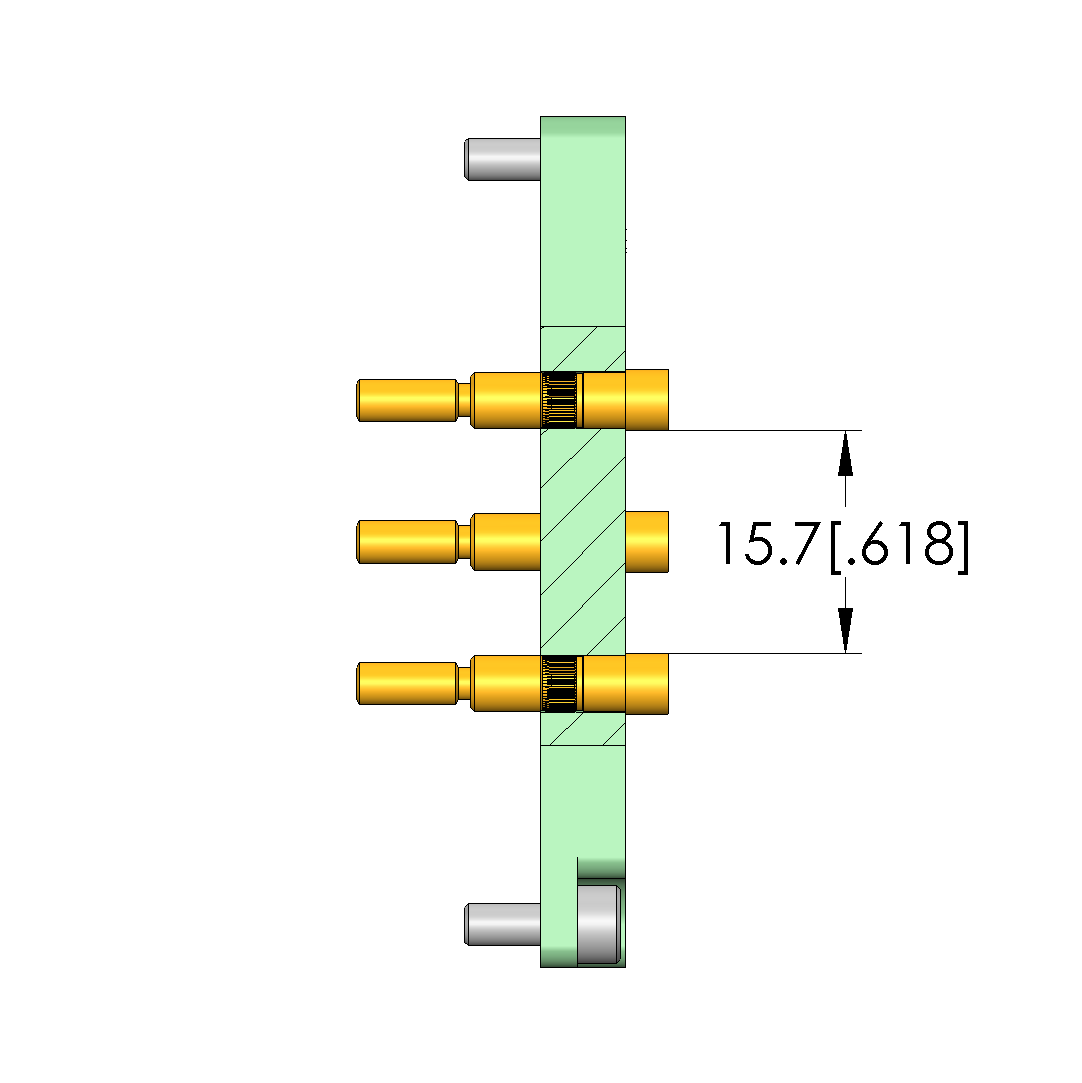

Technical data
- Max. current of all GKS: 35 A
- Min. line cross-section: 6 mm² [.009 in²]
- Working distance: 15,1 +/- 0,5 mm
- Max. current of one GKS: 50 A
- Connection: M3 thread-post
- Max. voltage: 6 V
- Max. power loss: 25 W
- Number of poles: 4 (fixe Pos.)
- Air distance (not wired): 9.1 mm [.358 in]
Electrical data
- Typical resistance (Ri) of one GKS: 5 mOhm
Compatible with
- Compatible mating part 1: SB-T-HS-004-50A
- MA exchangeable kits (ATS MA): ATS MAxx
