Product information "SAM-H7-16-150N-020-060-S"

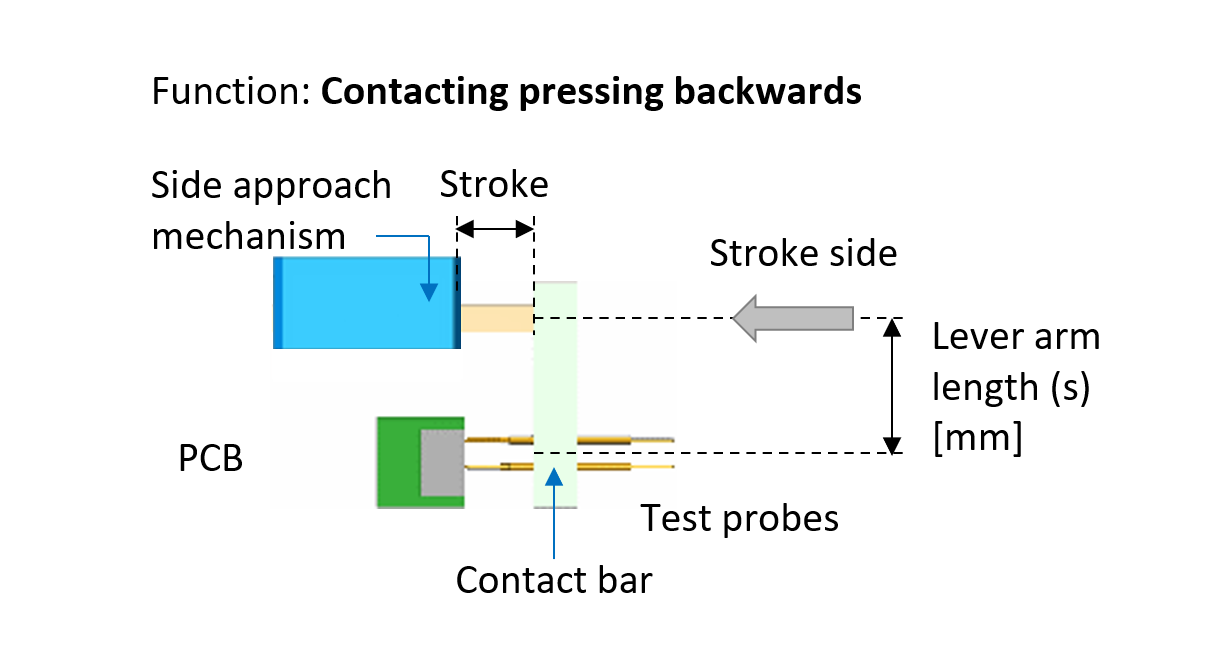

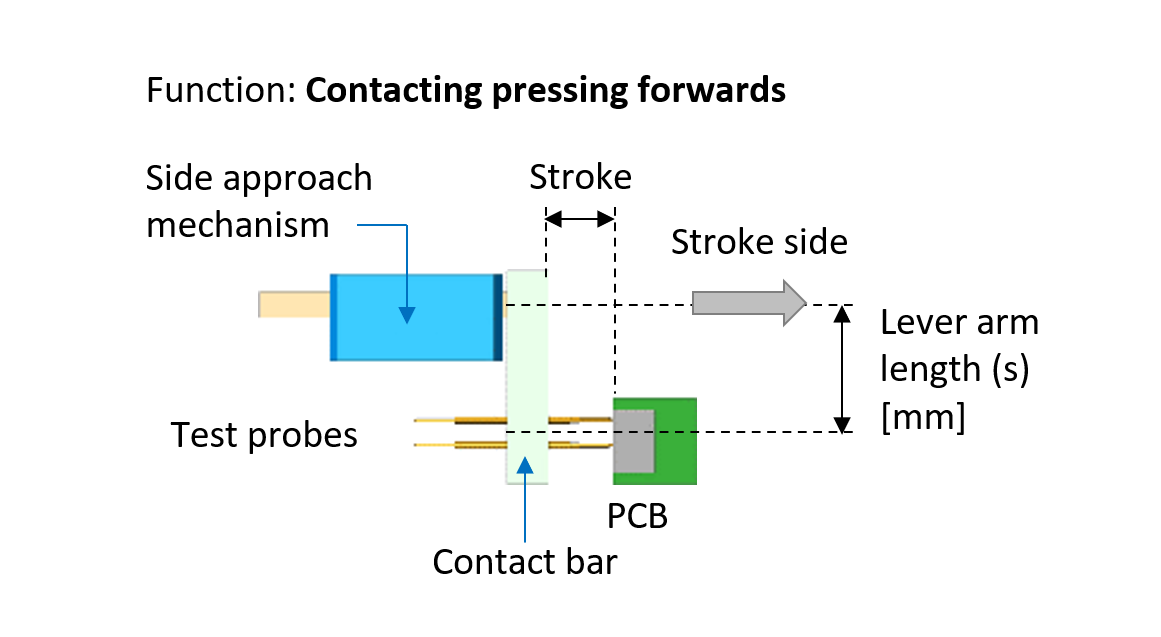

- Reliable lateral contacting
- Compact, robust design
- Durable, maintenance-free precision guidance
- Space-saving, simple, and precise installation
- Stroke-controlled actuation
- Contacting process takes place at the same time as the PCB contacting
| Accessory type: | Customising accessories |
|---|---|
| Contact stroke detection: | - |
| Contact stroke generation: | Stroke controlled |
| MA exchangeable kits (ATS MA): | ATS MAxx |
| Manual test fixtures (MA): | MA 20xx |
| Max. contact stroke: | 16 mm [.629 in] |

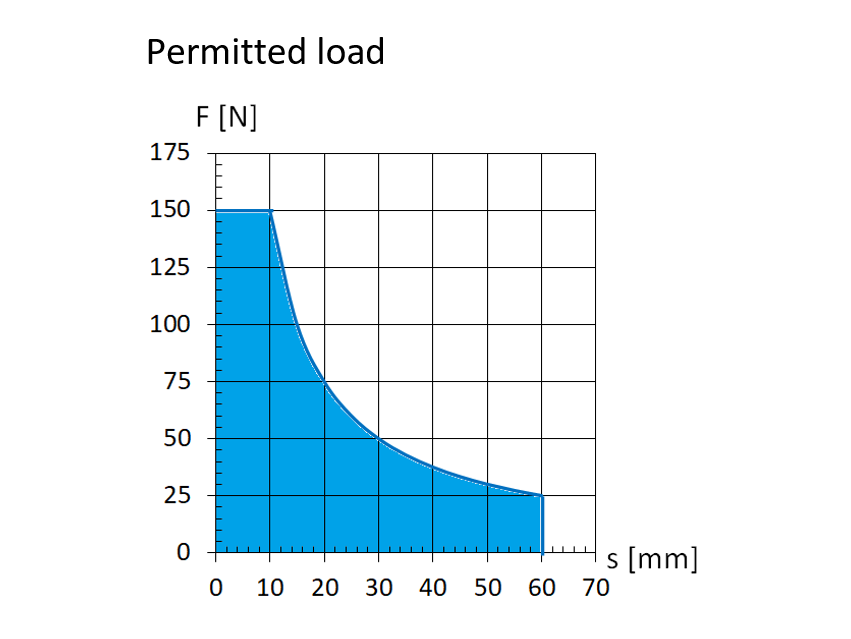

| Max. contact stroke force: | 150 N [539 ozf] |
| Max. lever arm length: | 60 mm [2.36 in] |
| Max. operating stroke: | 7 mm [.275 in] |
| Max. temperature: | 60 °C [140 °F] |
| Max. torque: | 1.5 Nm [13.2 lbf·in] |
| Min. temperature: | -5 °C [23 °F] |

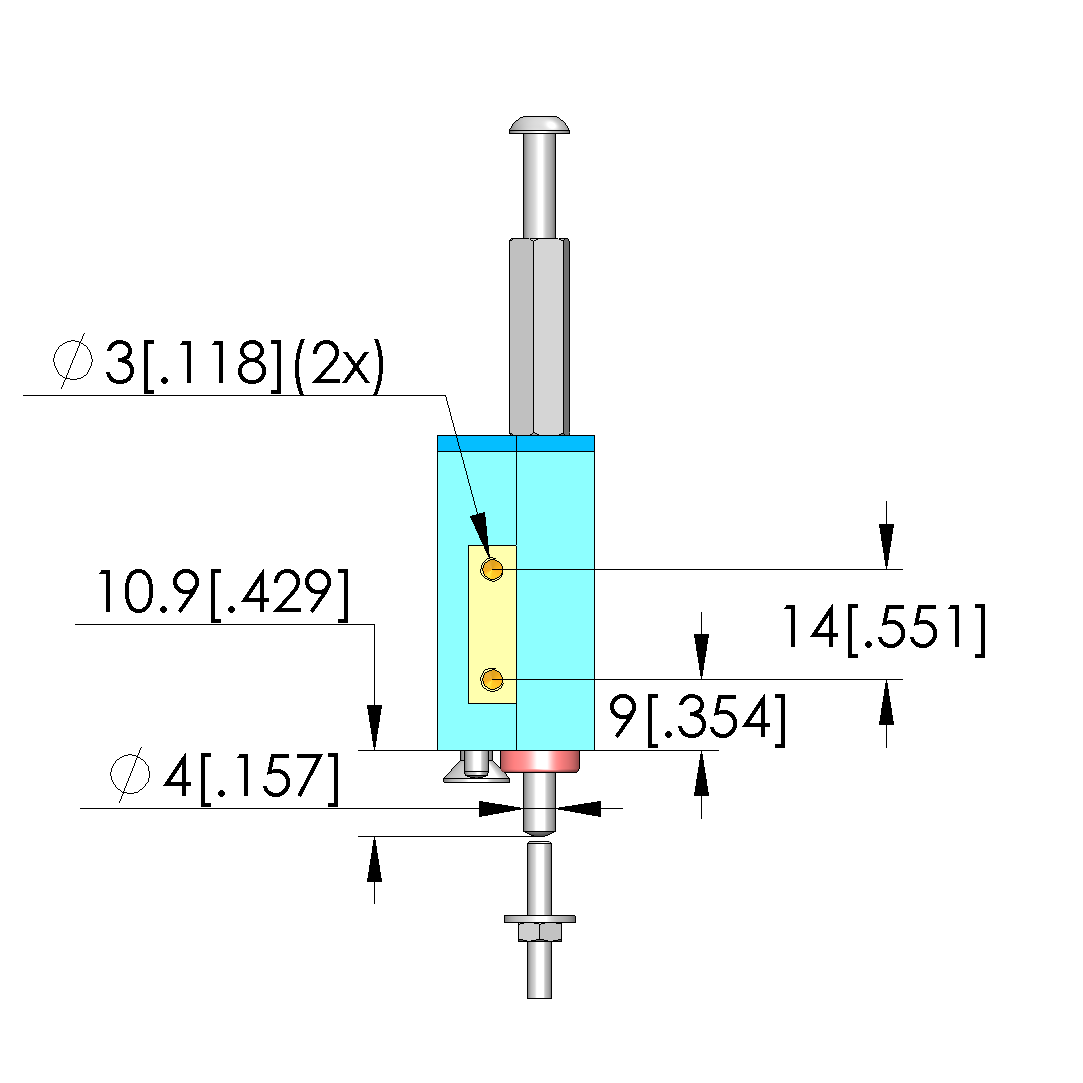

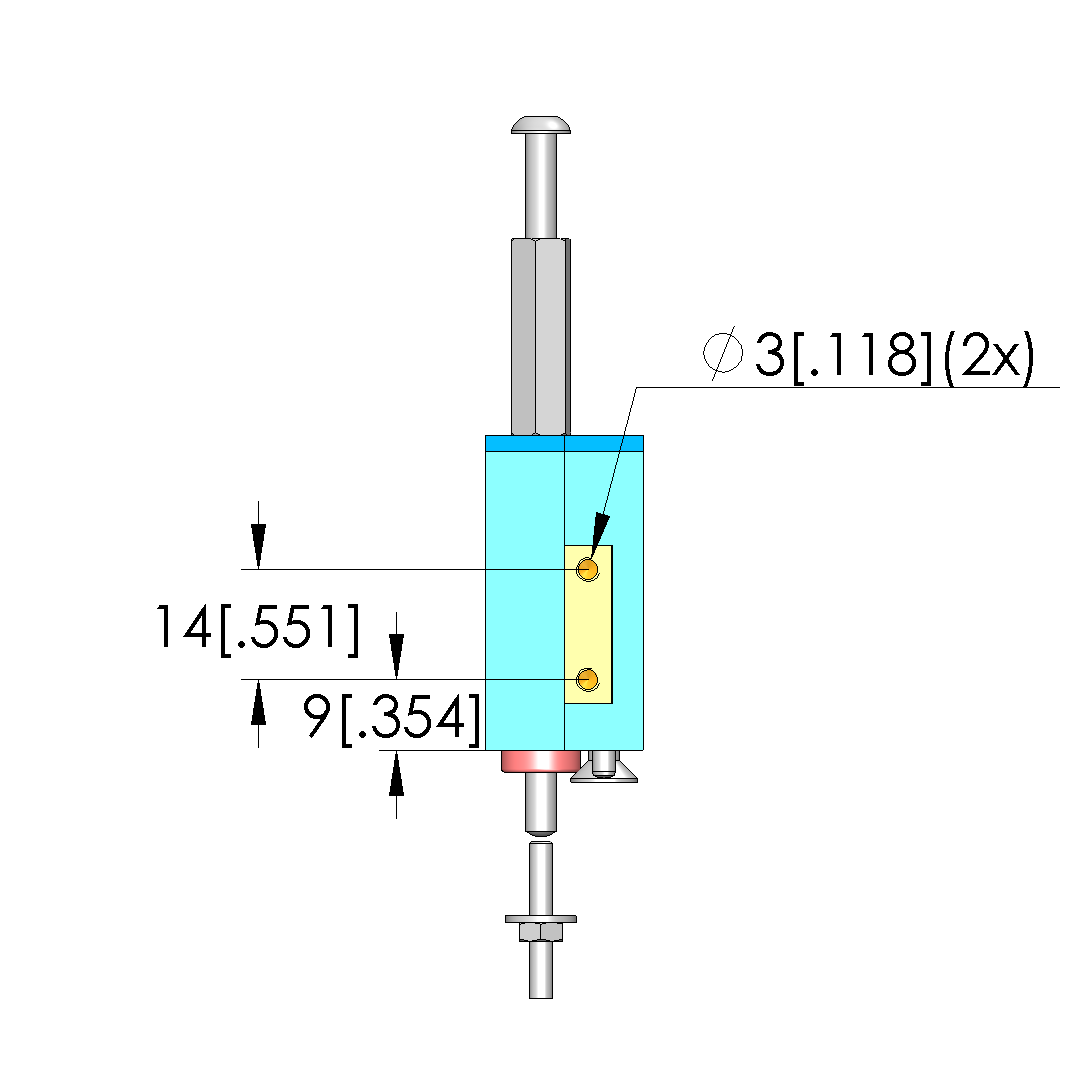

| Outer dimensionS (WxDxH): | 20 x 60 x 40 mm [.787 x 2.36 x 1.57 in] |
| Pneumatic test fixtures (PA): | PA xxxx |

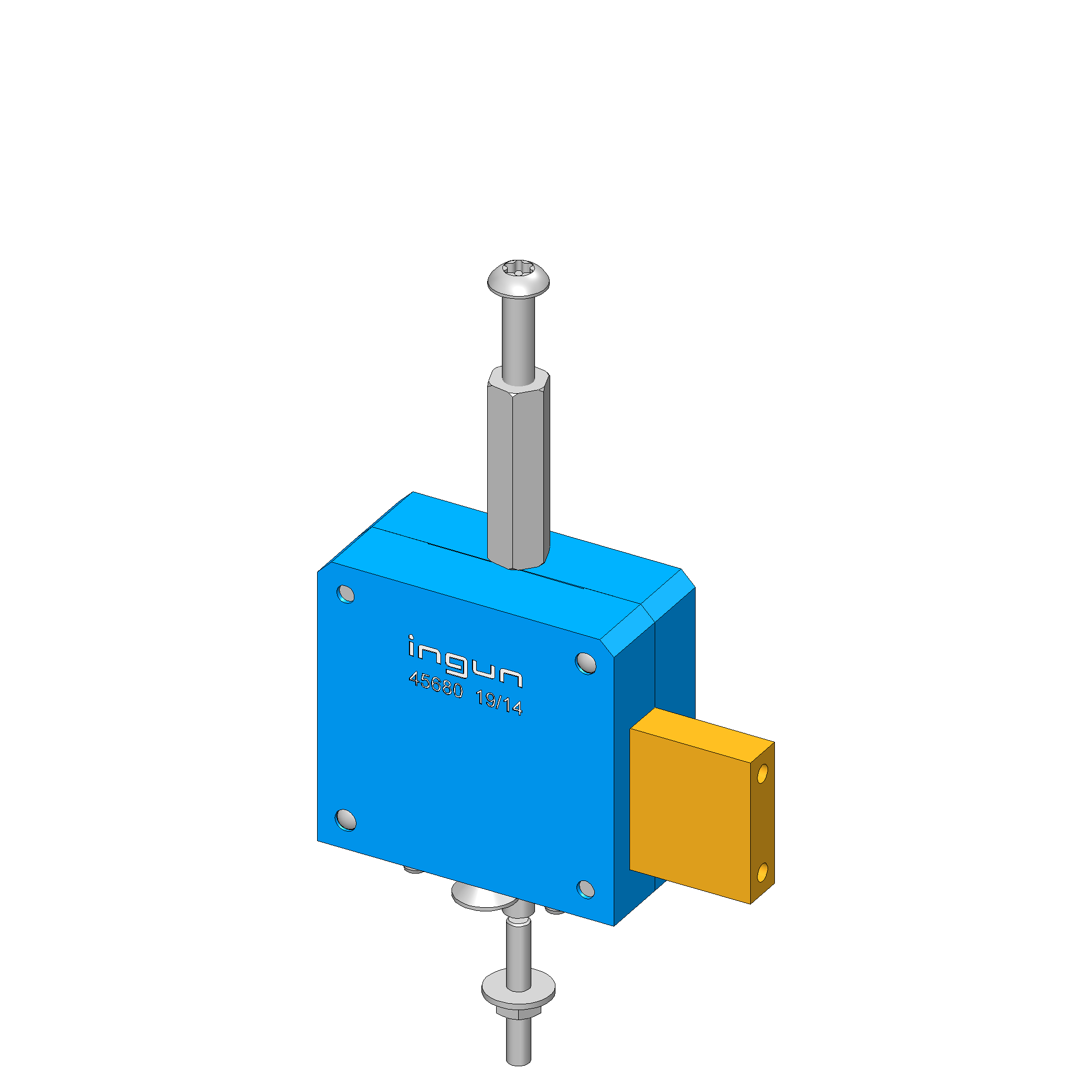

| Product group: | Side approach mechanism (SAM) |
| Series: | SAM-H |
| Vacuum test fixtures (VA): | VA xxxx |
| Weight: | 0.14 kg [.308 lbs] |
Login

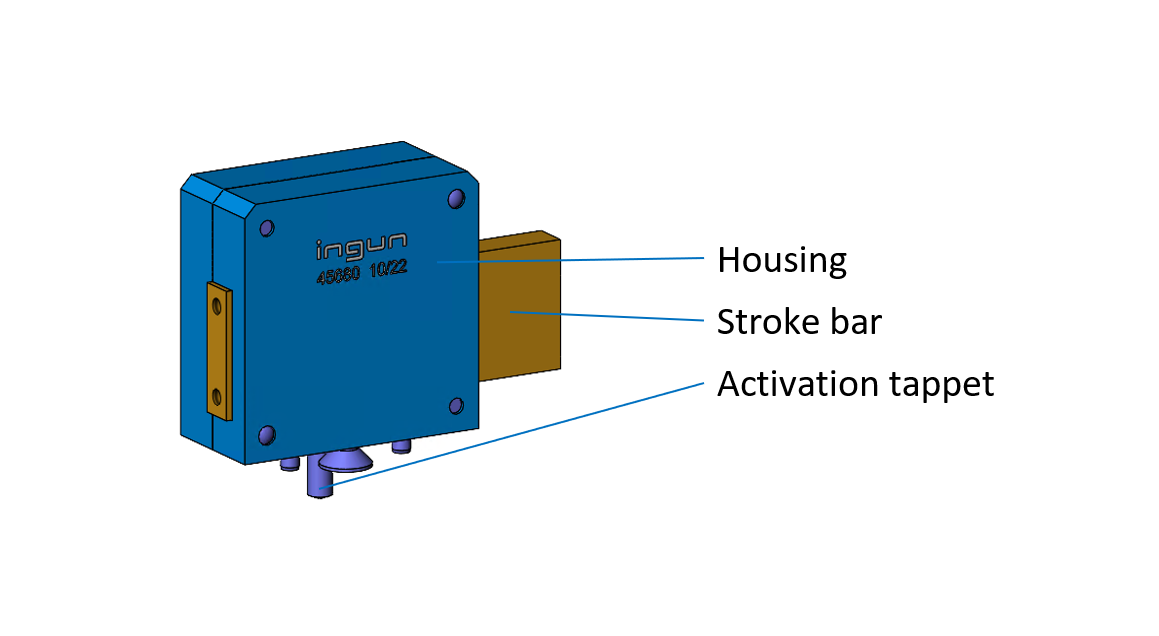

Product Details
- Reliable lateral contacting
- Compact, robust design
- Durable, maintenance-free precision guidance
- Space-saving, simple, and precise installation
- Stroke-controlled actuation
- Contacting process takes place at the same time as the PCB contacting
Other products in this series:
Technical data
Technical data
- Max. lever arm length: 60 mm [2.36 in]
- Max. torque: 1.5 Nm [13.2 lbf·in]
- Outer dimensionS (WxDxH): 20 x 60 x 40 mm [.787 x 2.36 x 1.57 in]
- Max. contact stroke: 16 mm [.629 in]
- Contact stroke detection: -
- Max. contact stroke force: 150 N [539 ozf]
- Max. operating stroke: 7 mm [.275 in]
General data
- Max. temperature: 60 °C [140 °F]
- Accessory type: Customising accessories
- Weight: 0.14 kg [.308 lbs]
- Contact stroke generation: Stroke controlled
- Series: SAM-H
- Min. temperature: -5 °C [23 °F]
- Product group: Side approach mechanism (SAM)
Compatible with
- Pneumatic test fixtures (PA): PA xxxx
- Vacuum test fixtures (VA): VA xxxx
- Manual test fixtures (MA): MA 20xx
- MA exchangeable kits (ATS MA): ATS MAxx
