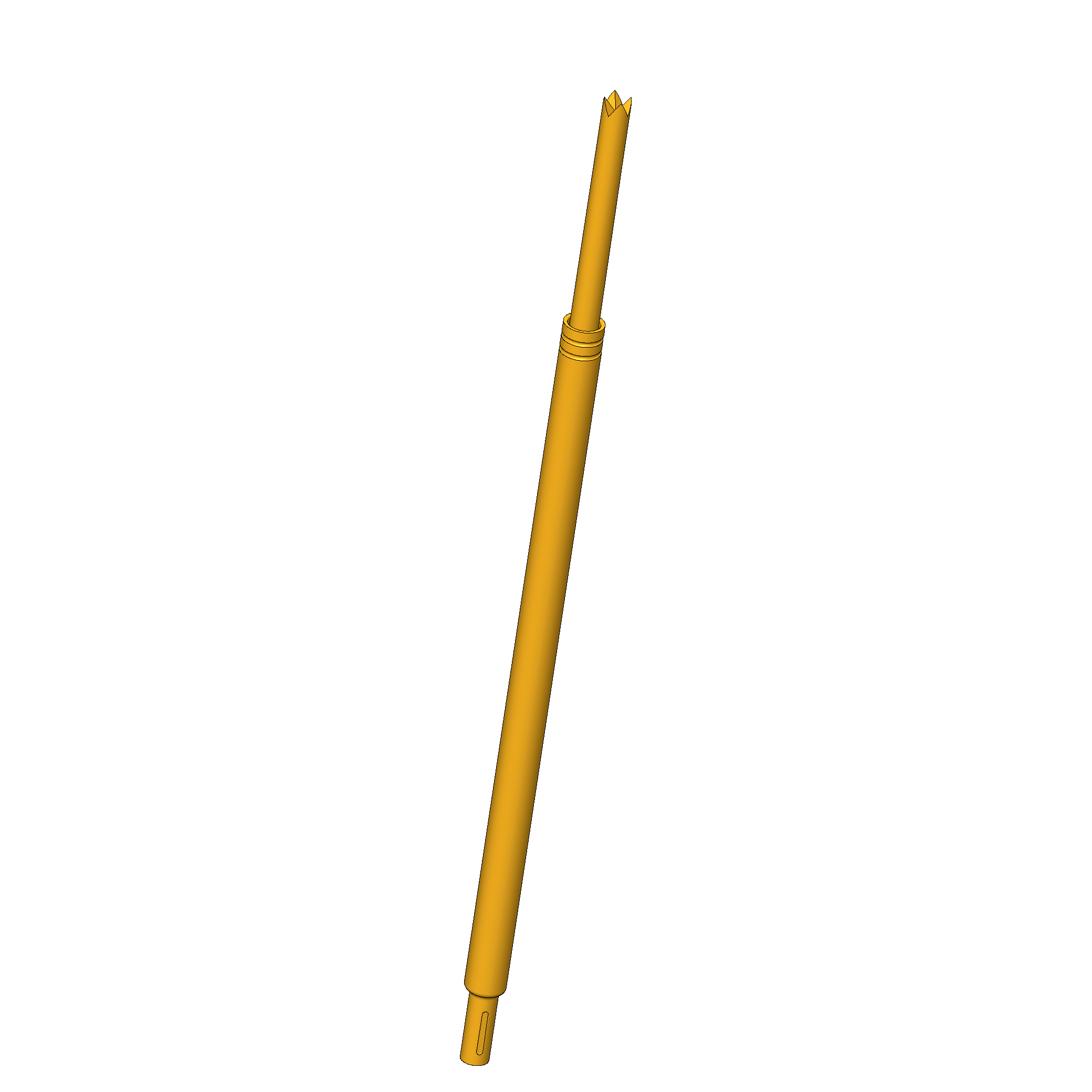

Product information "S-075 204 090 A 1500 S"
- Use of larger test probes for increased contacting accuracy and longer service life
- Minimal grid dimensions due to omission of receptacles (socketless)
- Large selection of tip styles and spring forces for optimal contact with the test point
- Compatible with existing socketless systems
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.37 mm [.053 in] |
| Collar height: | no name |
| Contacting from: | Pad, Post, Pin |
| Current load capacity / rated current: | 5 A |
| Grid: | 1.91 mm [75.1 mil] |
| Installation type: | Plug-in |
| KT designation: | KT-S050, KT-S075 |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 6.35 mm [.25 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Mounting hole in S-Line spacer plate (SDP): | min. 1,58 |
| Mounting hole in probe plate (KTP): | 1.39 – 1.41 mm [.054 – .055 in] |
| Non-rotating: | No |
| Product group: | ICT / FCT (in-circuit test and function test , INGUN S-Line |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | S-075, S-075 S standard |
| Spring force at working stroke: | 1.5 N [5.39 ozf] |
| Spring pre-load: | 0.49 N [1.76 ozf] |
| Sub-product group: | INGUN S-Line |
| Tip diameter: | 0.9 mm [.035 in] |
| Tip style: | 04 4-point crown |
| Tip style material: | 2 steel |
| Tip style surface: | A gold |
| Total length: | 35.8 mm [1.4 in] |
| Type of test probe connection: | Contact terminal |
| Typical resistance (Ri): | 20 mOhm |
| Working stroke: | 4.3 mm [.169 in] |
Login
Product Details
- Use of larger test probes for increased contacting accuracy and longer service life
- Minimal grid dimensions due to omission of receptacles (socketless)
- Large selection of tip styles and spring forces for optimal contact with the test point
- Compatible with existing socketless systems
Other products in this series:
Technical data
Electrical data
- Current load capacity / rated current: 5 A
- Typical resistance (Ri): 20 mOhm
General data
- Installation type: Plug-in
- Series: S-075
- Product group: INGUN S-Line
- Max. temperature: 80 °C [176 °F]
- Grid: 1.91 mm [75.1 mil]
- Series: S-075 S standard
- Contacting from: Pin
- Non-rotating: No
- Adjustable installation height: No
- RoHS-compliant: Yes
- Sub-product group: INGUN S-Line
- Min. temperature: -40 °C [-40 °F]
- Quick-exchange system: Yes
- Contacting from: Post
- Product group: ICT / FCT (in-circuit test and function test
- Magnetic: Yes
- Type of test probe connection: Contact terminal
- Contacting from: Pad
Mechanical data
- Mounting hole in S-Line spacer plate (SDP): min. 1,58
- Maximum stroke: 6.35 mm [.25 in]
- Spring pre-load: 0.49 N [1.76 ozf]
- KT designation: KT-S050
- Spring force at working stroke: 1.5 N [5.39 ozf]
- KT designation: KT-S075

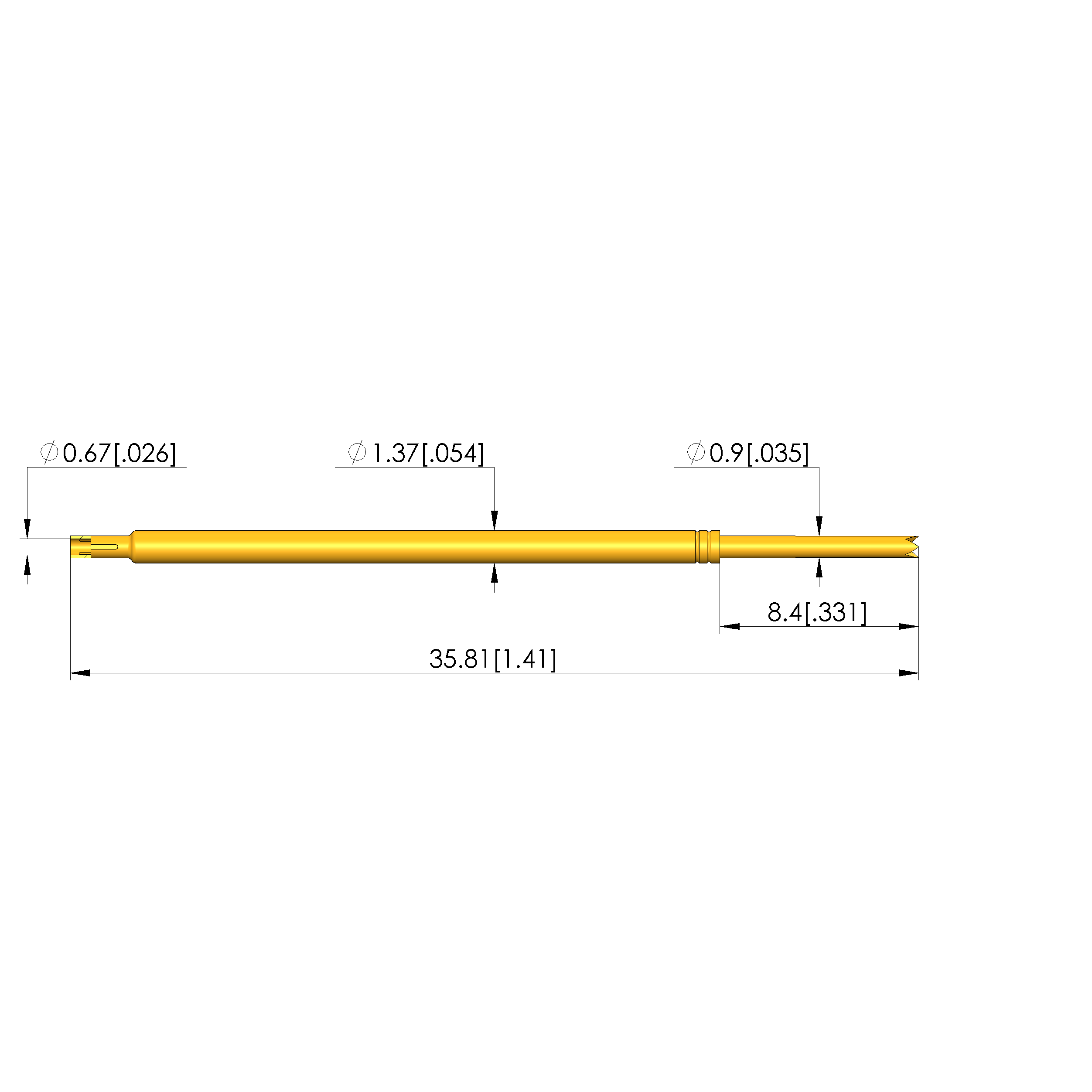

- Total length: 35.8 mm [1.4 in]
- Collar height: no name
- Barrel diameter: 1.37 mm [.053 in]
- Working stroke: 4.3 mm [.169 in]
- Mounting hole in probe plate (KTP): 1.39 – 1.41 mm [.054 – .055 in]
Tip style data
- Tip diameter: 0.9 mm [.035 in]

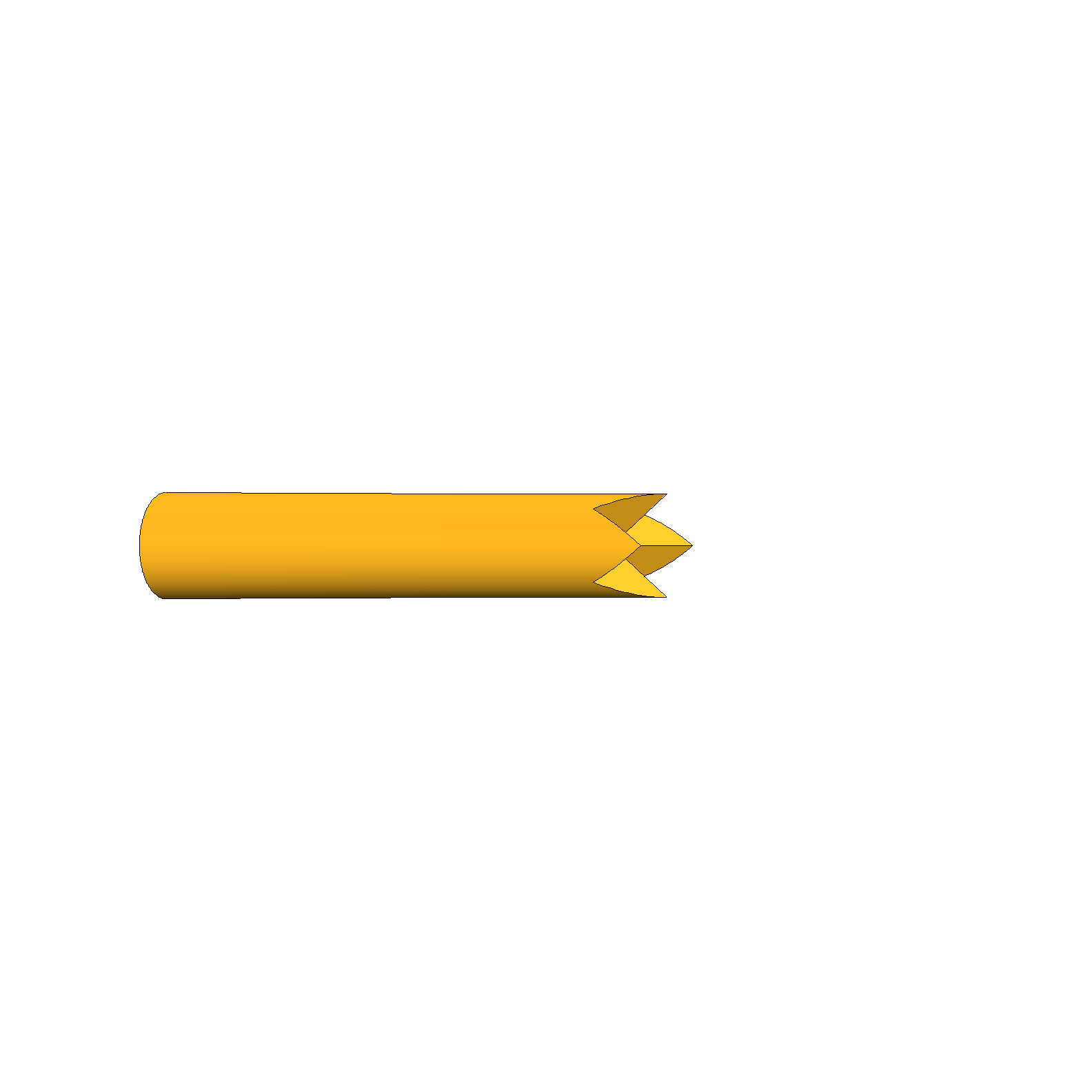

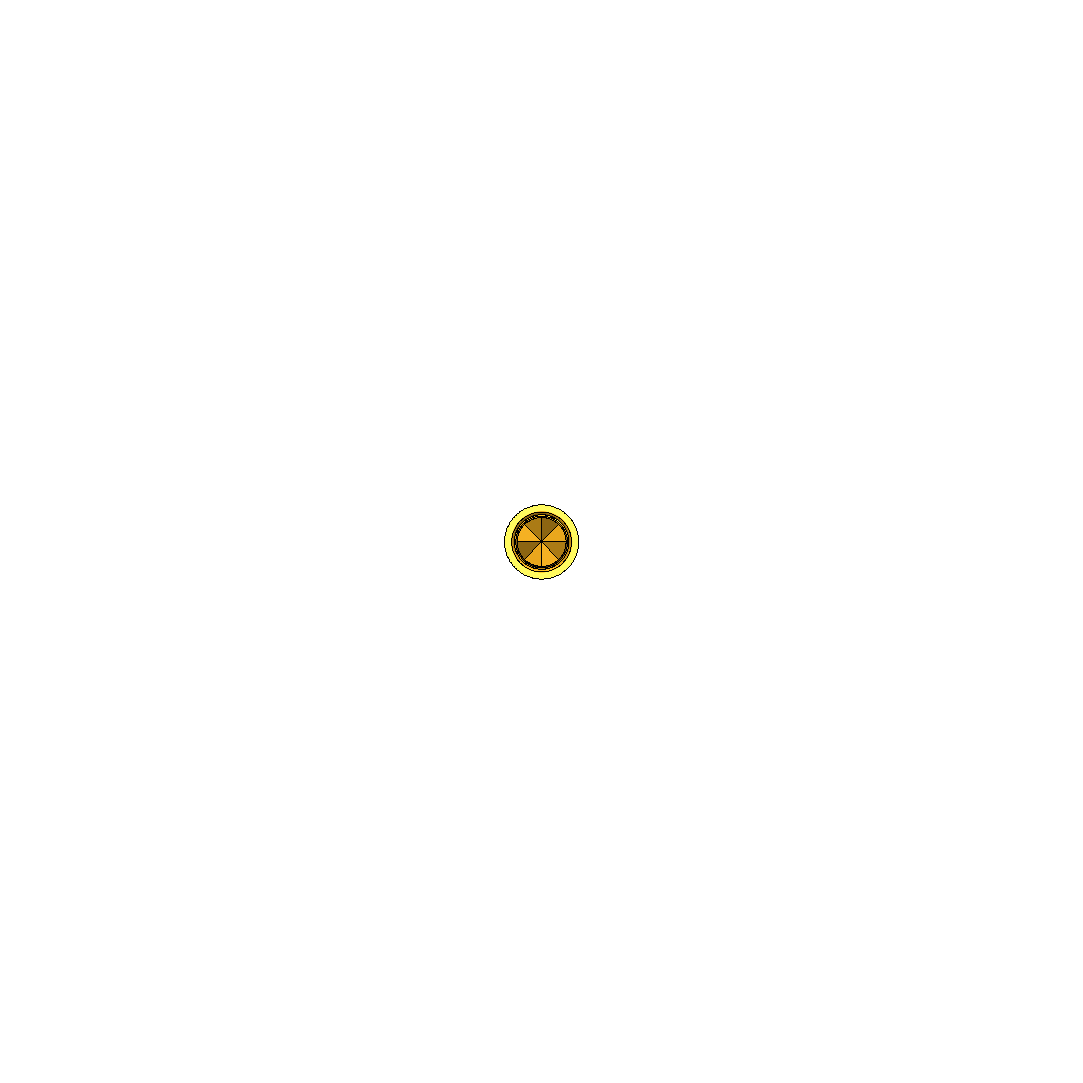

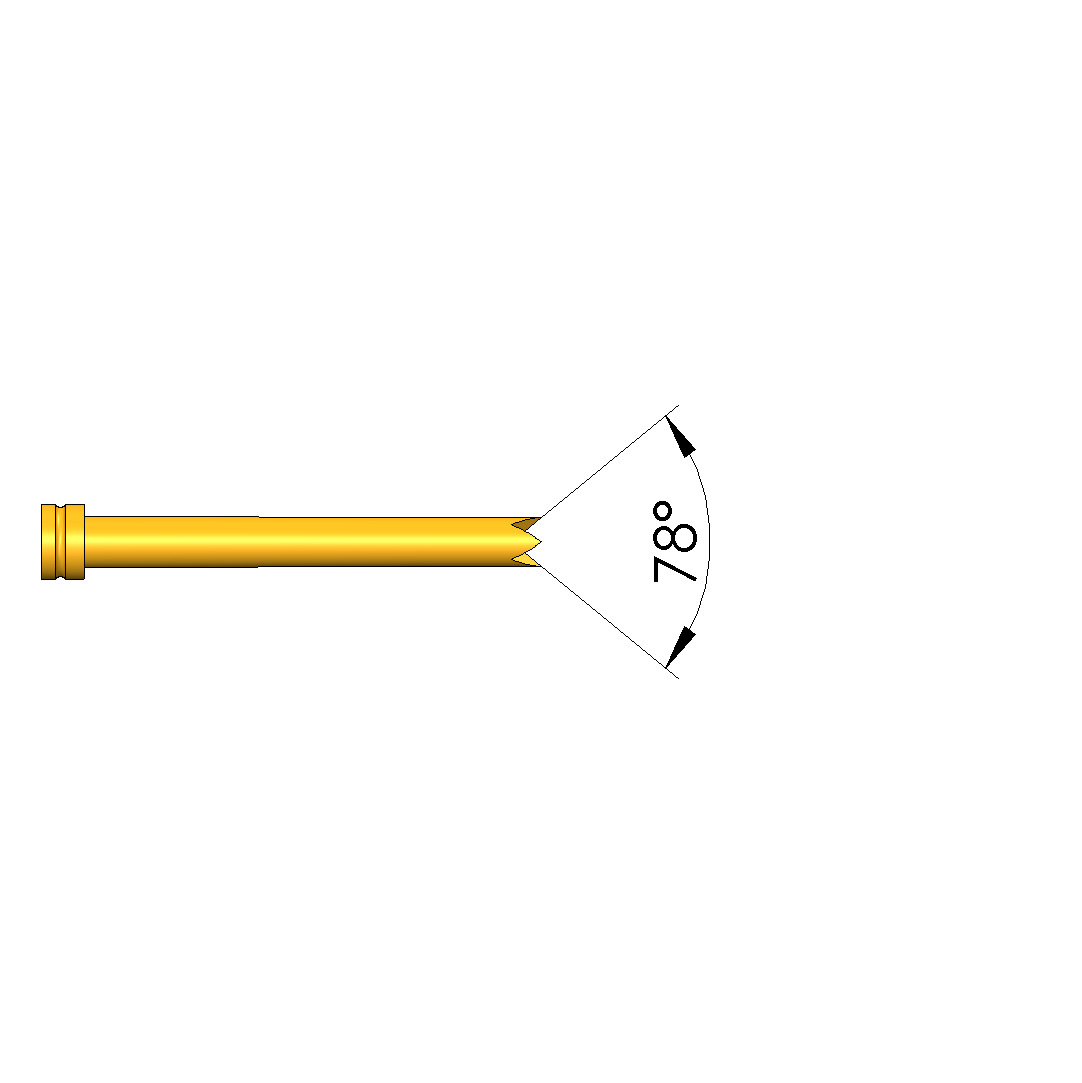

- Tip style: 04 4-point crown
- Tip style surface: A gold
- Tip style material: 2 steel
