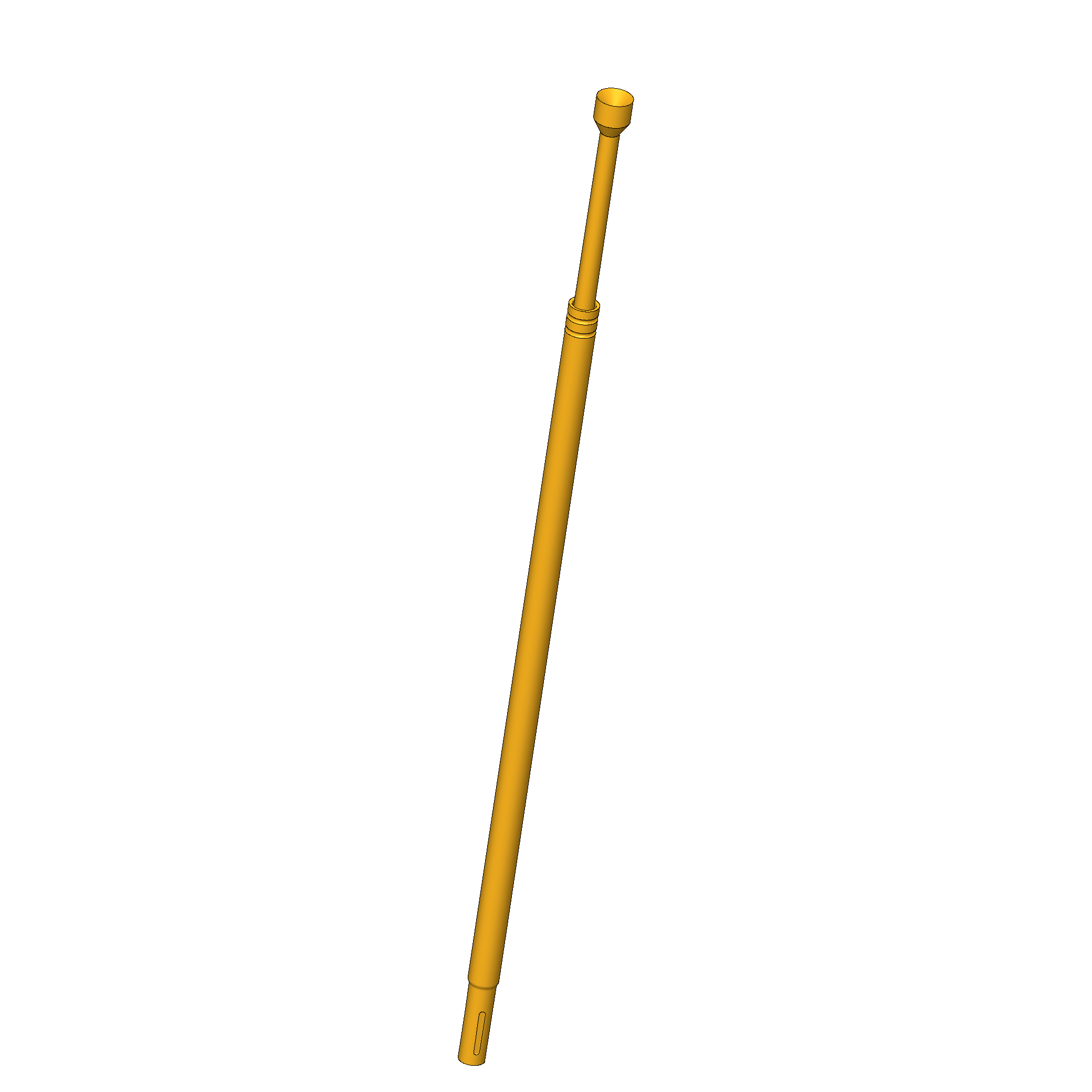

Product information "S-050 303 120 A 1500 S"
- Use of larger test probes for increased contacting accuracy and longer service life
- Minimal grid dimensions due to omission of receptacles (socketless)
- Large selection of tip styles and spring forces for optimal contact with the test point
- Compatible with existing socketless systems
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.02 mm [.04 in] |
| Collar height: | 00 |
| Contacting from: | Post, Pin |
| Current load capacity / rated current: | 4 A |
| Grid: | 1.27 mm [50 mil] |
| Installation type: | Plug-in |
| KT designation: | KT-S050 |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 6.35 mm [.25 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Mounting hole in S-Line spacer plate (SDP): | min. 1,14 |
| Mounting hole in probe plate (KTP): | 1.07 – 1.09 mm [.042 – .042 in] |
| Non-rotating: | No |
| Product group: | ICT / FCT (in-circuit test and function test , INGUN S-Line |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | S-050, S-050 S standard |
| Spring force at working stroke: | 1.5 N [5.39 ozf] |
| Spring pre-load: | 0.6 N [2.15 ozf] |
| Sub-product group: | INGUN S-Line |
| Tip diameter: | 1.2 mm [.047 in] |
| Tip style: | 03 inverse cone |
| Tip style material: | 3 CuBe |
| Tip style surface: | A gold |
| Total length: | 35.8 mm [1.4 in] |
| Type of test probe connection: | Contact terminal |
| Typical resistance (Ri): | 20 mOhm |
| Working stroke: | 4.3 mm [.169 in] |
Login
Product Details
- Use of larger test probes for increased contacting accuracy and longer service life
- Minimal grid dimensions due to omission of receptacles (socketless)
- Large selection of tip styles and spring forces for optimal contact with the test point
- Compatible with existing socketless systems
Other products in this series:
Technical data
General data
- Product group: INGUN S-Line
- Product group: ICT / FCT (in-circuit test and function test
- Sub-product group: INGUN S-Line
- Series: S-050 S standard
- Series: S-050
- Grid: 1.27 mm [50 mil]
- Contacting from: Pin
- Contacting from: Post
- Magnetic: Yes
- Installation type: Plug-in
- Quick-exchange system: Yes
- Type of test probe connection: Contact terminal
- Adjustable installation height: No
- Non-rotating: No
- Min. temperature: -40 °C [-40 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Mechanical data

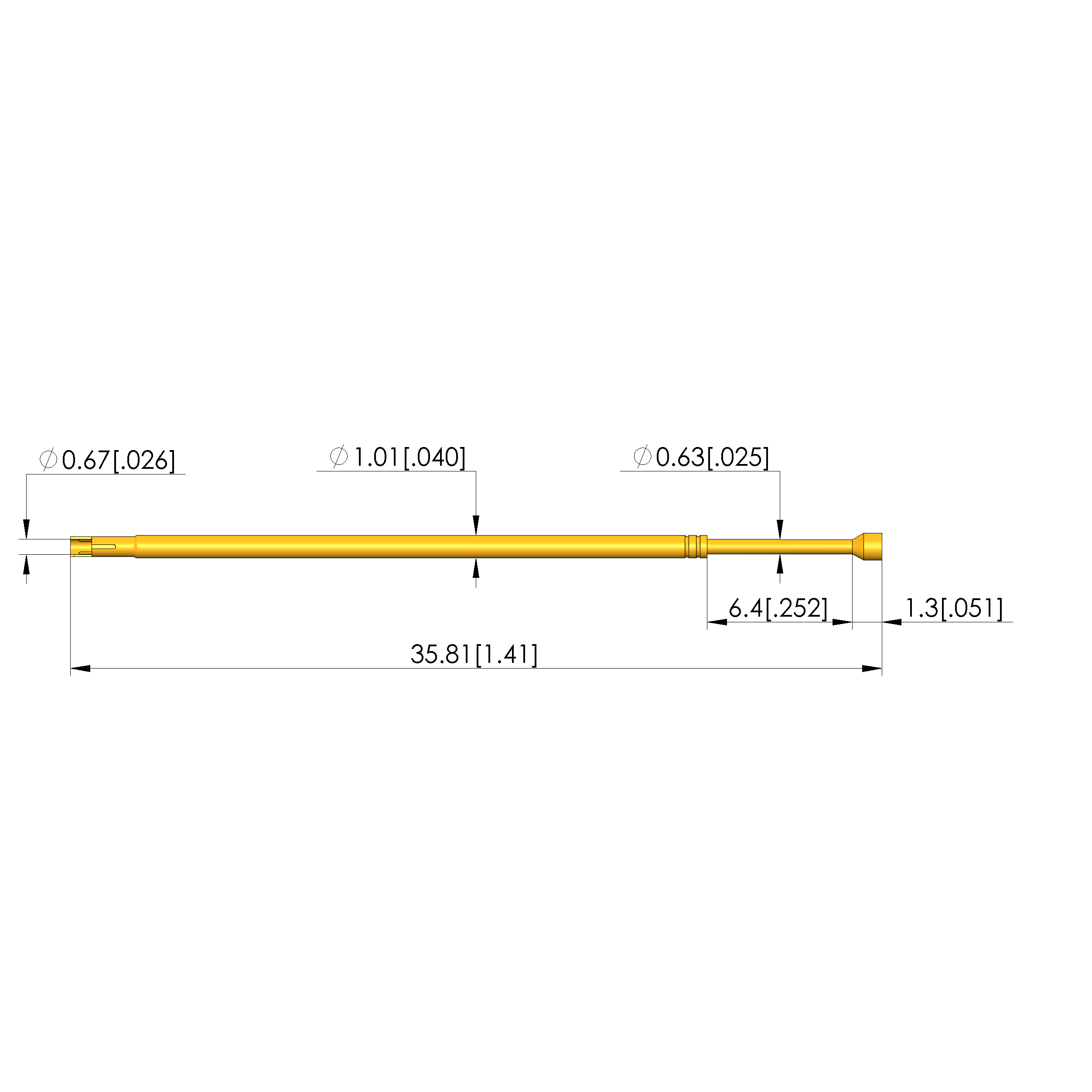

- Total length: 35.8 mm [1.4 in]
- Barrel diameter: 1.02 mm [.04 in]
- Maximum stroke: 6.35 mm [.25 in]
- Spring pre-load: 0.6 N [2.15 ozf]
- Collar height: 00
- Spring force at working stroke: 1.5 N [5.39 ozf]
- Working stroke: 4.3 mm [.169 in]
- Mounting hole in probe plate (KTP): 1.07 – 1.09 mm [.042 – .042 in]
- Mounting hole in S-Line spacer plate (SDP): min. 1,14
- KT designation: KT-S050
Tip style data

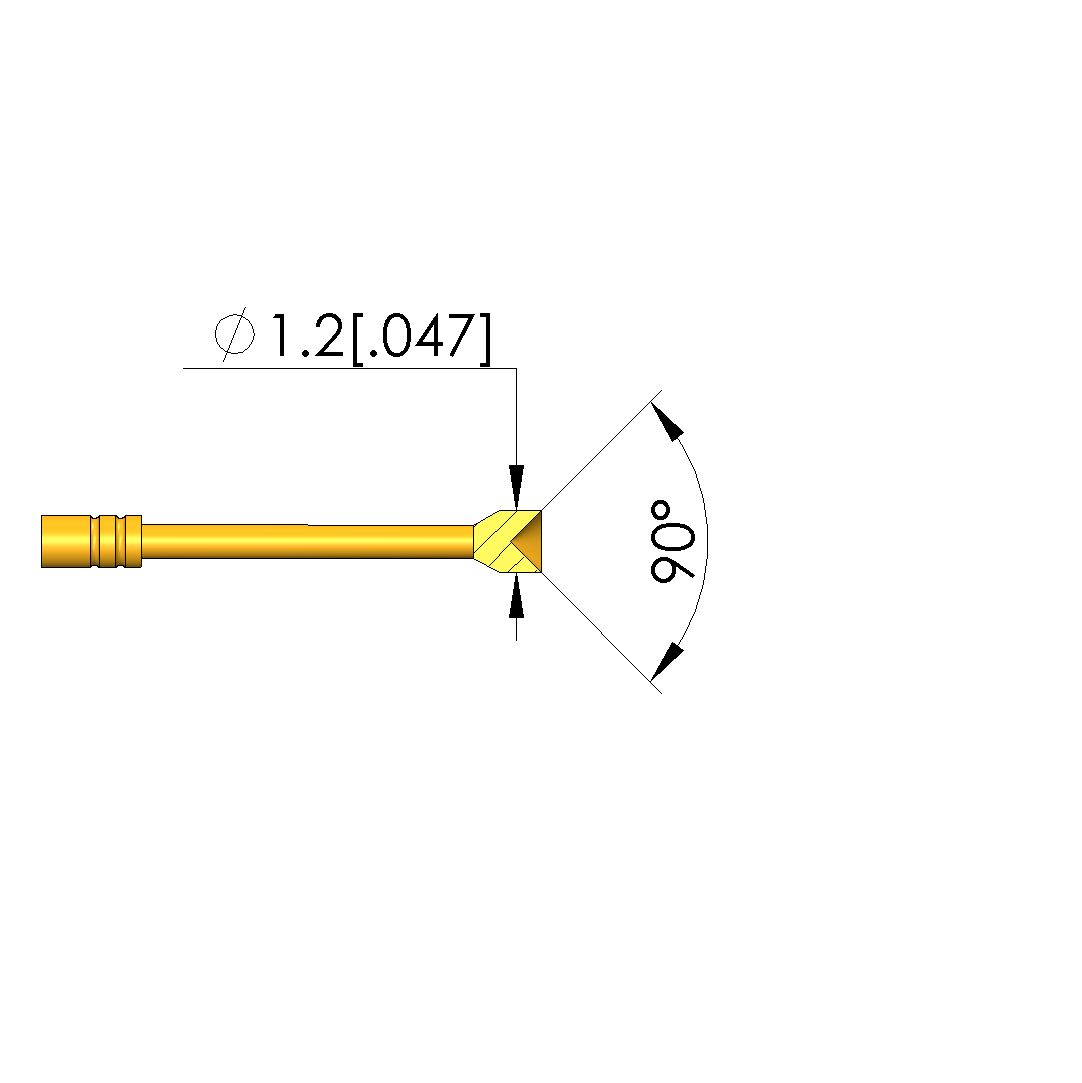

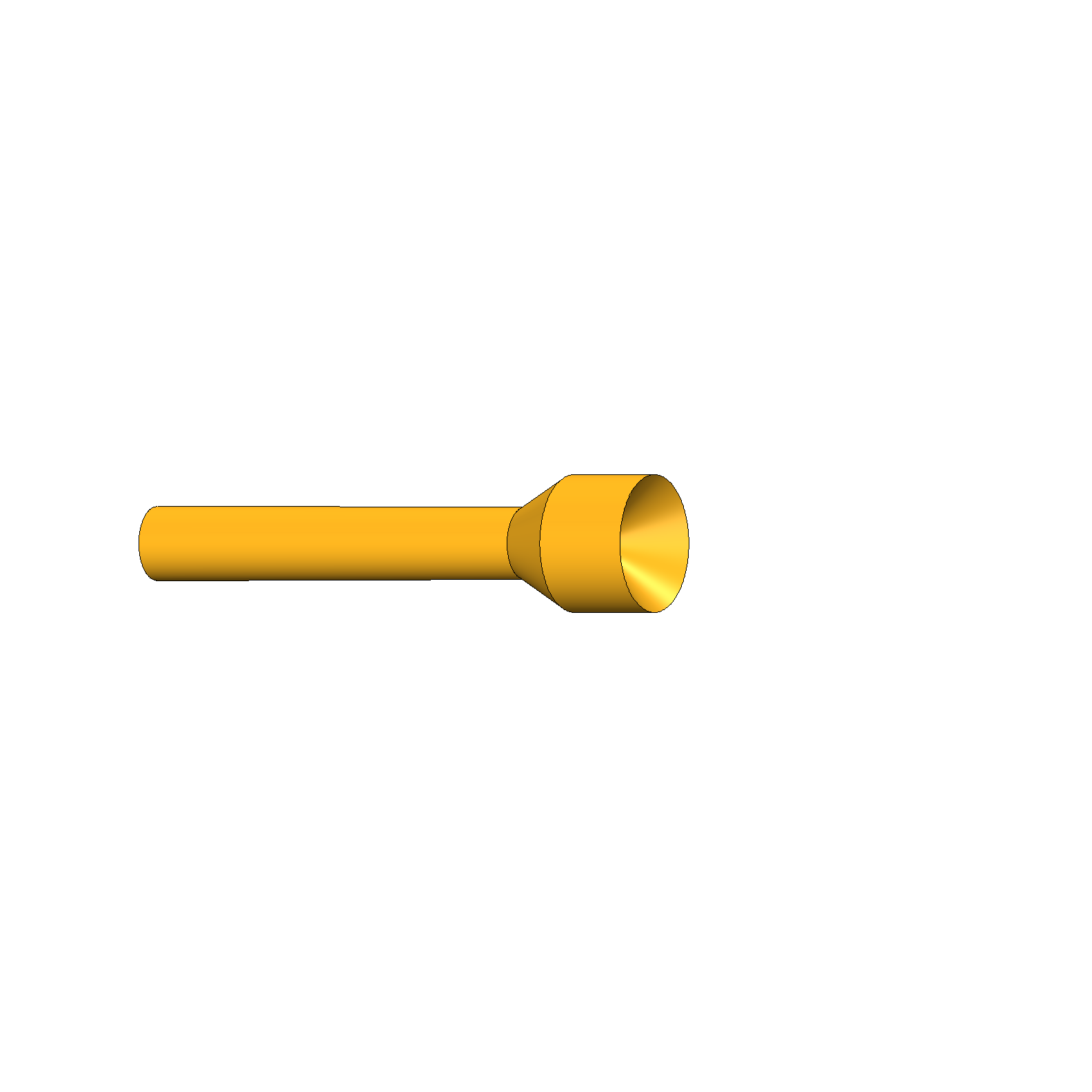

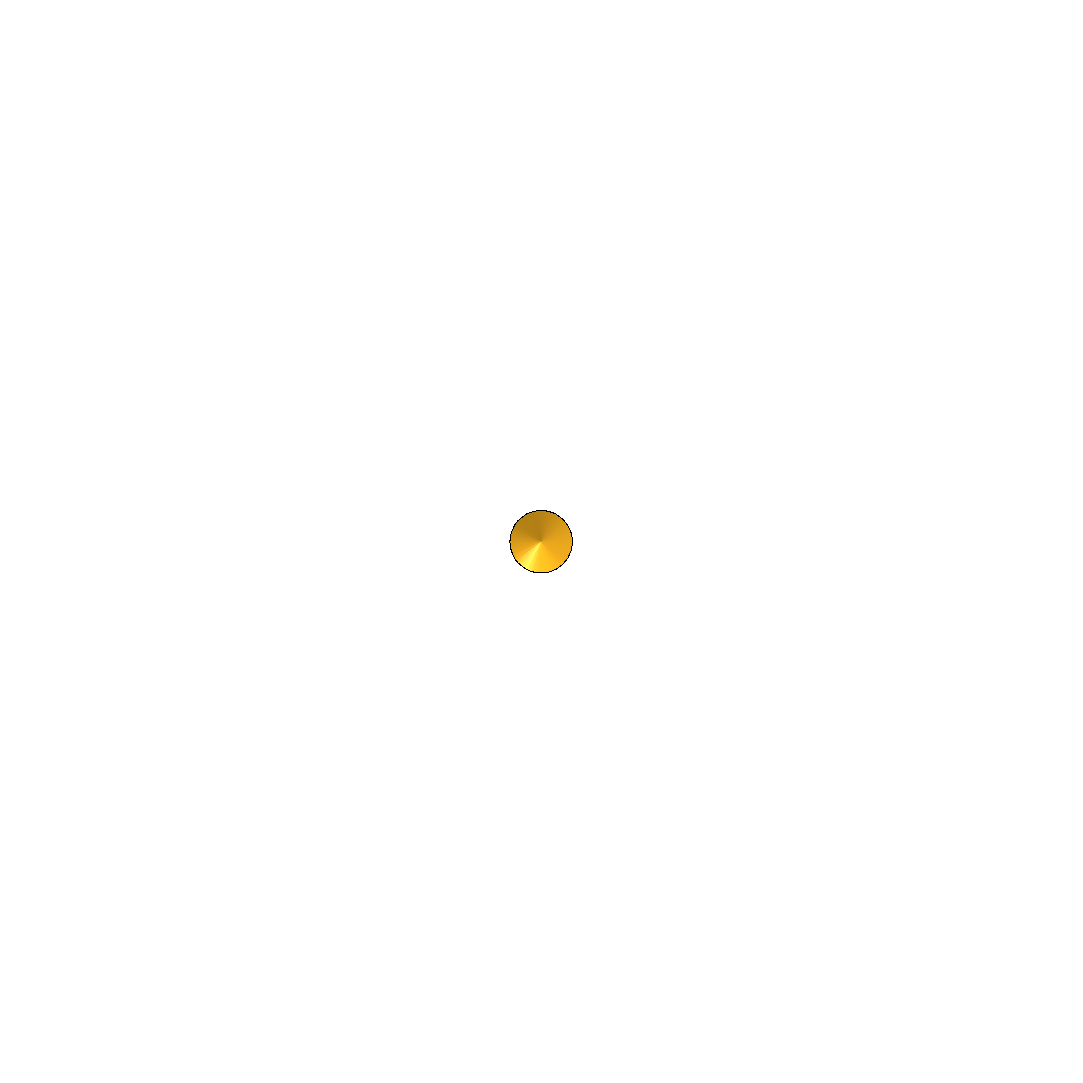

- Tip style: 03 inverse cone
- Tip diameter: 1.2 mm [.047 in]
- Tip style surface: A gold
- Tip style material: 3 CuBe
Electrical data
- Current load capacity / rated current: 4 A
- Typical resistance (Ri): 20 mOhm
