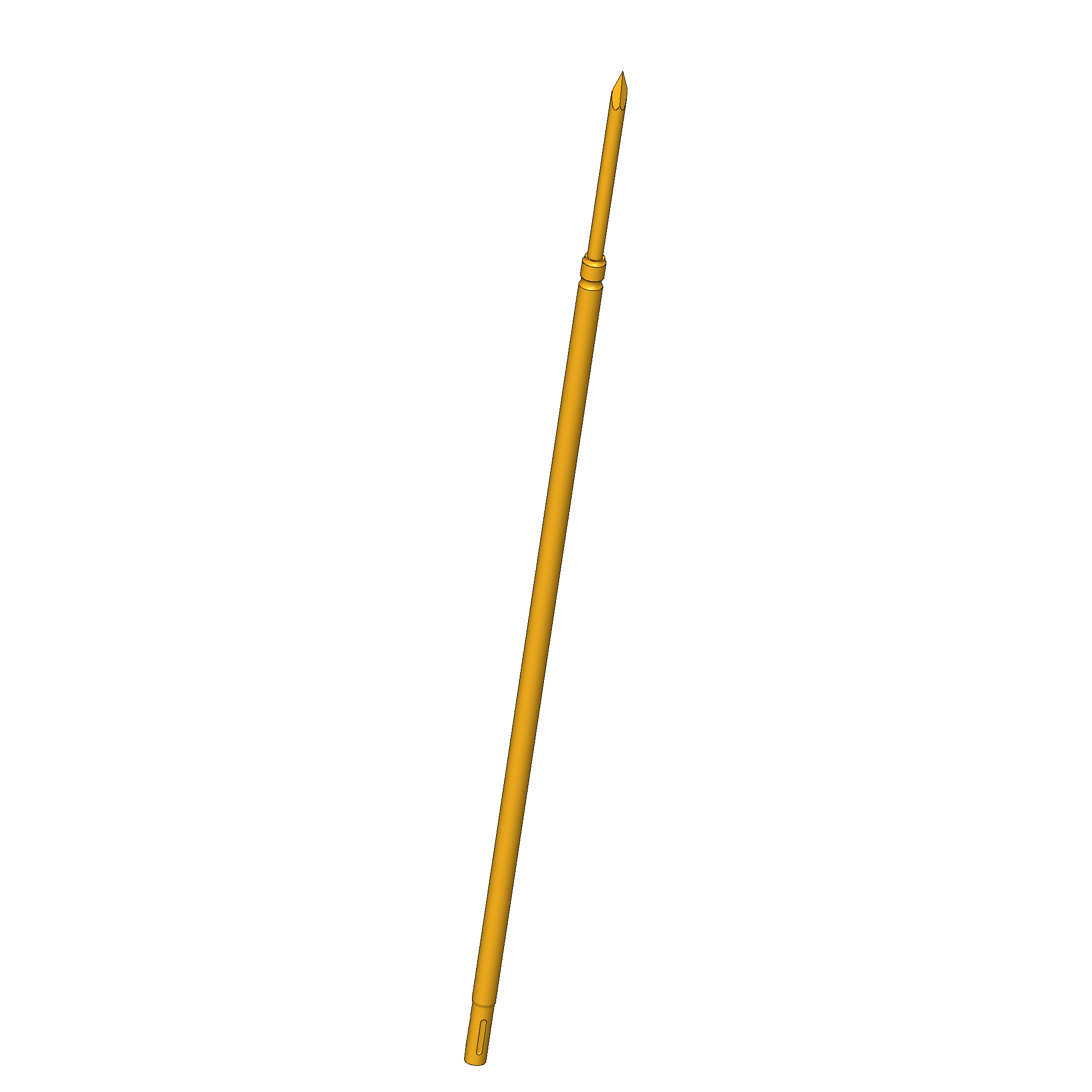

Product information "S-039 291 050 A 2200 ES"
- Use of larger test probes for increased contacting accuracy and longer service life
- Minimal grid dimensions due to omission of receptacles (socketless)
- Large selection of tip styles and spring forces for optimal contact with the test point
- Compatible with existing socketless systems
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 0.78 mm [.03 in] |
| Collar height: | no name |
| Contacting from: | Pad, Via |
| Current load capacity / rated current: | 2 A |
| Grid: | 1 mm [39.3 mil] |
| Installation type: | Plug-in |
| KT designation: | KT-S039 |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 6.35 mm [.25 in] |
| Min. temperature: | -40 °C [-40 °F] |
| Mounting hole in S-Line spacer plate (SDP): | min. 0,86 |
| Mounting hole in probe plate (KTP): | 0.8 – 0.82 mm [.031 – .032 in] |
| Non-rotating: | No |
| Product group: | ICT / FCT (in-circuit test and function test , INGUN S-Line |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Series: | S-039, S-039 ES standard with increased spring pre-load |
| Spring force at working stroke: | 2.25 N [8.09 ozf] |
| Spring pre-load: | 1 N [3.59 ozf] |
| Sub-product group: | INGUN S-Line |
| Tip diameter: | 0.5 mm [.019 in] |
| Tip style: | 91 dagger, self-cleaning |
| Tip style material: | 2 steel |
| Tip style surface: | A gold |
| Total length: | 36.8 mm [1.44 in] |
| Type of test probe connection: | Contact terminal |
| Typical resistance (Ri): | 30 mOhm |
| Working stroke: | 4.3 mm [.169 in] |
Login
Product Details
- Use of larger test probes for increased contacting accuracy and longer service life
- Minimal grid dimensions due to omission of receptacles (socketless)
- Large selection of tip styles and spring forces for optimal contact with the test point
- Compatible with existing socketless systems
Other products in this series:
Technical data
General data
- Installation type: Plug-in
- Product group: INGUN S-Line
- Max. temperature: 80 °C [176 °F]
- Non-rotating: No
- Adjustable installation height: No
- Series: S-039
- RoHS-compliant: Yes
- Sub-product group: INGUN S-Line
- Grid: 1 mm [39.3 mil]
- Series: S-039 ES standard with increased spring pre-load
- Min. temperature: -40 °C [-40 °F]
- Quick-exchange system: Yes
- Product group: ICT / FCT (in-circuit test and function test
- Magnetic: Yes
- Type of test probe connection: Contact terminal
- Contacting from: Pad
- Contacting from: Via
Mechanical data
- Maximum stroke: 6.35 mm [.25 in]
- Spring force at working stroke: 2.25 N [8.09 ozf]
- KT designation: KT-S039
- Mounting hole in probe plate (KTP): 0.8 – 0.82 mm [.031 – .032 in]
- Mounting hole in S-Line spacer plate (SDP): min. 0,86
- Collar height: no name
- Working stroke: 4.3 mm [.169 in]

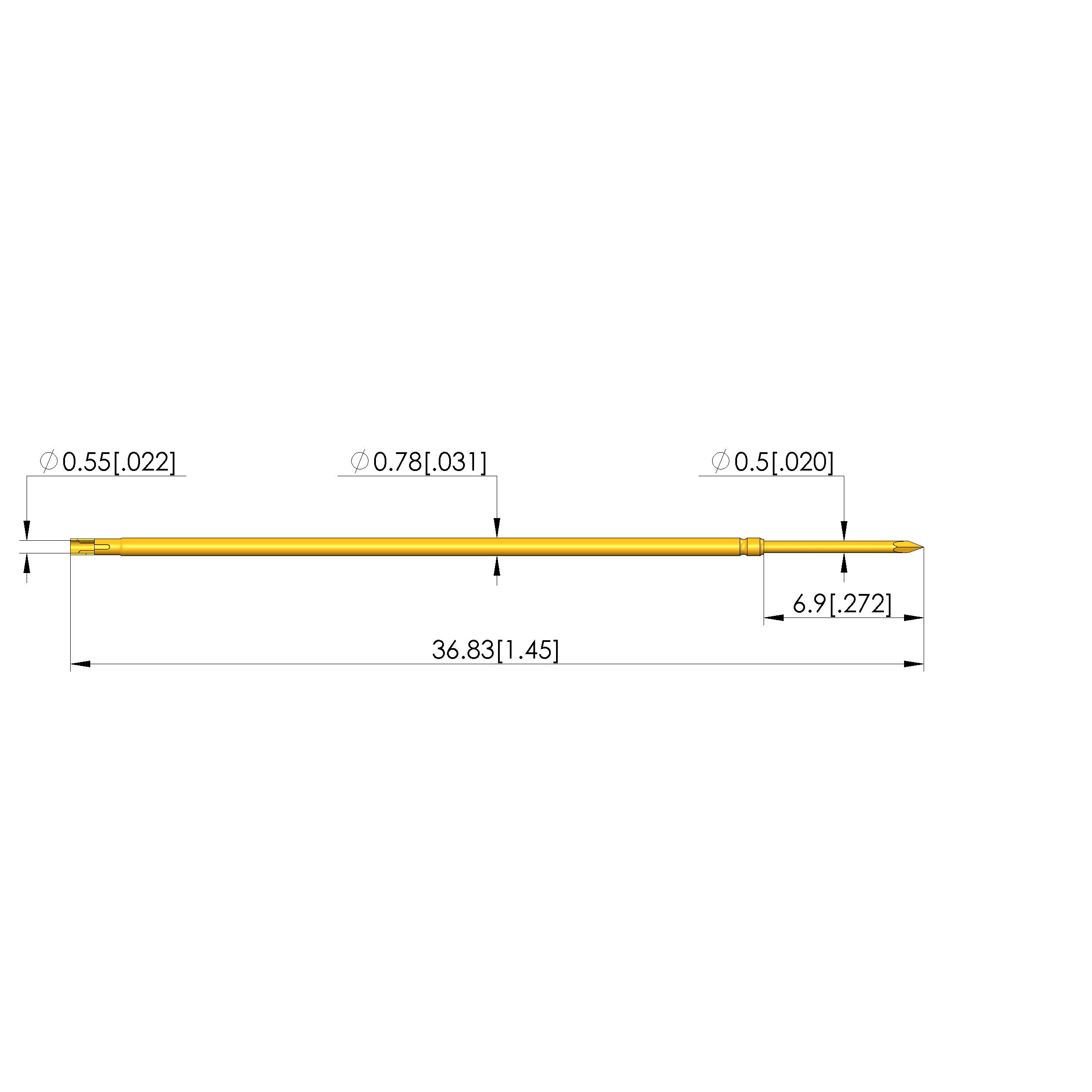

- Barrel diameter: 0.78 mm [.03 in]
- Total length: 36.8 mm [1.44 in]
- Spring pre-load: 1 N [3.59 ozf]
Electrical data
- Typical resistance (Ri): 30 mOhm
- Current load capacity / rated current: 2 A
Tip style data
- Tip diameter: 0.5 mm [.019 in]

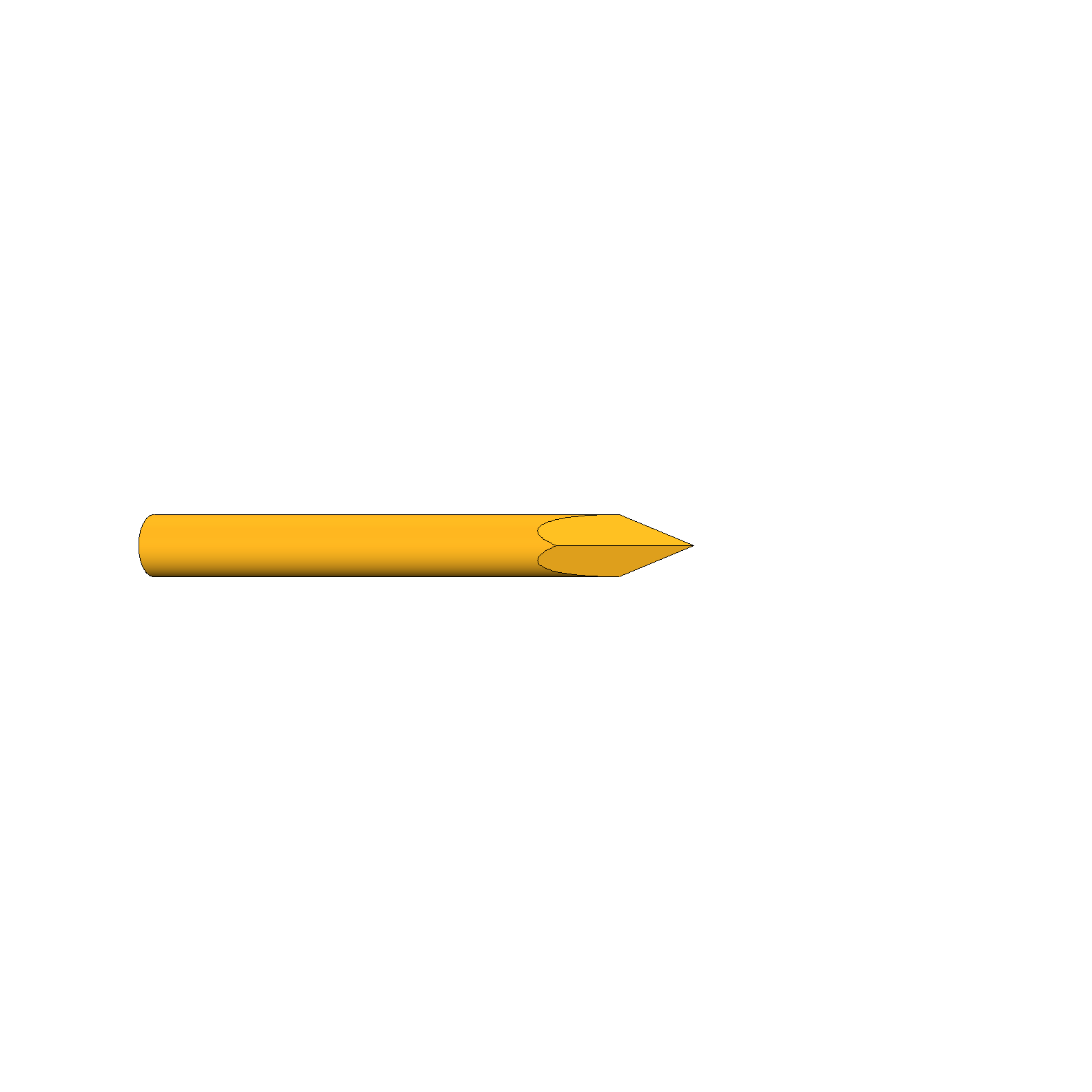

- Tip style: 91 dagger, self-cleaning
- Tip style surface: A gold
- Tip style material: 2 steel
