Product information "PS-HSAL2-M-012-G5-B-01"

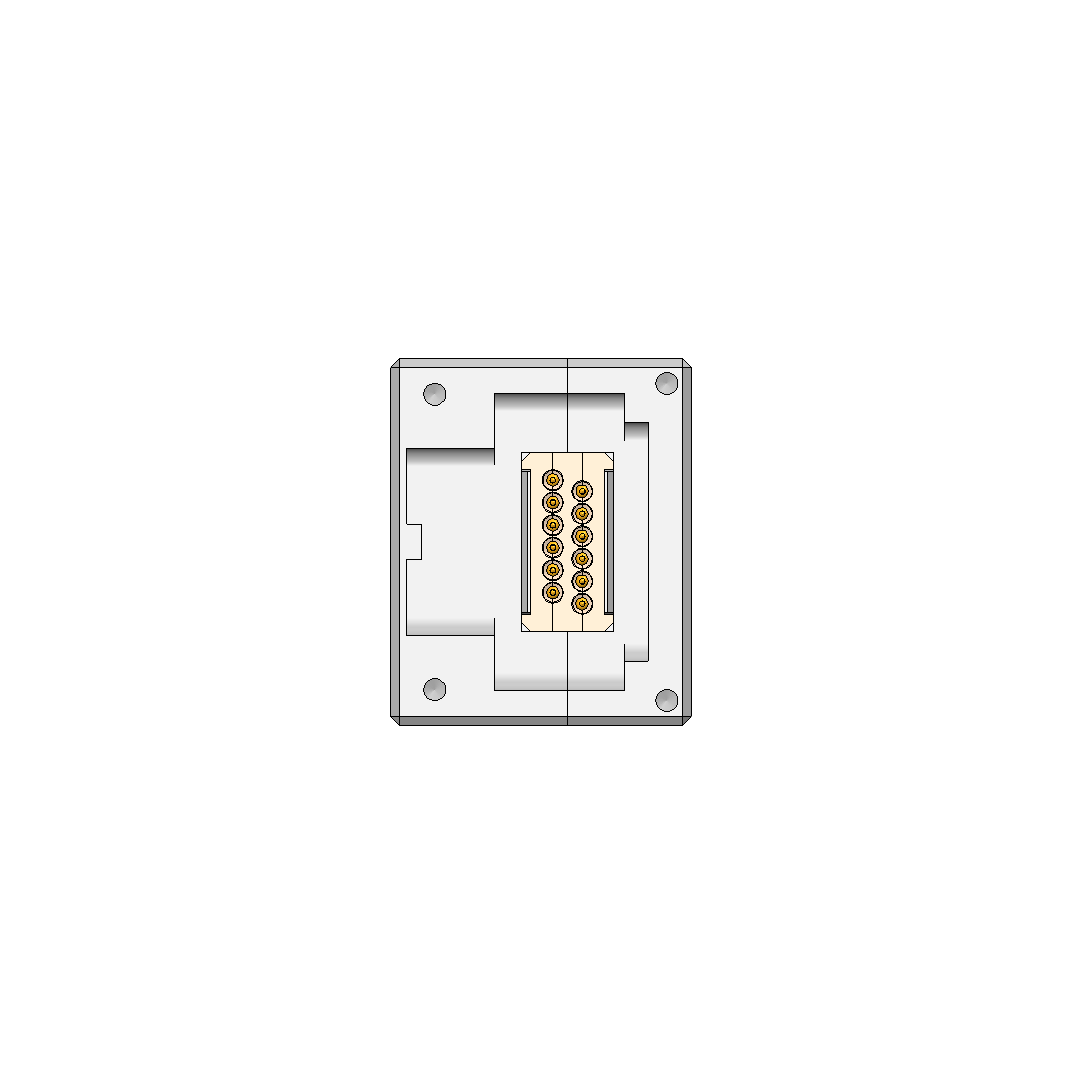

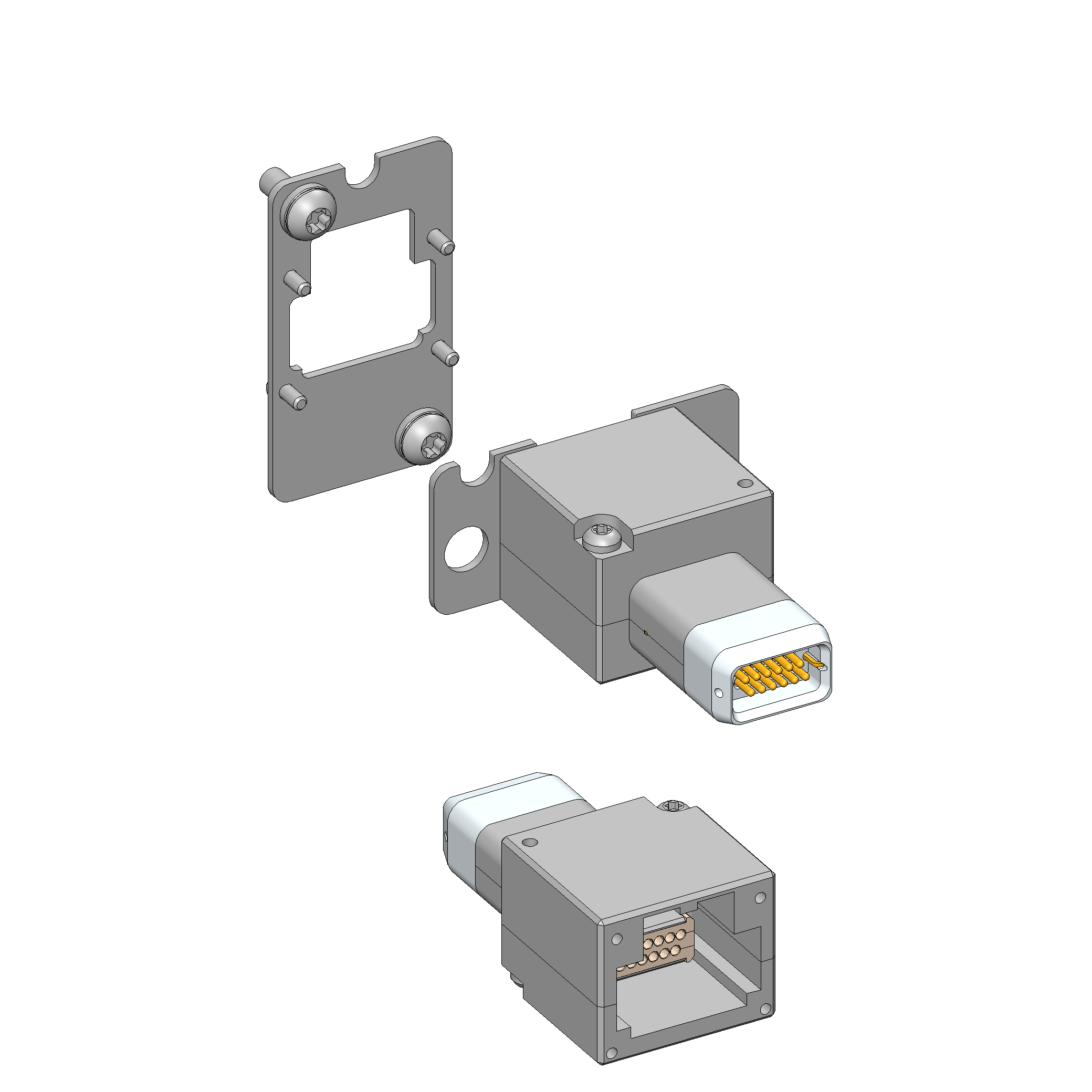

- Test plug for the Molex HSAutoLink™ II interconnect system with 12 circuits.
- Consistent radio-frequency performance for signal and data transmission up to 5 GBps.
- Robust shielded test plug to ensure the best signal quality.
- Long service life due to low-wear interior design and optimised abrasion resistance
- Protected signal inner conductor due to protruding outer housing
- Connection to interface using optional 12-pole cable adapter (part 114617)
- Optional spring elements (104148: set of 2) available
| DUT / contact: | HSAutolink 2 |
|---|---|
| DUT interface gender : | F signal conductor female / socket |
| Grid: | 21 mm [826 mil] |
| Height: | 17 mm [.669 in] |
| Inner conductor max. current load capacity: | 1 A |
| Inner conductor maximum stroke: | 2.5 mm [.098 in] |
| Max. data rate: | 5 Gbit/s |
| Max. temperature: | 50 °C [122 °F] |
| Min. temperature: | 0 °C [32 °F] |
| Number of inner conductor poles: | 12 |
| Product group: | PS test plug |
| RoHS-compliant: | Yes |
| Series: | PS |
| Sub-series: | PS-HSAL |

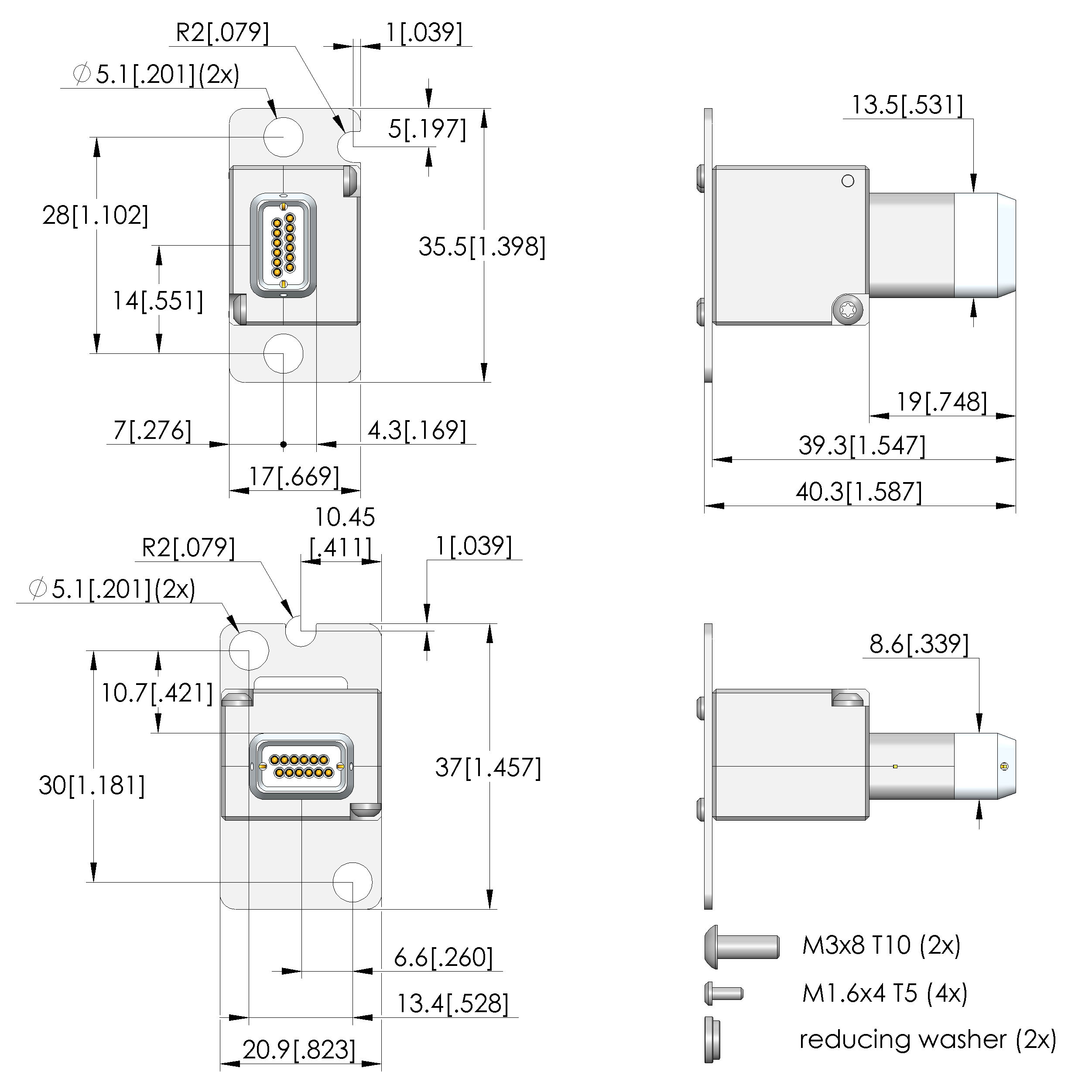

| Total length: | 40.3 mm [1.58 in] |

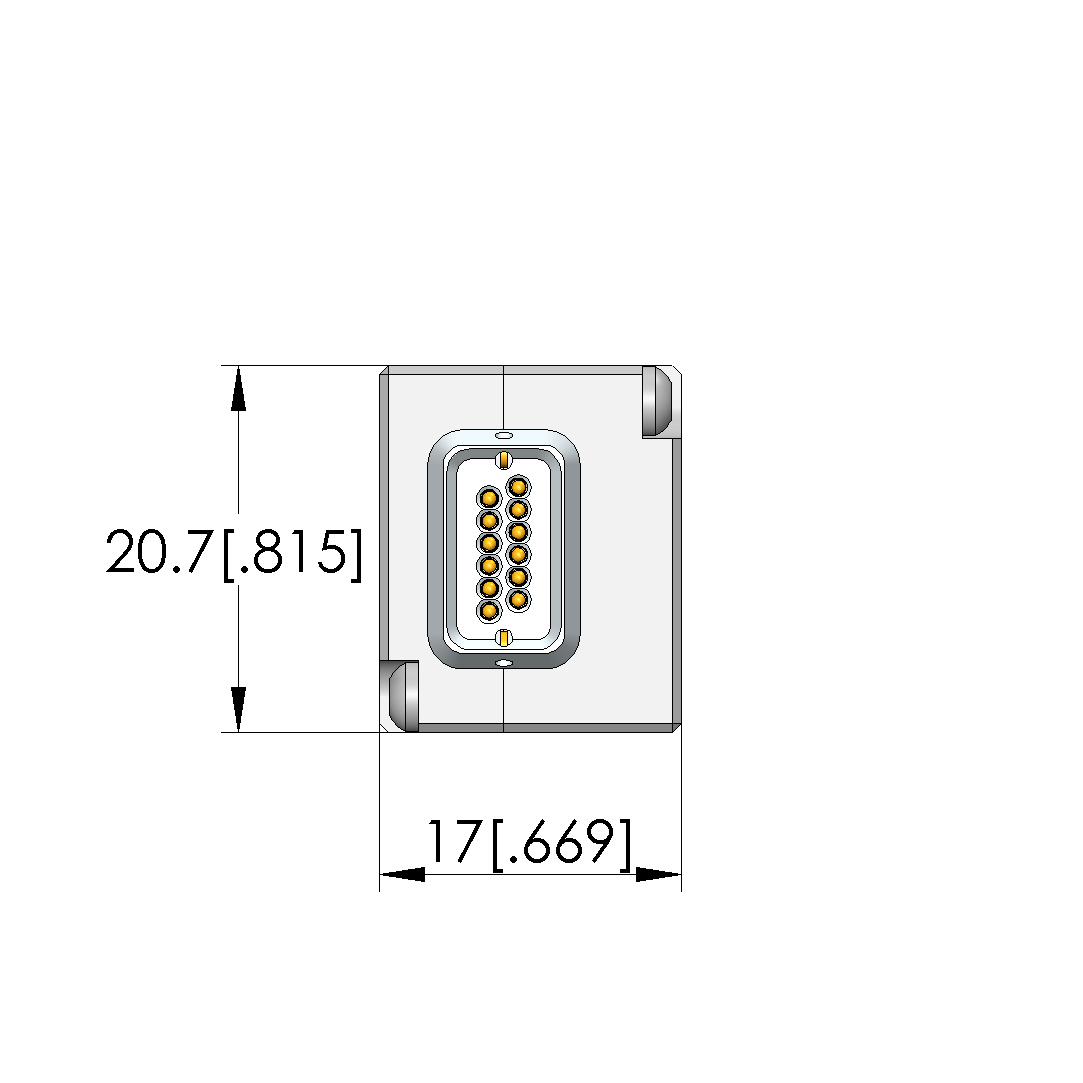

| Width: | 20.7 mm [.814 in] |
Login
Product Details
- Test plug for the Molex HSAutoLink™ II interconnect system with 12 circuits.
- Consistent radio-frequency performance for signal and data transmission up to 5 GBps.
- Robust shielded test plug to ensure the best signal quality.
- Long service life due to low-wear interior design and optimised abrasion resistance
- Protected signal inner conductor due to protruding outer housing
- Connection to interface using optional 12-pole cable adapter (part 114617)
- Optional spring elements (104148: set of 2) available
Other products in this series:
Technical data
Inner conductor data
- Inner conductor maximum stroke: 2.5 mm [.098 in]
- Inner conductor max. current load capacity: 1 A
- Number of inner conductor poles: 12
Mechanical data
- Total length: 40.3 mm [1.58 in]
General data
- Product group: PS test plug
- Series: PS
- Sub-series: PS-HSAL
- Grid: 21 mm [826 mil]
- DUT / contact: HSAutolink 2
- DUT interface gender : F signal conductor female / socket
- Width: 20.7 mm [.814 in]
- Height: 17 mm [.669 in]
- Min. temperature: 0 °C [32 °F]
- Max. temperature: 50 °C [122 °F]
- RoHS-compliant: Yes
Electrical data
- Max. data rate: 5 Gbit/s
