Product information "PKT-F-PK3"
- Pneumatic contact
- Without compressed air shut-off
| Accessory type: | Customising accessories |
|---|---|
| Compressed air connection: | PK-3 |
| Connection: | PDS-4-075-PUN |

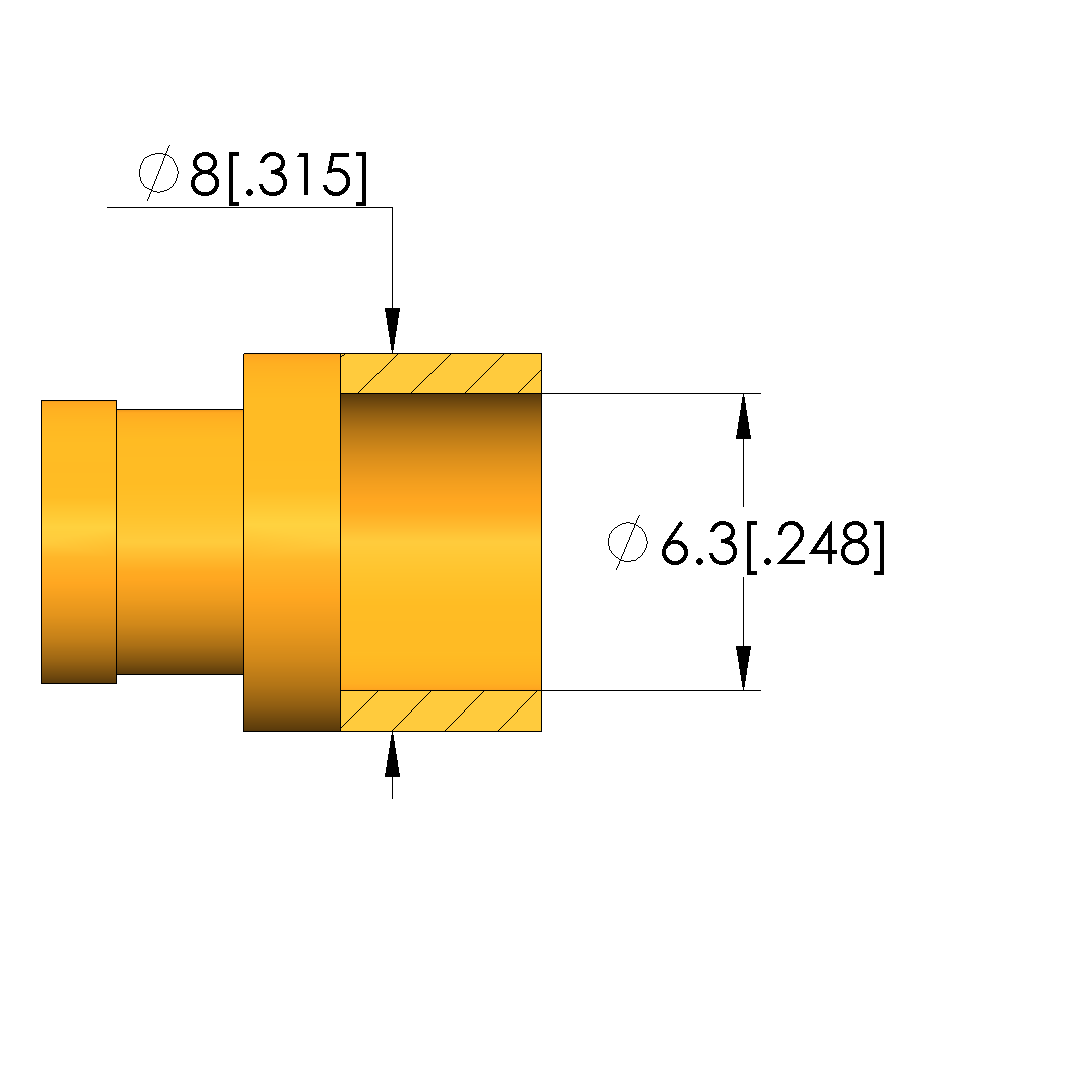

| Diameter: | 8 mm [.314 in] |
| Inner diameter: | 2.5 mm [.098 in] |
| Interface blocks (SB): | SB-P-PN-008-PK3 |

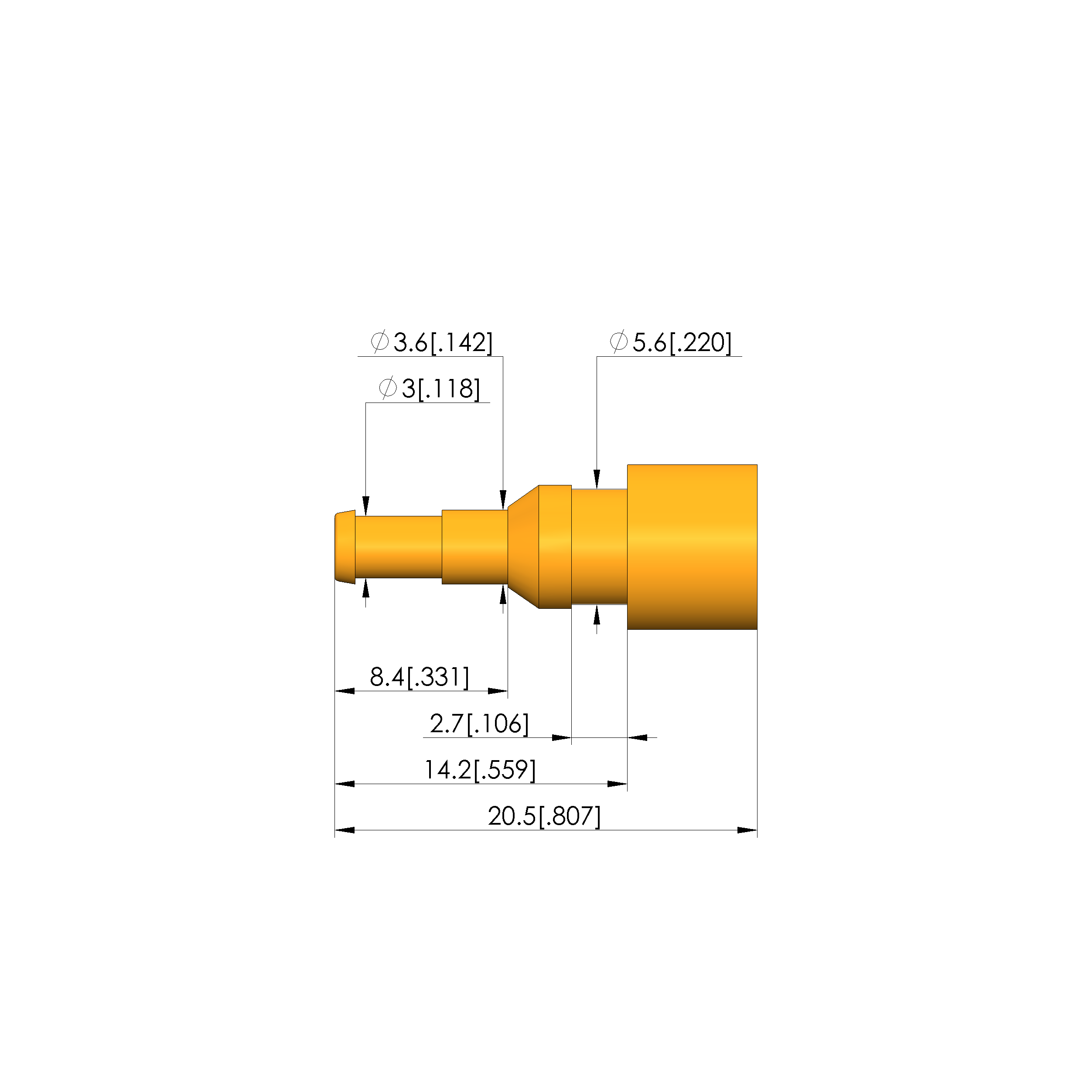

| Length: | 20.5 mm [.807 in] |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Product group: | Pneumatic accessory |
| RoHS-compliant: | Yes |
| Series: | PKT |
| Type: | Pneumatic contact part |
| Version: | Socket |
| Weight: | 0.01 kg [.022 lbs] |
Login
Product Details
- Pneumatic contact
- Without compressed air shut-off
Other products in this series:
Technical data
Technical data
- Connection: PDS-4-075-PUN
- Compressed air connection: PK-3
- Length: 20.5 mm [.807 in]
- Diameter: 8 mm [.314 in]
- Inner diameter: 2.5 mm [.098 in]
General data
- Product group: Pneumatic accessory
- Series: PKT
- Type: Pneumatic contact part
- Version: Socket
- Accessory type: Customising accessories
- Weight: 0.01 kg [.022 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Compatible with
- Interface blocks (SB): SB-P-PN-008-PK3
