Product information "PKS-171 204 100 A 0302 M"

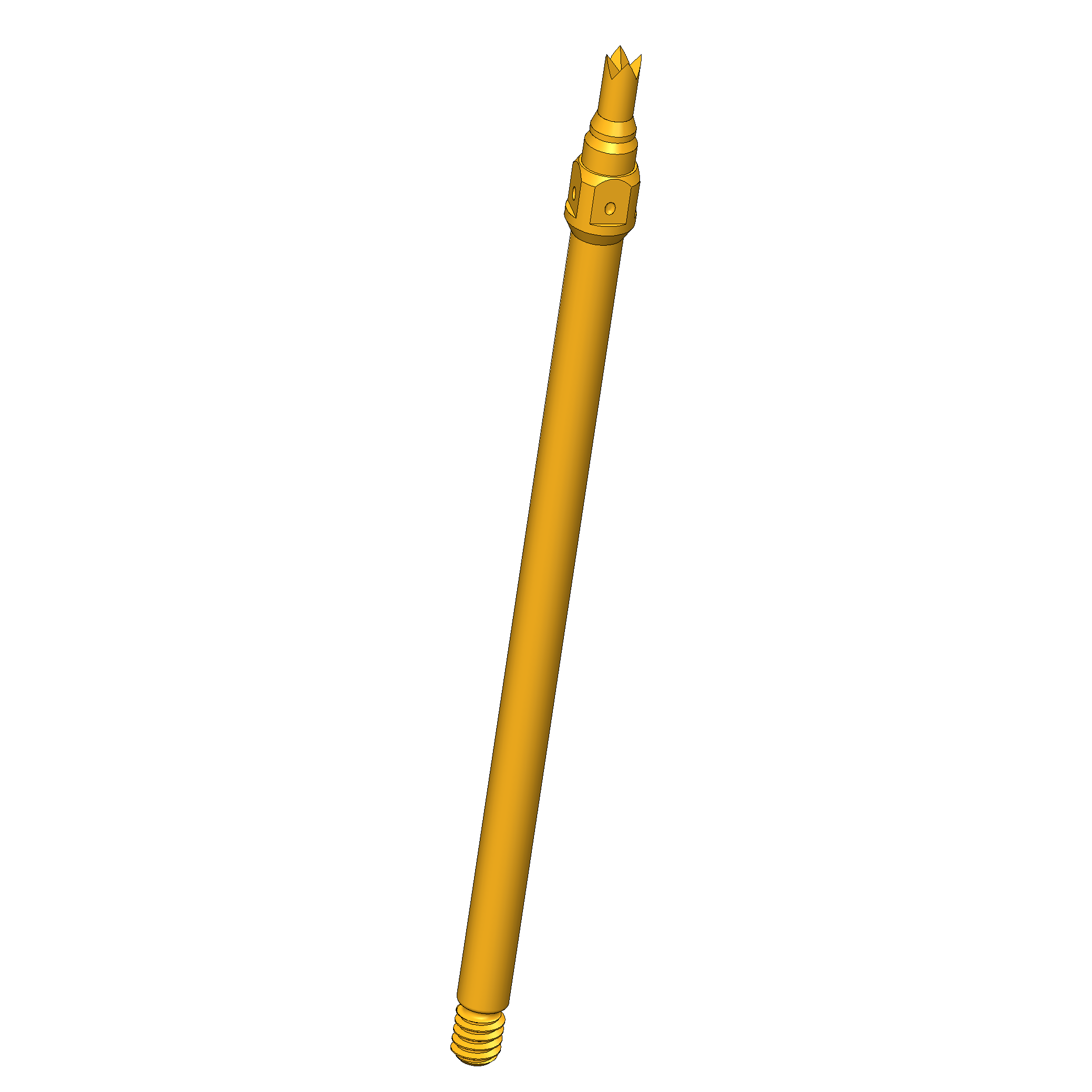

- Universal pneumatic probes for a wide range of applications, e.g., for contacting test pads, activation of switches, contacting of difficult-to-access test points, or creation of interfaces.
- When using PKS probes, a separate actuating mechanism may not be necessary
- PKS are retracted in the home position. When pressure is applied, the plunger extends
- Designed as a screw-in version with quick-exchange system for maintenance
| Adjustable installation height: | No |
|---|---|
| Barrel diameter: | 1.49 mm [.058 in] |
| Collar height: | 02 |
| Compatible receptacle(s): | KS-171 M |
| Contacting from: | Pad, Post, Pin |
| Current load capacity / rated current: | 1 A |
| Grid: | 2.54 mm [100 mil] |
| Installation type: | Screw-in |
| Magnetic: | Yes |
| Max. temperature: | 80 °C [176 °F] |
| Maximum stroke: | 10 mm [.393 in] |
| Min. temperature: | 0 °C [32 °F] |
| Non-rotating: | No |
| PKS operating pressure: | 6 bar [87 psi] |
| Product group: | PKS (screwed in), Pneumatic test probe |
| Quick-exchange system: | Yes |
| RoHS-compliant: | Yes |
| Screw-in torque: | 2 – 3 cNm [.177 – .265 lbf·in] |
| Screw-in torque max.: | 3 cNm [.265 lbf·in] |
| Screw-in torque min.: | 2 cNm [.177 lbf·in] |
| Series: | PKS-171, PKS-171 M quick-exchange system, screw-in |
| Spring force at working stroke: | 0.3 N [1.07 ozf] |
| Spring pre-load: | 0.3 N [1.07 ozf] |
| Sub-product group: | PKS (screwed in) |
| Tip diameter: | 1 mm [.039 in] |

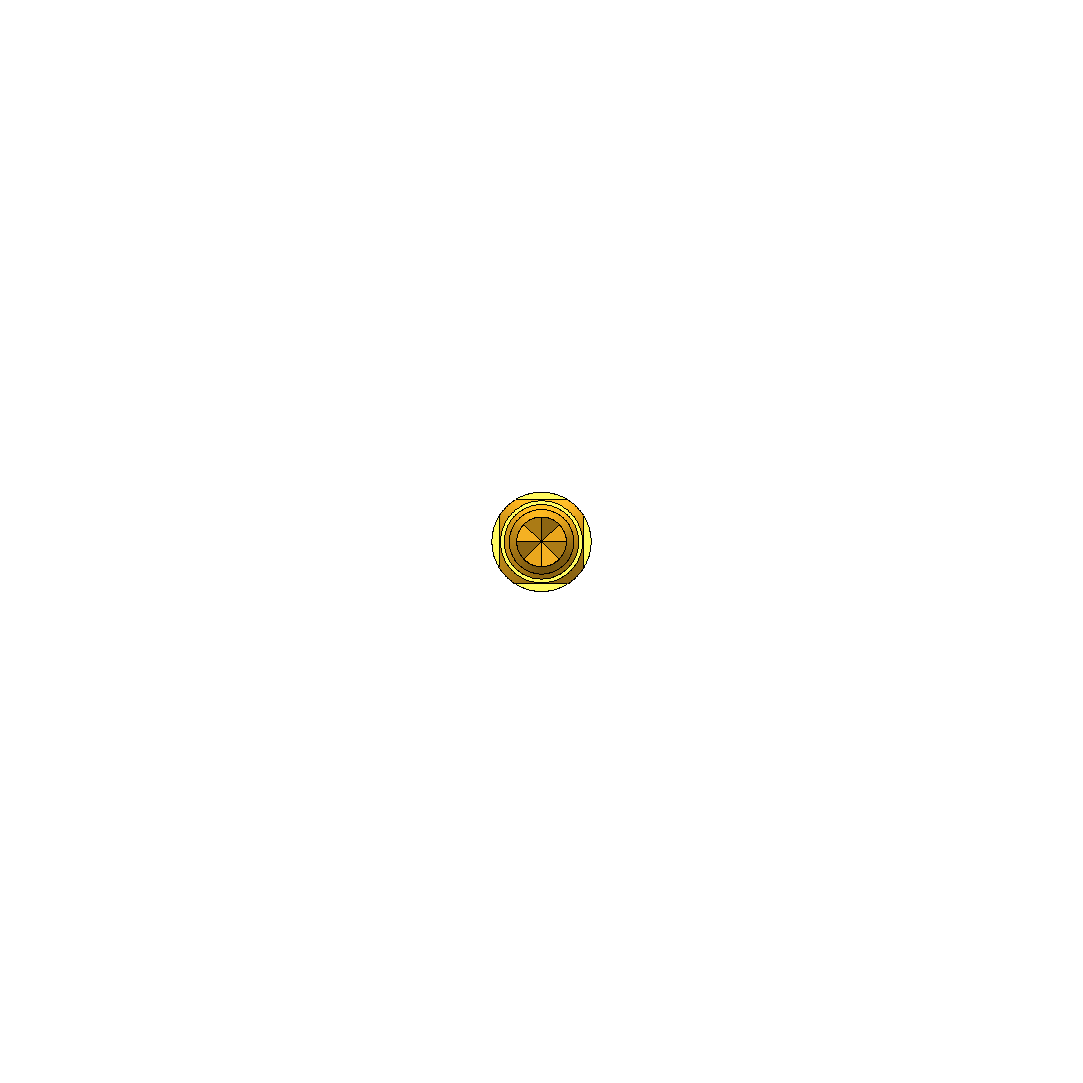

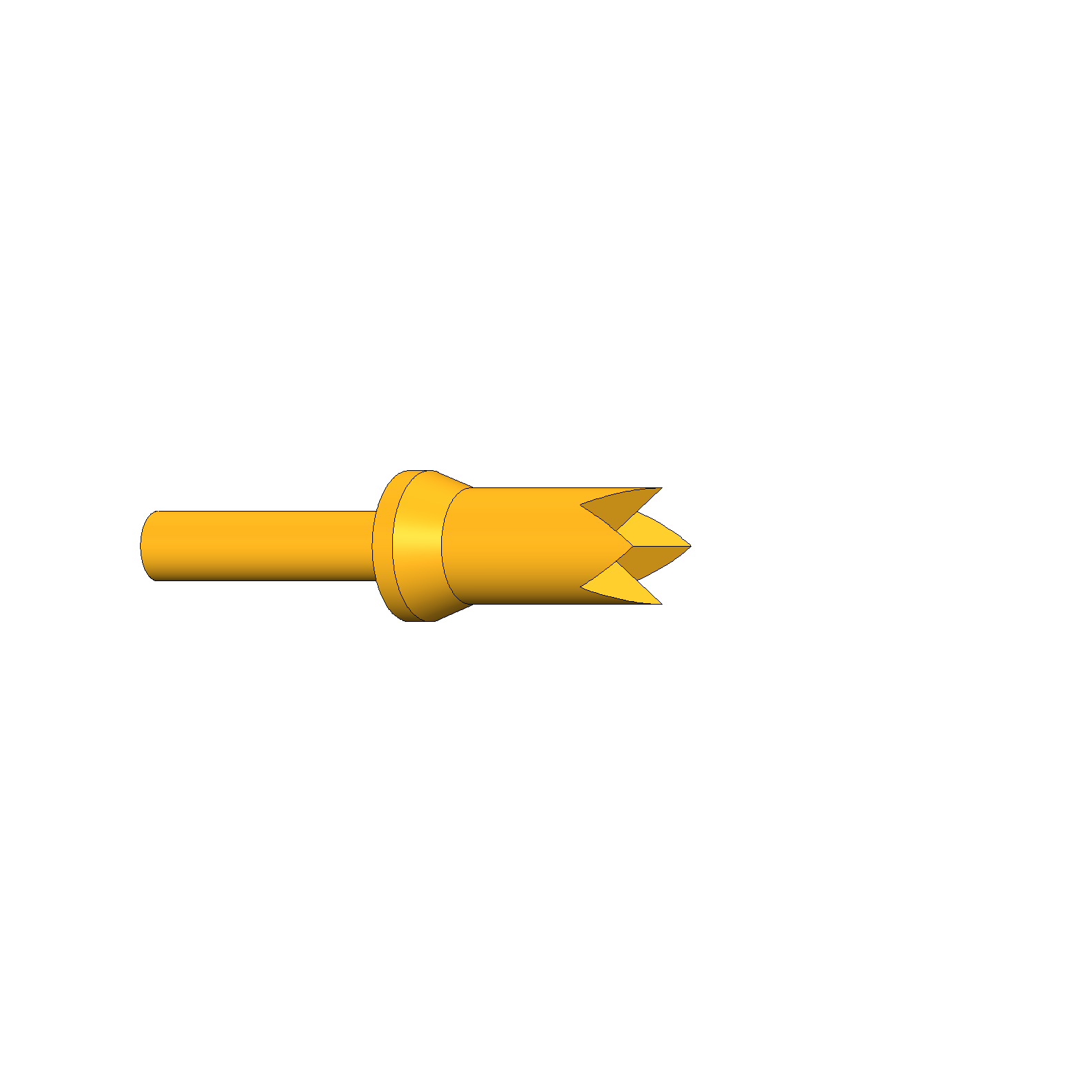

| Tip style: | 04 4-point crown |
| Tip style material: | 2 steel |
| Tip style surface: | A gold |

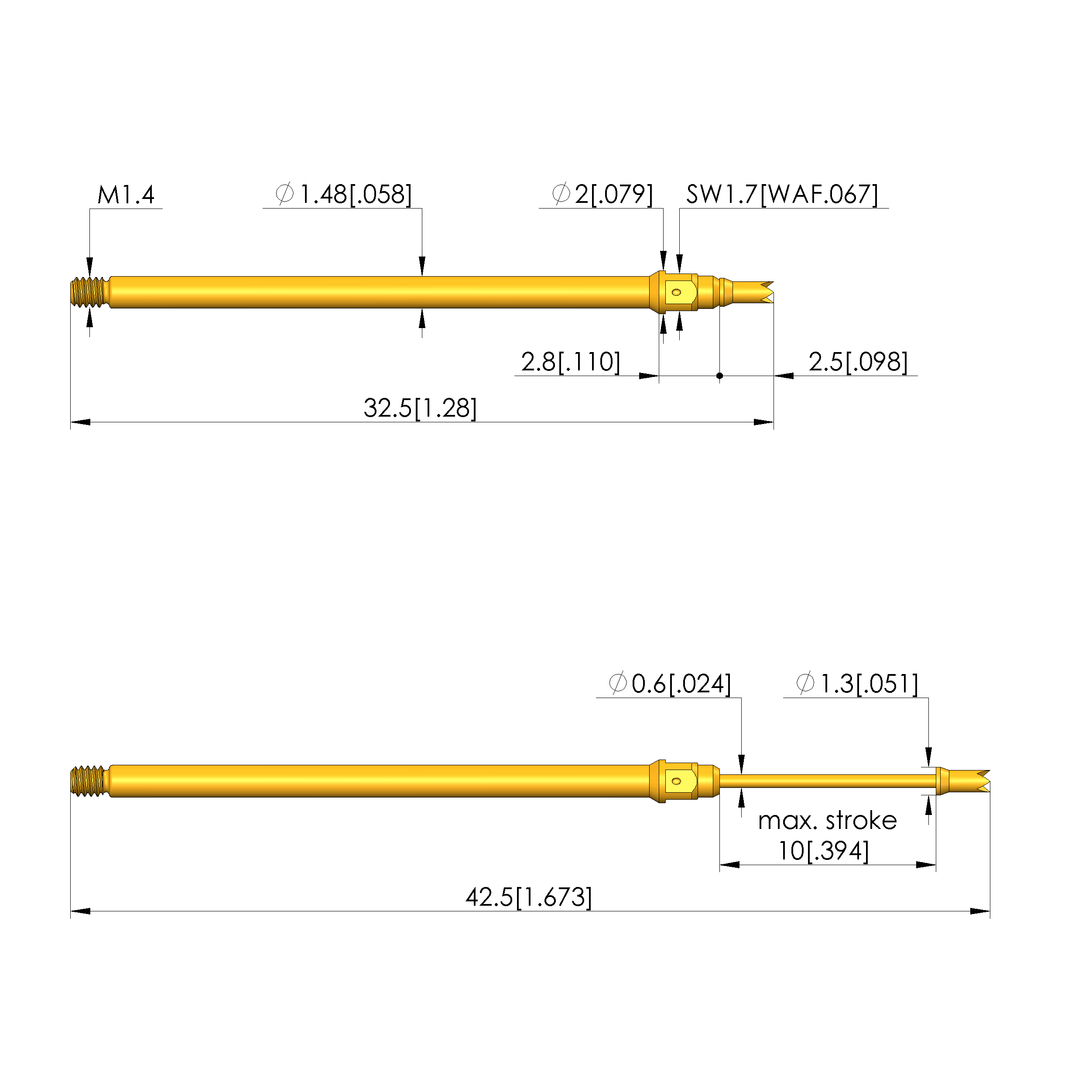

| Total length: | 32.5 mm [1.27 in] |
| Typical resistance (Ri): | 30 mOhm |
| Working stroke: | 6 mm [.236 in] |
Login
Product Details
- Universal pneumatic probes for a wide range of applications, e.g., for contacting test pads, activation of switches, contacting of difficult-to-access test points, or creation of interfaces.
- When using PKS probes, a separate actuating mechanism may not be necessary
- PKS are retracted in the home position. When pressure is applied, the plunger extends
- Designed as a screw-in version with quick-exchange system for maintenance
Other products in this series:
Technical data
General data
- Screw-in torque min.: 2 cNm [.177 lbf·in]
- Screw-in torque max.: 3 cNm [.265 lbf·in]
- Product group: PKS (screwed in)
- Product group: Pneumatic test probe
- Sub-product group: PKS (screwed in)
- Series: PKS-171 M quick-exchange system, screw-in
- Series: PKS-171
- Grid: 2.54 mm [100 mil]
- Contacting from: Pin
- Contacting from: Post
- Contacting from: Pad
- Magnetic: Yes
- Installation type: Screw-in
- Quick-exchange system: Yes
- PKS operating pressure: 6 bar [87 psi]
- Adjustable installation height: No
- Non-rotating: No
- Screw-in torque: 2 – 3 cNm [.177 – .265 lbf·in]
- Compatible receptacle(s): KS-171 M
- Min. temperature: 0 °C [32 °F]
- Max. temperature: 80 °C [176 °F]
- RoHS-compliant: Yes
Mechanical data
- Total length: 32.5 mm [1.27 in]
- Barrel diameter: 1.49 mm [.058 in]
- Maximum stroke: 10 mm [.393 in]
- Spring pre-load: 0.3 N [1.07 ozf]
- Collar height: 02
- Spring force at working stroke: 0.3 N [1.07 ozf]
- Working stroke: 6 mm [.236 in]
Electrical data
- Current load capacity / rated current: 1 A
- Typical resistance (Ri): 30 mOhm
Tip style data

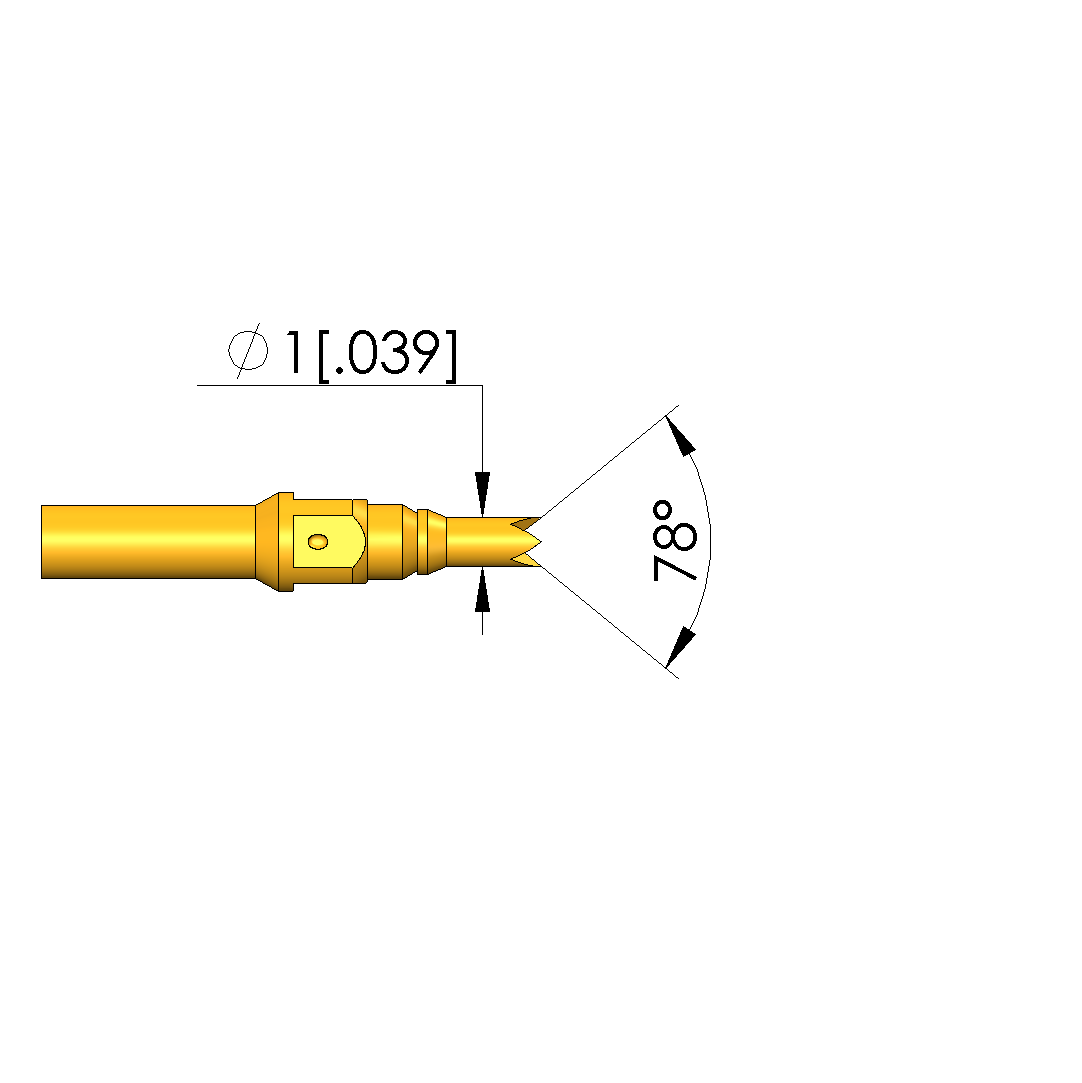

- Tip style: 04 4-point crown
