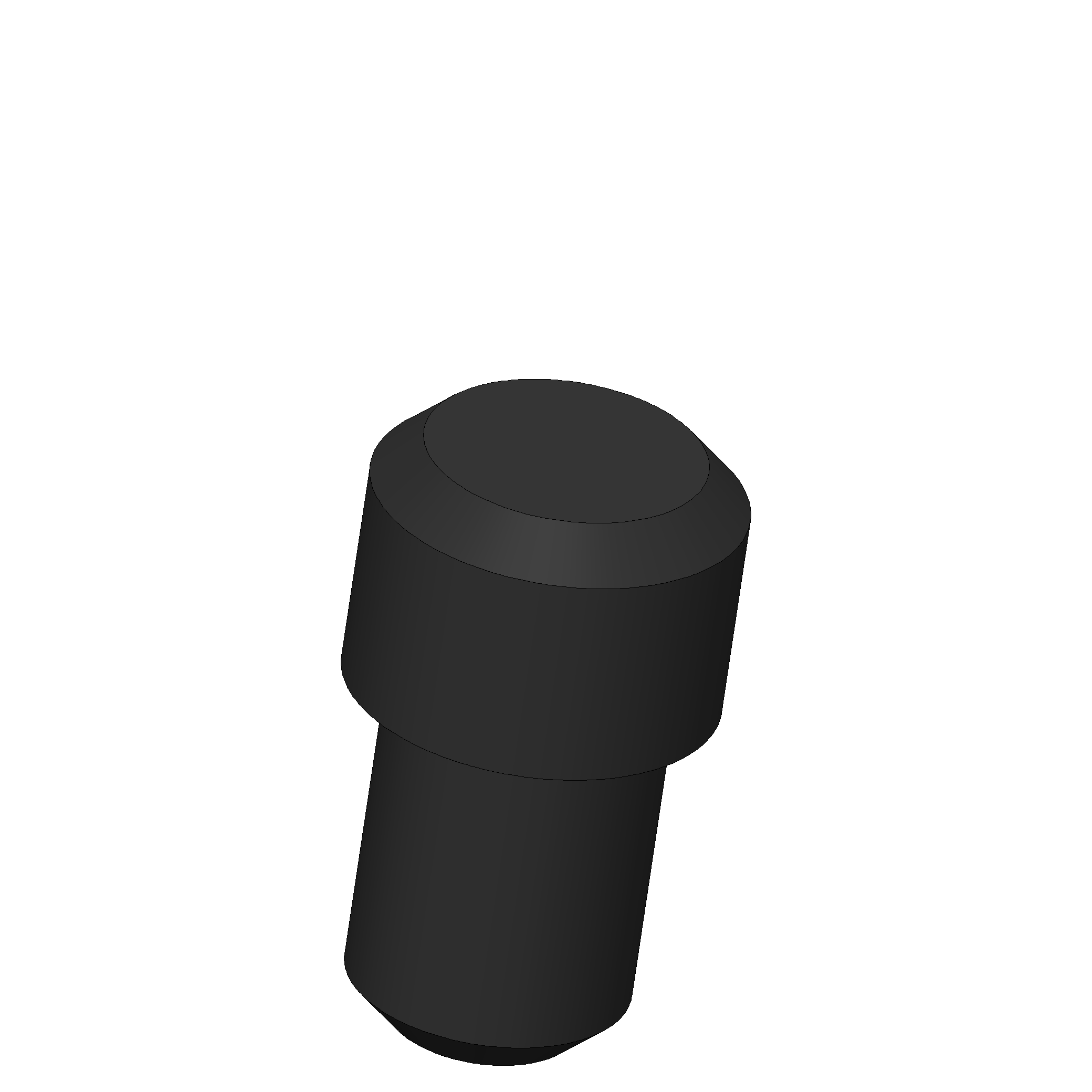

Product information "PAS-02,8-04,0"
- Trusted plastic support pins to support PC boards
- Robust, pressure-resistant, trusted design
| Accessory type: | Customising accessories |
|---|---|
| Diameter: | 3 mm [.118 in] |
| Exchangeable kits version: | No limitations |
| Installation: | Pressed in |
| Length: | 6.8 mm [.267 in] |
| MA exchangeable kits (ATS MA): | ATS MAxx, ATS MAxxx |
| Manual test fixtures (MA): | MA 2009, MA 2011, MA 2012, MA 2013, MA 2013T, MA 2014 |
| Material: | POM black |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Product group: | PCB support pin |
| RoHS-compliant: | Yes |
| Series: | PAS |
| Tip diameter: | 4 mm [.157 in] |
| Tip height: | 2.8 mm [.11 in] |
| Type: | DUT support (round) |
| Vacuum test fixtures (VA): | VA xxxx |
| Version: | Unsuitable for ESD-protected zones |
Login
Product Details
- Trusted plastic support pins to support PC boards
- Robust, pressure-resistant, trusted design
Other products in this series:
Technical data
Compatible with
- Manual test fixtures (MA): MA 2014
- Manual test fixtures (MA): MA 2009
- MA exchangeable kits (ATS MA): ATS MAxxx
- Manual test fixtures (MA): MA 2013
- Exchangeable kits version: No limitations
- Manual test fixtures (MA): MA 2011
- Vacuum test fixtures (VA): VA xxxx
- Manual test fixtures (MA): MA 2013T
- Manual test fixtures (MA): MA 2012
- MA exchangeable kits (ATS MA): ATS MAxx
General data
- Max. temperature: 60 °C [140 °F]
- Accessory type: Customising accessories
- Product group: PCB support pin
- Min. temperature: 10 °C [50 °F]
- Series: PAS
- RoHS-compliant: Yes
- Material: POM black
- Version: Unsuitable for ESD-protected zones
- Type: DUT support (round)

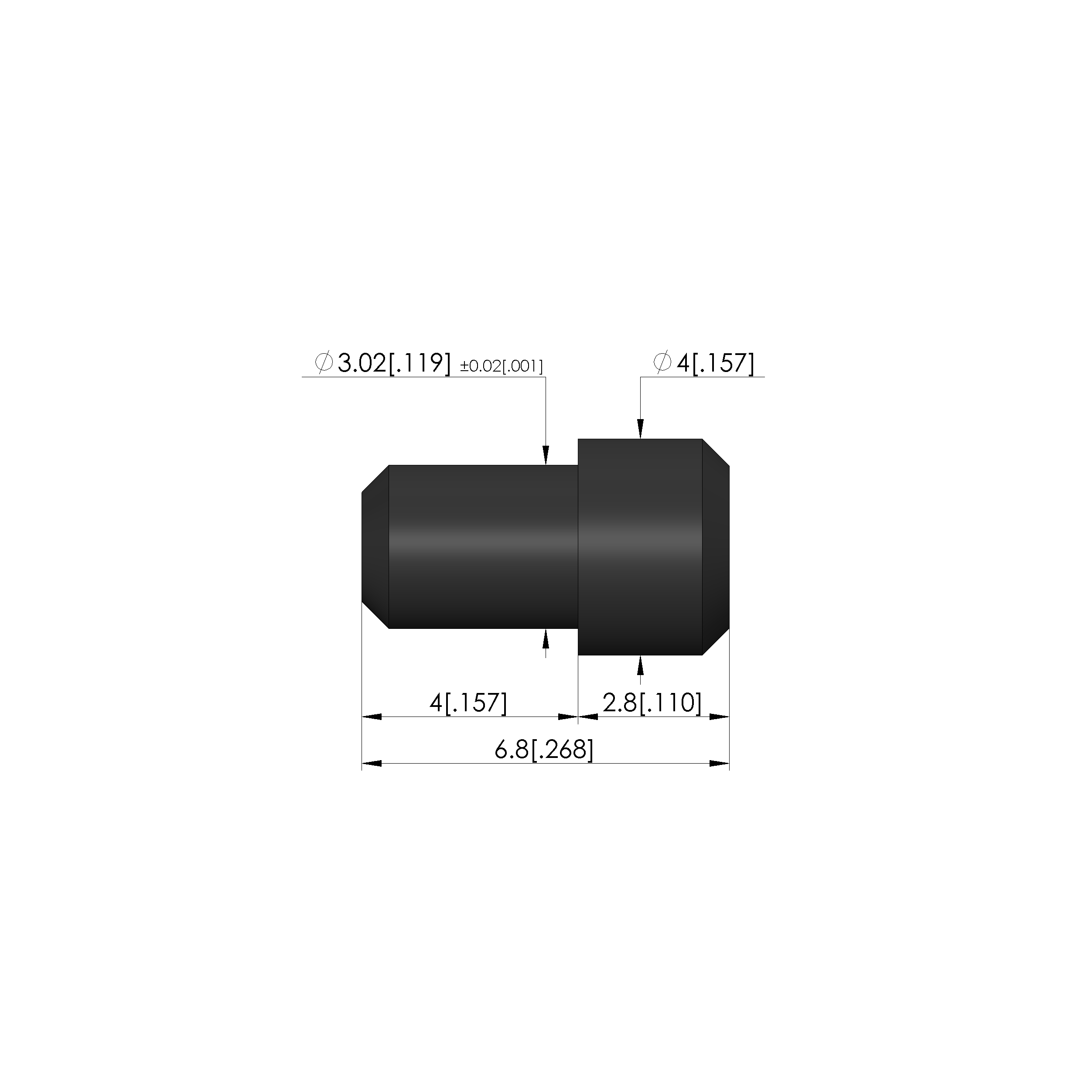

Technical data
- Tip diameter: 4 mm [.157 in]
- Length: 6.8 mm [.267 in]
- Tip height: 2.8 mm [.11 in]
- Diameter: 3 mm [.118 in]
- Installation: Pressed in
