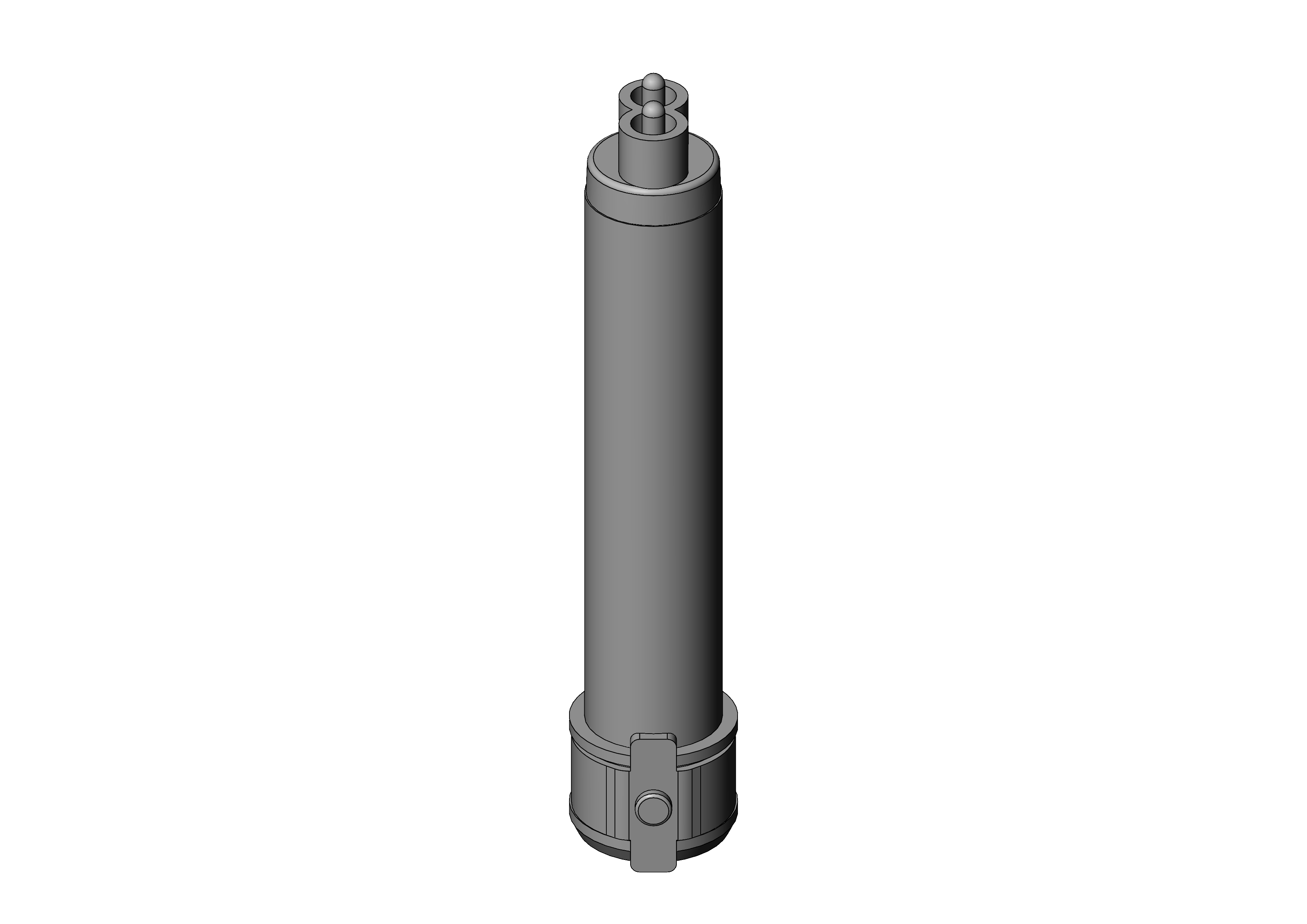

Product information "OTC-KS-NV-ST-G2"
- Component for the Opens test, for capacitive testing of semiconductor chips for open circuits, short circuits and soldering faults
- Suitable for all Keysight 307x test systems with software version 9.2 or higher
- Improved repeating accuracy, test coverage and error detection in comparison to VTEP technology
| Accessory type: | Customising accessories |
|---|---|
| Diameter: | 5.5 mm [.216 in] |
| Interchangeable kits (WS): | WS Keysight |
| Length: | 28 mm [1.1 in] |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Product group: | Opens tests |
| RoHS-compliant: | Yes |
| Scope of delivery: | Incl. spring clip |
| Series: | OTC |
| Type: | Keysight Vectorless Test |
| Vacuum test fixtures (VA): | VA 2070S/L, VA 3070S/L |
| Version: | nanoVTEP barrel gen 2 |
Login
Product details
- Component for the Opens test, for capacitive testing of semiconductor chips for open circuits, short circuits and soldering faults
- Suitable for all Keysight 307x test systems with software version 9.2 or higher
- Improved repeating accuracy, test coverage and error detection in comparison to VTEP technology

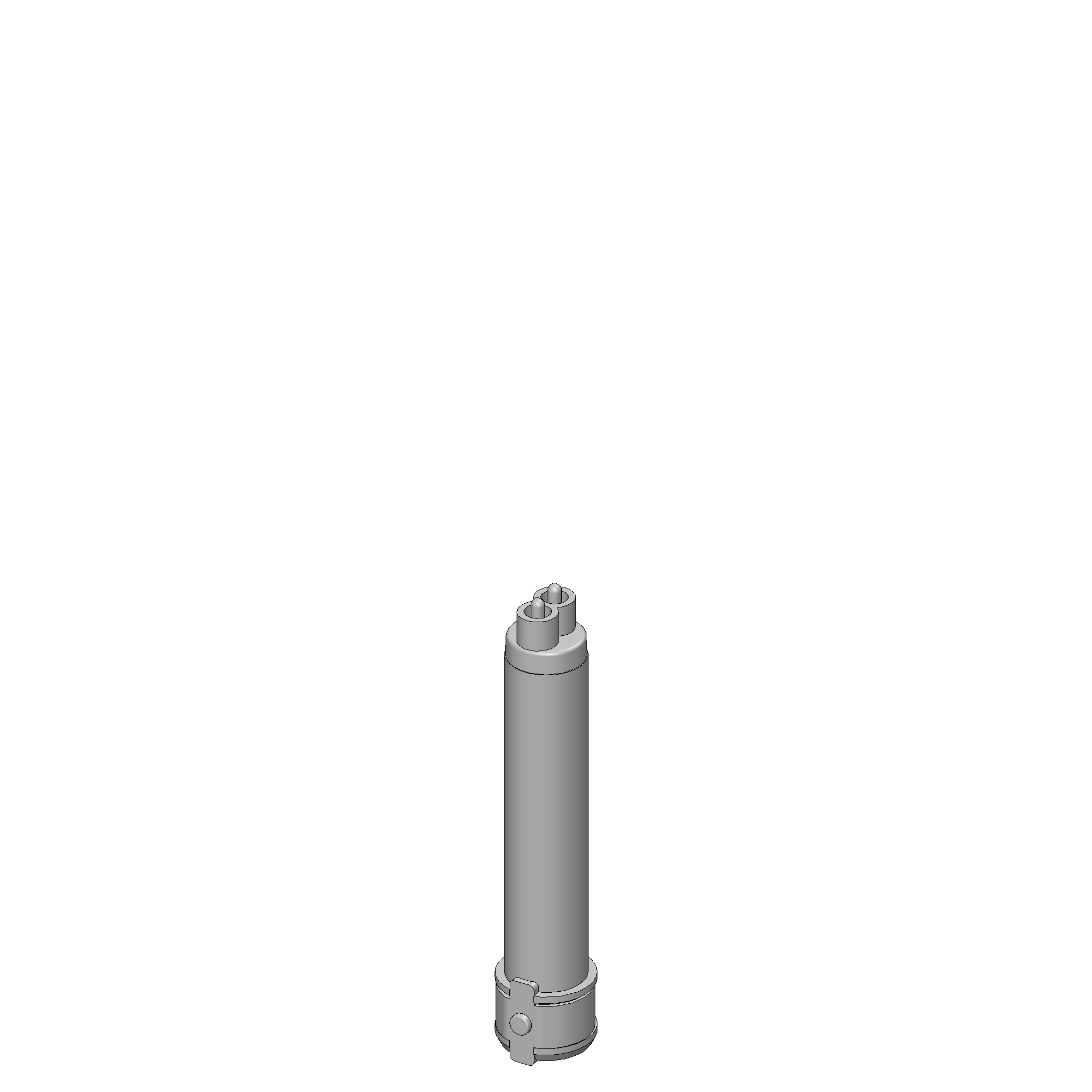

Other products in this series:
Technical data
General data
- Product group: Opens tests
- Series: OTC
- Type: Keysight Vectorless Test
- Version: nanoVTEP barrel gen 2
- Accessory type: Customising accessories
- Scope of delivery: Incl. spring clip
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Technical data

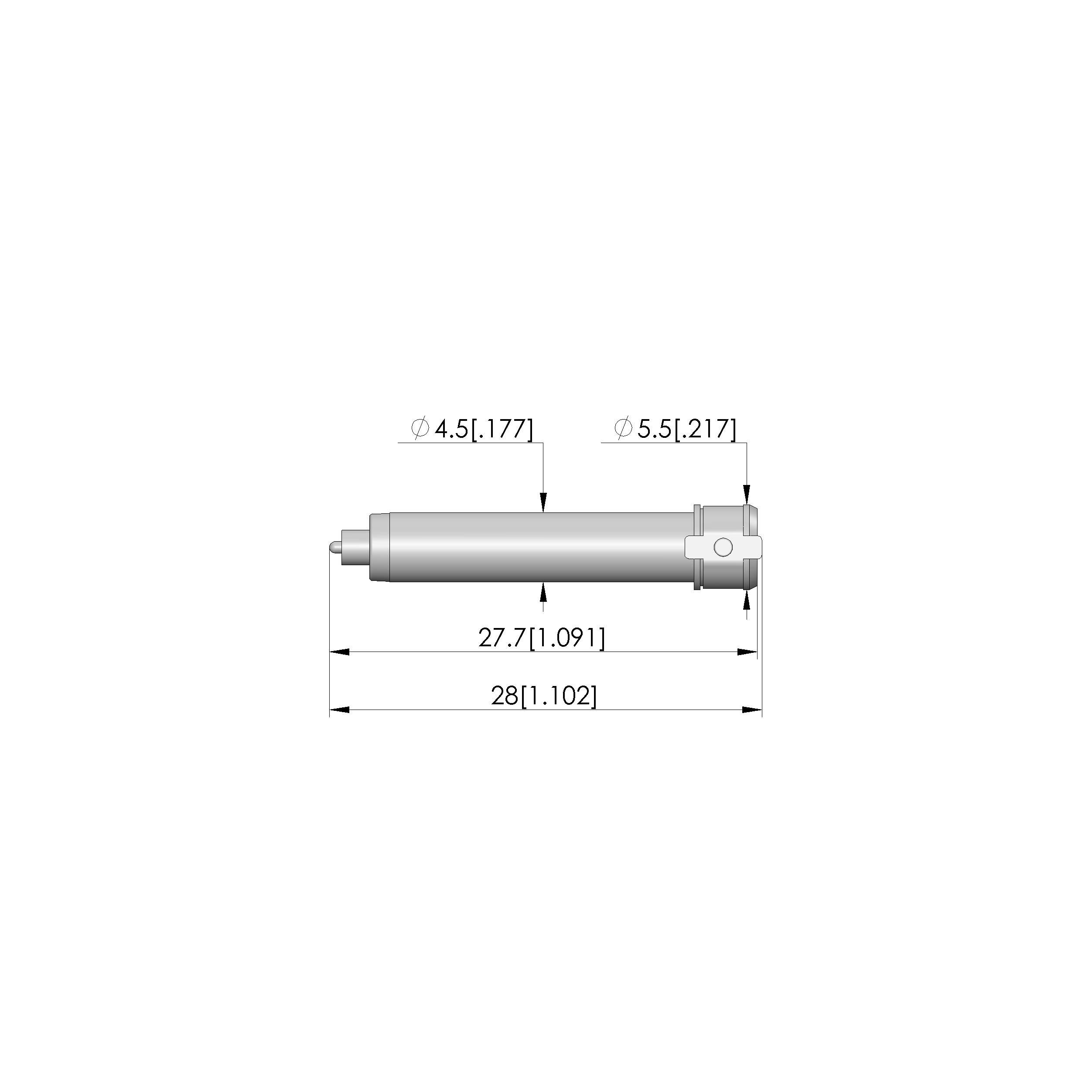

- Length: 28 mm [1.1 in]
- Diameter: 5.5 mm [.216 in]
Compatible with
- Vacuum test fixtures (VA): VA 3070S/L, VA 2070S/L
- Interchangeable kits (WS): WS Keysight
