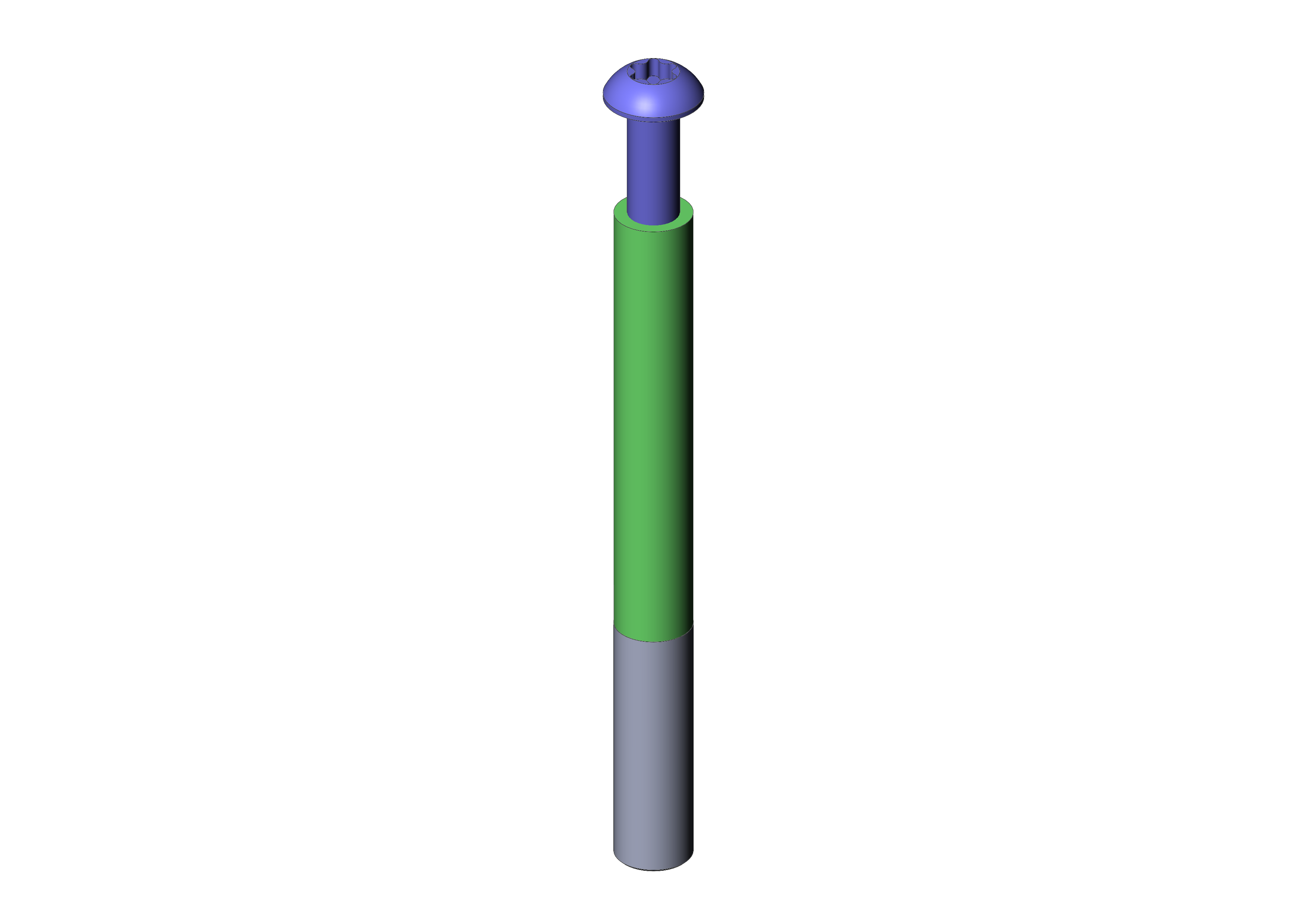

Product information "NHS-ST-55,6-6,0-KU-AL-ESD"
- Trusted push rods for reliable, rigid fixing of the PCB in the probe field against the force of the test probes
- Robust, pressure-resistant design
- Quick, easy installation
| Accessory type: | Customising accessories |
|---|---|
| Colour: | Green |
| Installation: | Screwed in |
| Outer dimensions (TxL): | 6 x 55.6 mm [.236 x 2.18 in] |
| Product group: | Push rods (NHS) |
| Pushrod shaft diameter: | 6 mm [.236 in] |
| Series: | NHS-ST |
| Shaft material: | AL |
| Thread: | M4x10 mm |
| Tip diameter: | 6 mm [.236 in] |
| Tip length: | 20 mm [.787 in] |
| Tip material: | KU |
| Total length: | 55.6 mm [2.18 in] |
| True running: | 2768-mK |
| Type: | Rigid |
| Vacuum test fixtures (VA): | 3xxx, VA 2xxx |
| Version: | ESD ( |
Login
Product Details
- Trusted push rods for reliable, rigid fixing of the PCB in the probe field against the force of the test probes
- Robust, pressure-resistant design
- Quick, easy installation

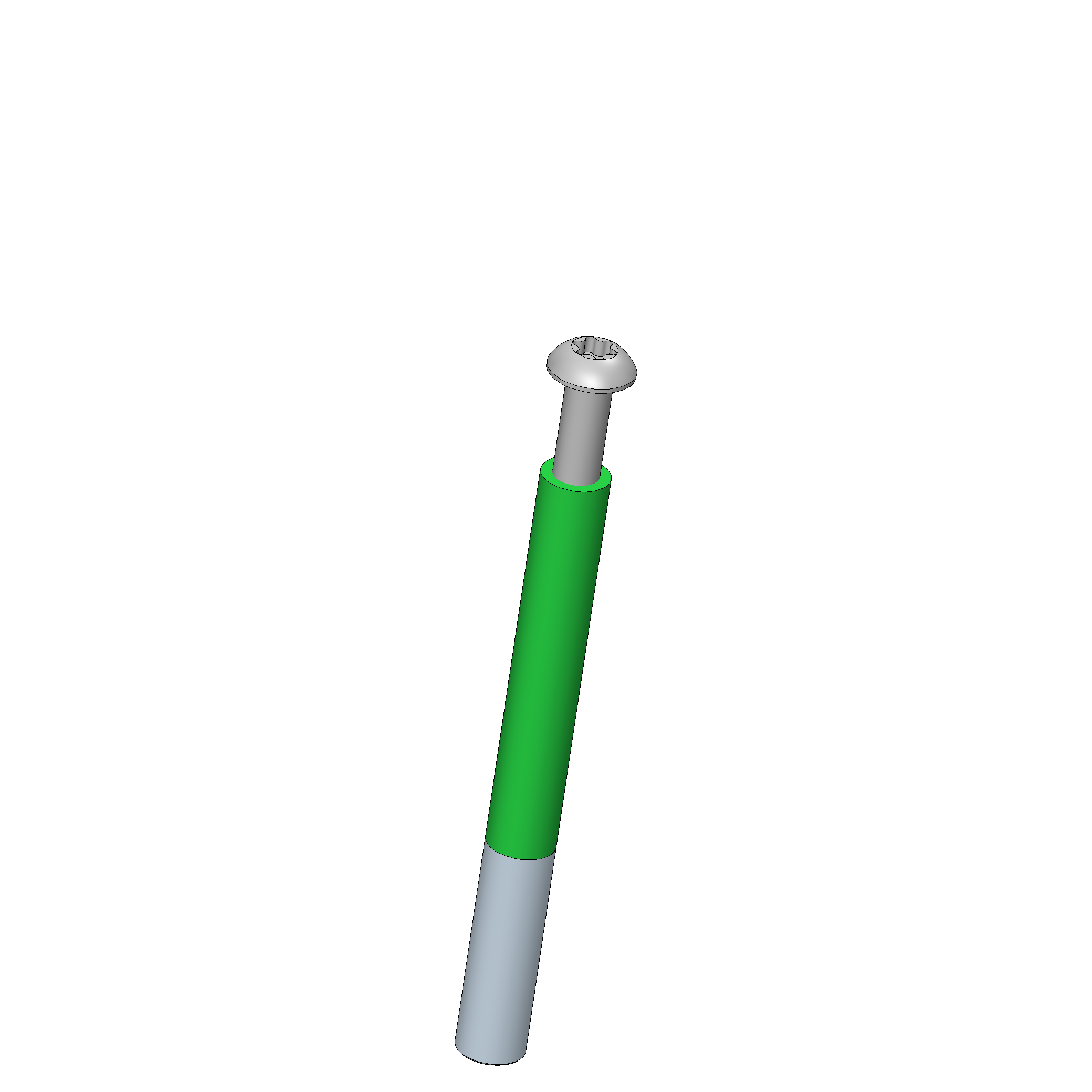

Other products in this series:
Technical data
General data
- Product group: Push rods (NHS)
- Series: NHS-ST
- Colour: Green
- Type: Rigid
- Accessory type: Customising accessories
- Outer dimensions (TxL): 6 x 55.6 mm [.236 x 2.18 in]
- Version: ESD (
Technical data

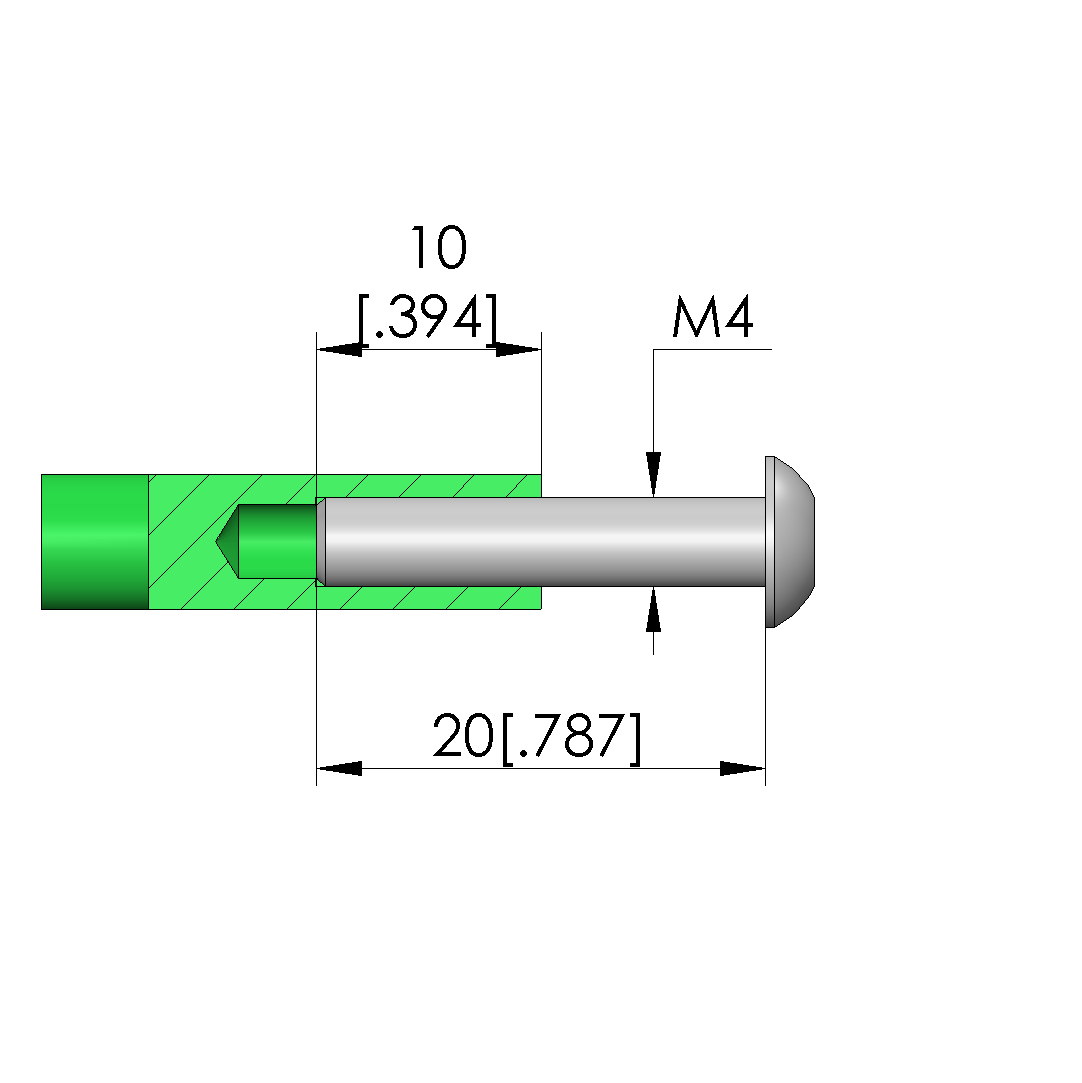

- Thread: M4x10 mm
- True running: 2768-mK
- Tip diameter: 6 mm [.236 in]
- Tip material: KU
- Tip length: 20 mm [.787 in]
- Pushrod shaft diameter: 6 mm [.236 in]
- Shaft material: AL
- Installation: Screwed in
Mechanical data

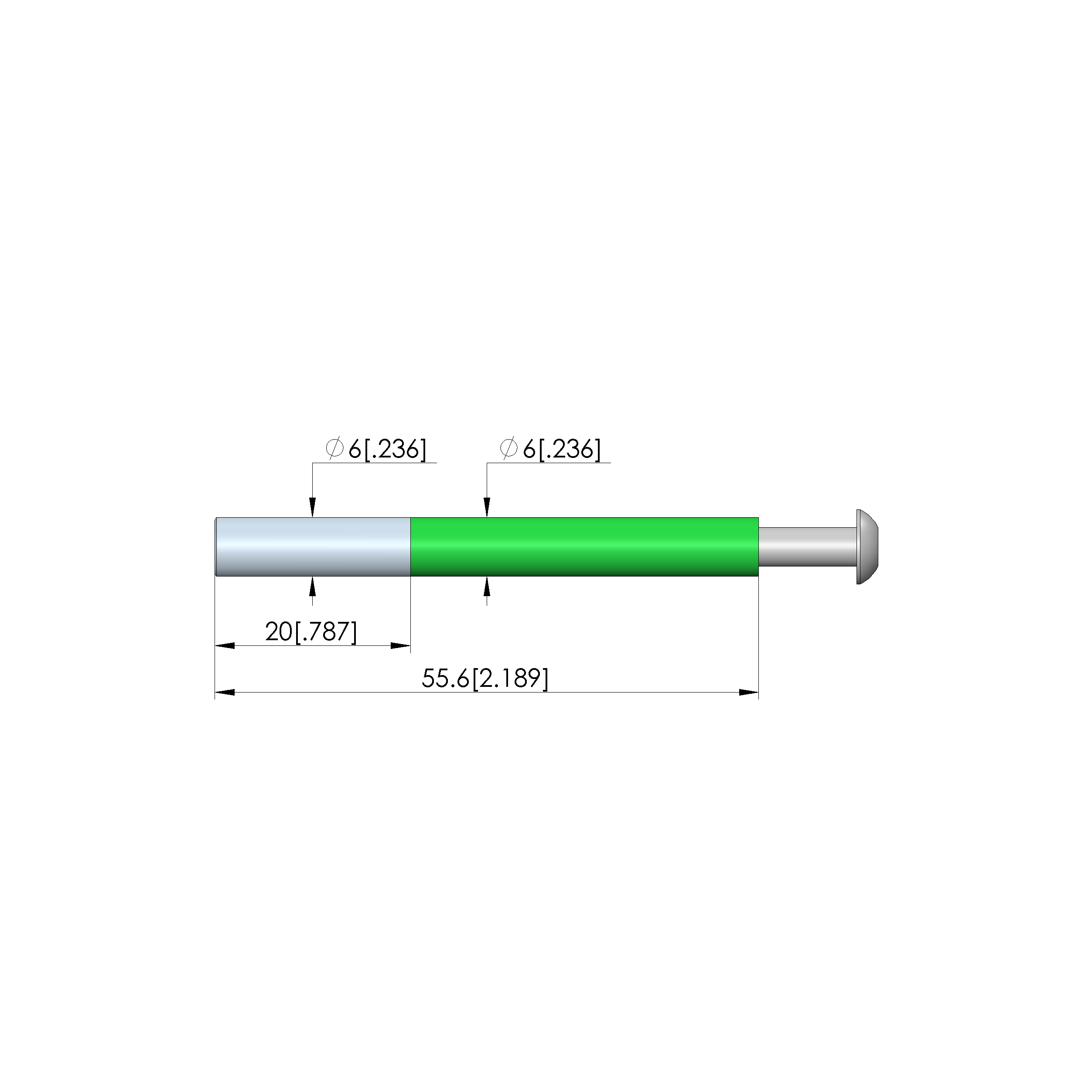

- Total length: 55.6 mm [2.18 in]
Compatible with
- Vacuum test fixtures (VA): VA 2xxx
- Vacuum test fixtures (VA): 3xxx
