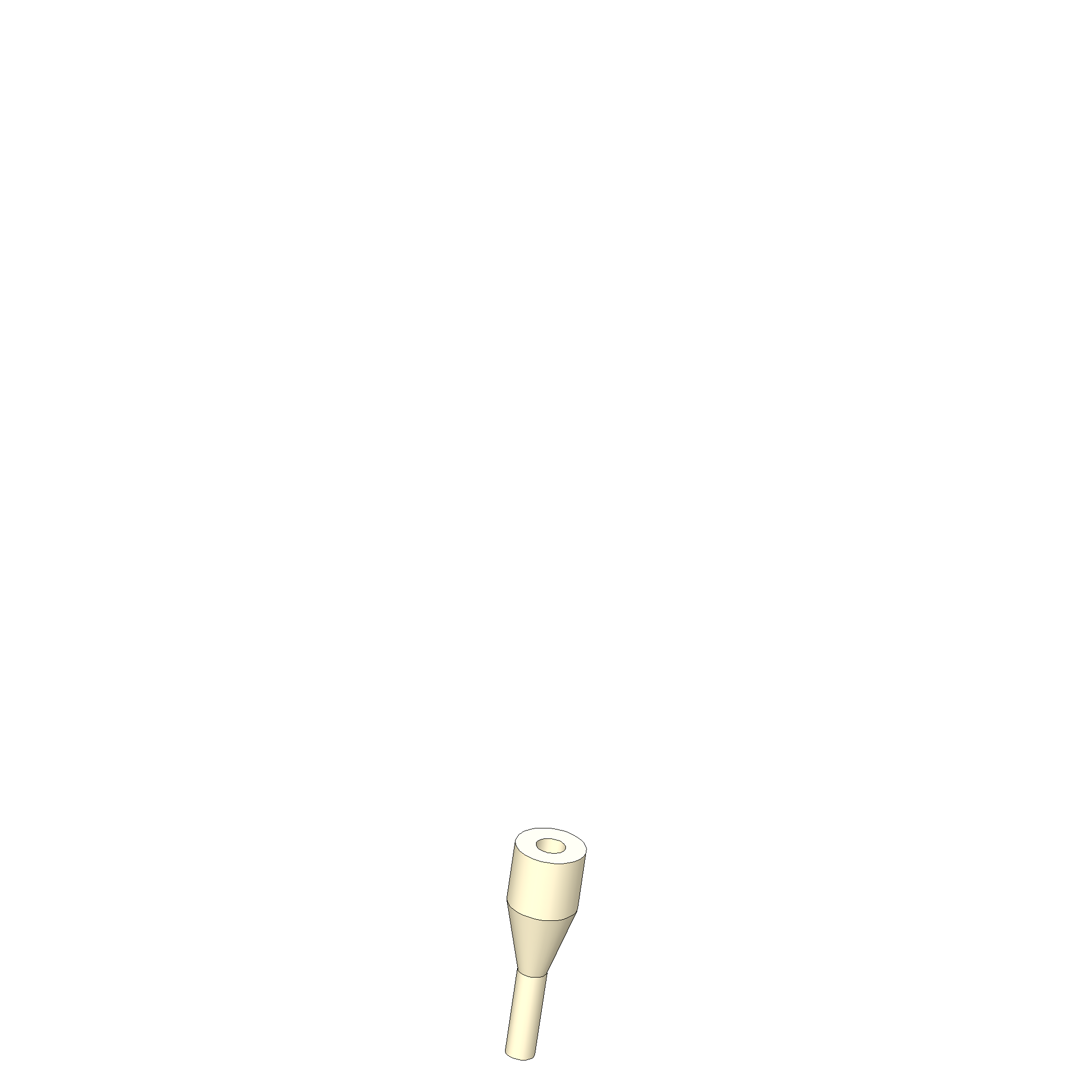

Product information "NHS-ST-20,0-2,5-POM-M3-ESD"
- Trusted push rods for reliable, rigid fixing of the PCB in the probe field against the force of the test probes
- Robust, pressure-resistant design
- Quick, easy installation
| Accessory type: | Customising accessories |
|---|---|
| Colour: | Untreated |
| Exchangeable kits version: | ESD, Standard |
| Installation: | Screwed in |
| MA exchangeable kits (ATS MA): | ATS MA1xx |
| Outer dimensions (TxL): | 2.5 x 20 mm [.098 x .787 in] |
| Product group: | Push rods (NHS) |
| Pushrod shaft diameter: | 6 mm [.236 in] |
| RoHS-compliant: | Yes |
| Series: | NHS-ST |
| Shaft material: | POM-C AS |

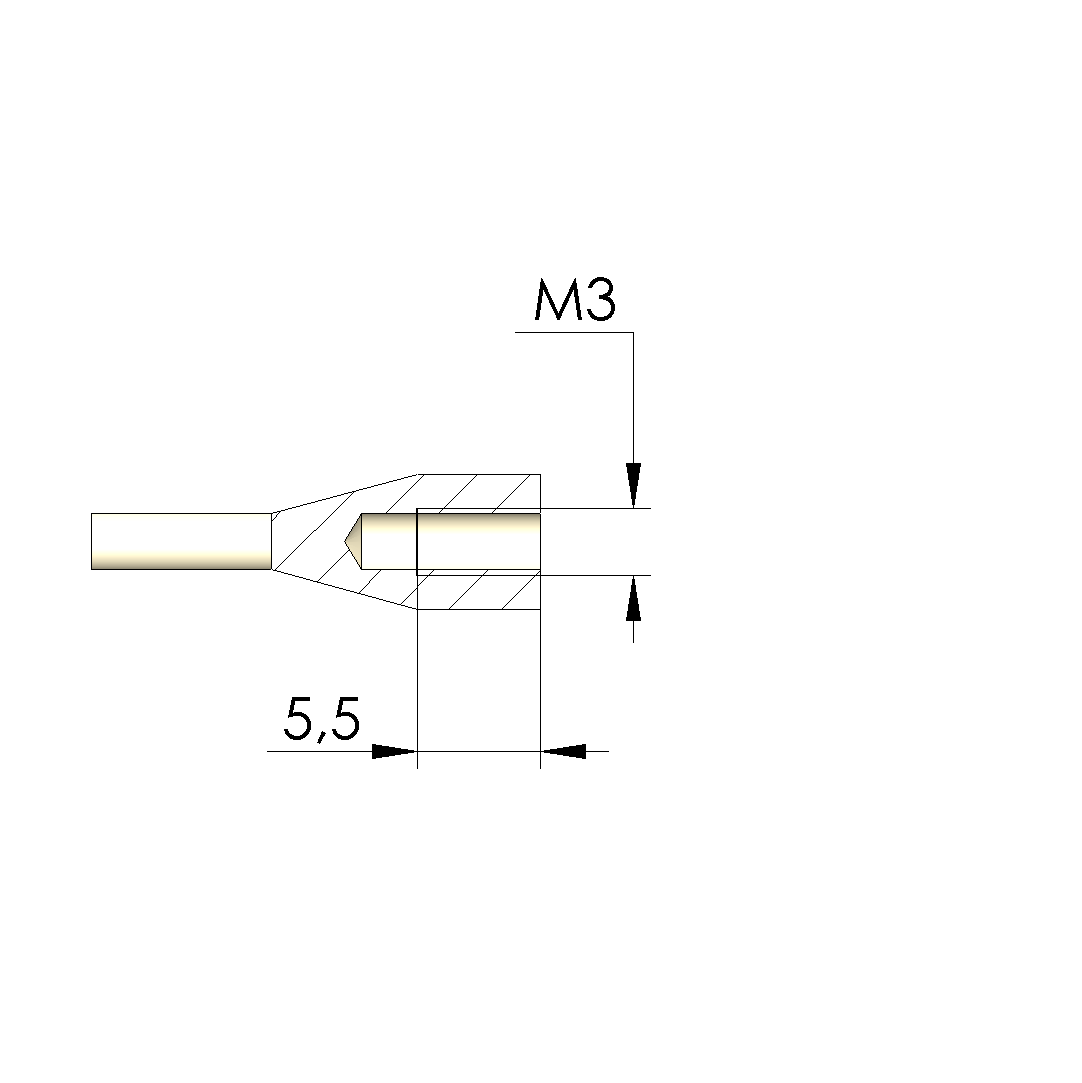

| Thread: | M3x5,5 mm |
| Tip diameter: | 2.5 mm [.098 in] |
| Tip length: | 20 mm [.787 in] |
| Tip material: | POM-C AS |
| Total length: | 20 mm [.787 in] |
| True running: | 2768 fH |
| Type: | Rigid |
| Version: | ESD |
Login
Product Details
- Trusted push rods for reliable, rigid fixing of the PCB in the probe field against the force of the test probes
- Robust, pressure-resistant design
- Quick, easy installation
Other products in this series:
Technical data
Technical data
- Tip diameter: 2.5 mm [.098 in]
- Pushrod shaft diameter: 6 mm [.236 in]
- Tip material: POM-C AS
- Shaft material: POM-C AS
- True running: 2768 fH
- Installation: Screwed in
- Thread: M3x5,5 mm
- Tip length: 20 mm [.787 in]
General data
- Product group: Push rods (NHS)
- Series: NHS-ST
- Type: Rigid
- Version: ESD
- Accessory type: Customising accessories
- Outer dimensions (TxL): 2.5 x 20 mm [.098 x .787 in]
- Colour: Untreated
- RoHS-compliant: Yes
Compatible with
- Exchangeable kits version: Standard, ESD
- MA exchangeable kits (ATS MA): ATS MA1xx
Mechanical data
- Total length: 20 mm [.787 in]
