Product information "MTE MA09/U"

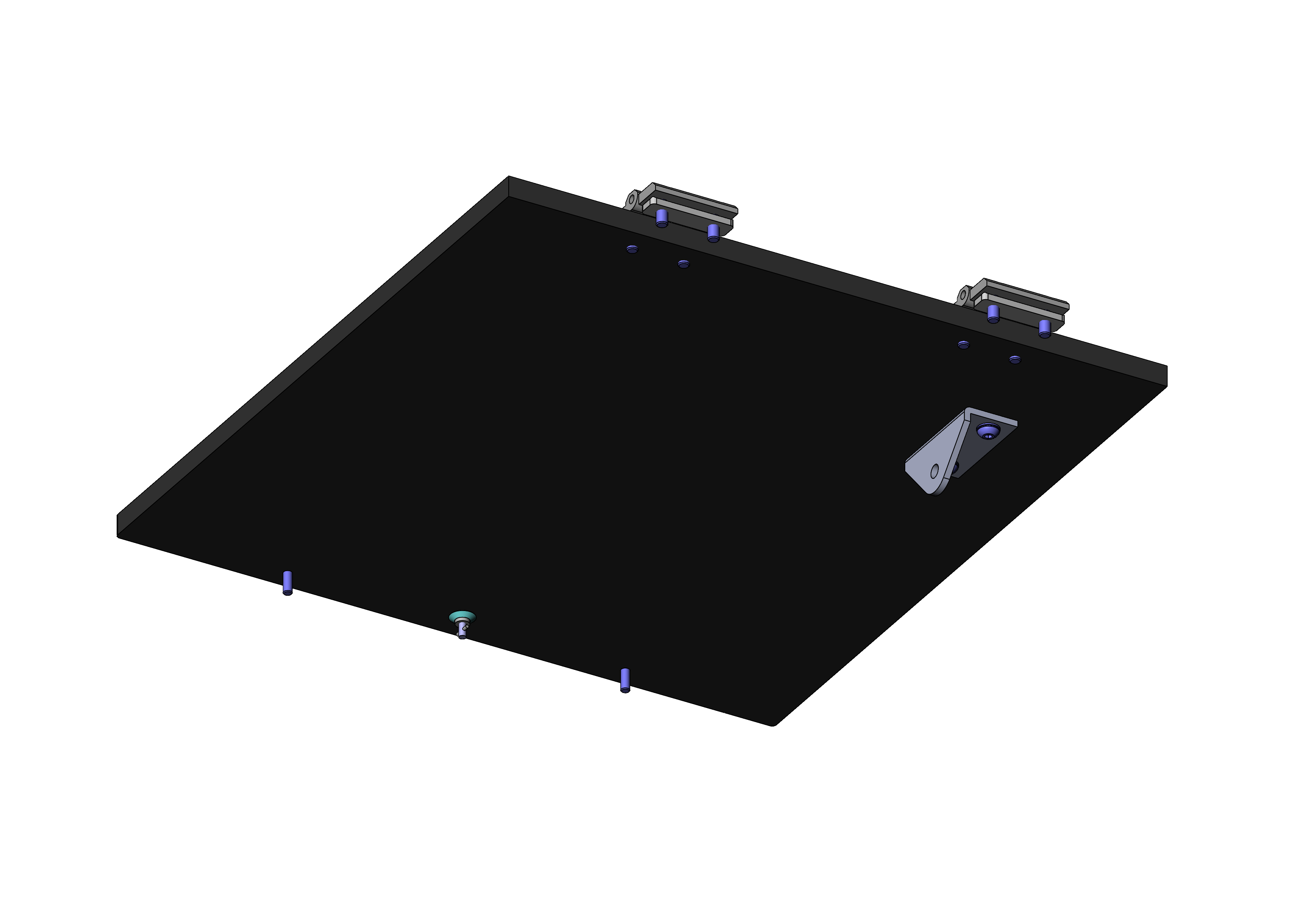

- Closed mounting plate for MA xx09 housing (PGH MA09/TDS/BG)
- Incl. installation accessories
- Quick, easy installation
| Accessories: | PGH MA09/TDS |
|---|---|
| Accessory type: | Additional function |
| Height: | 19 mm [.748 in] |
| Length: | 331 mm [13 in] |
| Manual test fixtures (MA): | PGH MA09/TDS |
| Material: | FR3 (EP 105-AS) |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 320 x 331 x 19 mm [12.5 x 13 x .748 in] |
| Product group: | Housing |
| RoHS-compliant: | Yes |
| Scope of delivery: | Must be installed upon delivery, installation accessories included |
| Series: | MTE-MAxxxx |
| Type: | Mounting plate MA09/U |
| Version: | ESD |
| Weight: | 2 kg [4.4 lbs] |
| Width: | 320 mm [12.5 in] |
Login
Product Details
- Closed mounting plate for MA xx09 housing (PGH MA09/TDS/BG)
- Incl. installation accessories
- Quick, easy installation
Other products in this series:
Technical data
Compatible with
- Manual test fixtures (MA): PGH MA09/TDS
- Accessories: PGH MA09/TDS
General data
- Product group: Housing
- Series: MTE-MAxxxx
- Type: Mounting plate MA09/U
- Version: ESD
- Accessory type: Additional function
- Scope of delivery: Must be installed upon delivery, installation accessories included
- Material: FR3 (EP 105-AS)
- Width: 320 mm [12.5 in]
- Height: 19 mm [.748 in]
- Weight: 2 kg [4.4 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Technical data
- Length: 331 mm [13 in]
- Outer dimensionS (WxDxH): 320 x 331 x 19 mm [12.5 x 13 x .748 in]
