Product information "MAP ATSMA11"
- Plate for mutaully defined earthing potential close to the test specimen
- One side is copper-plated, 35 µm
- Ideally designed for test fixture size
| Accessory type: | Customising accessories |
|---|---|
| Height: | 1.5 mm [.059 in] |
| Length: | 240 mm [9.44 in] |
| MA exchangeable kits (ATS MA): | ATS MA11, ATS MA11/ESD, ATS MA11/S-5, ATS MA11/S-5/ESD |
| Manual test fixtures (MA): | no name |
| Material: | FR2 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |

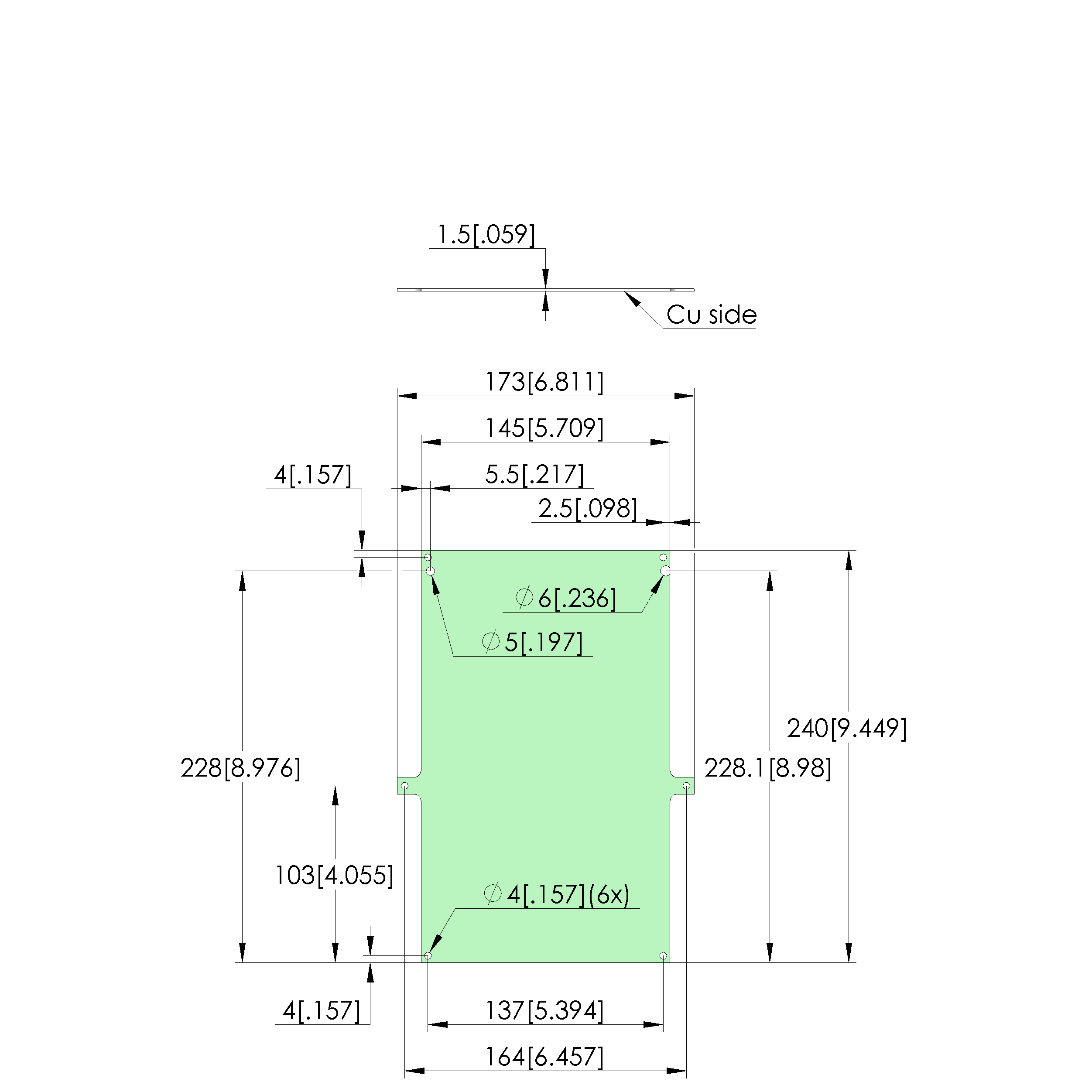

| Outer dimensionS (WxDxH): | 173 x 240 x 1.5 mm [6.81 x 9.44 x .059 in] |
| Product group: | Ground plates |
| RoHS-compliant: | Yes |
| Series: | MAP |
| Type: | Ground plate without print |

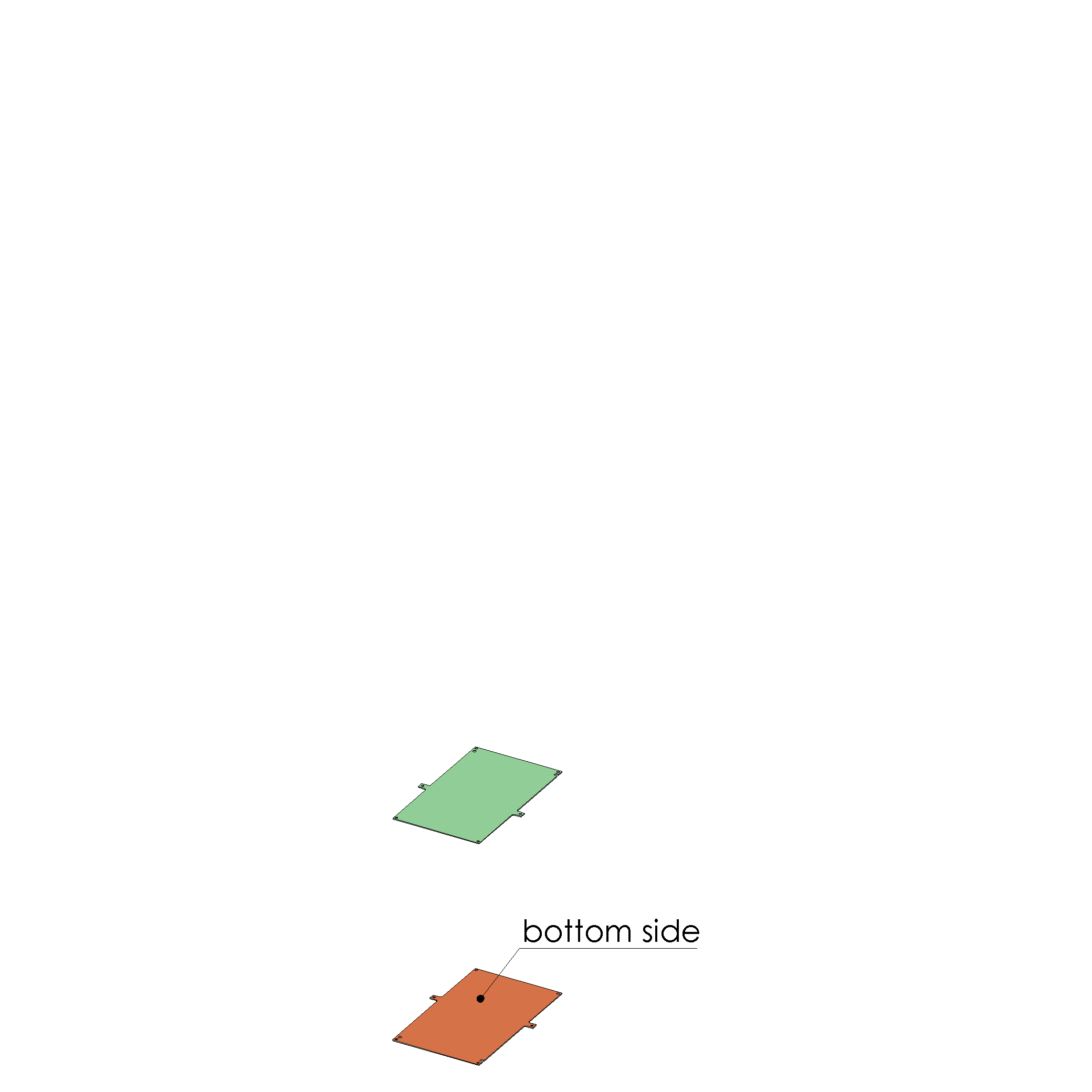

| Version: | One side is copper-plated, 35 µm |
| Weight: | 0.08 kg [.176 lbs] |
| Width: | 173 mm [6.81 in] |
Login
Product Details
- Plate for mutaully defined earthing potential close to the test specimen
- One side is copper-plated, 35 µm
- Ideally designed for test fixture size
Other products in this series:
Technical data
General data
- Product group: Ground plates
- Series: MAP
- Type: Ground plate without print
- Version: One side is copper-plated, 35 µm
- Accessory type: Customising accessories
- Material: FR2
- Width: 173 mm [6.81 in]
- Height: 1.5 mm [.059 in]
- Weight: 0.08 kg [.176 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Technical data
- Length: 240 mm [9.44 in]
- Outer dimensionS (WxDxH): 173 x 240 x 1.5 mm [6.81 x 9.44 x .059 in]
Compatible with
- Manual test fixtures (MA): no name
- MA exchangeable kits (ATS MA): ATS MA11/ESD, ATS MA11, ATS MA11/S-5/ESD, ATS MA11/S-5
