Product information "MAP VA4060"
- Plate for mutaully defined earthing potential close to the test specimen
- One side is copper-plated, 35 µm
- Ideally designed for test fixture size
| Accessory type: | Customising accessories |
|---|---|
| Height: | 1.5 mm [.059 in] |
| Length: | 540 mm [21.2 in] |
| Material: | FR4 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 540 x 430 x 1.5 mm [21.2 x 16.9 x .059 in] |
| Product group: | Ground plates |
| RoHS-compliant: | Yes |
| Series: | MAP |
| Type: | Ground plate without print |
| Vacuum test fixtures (VA): | VA 4060 |
| Version: | One side is copper-plated, 35 µm |
| Weight: | 0.53 kg [1.16 lbs] |
| Width: | 430 mm [16.9 in] |
Login
Product Details

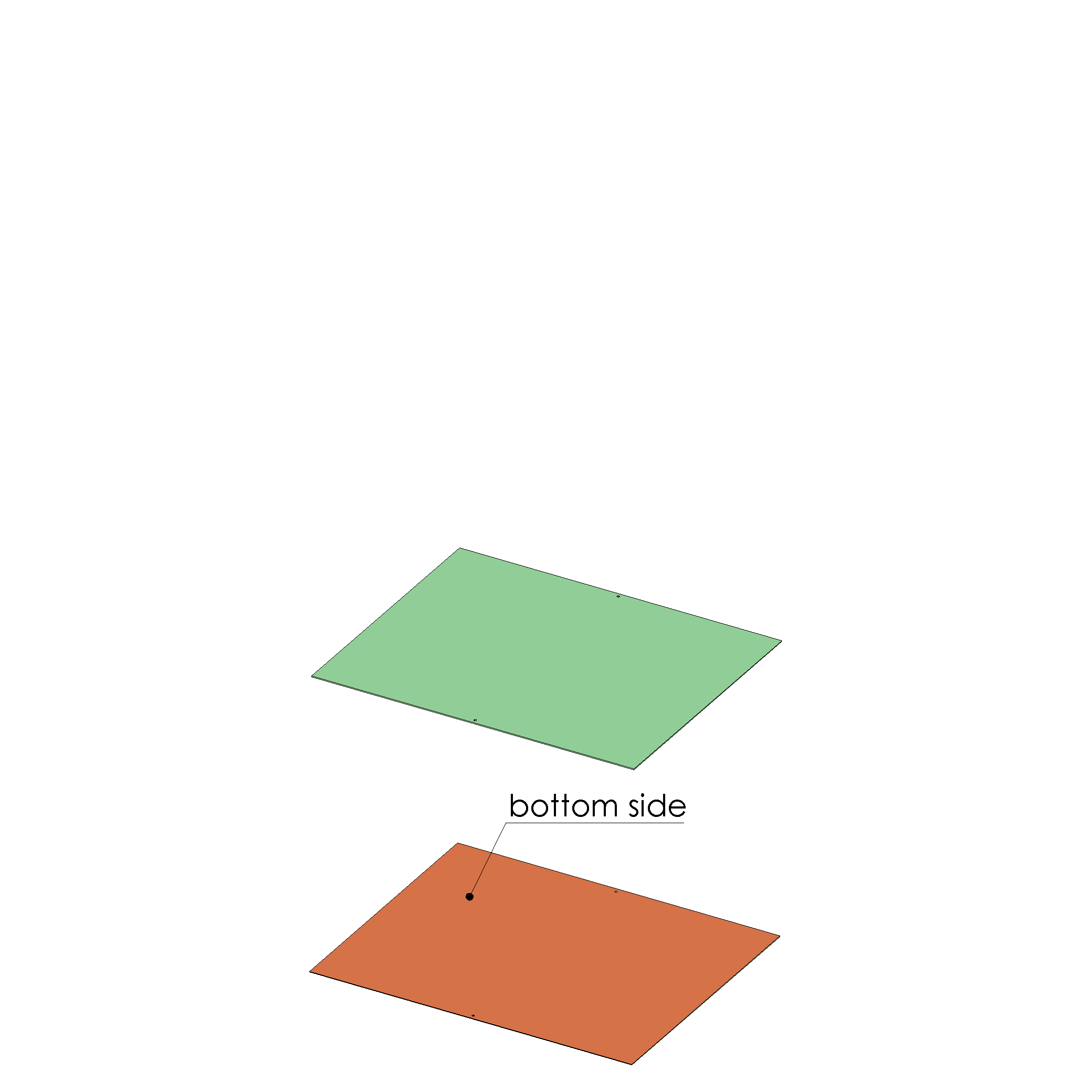

- Plate for mutaully defined earthing potential close to the test specimen

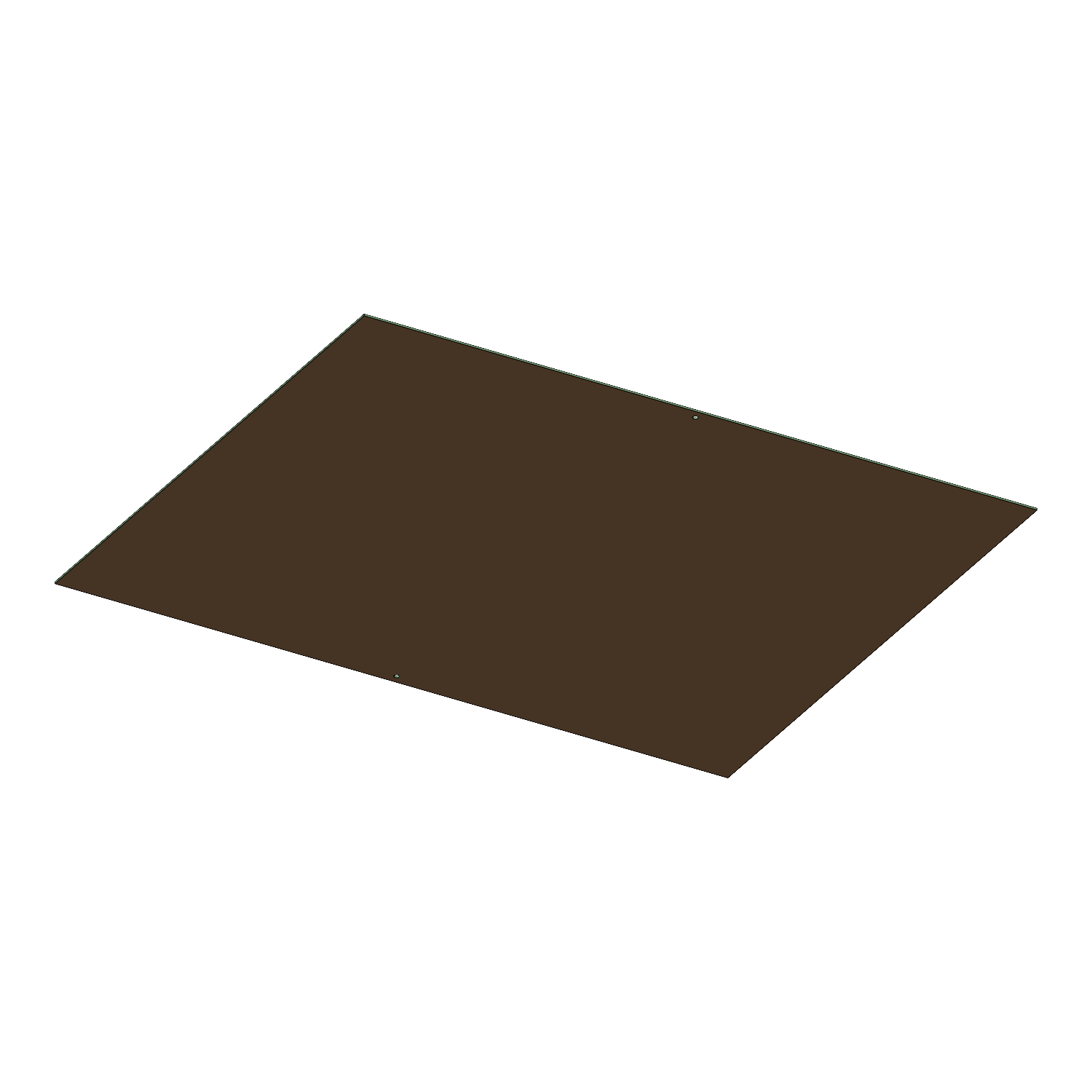

- One side is copper-plated, 35 µm
- Ideally designed for test fixture size
Other products in this series:
Technical data
General data
- Product group: Ground plates
- Series: MAP
- Type: Ground plate without print
- Version: One side is copper-plated, 35 µm
- Accessory type: Customising accessories
- Material: FR4
- Width: 430 mm [16.9 in]
- Height: 1.5 mm [.059 in]
- Weight: 0.53 kg [1.16 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 60 °C [140 °F]
- RoHS-compliant: Yes
Technical data
- Length: 540 mm [21.2 in]
- Outer dimensionS (WxDxH): 540 x 430 x 1.5 mm [21.2 x 16.9 x .059 in]
Compatible with
- Vacuum test fixtures (VA): VA 4060
