Product information "MAP WSU/KEYSIGHT/i7090"
- Trusted ground plates
- Copper-coated on one side
| Accessory type: | Customising accessories |
|---|---|
| Height: | 1.5 mm [.059 in] |
| Interchangeable kits (WS): | WS Keysight/i7090 |
| Length: | 450 mm [17.7 in] |
| Material: | FR2 |
| Max. temperature: | 45 °C [113 °F] |
| Min. temperature: | 10 °C [50 °F] |

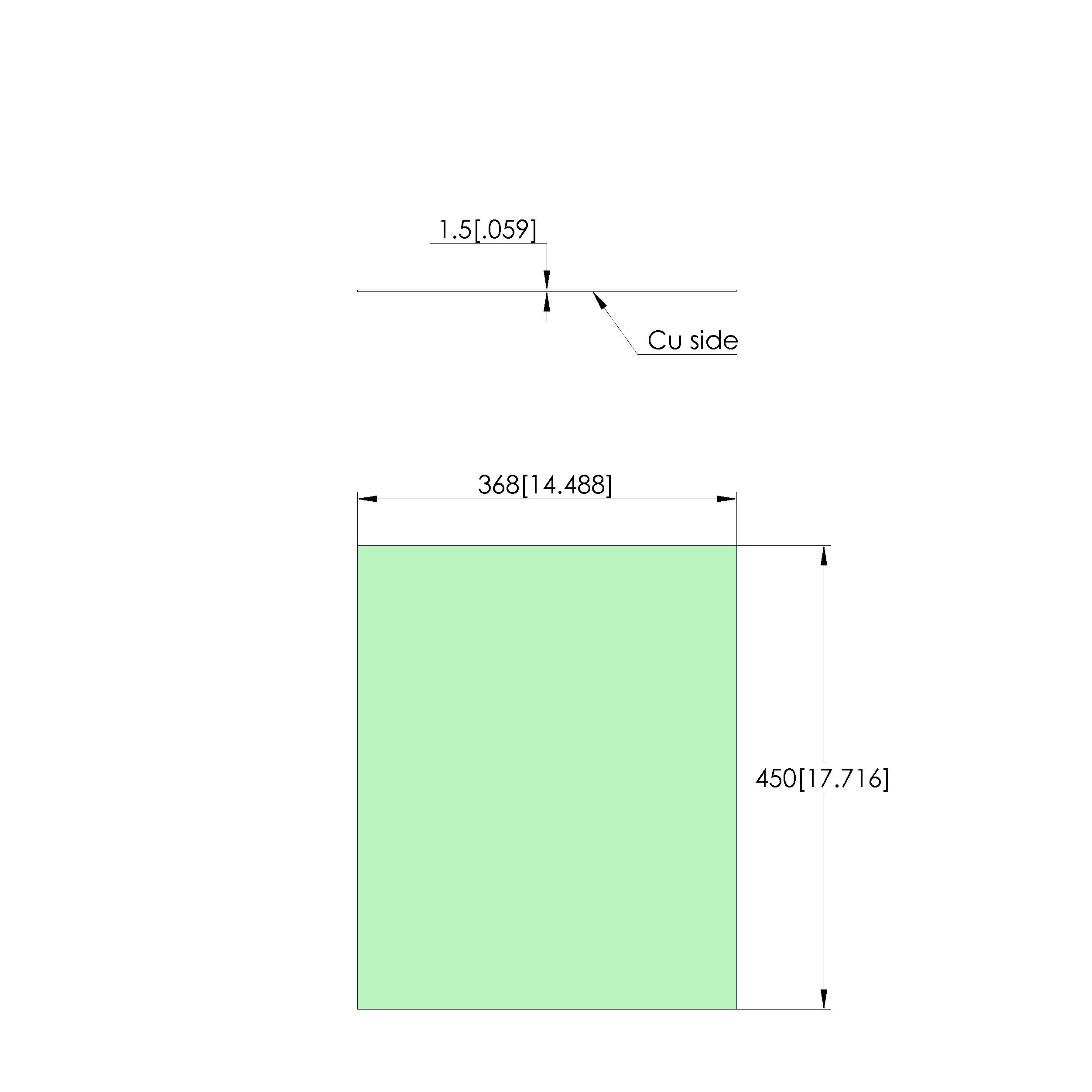

| Outer dimensionS (WxDxH): | 450 x 368 x 1.5 mm [17.7 x 14.4 x .059 in] |
| Product group: | Ground plates |
| RoHS-compliant: | Yes |
| Series: | MAP |
| Type: | Without printed layout |
| Version: | One-sided, copper plated |
| Weight: | 0.38 kg [.837 lbs] |
| Width: | 368 mm [14.4 in] |
Login
Product Details
- Trusted ground plates
- Copper-coated on one side
Other products in this series:
Technical data
General data
- Product group: Ground plates
- Series: MAP
- Type: Without printed layout
- Version: One-sided, copper plated
- Accessory type: Customising accessories
- Material: FR2
- Width: 368 mm [14.4 in]
- Height: 1.5 mm [.059 in]
- Weight: 0.38 kg [.837 lbs]
- Min. temperature: 10 °C [50 °F]
- Max. temperature: 45 °C [113 °F]
- RoHS-compliant: Yes
Technical data
- Length: 450 mm [17.7 in]
- Outer dimensionS (WxDxH): 450 x 368 x 1.5 mm [17.7 x 14.4 x .059 in]
Compatible with
- Interchangeable kits (WS): WS Keysight/i7090
