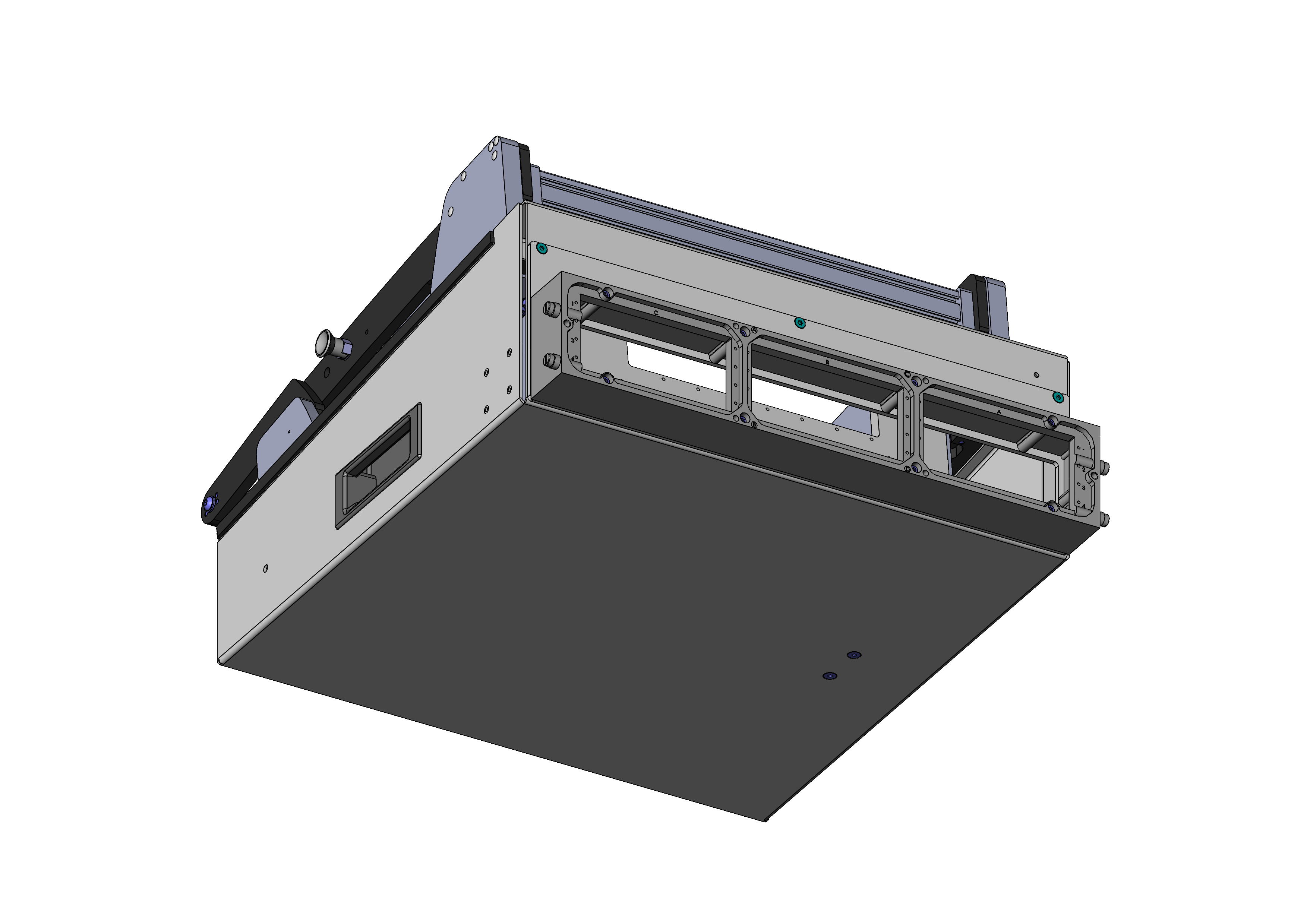

Product information "MA 2112/D/H/S-7/VPC-G12"
- Manual test fixtures with parallel closing drive mechanism for testing medium PCB quantities with the highest quality and precision
- Interchangeable test fixtures with and without pre-configured test system interface
- Standard, ESD, and RF exchangeable kits that can be installed without tools and used without readjustment
- Modularly configurable signal transmission using interface blocks, which can be quickly detached
- Detailed accompanying documents (e.g., customising guidelines)
- Maximum opening angle may vary due to the length tolerance of +/- 2 mm of the gas spring
| Additional contacting unit (ZSK), top: | Yes, with suitable additional option |
|---|---|
| Approx. parallel contact stroke: | 15 mm [.59 in] |
| Contacting direction: | Single-sided (bottom) |
| Contact stroke generation: | Manual |
| Dual-stage version: | Yes, with compatible additional option |
| ESD-compliant: | Yes, with compatible exchangeable kit |
| ESD version: | Yes, with compatible exchangeable kit |
| Force of gas pressure springs: | 300 N (L: 100 N / R: 200 N) |
| Free space above PCB: | 58 mm [2.28 in] |
| Housing type: | Desk housing |
| Interface blocks required: | Test system side |
| Low voltage: | Yes, with suitable additional option |
| Main series: | MA xxxx |
| Max. contact force: | 2 N [7.19 ozf] |
| Max. interface signals: | 7, 1.190 |
| Max. internal interface blocks: | 7 |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensions, closed (WxDxH): | 494 x 565 x 262 mm [19.4 x 22.2 x 10.3 in] |
| Outer dimensions, open (WxDxH): | 494 x 514 x 583 mm [19.4 x 20.2 x 22.9 in] |
| Pressure frame closing force: | 120 N [431 ozf] |
| Pressure frame opening angle: | 69 ° |
| Product group: | Manual test fixtures (MA) |
| Radio frequency version: | Yes, with compatible exchangeable kit |
| Rigid pin version: | Yes, with compatible exchangeable kit |
| RoHS-compliant: | Yes |
| Series: | MA 2112 |
| Size: | xx12 |
| Standard version: | Yes, with compatible exchangeable kit |
| Subseries: | MA 21xx |
| Test fixture type: | Exchangeable test fixture |
| Test probe installation height, bottom: | 10.5 mm [.413 in] |
| Test probe installation height, dual-stage, bottom: | 16 mm [.629 in] |
| Test probe installation height, top: | 16 mm [.629 in] |
| Test system interface: | VPC-G12 |
| Useable area, ESD (WxD): | 285 x 240 mm [11.2 x 9.44 in] |
| Useable area, dual-stage (WxD): | 285 x 240 mm [11.2 x 9.44 in] |
| Useable area, radio frequency (WxD): | 215 x 180 mm [8.46 x 7.08 in] |
| Useable area, rigid pin (WxD): | 255 x 220 mm [10 x 8.66 in] |
| Useable area, standard (WxD): | 285 x 240 mm [11.2 x 9.44 in] |
| Useable area: long edge: | 215 mm [8.46 in], 255 mm [10 in], 285 mm [11.2 in] |
| Useable area: short edge: | 180 mm [7.08 in], 220 mm [8.66 in], 240 mm [9.44 in] |
| Weight: | 12.5 kg [27.5 lbs] |
Login
Product Details
- Manual test fixtures with parallel closing drive mechanism for testing medium PCB quantities with the highest quality and precision
- Interchangeable test fixtures with and without pre-configured test system interface
- Standard, ESD, and RF exchangeable kits that can be installed without tools and used without readjustment
- Modularly configurable signal transmission using interface blocks, which can be quickly detached
- Detailed accompanying documents (e.g., customising guidelines)
- Maximum opening angle may vary due to the length tolerance of +/- 2 mm of the gas spring
Other products in this series:
Technical data
Technical data
- Force of gas pressure springs: 300 N (L: 100 N / R: 200 N)
- Radio frequency version: Yes, with compatible exchangeable kit
- Pressure frame opening angle: 69 °
- Rigid pin version: Yes, with compatible exchangeable kit
- Test probe installation height, top: 16 mm [.629 in]
- Dual-stage version: Yes, with compatible additional option
- Useable area, rigid pin (WxD): 255 x 220 mm [10 x 8.66 in]
- Standard version: Yes, with compatible exchangeable kit
- Useable area, dual-stage (WxD): 285 x 240 mm [11.2 x 9.44 in]
- ESD version: Yes, with compatible exchangeable kit
- Test probe installation height, bottom: 10.5 mm [.413 in]
- Useable area, radio frequency (WxD): 215 x 180 mm [8.46 x 7.08 in]
- Outer dimensions, open (WxDxH): 494 x 514 x 583 mm [19.4 x 20.2 x 22.9 in]
- Free space above PCB: 58 mm [2.28 in]
- Additional contacting unit (ZSK), top: Yes, with suitable additional option
- Test probe installation height, dual-stage, bottom: 16 mm [.629 in]
- Pressure frame closing force: 120 N [431 ozf]
- Outer dimensions, closed (WxDxH): 494 x 565 x 262 mm [19.4 x 22.2 x 10.3 in]
- Useable area, standard (WxD): 285 x 240 mm [11.2 x 9.44 in]
- Useable area, ESD (WxD): 285 x 240 mm [11.2 x 9.44 in]
General data
- Interface blocks required: Test system side
- Housing type: Desk housing
- Max. temperature: 60 °C [140 °F]
- Subseries: MA 21xx
- Product group: Manual test fixtures (MA)
- Contact stroke generation: Manual
- Series: MA 2112
- Max. internal interface blocks: 7
- Test fixture type: Exchangeable test fixture
- Max. contact force: 2 N [7.19 ozf]
- Max. interface signals: 1.190
- Min. temperature: 10 °C [50 °F]
- Weight: 12.5 kg [27.5 lbs]
- Max. interface signals: 7
- RoHS-compliant: Yes
- Contacting direction: Single-sided (bottom)
- Test system interface: VPC-G12
- Approx. parallel contact stroke: 15 mm [.59 in]
- Size: xx12
- ESD-compliant: Yes, with compatible exchangeable kit
- Main series: MA xxxx
- Low voltage: Yes, with suitable additional option
