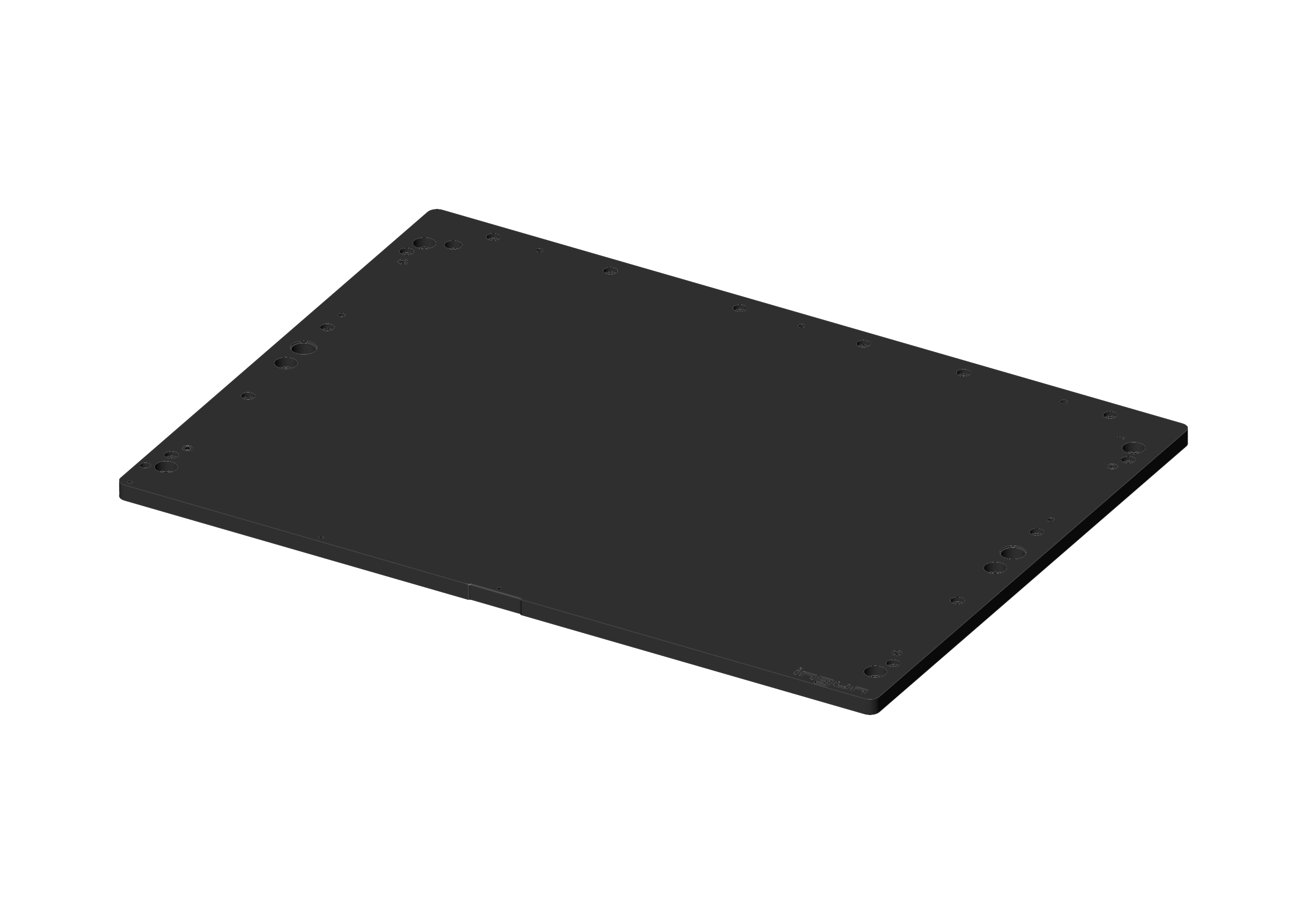

Product information "KTP ATSMA13/S-10/ESD"
- Deflection-resistant design made of FR4
- Low thickness tolerances
- Available for all common exchangeable kits
| Accessory type: | Customising accessories |
|---|---|
| Exchangeable kits version: | No RF, ESD, with interface |
| Height: | 10 mm [.393 in] |
| Length: | 357 mm [14 in] |
| MA exchangeable kits (ATS MA): | ATS MA13/S-10/ESD |
| Material: | FR4, ESD-coated |
| Max. temperature: | 60 °C [140 °F] |
| Min. temperature: | 10 °C [50 °F] |
| Outer dimensionS (WxDxH): | 492 x 357 x 10 mm [19.3 x 14 x .393 in] |
| Product group: | Probe plates |
| RoHS-compliant: | Yes |
| Series: | KTP ATSMAxx |
| Version: | ESD |
| Width: | 492 mm [19.3 in] |
Login
Product Details
- Deflection-resistant design made of FR4
- Low thickness tolerances
- Available for all common exchangeable kits
Other products in this series:
Technical data
General data
- Series: KTP ATSMAxx
- Max. temperature: 60 °C [140 °F]
- Height: 10 mm [.393 in]
- Material: FR4, ESD-coated
- Version: ESD
- Accessory type: Customising accessories
- Width: 492 mm [19.3 in]
- Min. temperature: 10 °C [50 °F]
- RoHS-compliant: Yes
- Product group: Probe plates
Technical data
- Outer dimensionS (WxDxH): 492 x 357 x 10 mm [19.3 x 14 x .393 in]
- Length: 357 mm [14 in]
Compatible with
- Exchangeable kits version: No RF, ESD, with interface
- MA exchangeable kits (ATS MA): ATS MA13/S-10/ESD
