Product information "KT-254 W-PL"
| Collar height: | 02 |
|---|---|
| Grid: | 2.54 mm [100 mil] |
| Installation height: | 2 mm [.078 in] |
| Installation type: | Press-in |
| Knurl: | Yes |
| Latching lug: | No |
| Magnetic: | Yes |
| Material: | 1 brass |
| Mounting hole in CEM1: | 1.98 – 2 mm [.077 – .078 in] |
| Mounting hole in FR4: | 1.98 – 1.99 mm [.077 – .078 in] |
| Product group: | Contact terminals (KT) |
| Quick-exchange system: | No |
| RoHS-compliant: | Yes |
| Series: | KT-254 |
| Shaft diameter: | 1.98 mm [.077 in] |
| Sub-series: | KT-254 |
| Surface area: | A gold |
| Tip diameter: | 2.15 mm [.084 in] |
| Tip style: | 02 flat |
| Total length: | 22 mm [.866 in] |
| Type of contact terminal connection: | Wire-wrap |
Login
Other products in this series:
Technical data
General data
- Product group: Contact terminals (KT)
- Series: KT-254
- Sub-series: KT-254
- Grid: 2.54 mm [100 mil]
- Type of contact terminal connection: Wire-wrap
- Installation height: 2 mm [.078 in]
- Magnetic: Yes
- Installation type: Press-in
- Quick-exchange system: No
- Surface area: A gold
- Material: 1 brass
- Knurl: Yes
- RoHS-compliant: Yes

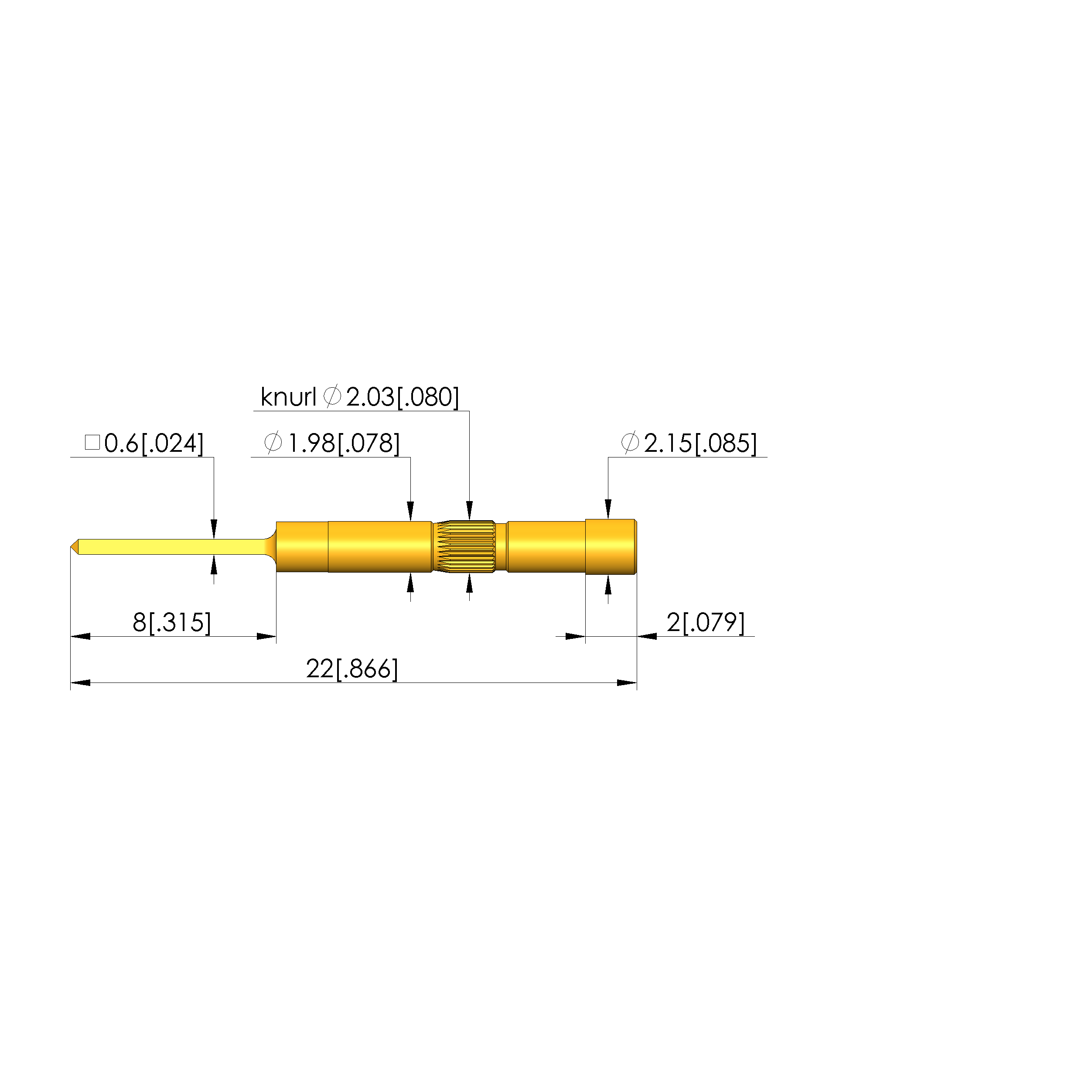

Mechanical data
- Collar height: 02
- Total length: 22 mm [.866 in]
- Shaft diameter: 1.98 mm [.077 in]
- Latching lug: No

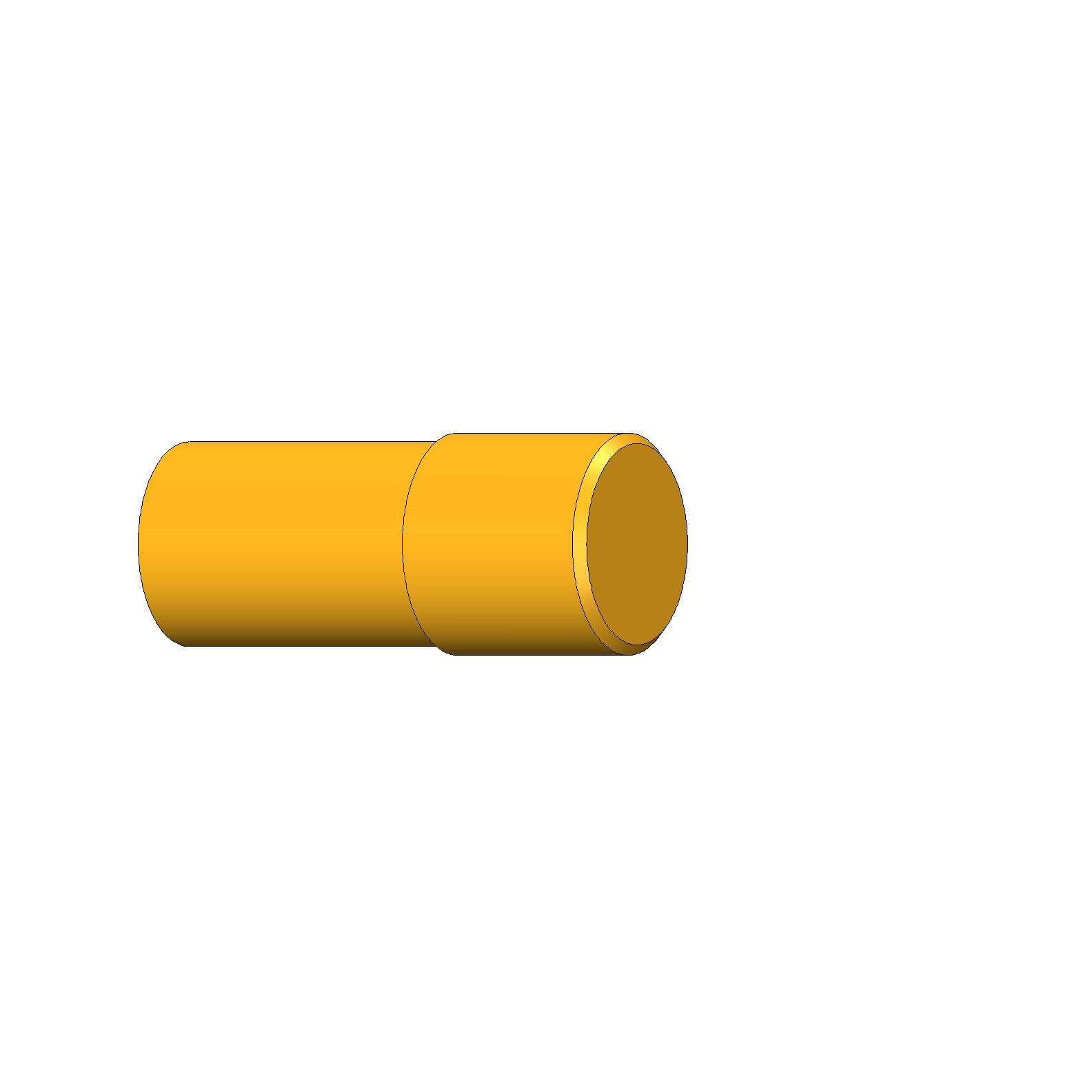

Tip style data
- Tip style: 02 flat
- Tip diameter: 2.15 mm [.084 in]
Mounting hole
- Mounting hole in CEM1: 1.98 – 2 mm [.077 – .078 in]
- Mounting hole in FR4: 1.98 – 1.99 mm [.077 – .078 in]
