Product information "KS-VF3 44 SC26-R"

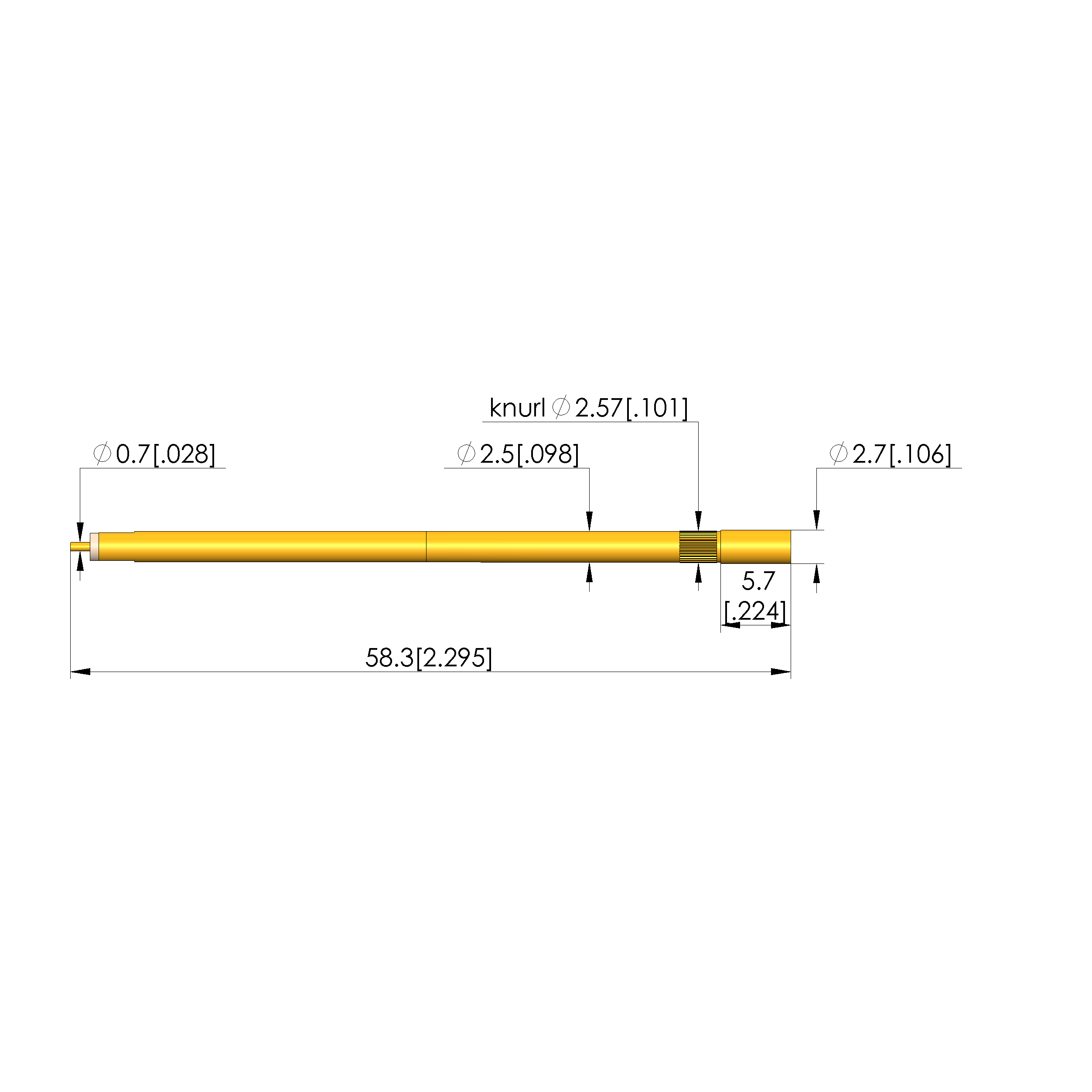

| Collar diameter: | 2.7 mm [.106 in] |
|---|---|
| Collar height: | 5.7 mm [.224 in] |
| Knurl: | Yes |
| Mounting hole in CEM1: | 2.5 – 2.52 mm [.098 – .099 in] |
| Mounting hole in FR4: | 2.5 – 2.52 mm [.098 – .099 in] |
| Outer diameter: | 2.5 mm [.098 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-VF3 |
| Sub-series: | KS-VF3 screw-in version |
| Surface area: | Gold |
| Total length: | 58.3 mm [2.29 in] |
| Type of receptacle connection: | Round posts |
| Vacuum-tight: | yes (< 1 ccm / min) |
Login
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-VF3
- RoHS-compliant: Yes
- Press ring: No
- Type of receptacle connection: Round posts
- Surface area: Gold
- Collar height: 5.7 mm [.224 in]
- Vacuum-tight: yes (< 1 ccm / min)
- Knurl: Yes
- Collar diameter: 2.7 mm [.106 in]
- Sub-series: KS-VF3 screw-in version
Mechanical data
- Total length: 58.3 mm [2.29 in]
- Outer diameter: 2.5 mm [.098 in]
Mounting hole
- Mounting hole in FR4: 2.5 – 2.52 mm [.098 – .099 in]
- Mounting hole in CEM1: 2.5 – 2.52 mm [.098 – .099 in]
