Receptacle

KS-899 30 M-R

Name: KS-899 30 M-R
SKU: KS-89930M-R
Availability: InStock

Product no. KS-89930M-R

Product available

Shipping costs

Please log in to show the price

Downloads

Product information sheets

All

Datasheet

INGUN_KS-899_30_M-R_KS-89930M-R_Datasheet

GB 0.32MB pdf

Product data sheet

Datasheet

INGUN_KS-899_30_M-R_KS-89930M-R_Datasheet

GB 0.32MB pdf

Geometry data

All

CAD file

INGUN_KS-899_30_M-R.STEP

GB 0.30MB STEP

Product information sheets
Geometry data

All
Product data sheet

Datasheet

GB 0.32MB pdf

INGUN_KS-899_30_M-R_KS-89930M-R_Datasheet

Datasheet

GB 0.32MB pdf

INGUN_KS-899_30_M-R_KS-89930M-R_Datasheet

CAD file

GB 0.30MB STEP

INGUN_KS-899_30_M-R.STEP

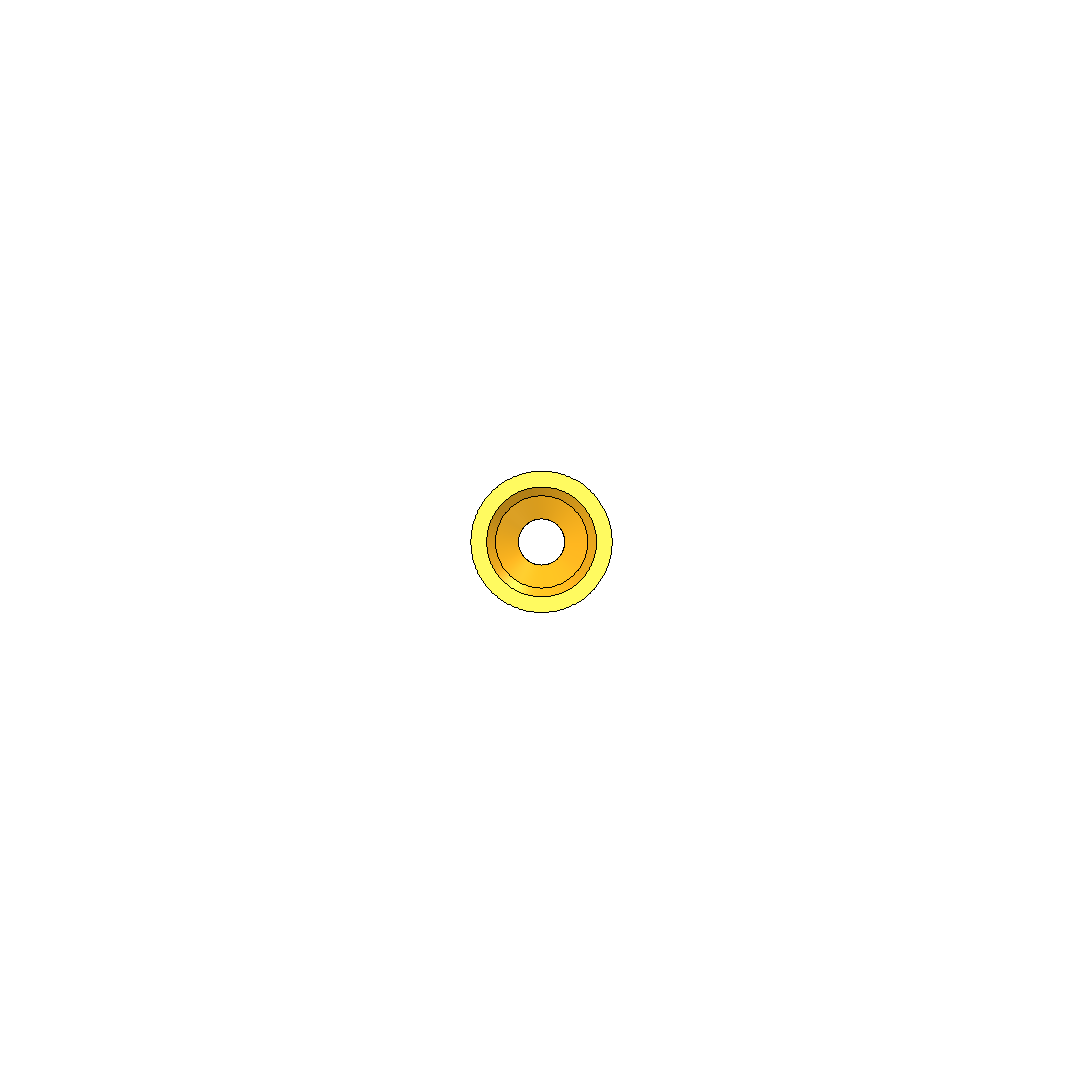

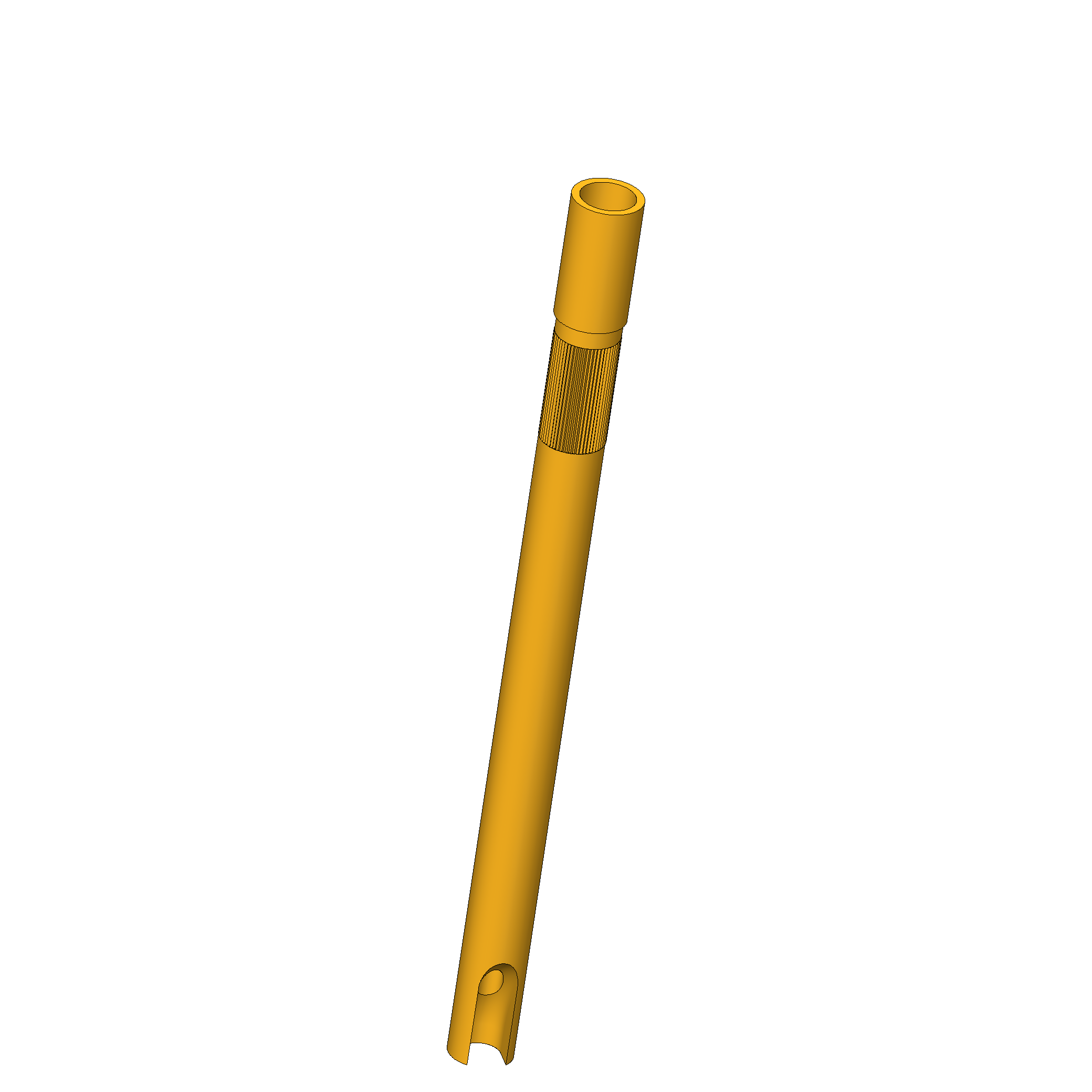

Product information "KS-899 30 M-R"

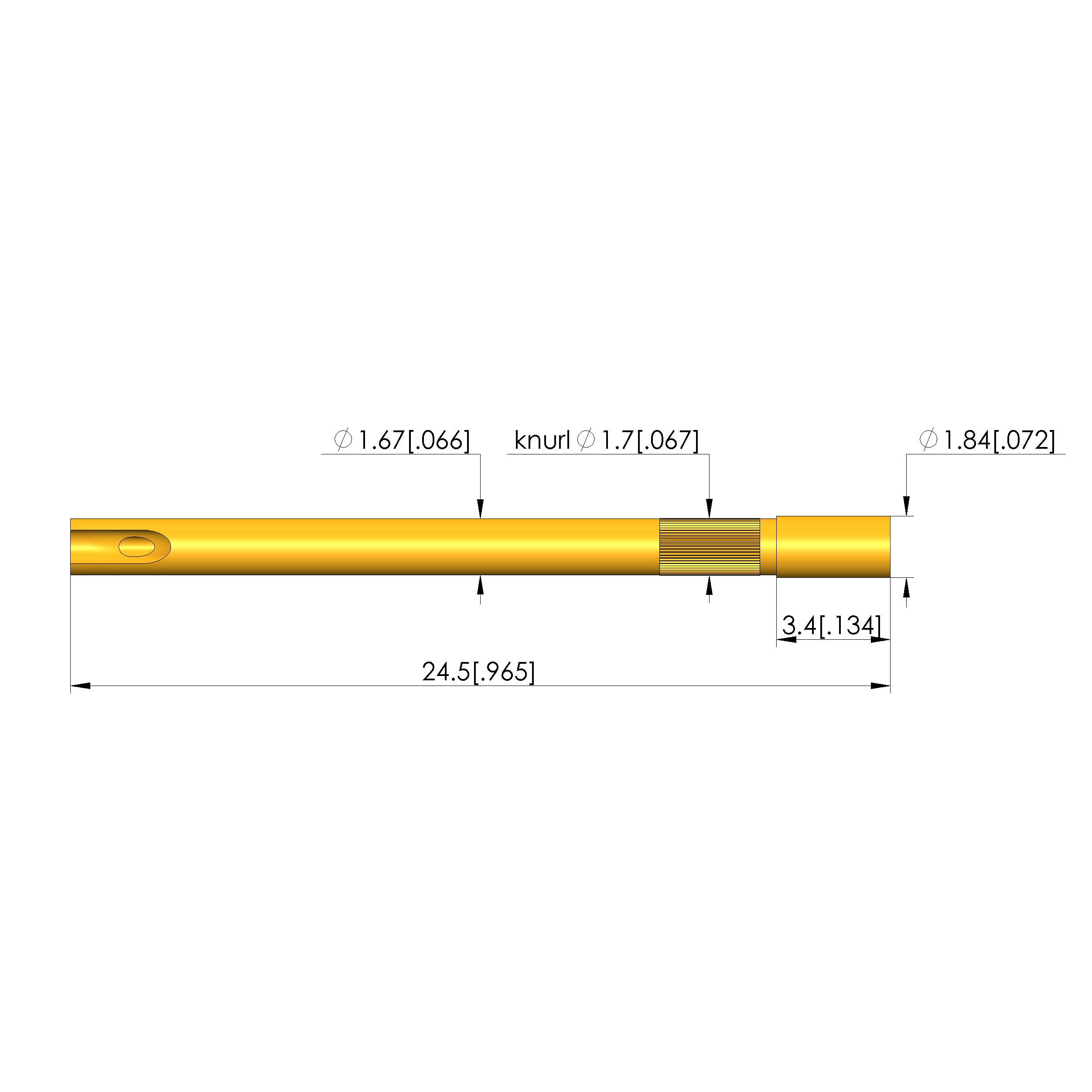

Collar diameter:	1.84 mm [.072 in]
