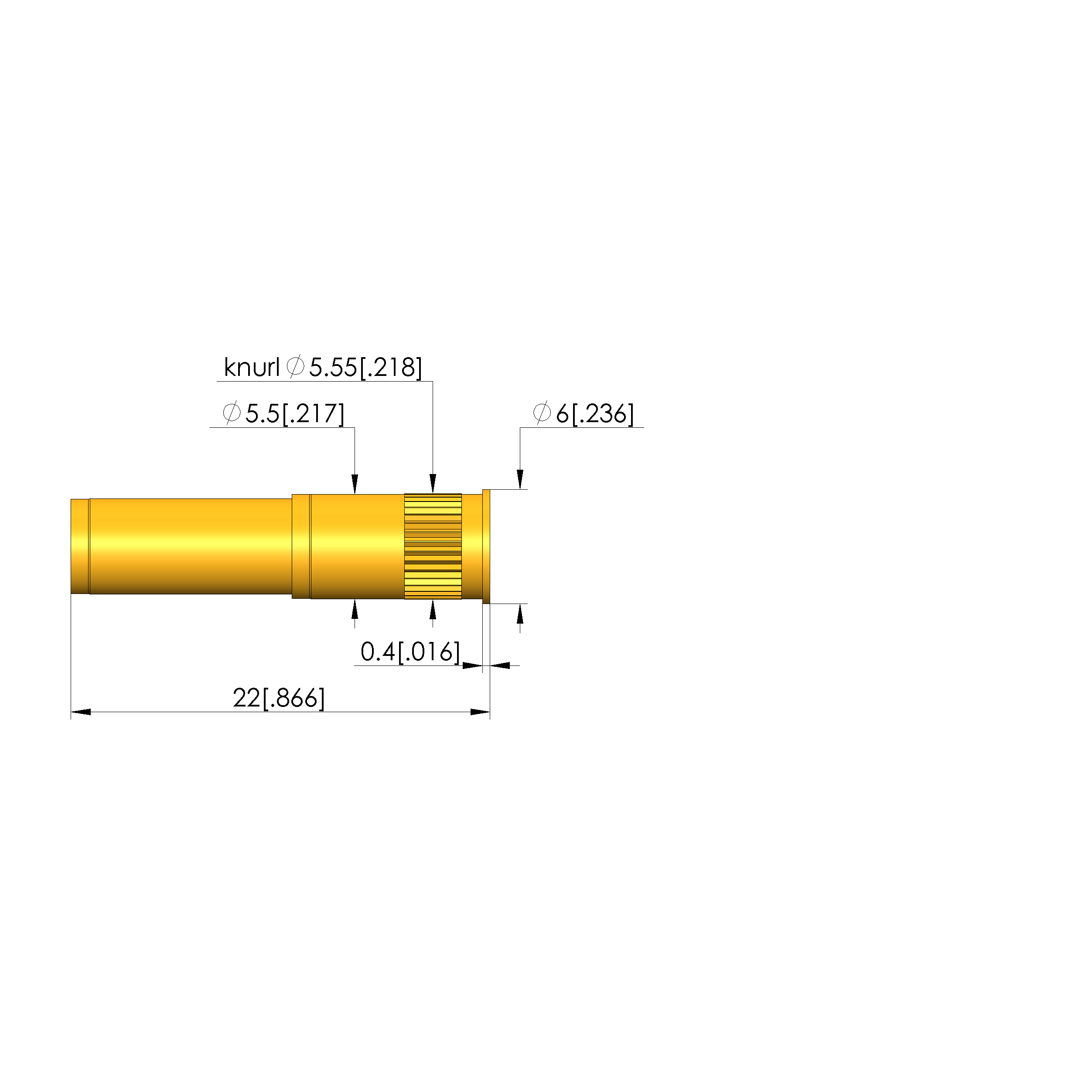

Product information "KS-810 M5-R"
- Long receptacle with inner thread for HFS-810 series
| Collar diameter: | 6 mm [.236 in] |
|---|---|
| Collar height: | 0.4 mm [.015 in] |
| Knurl: | Yes |
| Mounting hole in CEM1: | 5.5 – 5.52 mm [.216 – .217 in] |
| Mounting hole in FR4: | 5.5 – 5.52 mm [.216 – .217 in] |
| Outer diameter: | 5.5 mm [.216 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-810 |
| Sub-series: | KS-810 M, screw-in version |
| Surface area: | Gold |
| Total length: | 22 mm [.866 in] |
| Vacuum-tight: | No |
Login
Product Details
- Long receptacle with inner thread for HFS-810 series
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-810
- Sub-series: KS-810 M, screw-in version
- Press ring: No
- Surface area: Gold
- Collar diameter: 6 mm [.236 in]
- Collar height: 0.4 mm [.015 in]
- Knurl: Yes
- Vacuum-tight: No
- RoHS-compliant: Yes
Mounting hole
- Mounting hole in CEM1: 5.5 – 5.52 mm [.216 – .217 in]
- Mounting hole in FR4: 5.5 – 5.52 mm [.216 – .217 in]
Mechanical data
- Total length: 22 mm [.866 in]
- Outer diameter: 5.5 mm [.216 in]
