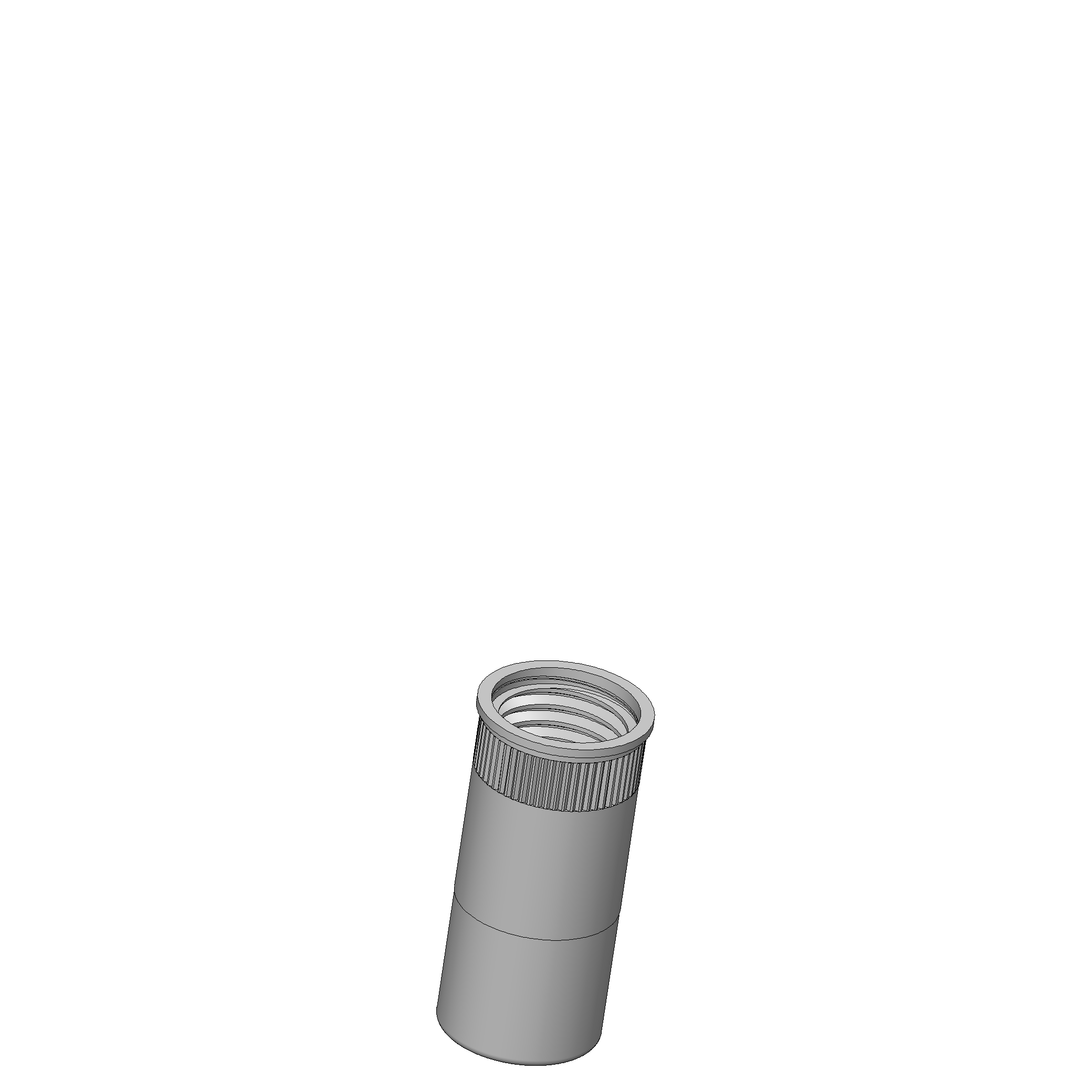

Product information "KS-612 400 35 M-R"
| Collar diameter: | 9.6 mm [.377 in] |
|---|---|
| Collar height: | 0.5 mm [.019 in] |
| Knurl: | Yes |
| Mounting hole in CEM1: | 9 – 9.02 mm [.354 – .355 in] |
| Mounting hole in FR4: | 9 – 9.02 mm [.354 – .355 in] |
| Outer diameter: | 9 mm [.354 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-612 |
| Sub-series: | KS-612 M-D04 screw-in version |
| Surface area: | Silver |
| Total length: | 20 mm [.787 in] |
| Type of receptacle connection: | Solder outer surface |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-612
- Sub-series: KS-612 M-D04 screw-in version
- Type of receptacle connection: Solder outer surface
- Press ring: No
- Surface area: Silver

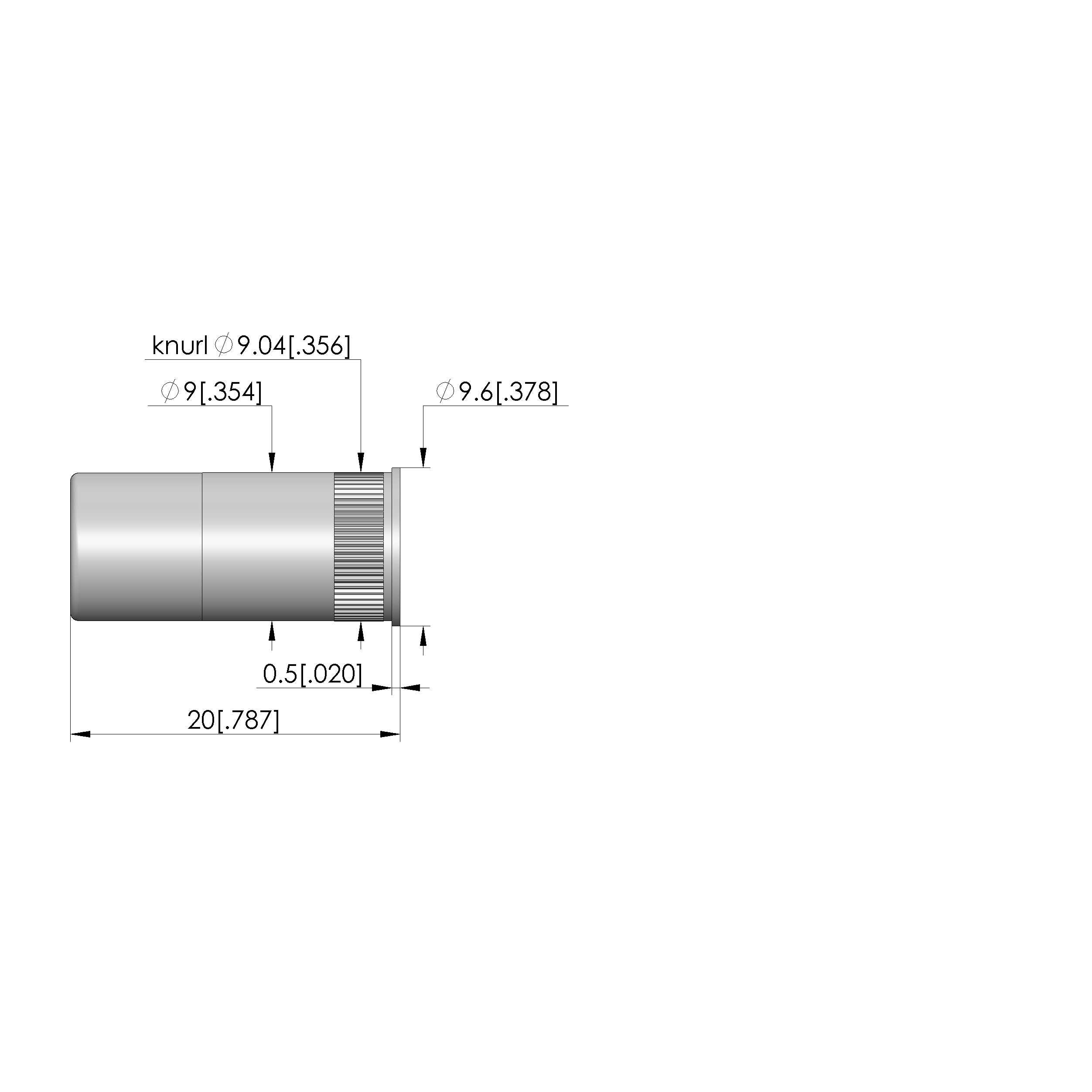

- Collar diameter: 9.6 mm [.377 in]
- Collar height: 0.5 mm [.019 in]
- Knurl: Yes
- Vacuum-tight: No
- RoHS-compliant: Yes
Mechanical data
- Total length: 20 mm [.787 in]
- Outer diameter: 9 mm [.354 in]
Mounting hole
- Mounting hole in CEM1: 9 – 9.02 mm [.354 – .355 in]
- Mounting hole in FR4: 9 – 9.02 mm [.354 – .355 in]
