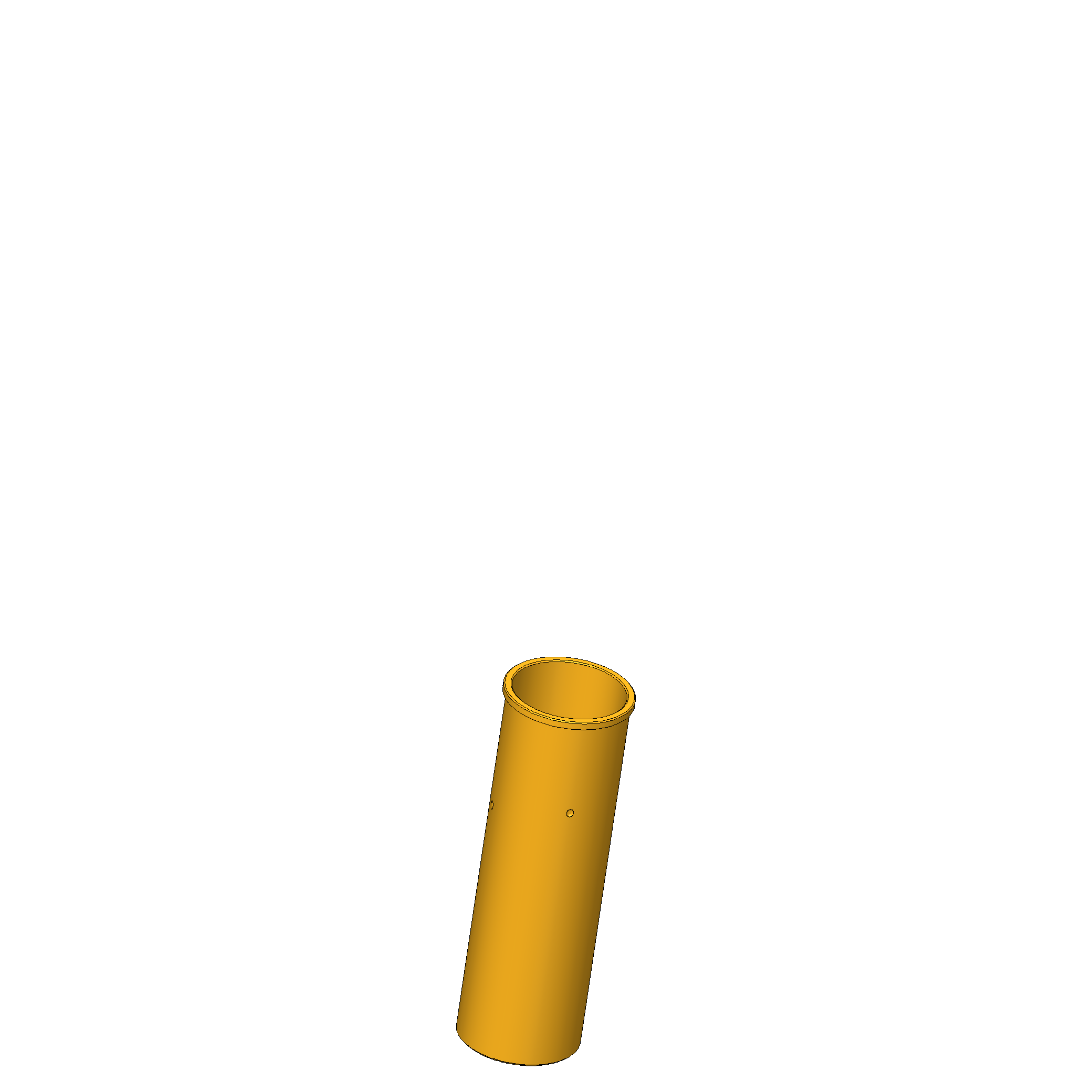

Product information "KS-445"
| Collar diameter: | 5 mm [.196 in] |
|---|---|
| Collar height: | 0.3 mm [.011 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 4.68 – 4.69 mm [.184 – .184 in] |
| Mounting hole in FR4: | 4.68 – 4.69 mm [.184 – .184 in] |
| Outer diameter: | 4.7 mm [.185 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-445 |
| Sub-series: | KS-445 |
| Surface area: | Gold |
| Total length: | 15 mm [.59 in] |
| Type of receptacle connection: | Plug / open |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-445
- Sub-series: KS-445
- Type of receptacle connection: Plug / open
- Press ring: No
- Surface area: Gold
- Collar diameter: 5 mm [.196 in]
- Collar height: 0.3 mm [.011 in]
- Knurl: No
- Vacuum-tight: No
- RoHS-compliant: Yes
Mounting hole
- Mounting hole in CEM1: 4.68 – 4.69 mm [.184 – .184 in]
- Mounting hole in FR4: 4.68 – 4.69 mm [.184 – .184 in]

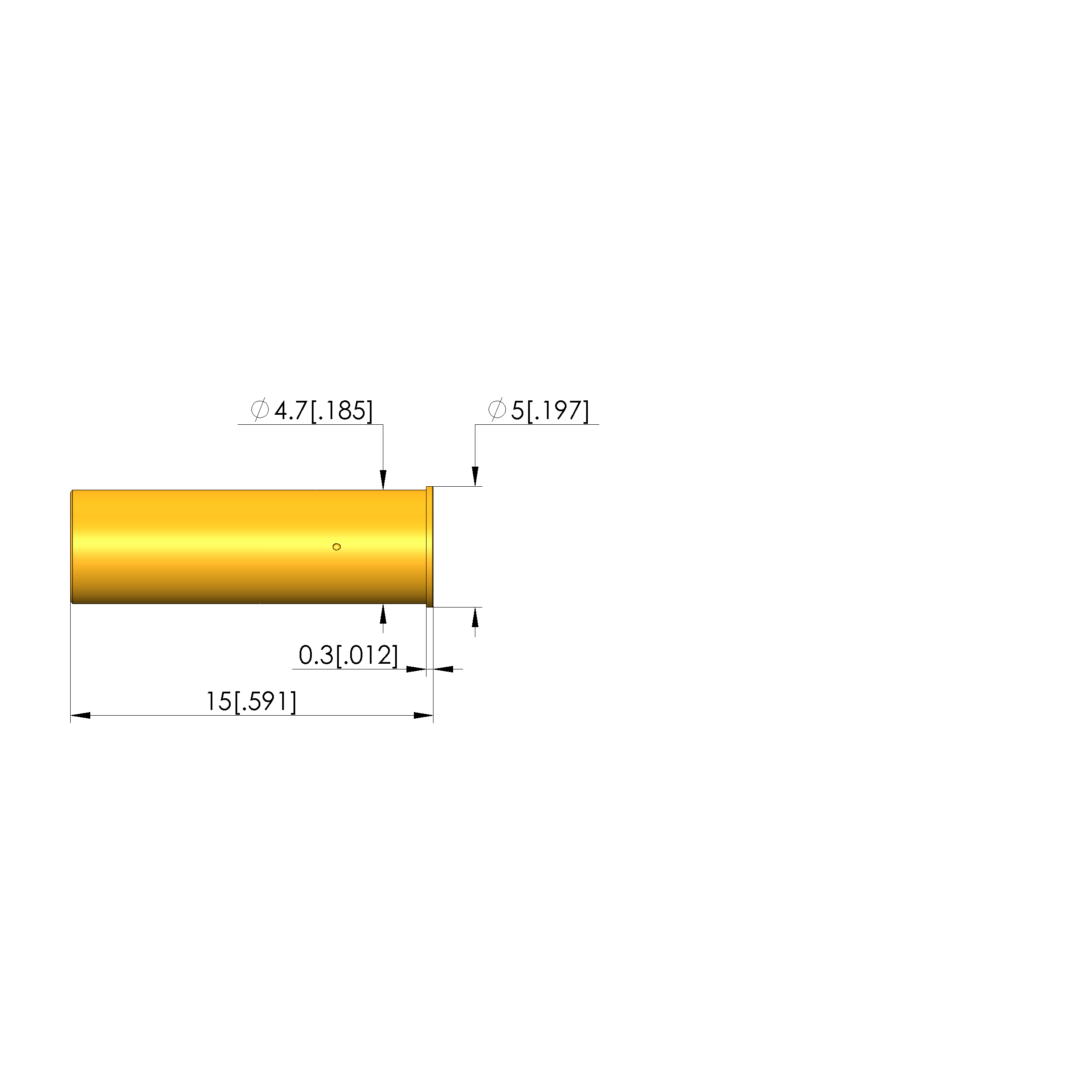

Mechanical data
- Total length: 15 mm [.59 in]
- Outer diameter: 4.7 mm [.185 in]
