Product information "KS-429 23"
| Collar diameter: | 8.5 mm [.334 in] |
|---|---|
| Collar height: | 0.3 mm [.011 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 7.99 mm [.314 in] |
| Mounting hole in FR4: | 7.99 mm [.314 in] |
| Outer diameter: | 8 mm [.314 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-429 |
| Sub-series: | KS-429 press-in version |
| Surface area: | Gold |
| Total length: | 57 mm [2.24 in] |
| Type of receptacle connection: | Solder / open |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Press ring: No
- Surface area: Gold
- Type of receptacle connection: Solder / open
- Series: KS-429
- Product group: Receptacles (KS)
- Knurl: No
- Sub-series: KS-429 press-in version
- RoHS-compliant: Yes
- Vacuum-tight: No
- Collar diameter: 8.5 mm [.334 in]
- Collar height: 0.3 mm [.011 in]
Mounting hole
- Mounting hole in FR4: 7.99 mm [.314 in]
- Mounting hole in CEM1: 7.99 mm [.314 in]

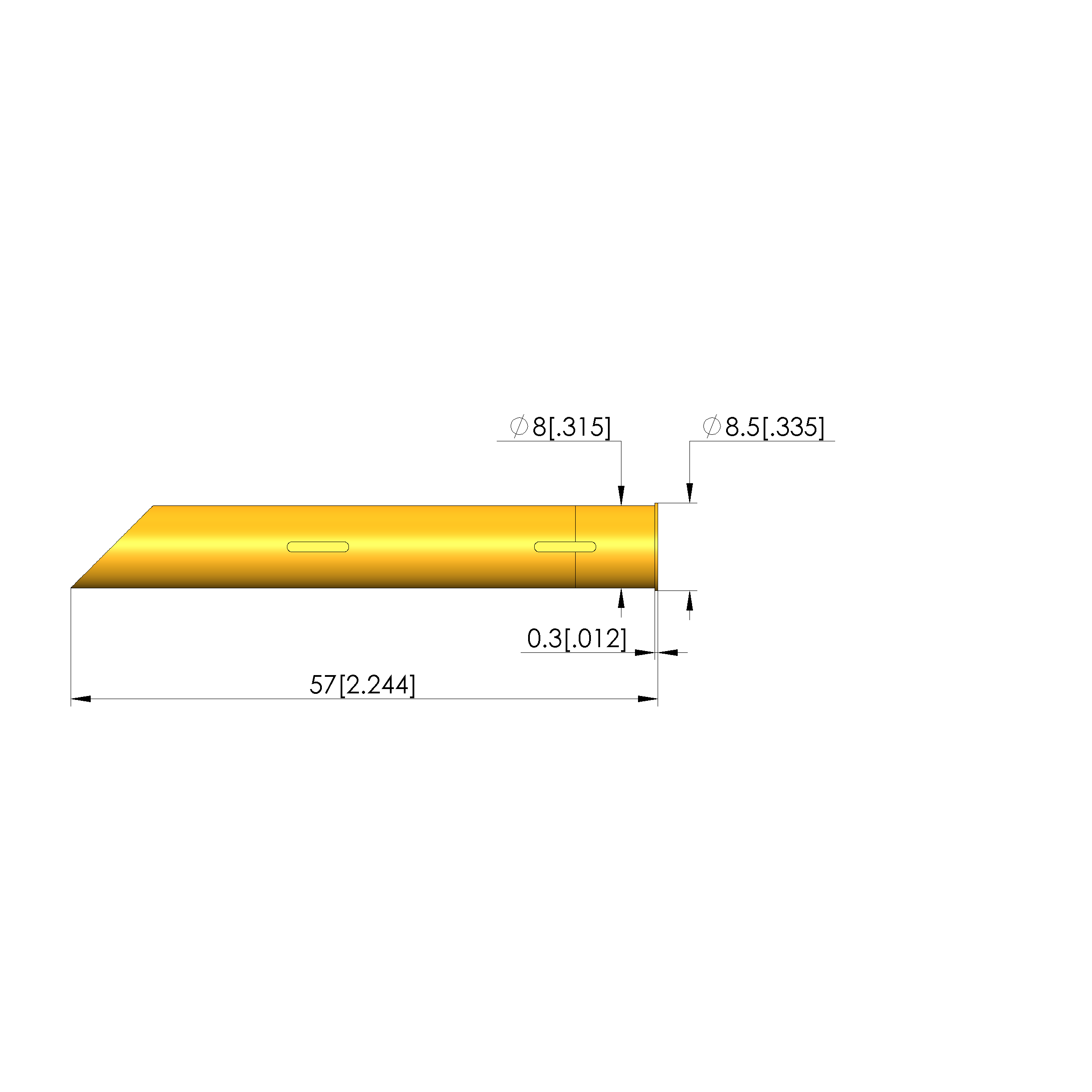

Mechanical data
- Total length: 57 mm [2.24 in]
- Outer diameter: 8 mm [.314 in]
