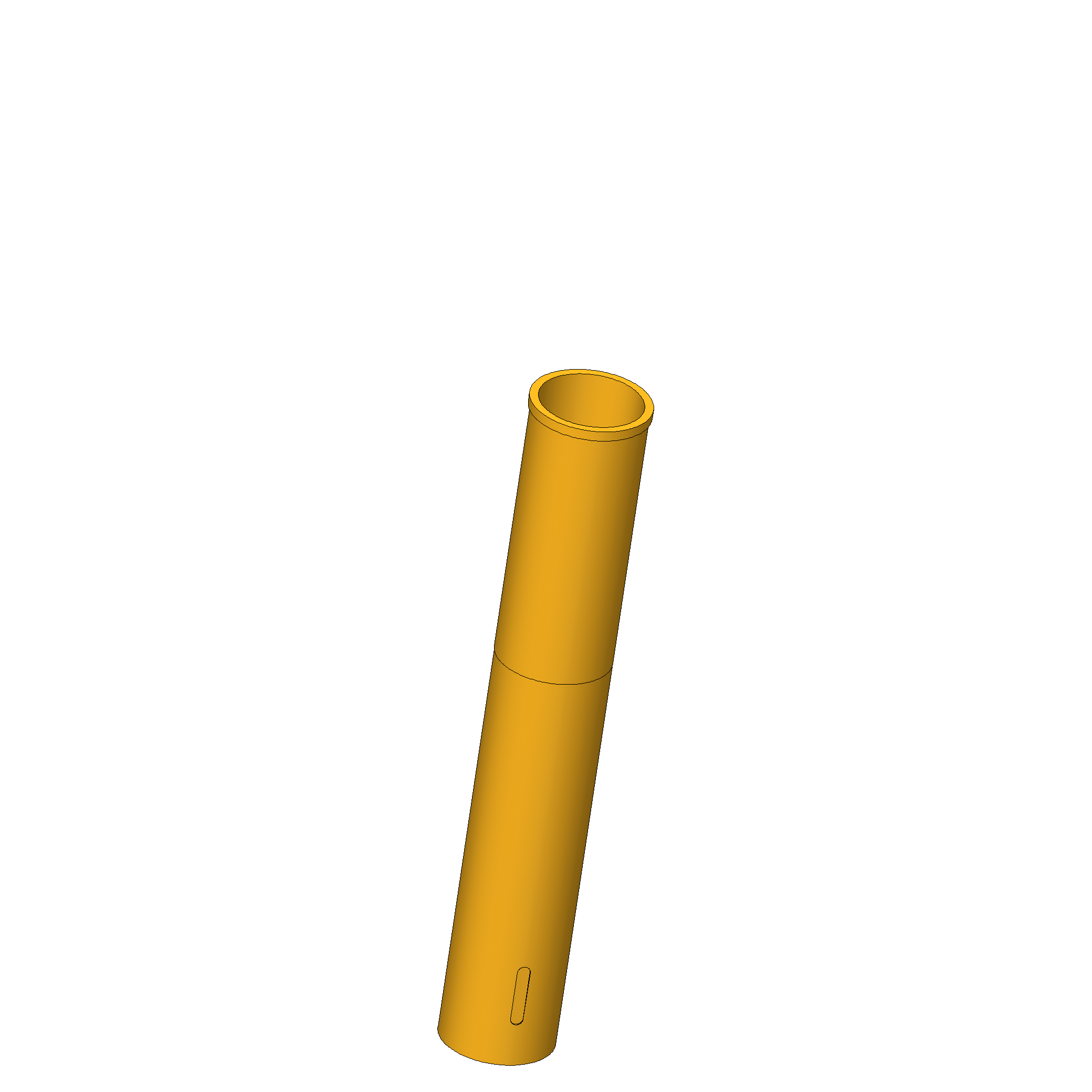

Product information "KS-420"
| Collar diameter: | 4.7 mm [.185 in] |
|---|---|
| Collar height: | 0.4 mm [.015 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 4.48 – 4.49 mm [.176 – .176 in] |
| Mounting hole in FR4: | 4.48 – 4.49 mm [.176 – .176 in] |
| Outer diameter: | 4.5 mm [.177 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-420 |
| Sub-series: | KS-420 press-in version |
| Surface area: | Gold |
| Total length: | 27.5 mm [1.08 in] |
| Type of receptacle connection: | Solder outer surface |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-420
- Sub-series: KS-420 press-in version
- Type of receptacle connection: Solder outer surface
- Press ring: No
- Surface area: Gold
- Collar diameter: 4.7 mm [.185 in]
- Collar height: 0.4 mm [.015 in]
- Knurl: No
- Vacuum-tight: No
- RoHS-compliant: Yes
Mounting hole
- Mounting hole in CEM1: 4.48 – 4.49 mm [.176 – .176 in]
- Mounting hole in FR4: 4.48 – 4.49 mm [.176 – .176 in]

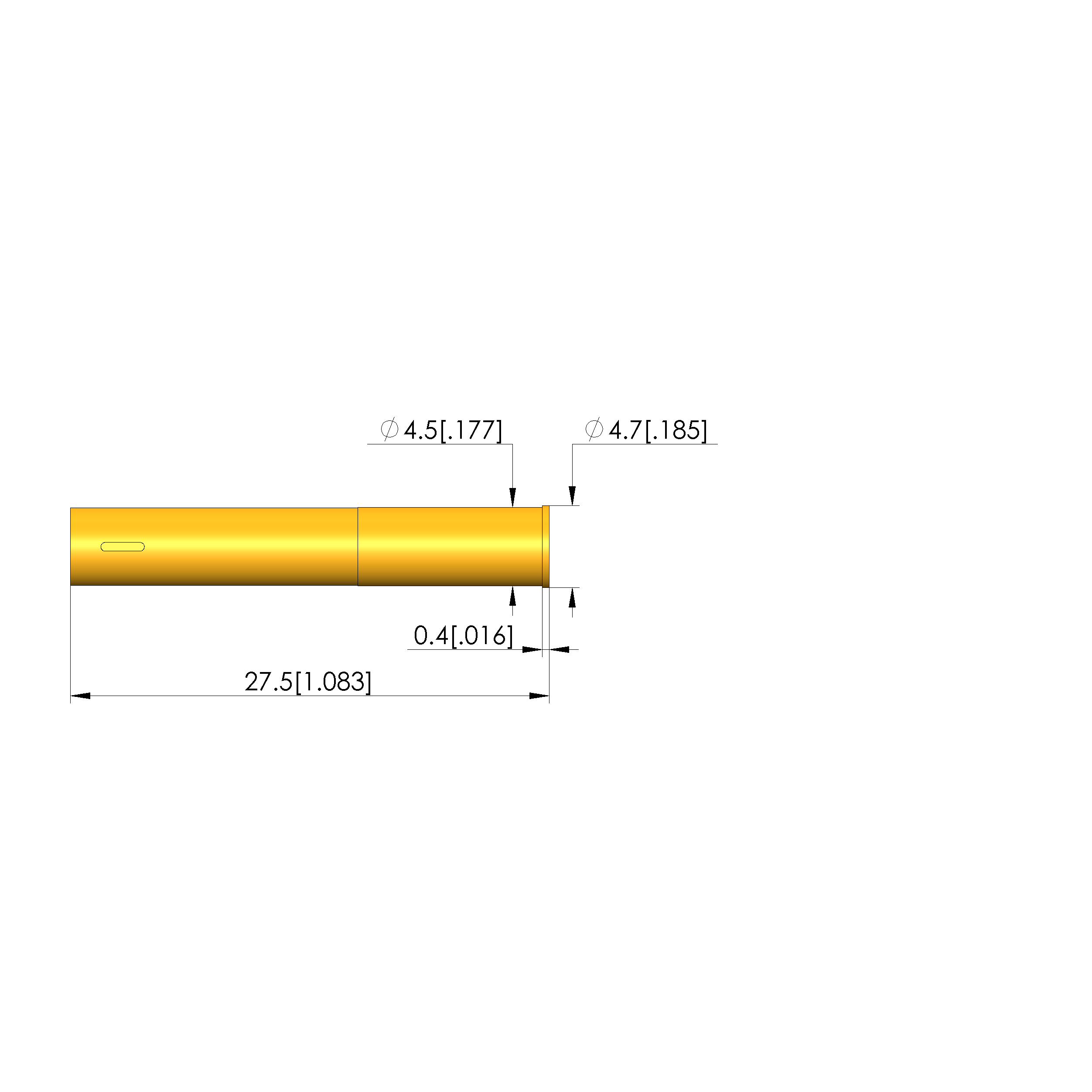

Mechanical data
- Total length: 27.5 mm [1.08 in]
- Outer diameter: 4.5 mm [.177 in]
