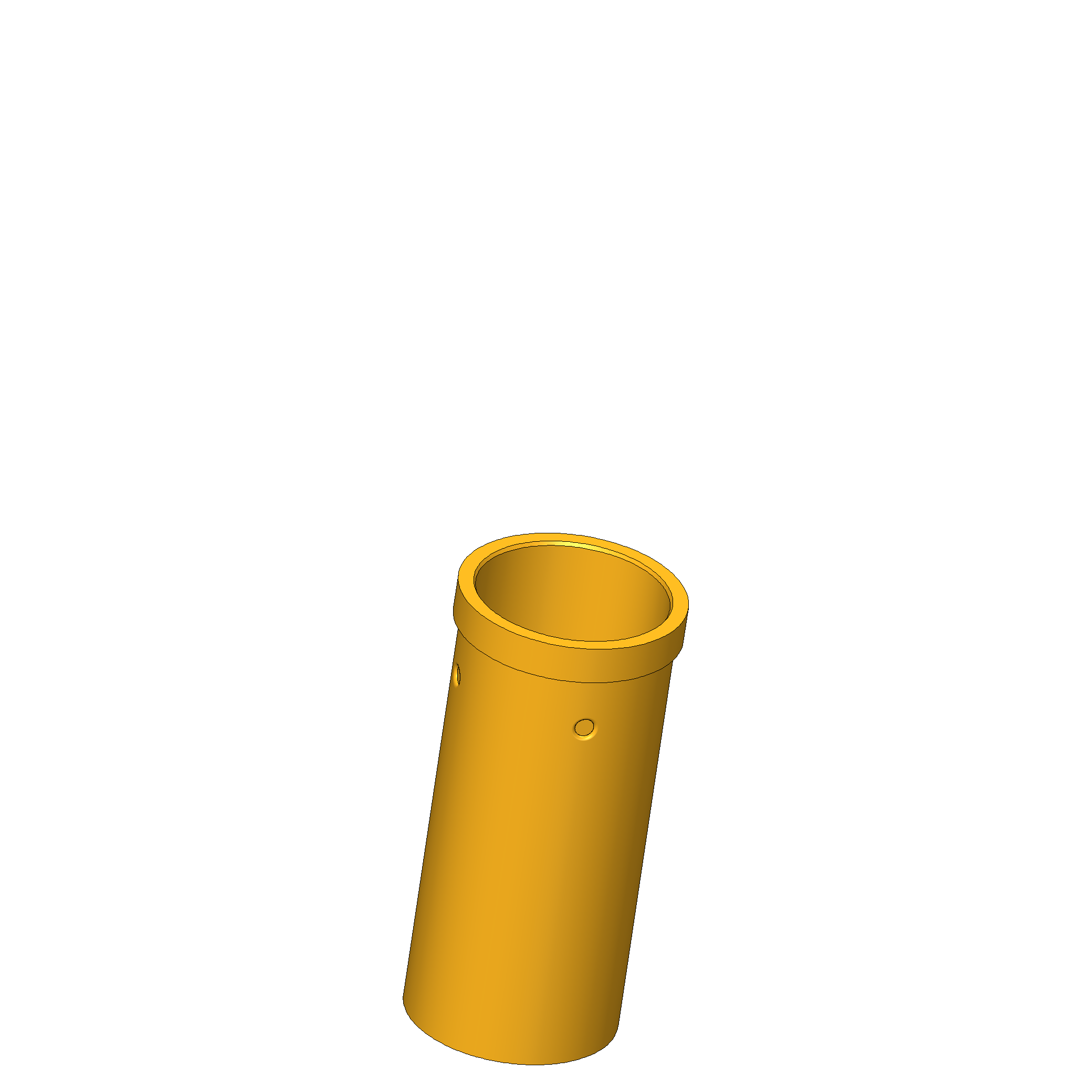

Product information "KS-364 125"

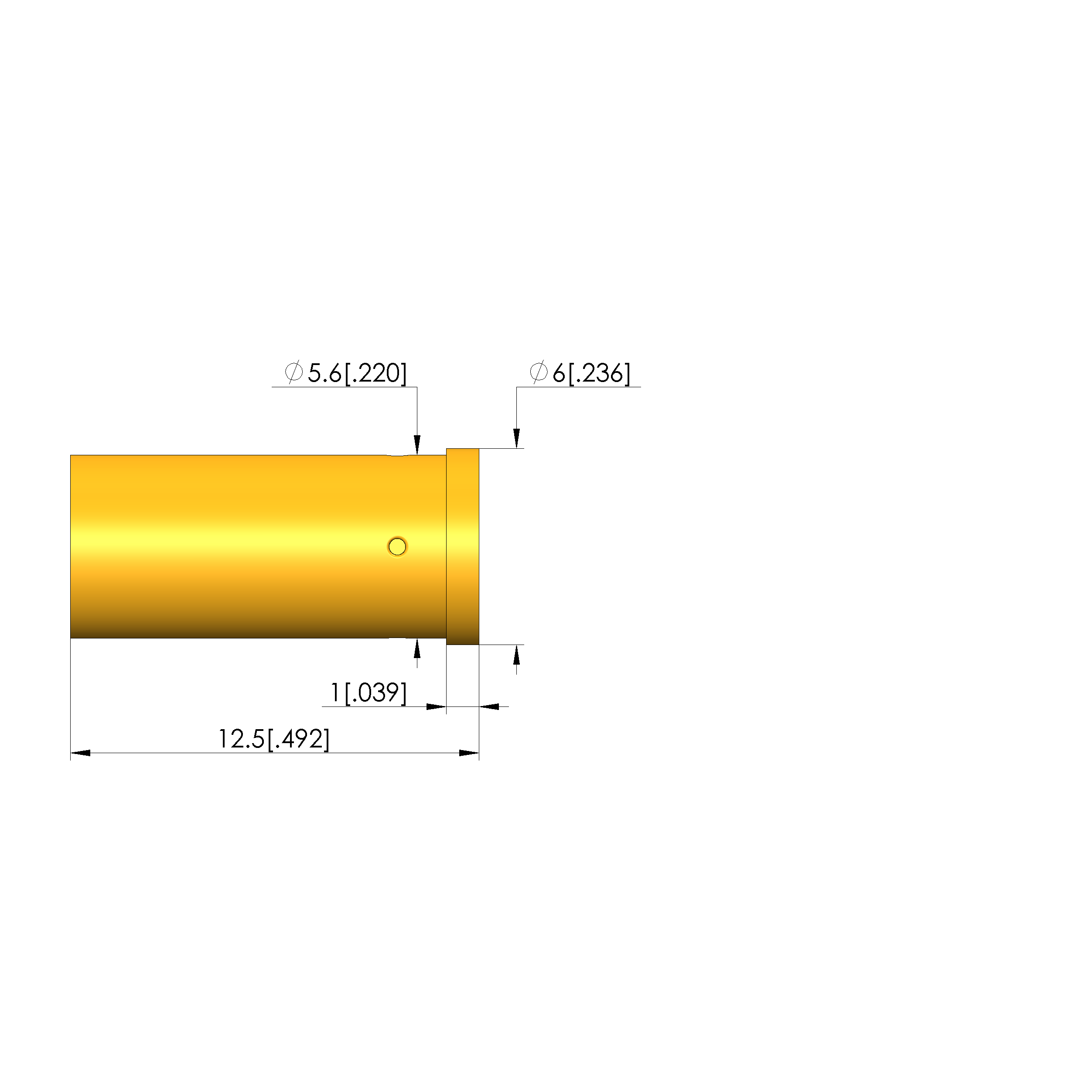

| Collar diameter: | 6 mm [.236 in] |
|---|---|
| Collar height: | 1 mm [.039 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 5.59 – 5.6 mm [.22 – .22 in] |
| Mounting hole in FR4: | 5.59 – 5.6 mm [.22 – .22 in] |
| Outer diameter: | 5.6 mm [.22 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-364 |
| Sub-series: | KS-364 press-in version |
| Surface area: | Gold |
| Total length: | 12.5 mm [.492 in] |
| Type of receptacle connection: | Solder outer surface |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-364
- RoHS-compliant: Yes
- Press ring: No
- Surface area: Gold
- Collar diameter: 6 mm [.236 in]
- Knurl: No
- Type of receptacle connection: Solder outer surface
- Sub-series: KS-364 press-in version
- Vacuum-tight: No
- Collar height: 1 mm [.039 in]
Mounting hole
- Mounting hole in CEM1: 5.59 – 5.6 mm [.22 – .22 in]
- Mounting hole in FR4: 5.59 – 5.6 mm [.22 – .22 in]
Mechanical data
- Total length: 12.5 mm [.492 in]
- Outer diameter: 5.6 mm [.22 in]
