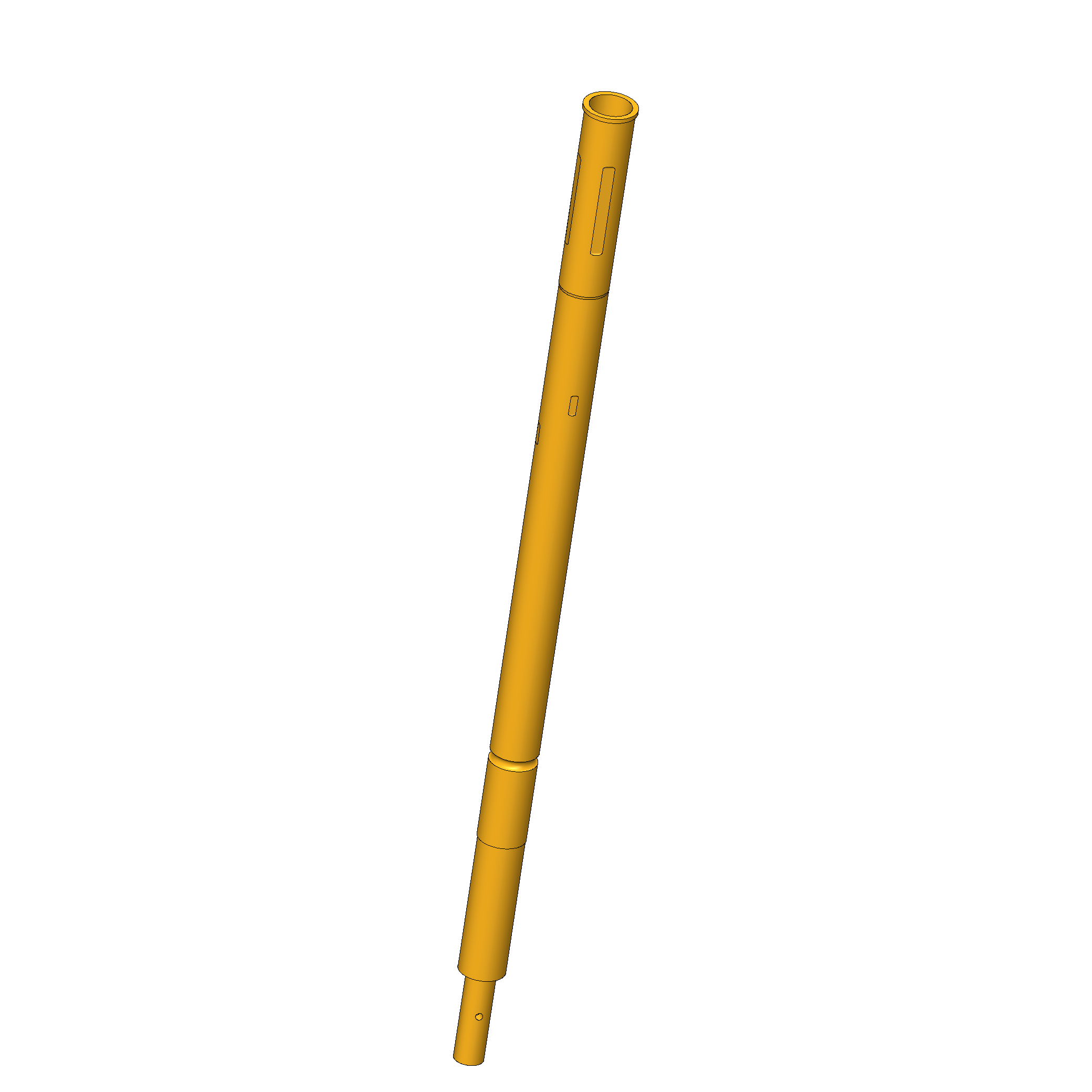

Product information "KS-215 S"
| Collar diameter: | 2.2 mm [.086 in] |
|---|---|
| Collar height: | 0.2 mm [.007 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 1.98 – 2 mm [.077 – .078 in] |
| Mounting hole in FR4: | 1.99 – 2.01 mm [.078 – .079 in] |
| Outer diameter: | 2 mm [.078 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-215 |
| Sub-series: | KS-215 S press-in version Schnellwechselsystem |
| Surface area: | Gold |
| Total length: | 43 mm [1.69 in] |
| Type of receptacle connection: | Plug / open |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-215
- Sub-series: KS-215 S press-in version Schnellwechselsystem
- Press ring: No
- Surface area: Gold
- Knurl: No
- Vacuum-tight: No
- RoHS-compliant: Yes
- Collar height: 0.2 mm [.007 in]
- Type of receptacle connection: Plug / open
- Collar diameter: 2.2 mm [.086 in]
Mounting hole
- Mounting hole in CEM1: 1.98 – 2 mm [.077 – .078 in]
- Mounting hole in FR4: 1.99 – 2.01 mm [.078 – .079 in]

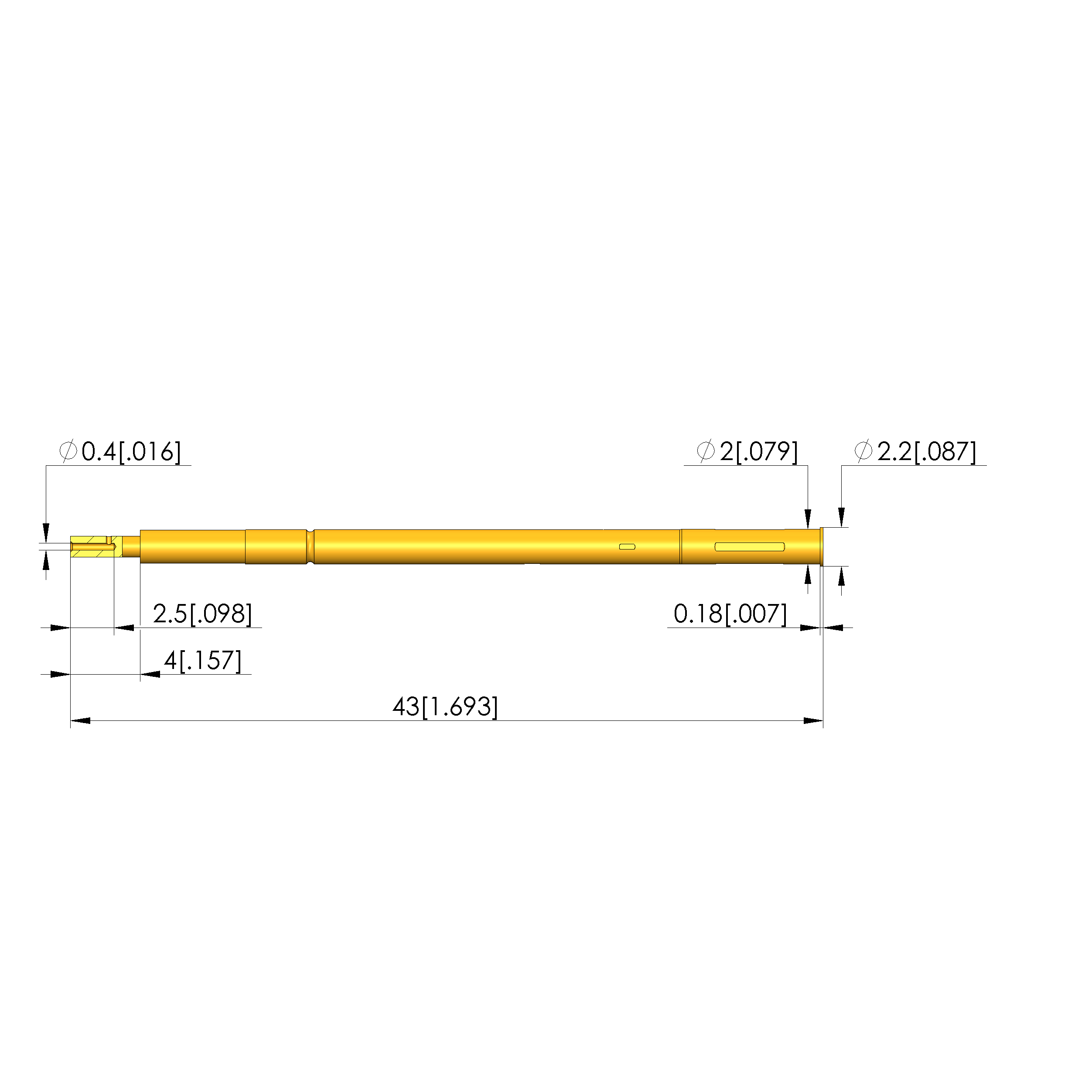

Mechanical data
- Total length: 43 mm [1.69 in]
- Outer diameter: 2 mm [.078 in]
