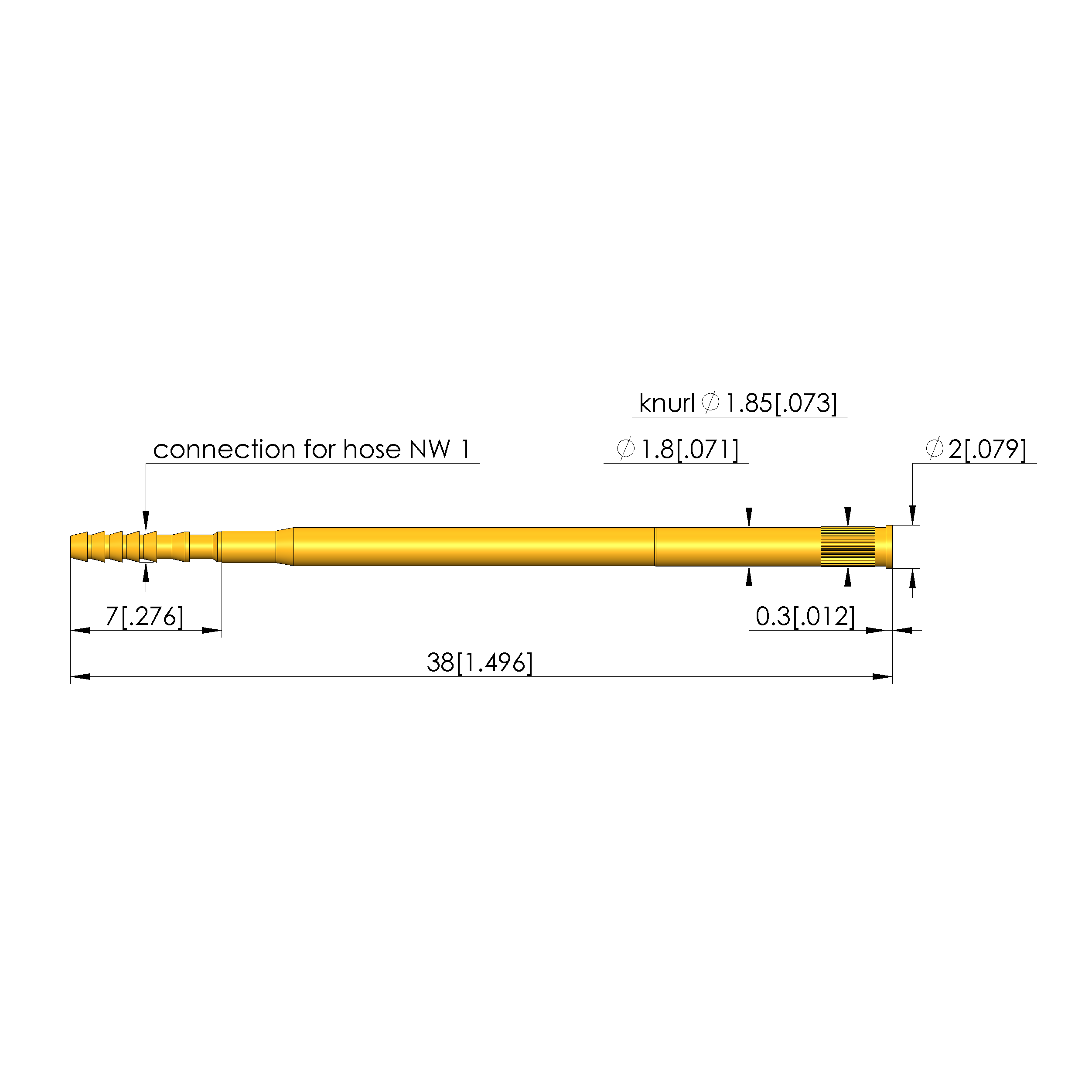

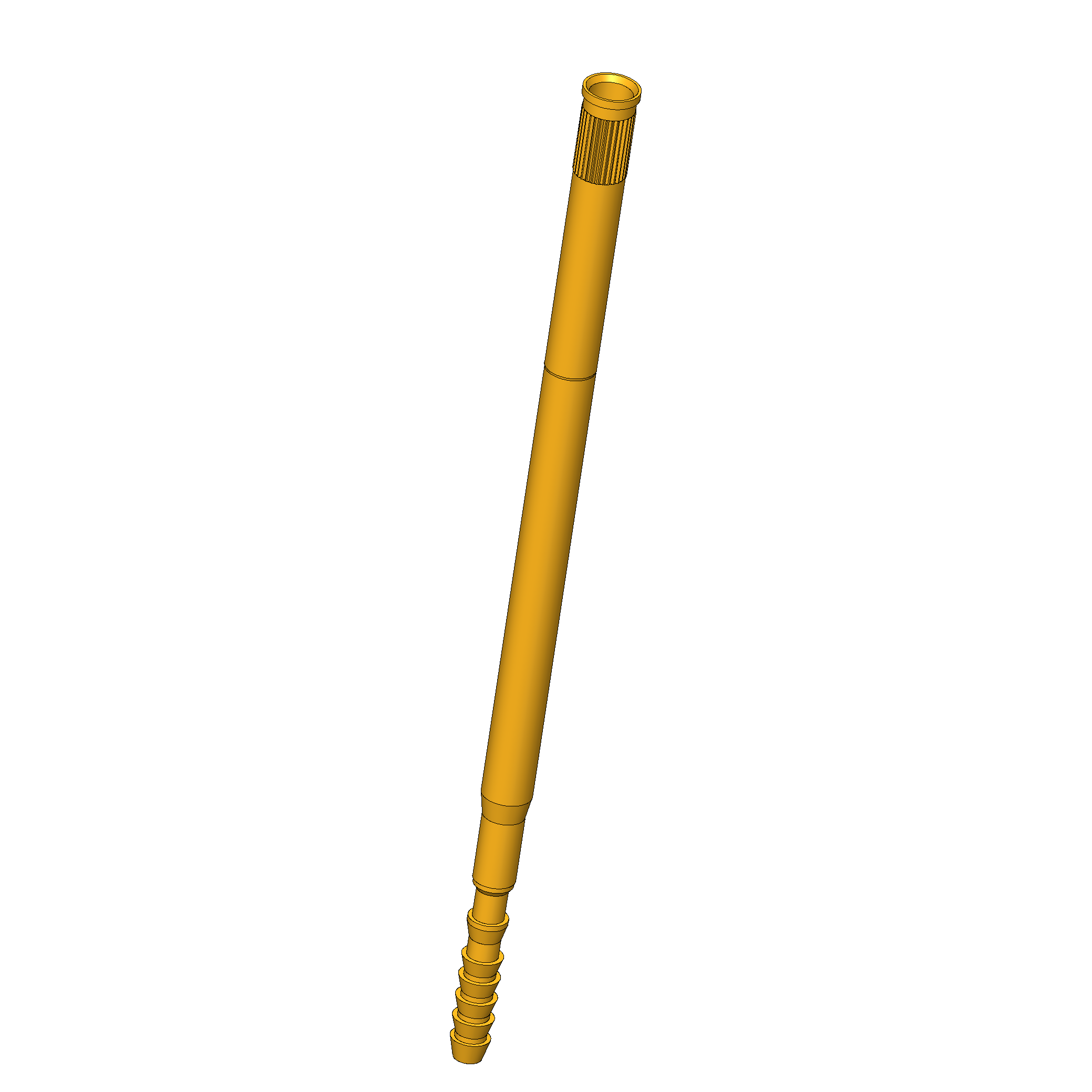

Product information "KS-171 AM"
| Collar diameter: | 2 mm [.078 in] |
|---|---|
| Collar height: | 0.3 mm [.011 in] |
| Knurl: | Yes |
| Mounting hole in CEM1: | 1.8 – 1.82 mm [.07 – .071 in] |
| Mounting hole in FR4: | 1.8 – 1.82 mm [.07 – .071 in] |
| Outer diameter: | 1.8 mm [.07 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-171 |
| Sub-series: | KS-171 M screw-in version |
| Surface area: | Gold |
| Total length: | 38 mm [1.49 in] |
| Type of receptacle connection: | Solder outer surface |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-171
- Sub-series: KS-171 M screw-in version
- Type of receptacle connection: Solder outer surface
- Press ring: No
- Surface area: Gold
- Collar diameter: 2 mm [.078 in]
- Collar height: 0.3 mm [.011 in]
- Knurl: Yes
- Vacuum-tight: No
- RoHS-compliant: Yes
Mechanical data
- Total length: 38 mm [1.49 in]
- Outer diameter: 1.8 mm [.07 in]
Mounting hole
- Mounting hole in CEM1: 1.8 – 1.82 mm [.07 – .071 in]
- Mounting hole in FR4: 1.8 – 1.82 mm [.07 – .071 in]
