Product information "KS-115 M3 F-R"
| Collar diameter: | 3.7 mm [.145 in] |
|---|---|
| Collar height: | 0.2 mm [.007 in] |
| Knurl: | Yes |
| Mounting hole in CEM1: | 3.5 – 3.52 mm [.137 – .138 in] |
| Mounting hole in FR4: | 3.5 – 3.52 mm [.137 – .138 in] |
| Outer diameter: | 3.5 mm [.137 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-115 |
| Sub-series: | KS-115 M screw-in version |
| Surface area: | Gold |
| Total length: | 23.7 mm [.933 in] |
| Type of receptacle connection: | Plug / open |
| Vacuum-tight: | yes (< 1 ccm / min) |
Login
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-115
- Sub-series: KS-115 M screw-in version
- Press ring: No
- Surface area: Gold
- Knurl: Yes
- Vacuum-tight: yes (< 1 ccm / min)
- RoHS-compliant: Yes
- Collar height: 0.2 mm [.007 in]
- Collar diameter: 3.7 mm [.145 in]
- Type of receptacle connection: Plug / open
Mounting hole
- Mounting hole in CEM1: 3.5 – 3.52 mm [.137 – .138 in]
- Mounting hole in FR4: 3.5 – 3.52 mm [.137 – .138 in]

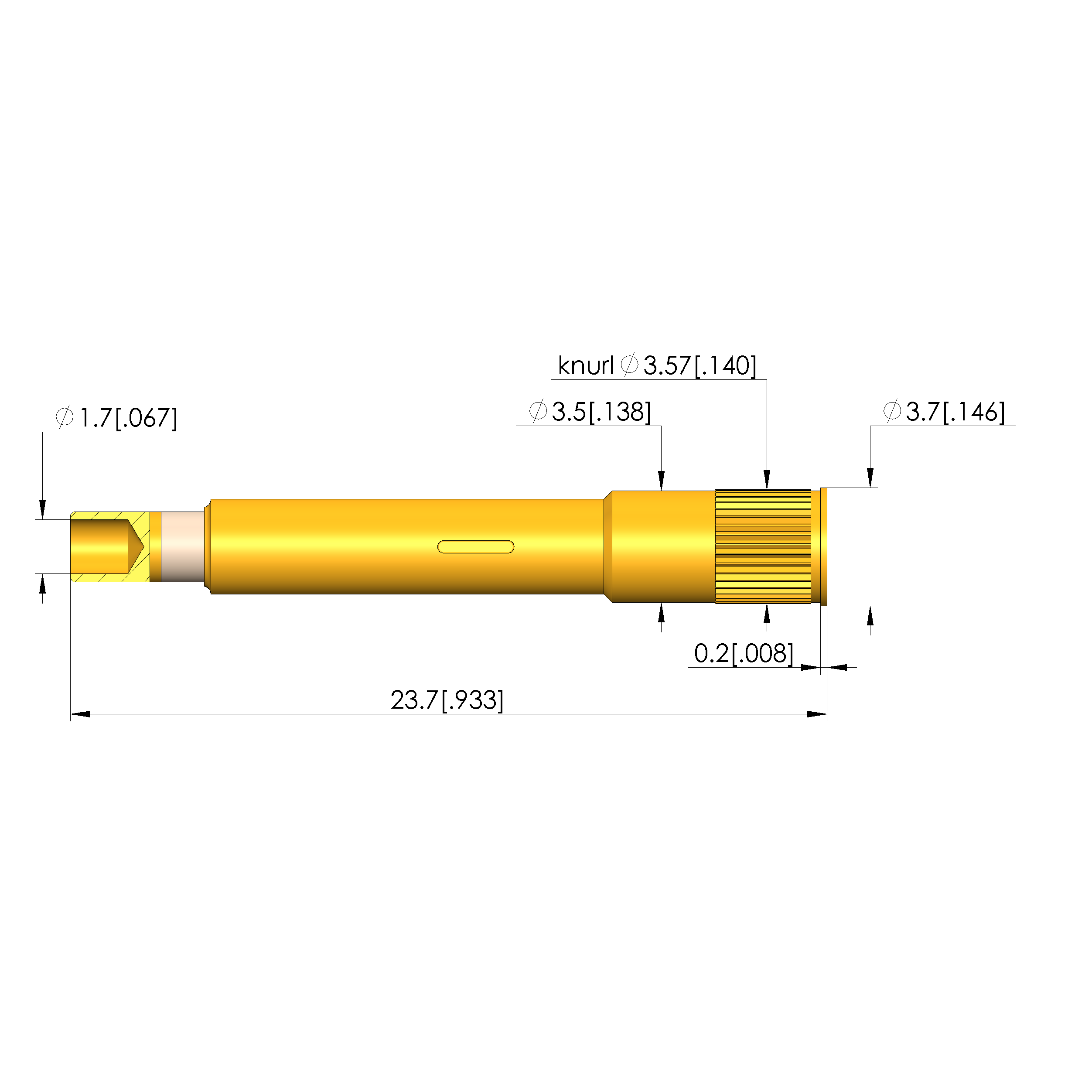

Mechanical data
- Total length: 23.7 mm [.933 in]
- Outer diameter: 3.5 mm [.137 in]
