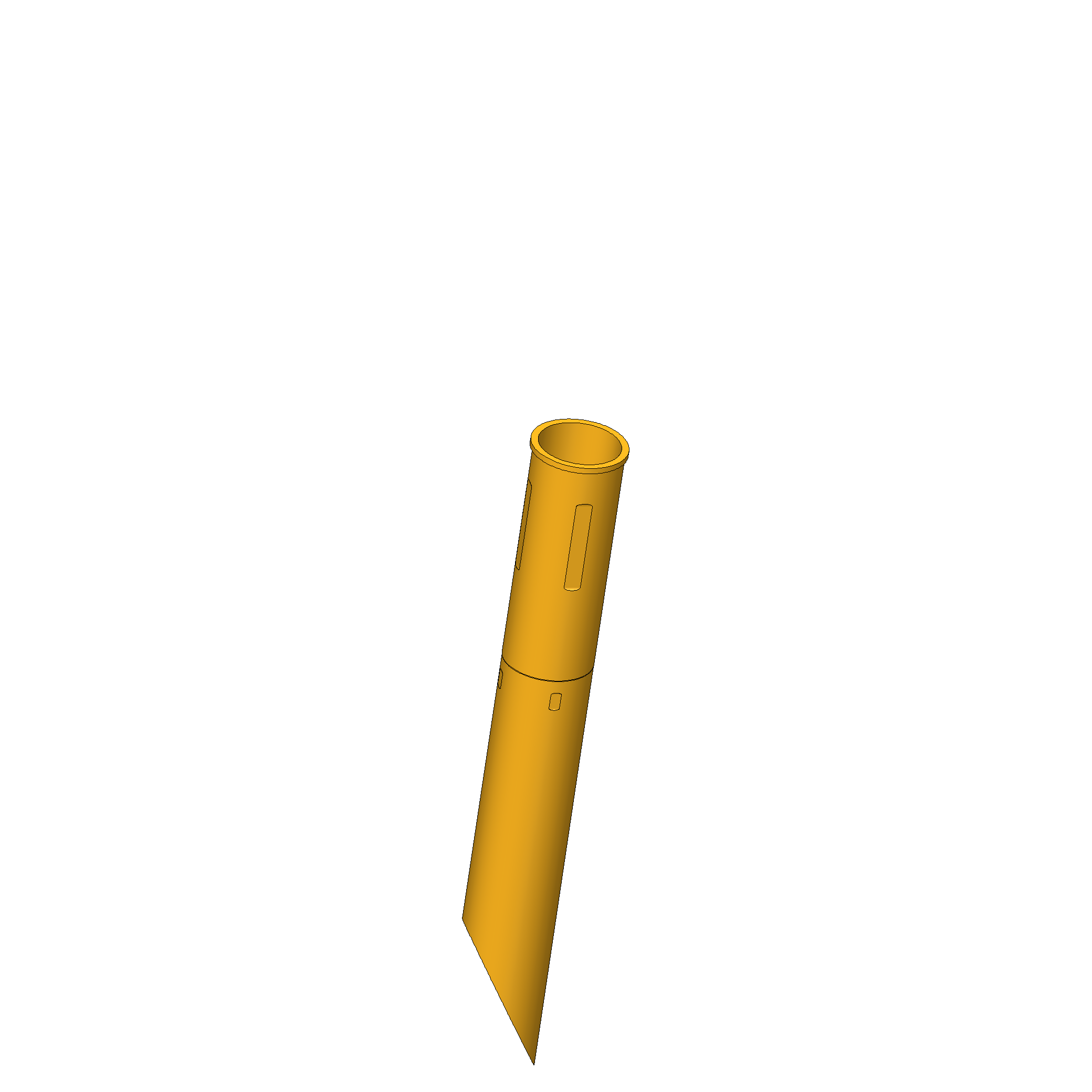

Product information "KS-113 23"

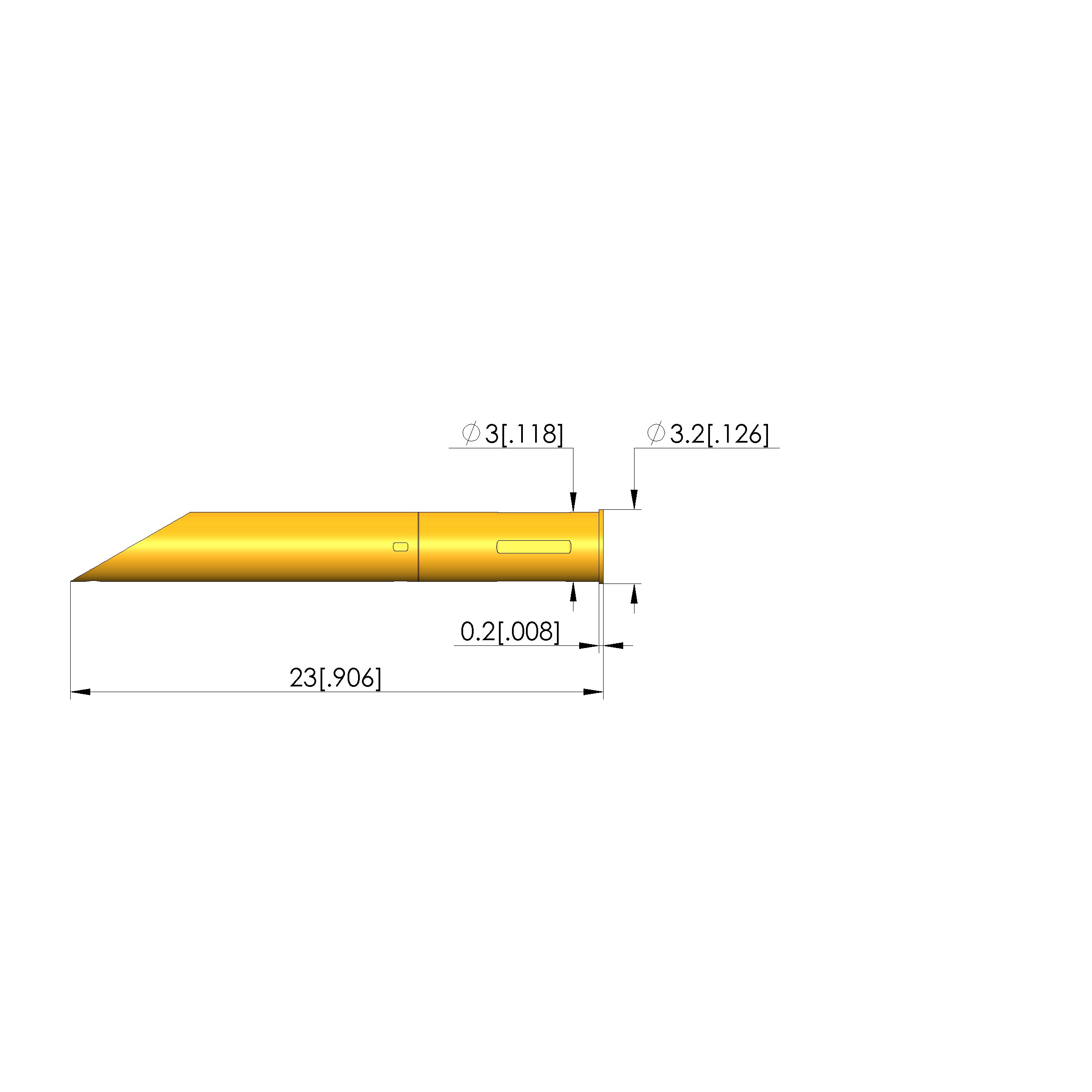

| Collar diameter: | 3.2 mm [.125 in] |
|---|---|
| Collar height: | 0.2 mm [.007 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 2.98 – 2.99 mm [.117 – .117 in] |
| Mounting hole in FR4: | 2.98 – 2.99 mm [.117 – .117 in] |
| Outer diameter: | 3 mm [.118 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-113 |
| Sub-series: | KS-113 23 press-in version |
| Surface area: | Gold |
| Total length: | 23 mm [.905 in] |
| Type of receptacle connection: | Solder / open |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Press ring: No
- Surface area: Gold
- Type of receptacle connection: Solder / open
- Collar height: 0.2 mm [.007 in]
- Product group: Receptacles (KS)
- Knurl: No
- Series: KS-113
- RoHS-compliant: Yes
- Vacuum-tight: No
- Sub-series: KS-113 23 press-in version
- Collar diameter: 3.2 mm [.125 in]
Mechanical data
- Outer diameter: 3 mm [.118 in]
- Total length: 23 mm [.905 in]
Mounting hole
- Mounting hole in FR4: 2.98 – 2.99 mm [.117 – .117 in]
- Mounting hole in CEM1: 2.98 – 2.99 mm [.117 – .117 in]
