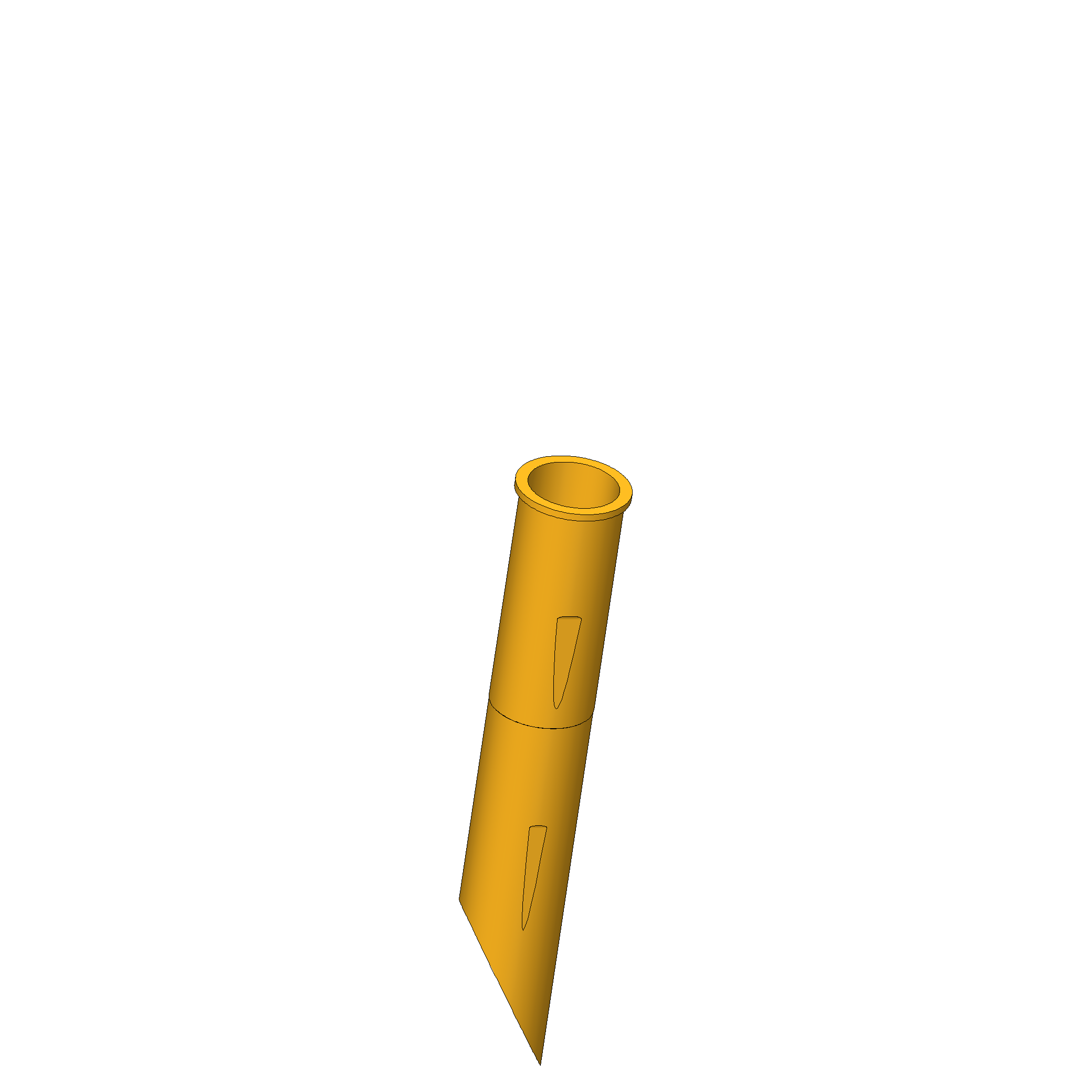

Product information "KS-103 23"
| Collar diameter: | 3.9 mm [.153 in] |
|---|---|
| Collar height: | 0.25 mm [.009 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 3.48 – 3.49 mm [.137 – .137 in] |
| Mounting hole in FR4: | 3.48 – 3.49 mm [.137 – .137 in] |
| Outer diameter: | 3.5 mm [.137 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-103 |
| Sub-series: | KS-103 23 press-in version |
| Surface area: | Gold |
| Total length: | 22 mm [.866 in] |
| Type of receptacle connection: | Solder / open |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
General data
- Product group: Receptacles (KS)
- Series: KS-103
- Sub-series: KS-103 23 press-in version
- Press ring: No
- Surface area: Gold
- Knurl: No
- Vacuum-tight: No
- RoHS-compliant: Yes
- Type of receptacle connection: Solder / open
- Collar diameter: 3.9 mm [.153 in]
- Collar height: 0.25 mm [.009 in]
Mechanical data
- Total length: 22 mm [.866 in]
- Outer diameter: 3.5 mm [.137 in]
Mounting hole
- Mounting hole in CEM1: 3.48 – 3.49 mm [.137 – .137 in]
- Mounting hole in FR4: 3.48 – 3.49 mm [.137 – .137 in]
