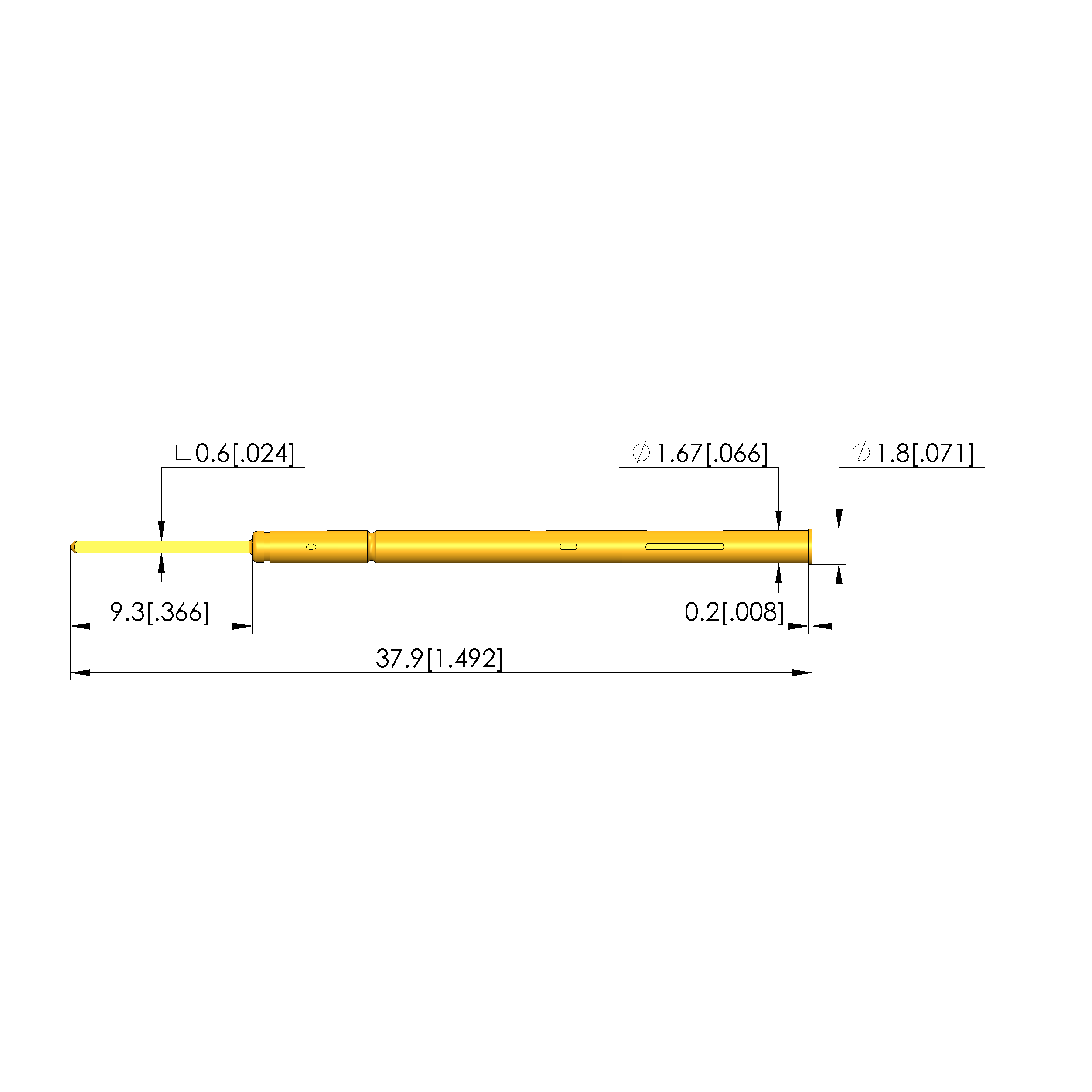

Product information "KS-100 47 93"
| Collar diameter: | 1.8 mm [.07 in] |
|---|---|
| Collar height: | 0.2 mm [.007 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 1.68 – 1.69 mm [.066 – .066 in] |
| Mounting hole in FR4: | 1.69 – 1.7 mm [.066 – .066 in] |
| Outer diameter: | 1.67 mm [.065 in] |
| Press ring: | No |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-100 |
| Sub-series: | KS-100 press-in version |
| Surface area: | Gold |
| Total length: | 37.9 mm [1.49 in] |
| Type of receptacle connection: | Wire-wrap |
| Vacuum-tight: | yes (< 1 ccm / min) |
| Wire-wrap post length: | 9.3 mm [.366 in] |
Login
Other products in this series:
Technical data
General data
- Press ring: No
- Collar diameter: 1.8 mm [.07 in]
- Surface area: Gold
- Collar height: 0.2 mm [.007 in]
- Product group: Receptacles (KS)
- Vacuum-tight: yes (< 1 ccm / min)
- Wire-wrap post length: 9.3 mm [.366 in]
- Type of receptacle connection: Wire-wrap
- Knurl: No
- Sub-series: KS-100 press-in version
- Series: KS-100
- RoHS-compliant: Yes
Mechanical data
- Outer diameter: 1.67 mm [.065 in]
- Total length: 37.9 mm [1.49 in]
Mounting hole
- Mounting hole in FR4: 1.69 – 1.7 mm [.066 – .066 in]
- Mounting hole in CEM1: 1.68 – 1.69 mm [.066 – .066 in]
