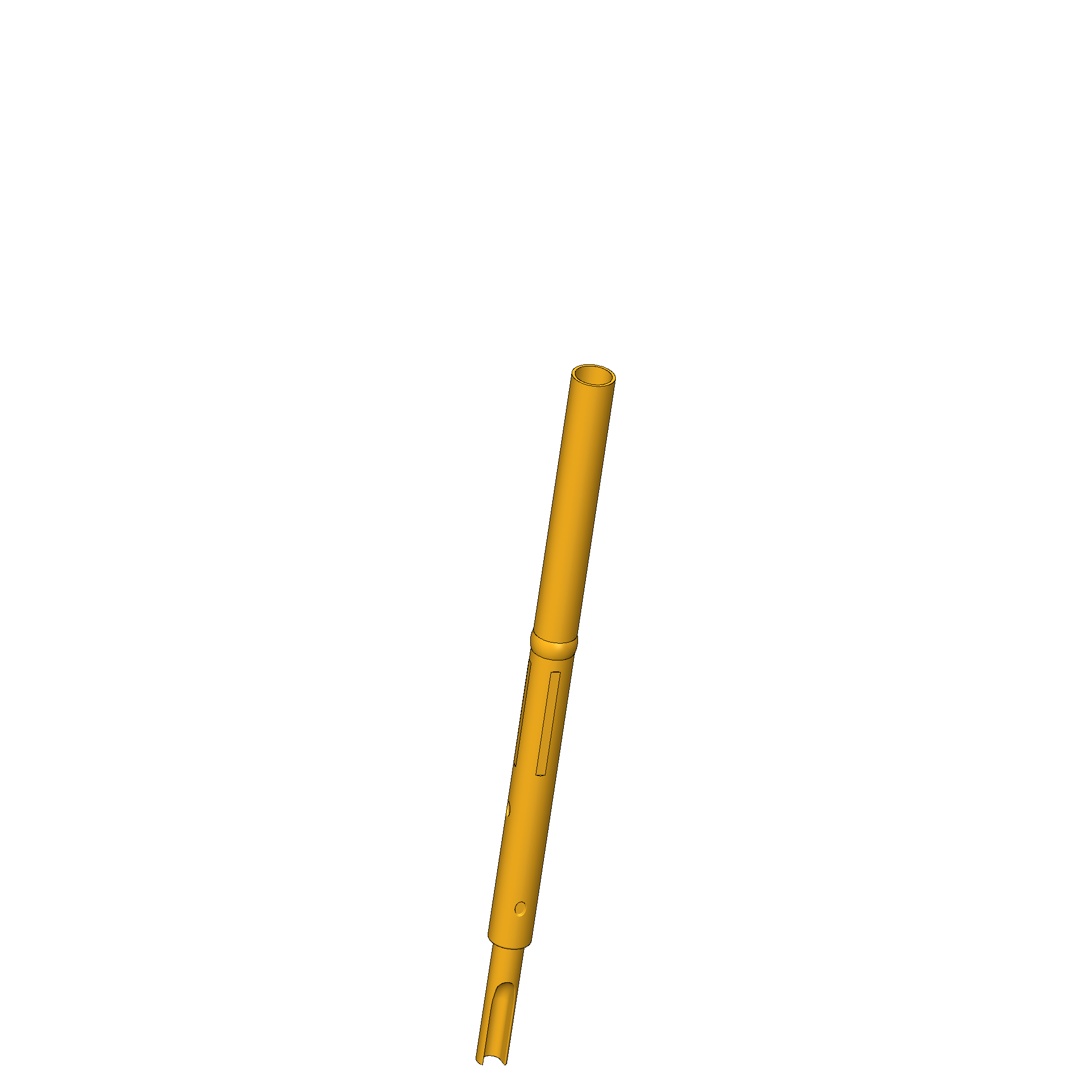

Product information "KS-100 30 G12"
| Collar diameter: | 1.85 mm [.072 in] |
|---|---|
| Collar height: | 12 mm [.472 in] |
| Knurl: | No |
| Mounting hole in CEM1: | 1.68 – 1.69 mm [.066 – .066 in] |
| Mounting hole in FR4: | 1.69 – 1.7 mm [.066 – .066 in] |
| Outer diameter: | 1.67 mm [.065 in] |
| Press ring: | Yes |
| Product group: | Receptacles (KS) |
| RoHS-compliant: | Yes |
| Series: | KS-100 |
| Sub-series: | KS-100 press-in version |
| Surface area: | Gold |
| Total length: | 30 mm [1.18 in] |
| Type of receptacle connection: | Solder |
| Vacuum-tight: | No |
Login
Other products in this series:
Technical data
Mechanical data
- Outer diameter: 1.67 mm [.065 in]
- Total length: 30 mm [1.18 in]
General data
- Surface area: Gold
- Press ring: Yes
- Product group: Receptacles (KS)
- Type of receptacle connection: Solder
- Knurl: No
- Sub-series: KS-100 press-in version
- Series: KS-100
- RoHS-compliant: Yes
- Vacuum-tight: No
- Collar diameter: 1.85 mm [.072 in]
- Collar height: 12 mm [.472 in]
Mounting hole
- Mounting hole in FR4: 1.69 – 1.7 mm [.066 – .066 in]
- Mounting hole in CEM1: 1.68 – 1.69 mm [.066 – .066 in]
